Exterior Lights Schematics. Oldsmobile Aurora 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 2001 🢒 Aurora 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Figure 1:	Turn Signal/Hazard Flasher Module Inputs Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal/Hazard Lamps-Left Battery Feed to the Fuse Block-Rear IGN-1, VENT SOL, SIR Fuses and IGN 1 Relay (Fuse Block-Rear) Battery Feed to the Fuse Block-Rear G201 (1 of 2) G201 (1 of 2)
Figure 2:	Turn Signal/Hazard Lamps-Left Master Electrical Component List Exterior Lighting Systems Description and Operation RH Turn Signal/Hazard Lamps Turn Signal/Hazard Flasher Module Inputs G402 G103 G402
Figure 3:	RH Turn Signal/Hazard Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Tail/Stop Lamps Turn Signal/Hazard Lamps-Left G401 (2 of 2) G401 (2 of 2) G103

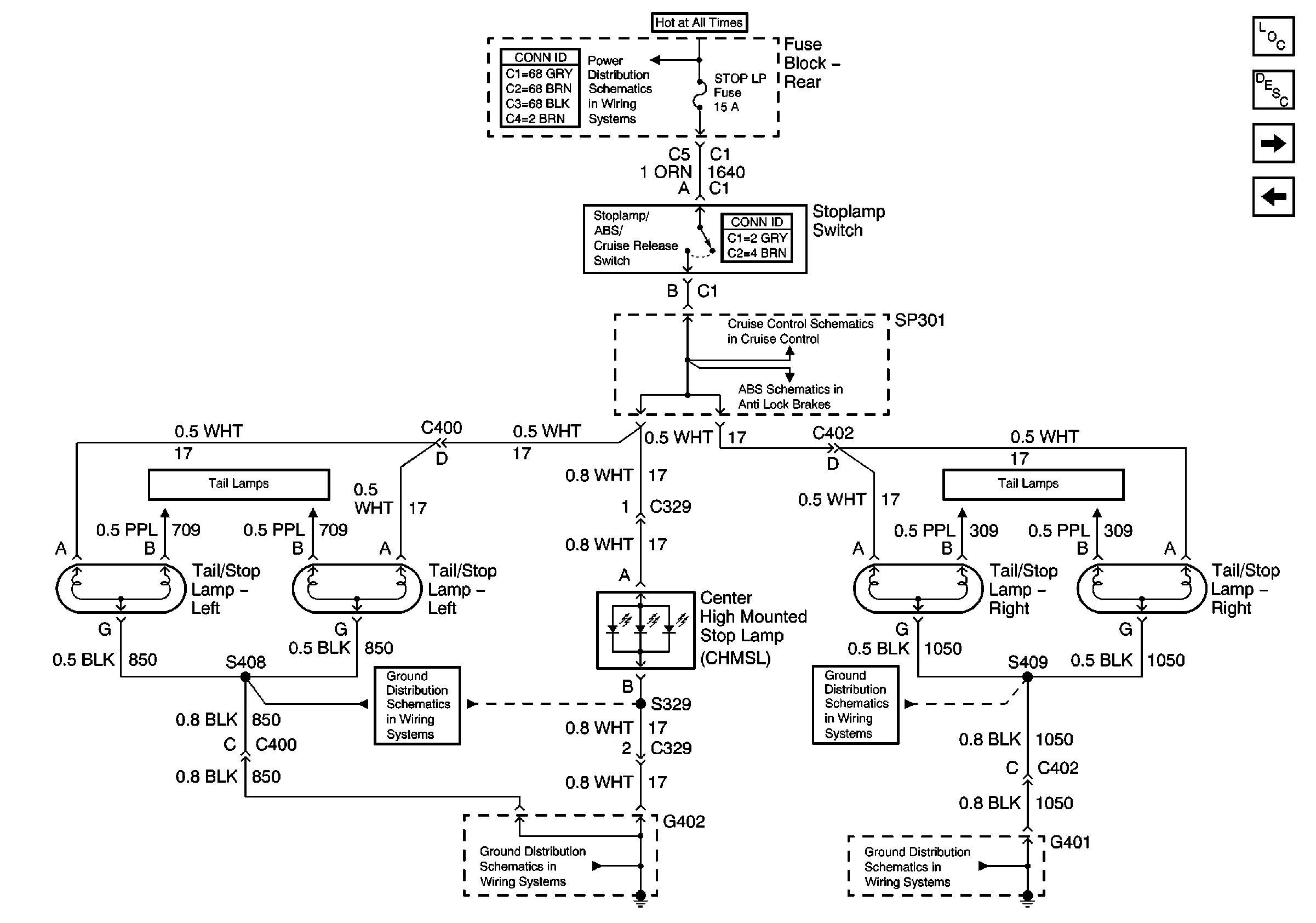

Figure 4:	Tail/Stop Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Park/Tail/Stop Lamps-Left RH Turn Signal/Hazard Lamps Battery Feed to the Fuse Block-Rear CCM, PCM Controls and Vehicle Speed Input Power, Ground, Stoplamp Switch, Solenoid Valves, and Pump Motor Park/Tail/Stop Lamps-Left Park/Tail/Stop Lamps-Right G402 G401 (2 of 2) G402 G401 (2 of 2)
Figure 5:	Park/Tail/Stop Lamps-Left Master Electrical Component List Exterior Lighting Systems Description and Operation Park/Tail/Stop Lamps-Right Tail/Stop Lamps License Plate Lamps, Park Lamp Relay Tail/Stop Lamps G402 G103 G402
Figure 6:	Park/Tail/Stop Lamps-Right Master Electrical Component List Exterior Lighting Systems Description and Operation License Plate Lamps, Park Lamp Relay Park/Tail/Stop Lamps-Left License Plate Lamps, Park Lamp Relay Tail/Stop Lamps G401 (2 of 2) G401 (2 of 2) G103
Figure 7:	License Plate Lamps, Park Lamp Relay Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps Park/Tail/Stop Lamps-Right Battery Feed to the Fuse Block-Rear G401 (1 of 2) Park/Tail/Stop Lamps-Right Park/Tail/Stop Lamps-Left Low Beam Headlamps
Figure 8:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation License Plate Lamps, Park Lamp Relay W/DD7 or DD8 Battery Feed to the Fuse Block-Rear Battery Feed to the Fuse Block-Rear G401 (2 of 2) G402 G401 (2 of 2) G402
