HVAC Component Views. Oldsmobile Bravada 2001

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 2001 🢒 Bravada 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 HVAC Component Views

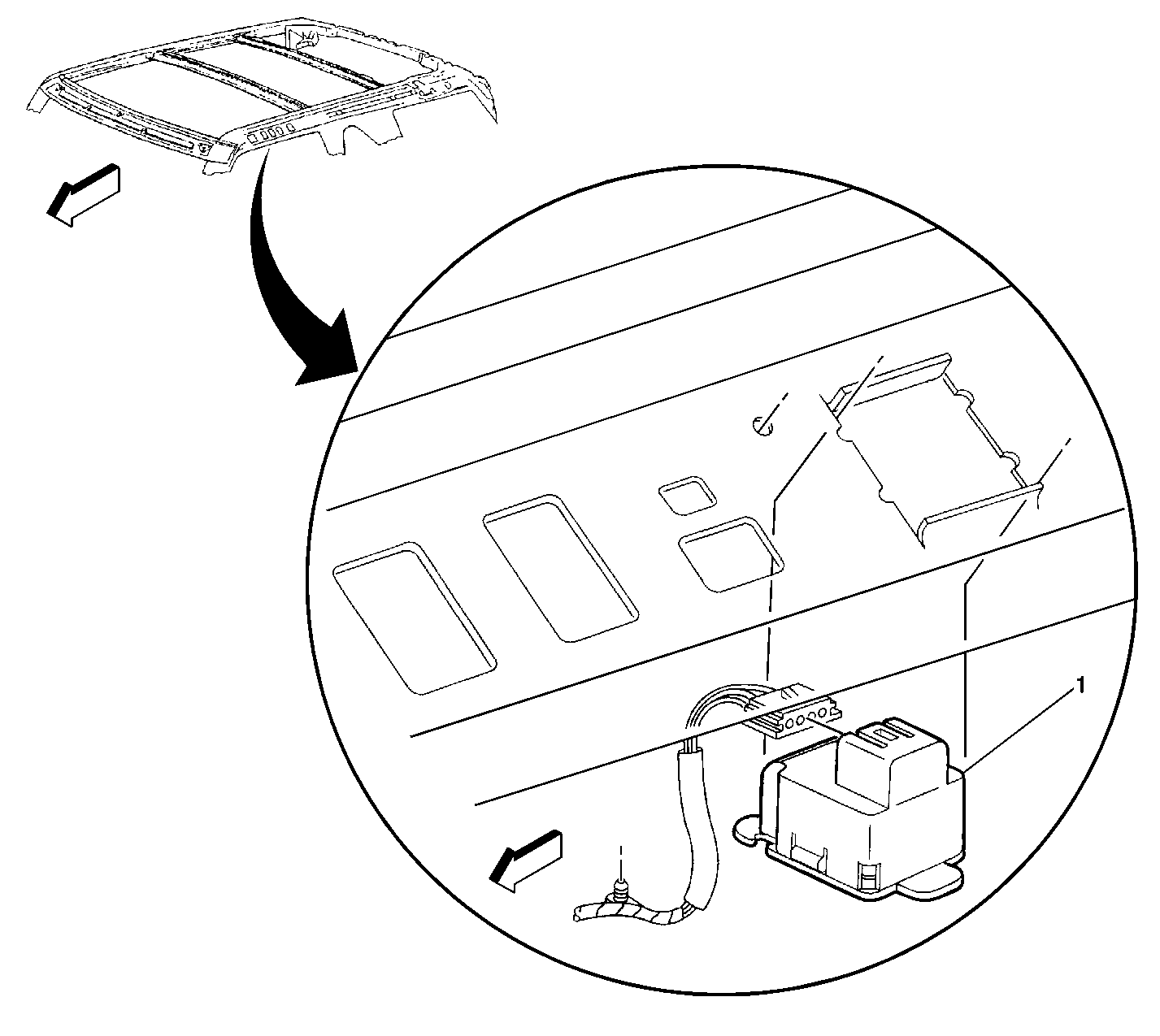

Figure 1:


(1)	Air Temperature Sensor Assembly - Inside

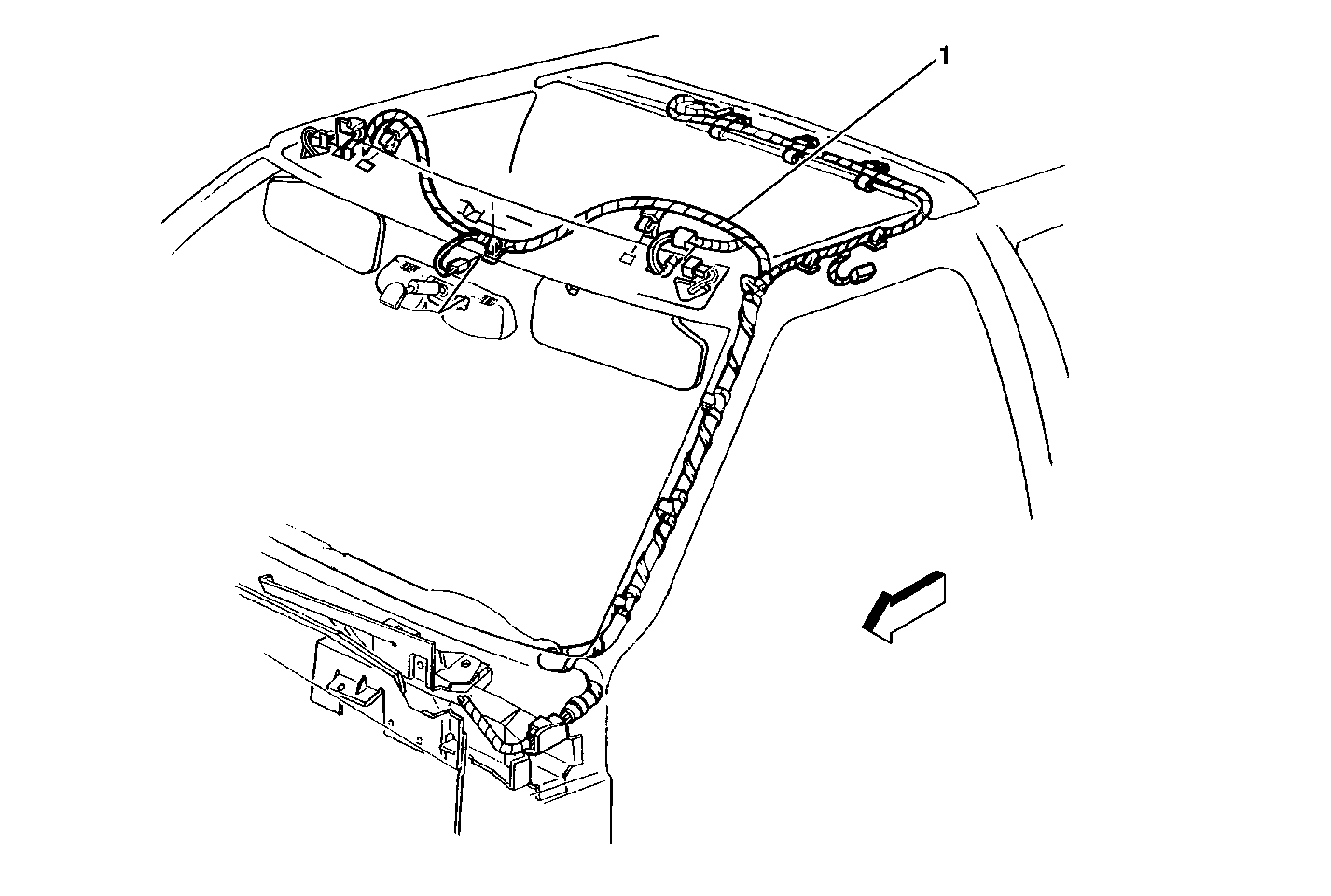

Figure 2:


(1)	S302

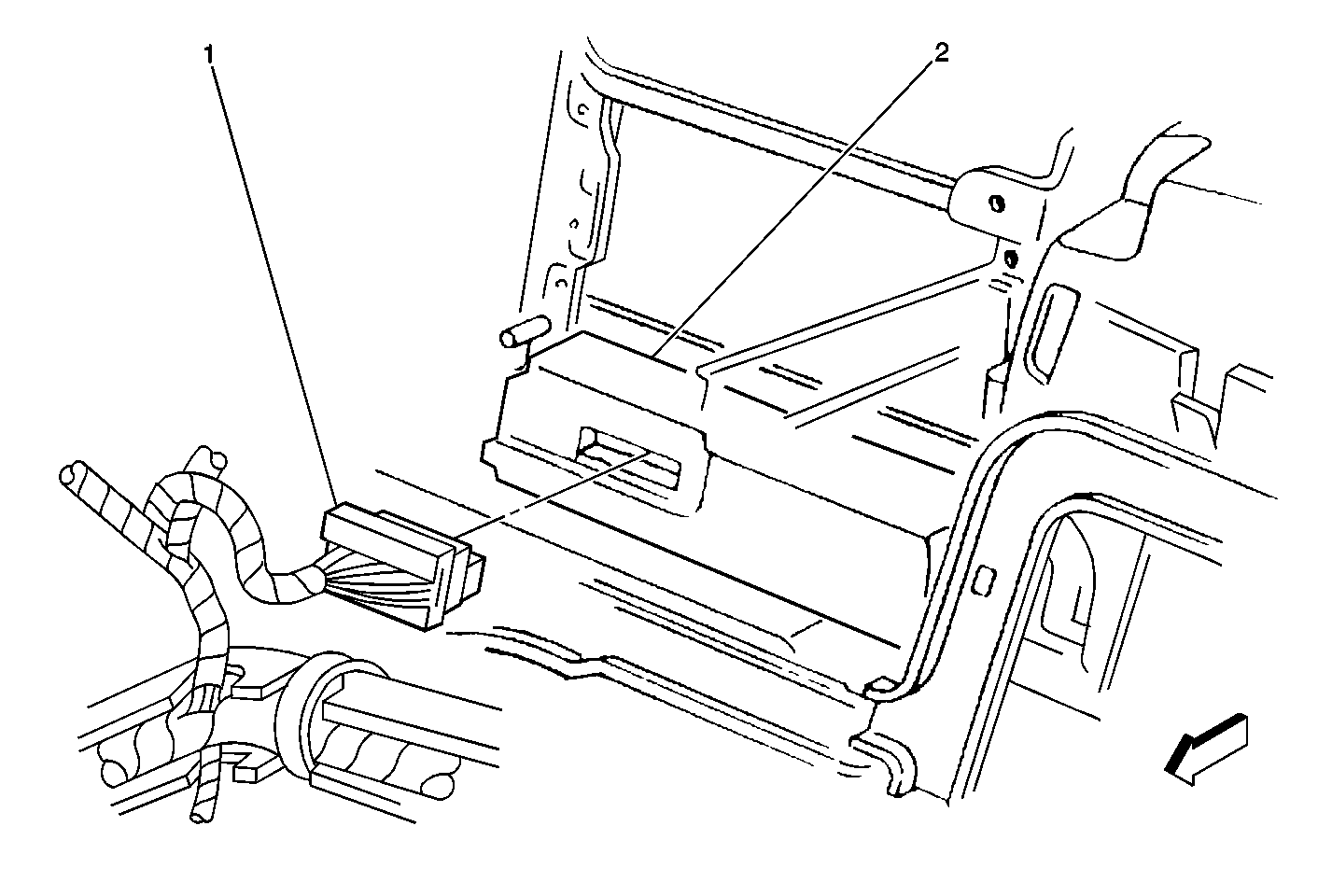

Figure 3:


(1)	HVAC Control Module Connector
(2)	HVAC Control Module

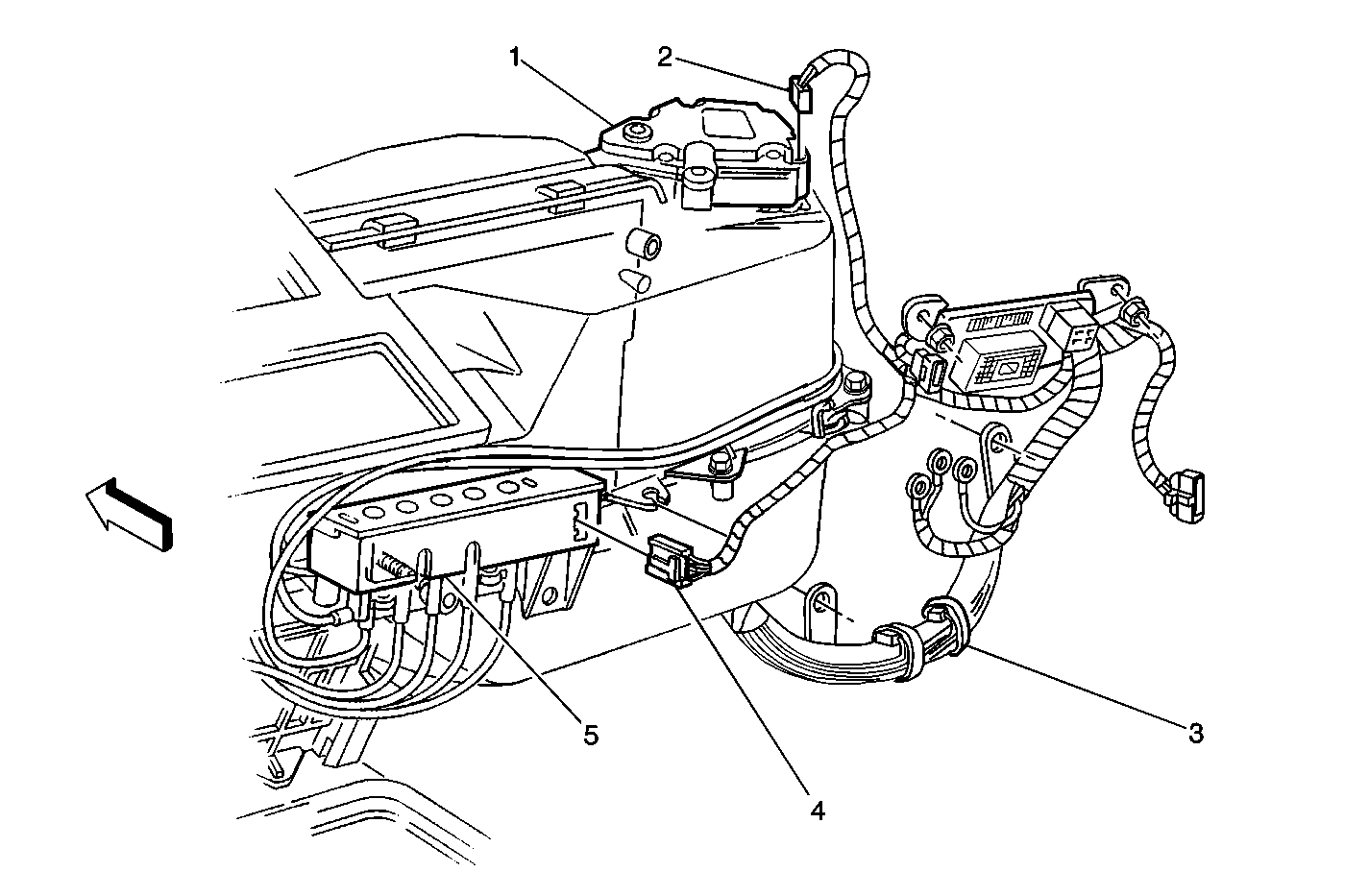

Figure 4:


(1)	Air Temperature Actuator
(2)	Air Temperature Actuator Connector
(3)	Splice Pack SP200
(4)	Vacuum Control Assembly Connector
(5)	Vacuum Control Assembly

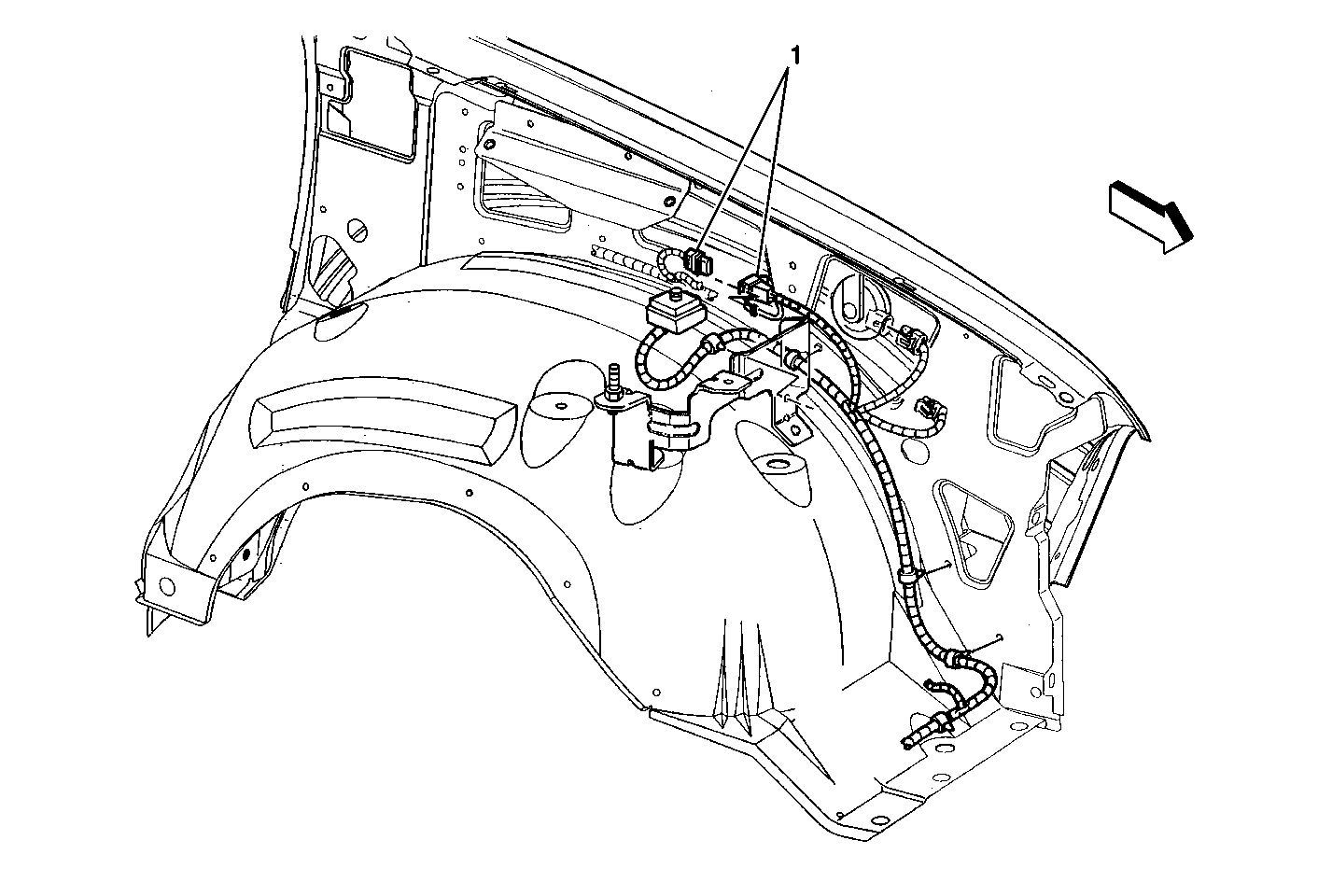

Figure 5:


(1)	C106

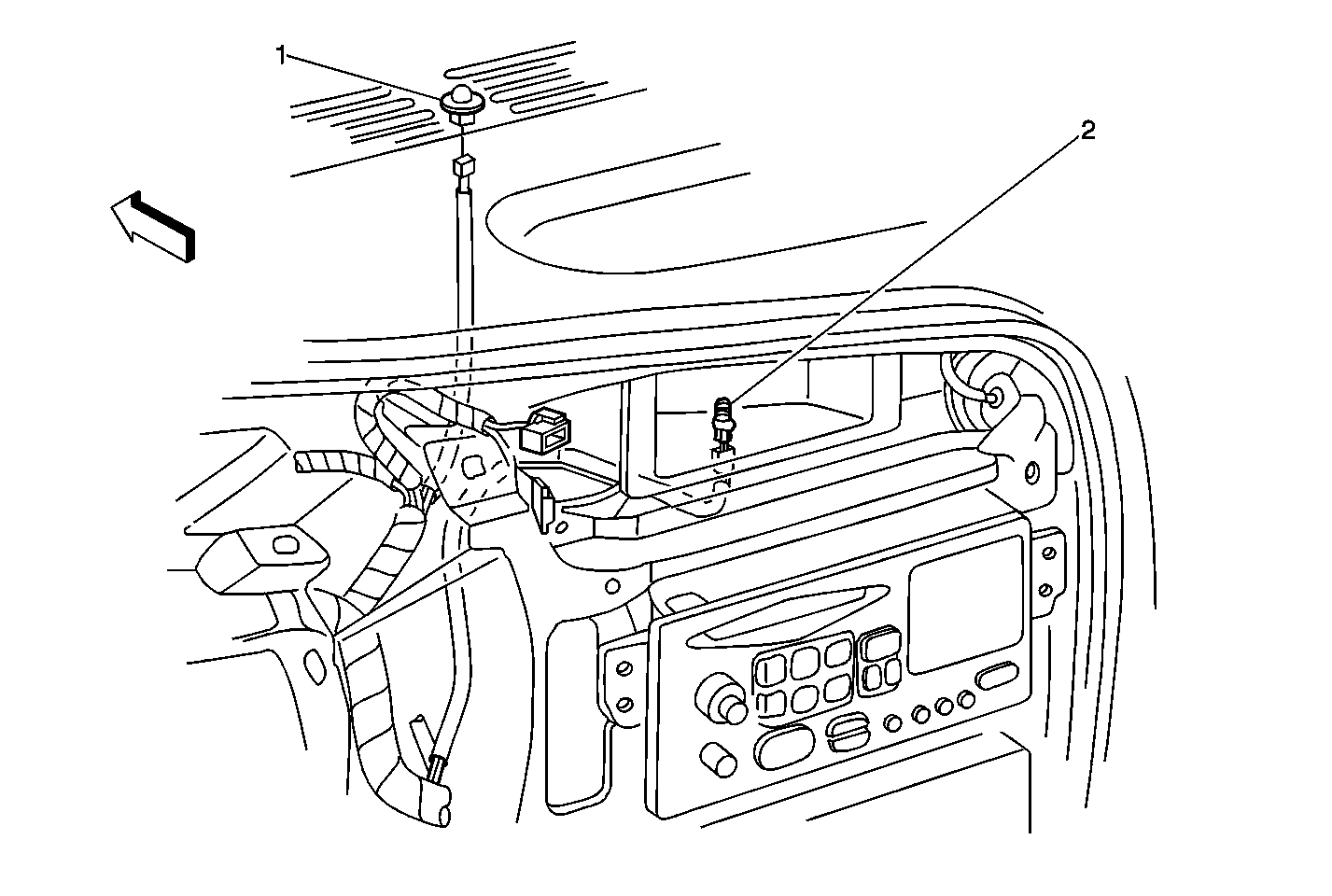

Figure 6:


(1)	Sunload Sensor
(2)	Air Temperature Sensor - Upper

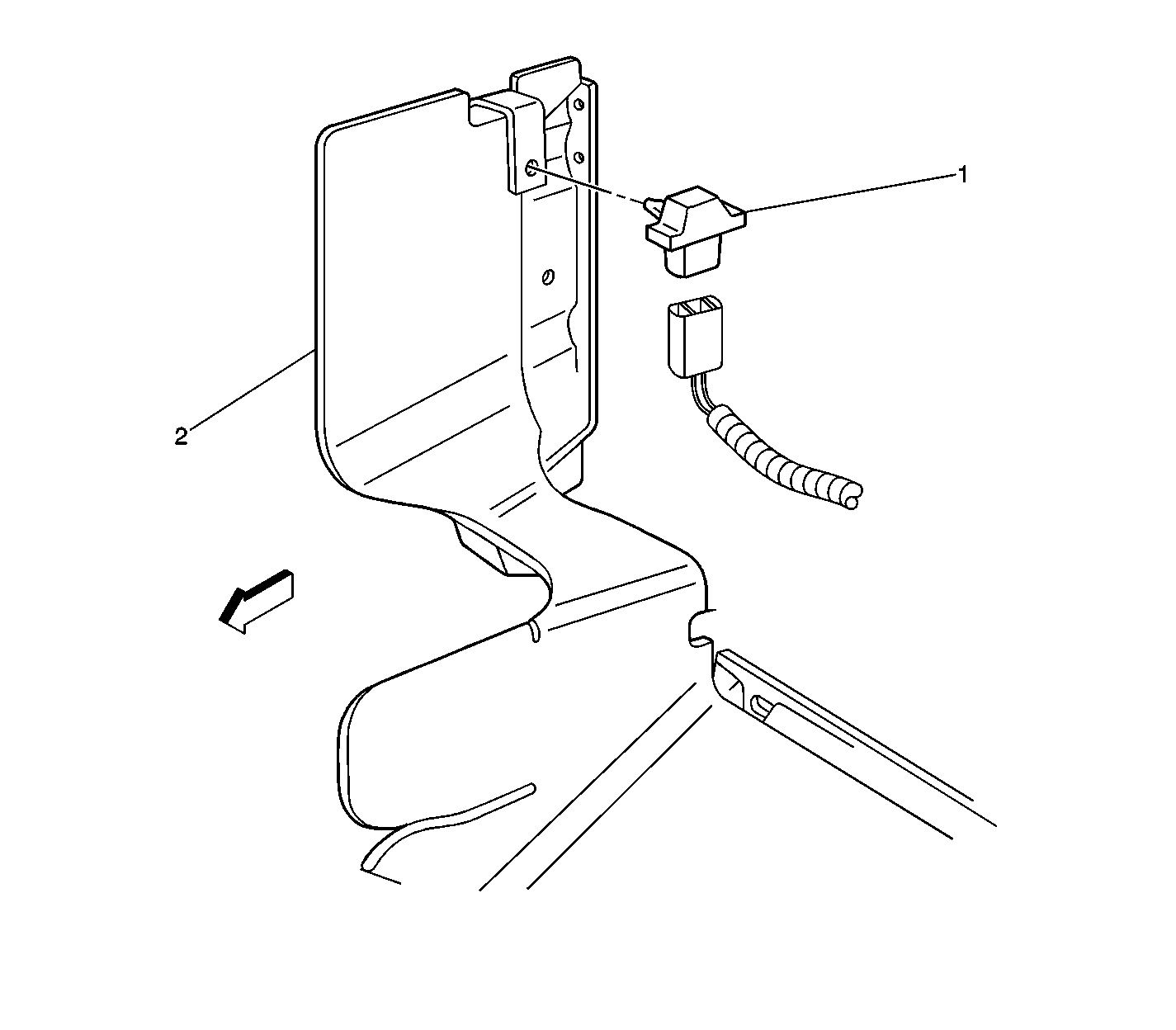

Figure 7:


(1)	Ambient Air Temperature Sensor
(2)	Radiator Baffle
