Body Rear End Schematics. Oldsmobile Bravada - 2WD 2004

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 2004 🢒 Bravada - 2WD 🢒 Accessories 🢒 Entertainment 🢒 Body Rear End Schematics

Figure 1:	Liftgate - Except XUV Master Electrical Component List Rear Hatch/Gate Ajar Indicator Description and Operation Quarter Glass Windows - Long Wheelbase (LWB) Except XUV B+ Bus - Rear Fuse Block LGM/DSM, OH BATT/ONSTAR, RADIO, and HVAC B Fuses LGM/DSM, OH BATT/ONSTAR, RADIO, and HVAC B Fuses Power, Ground, Data Link Connector, and SP205 SP306 - Except XUV G401, G402, and G403 - Except XUV

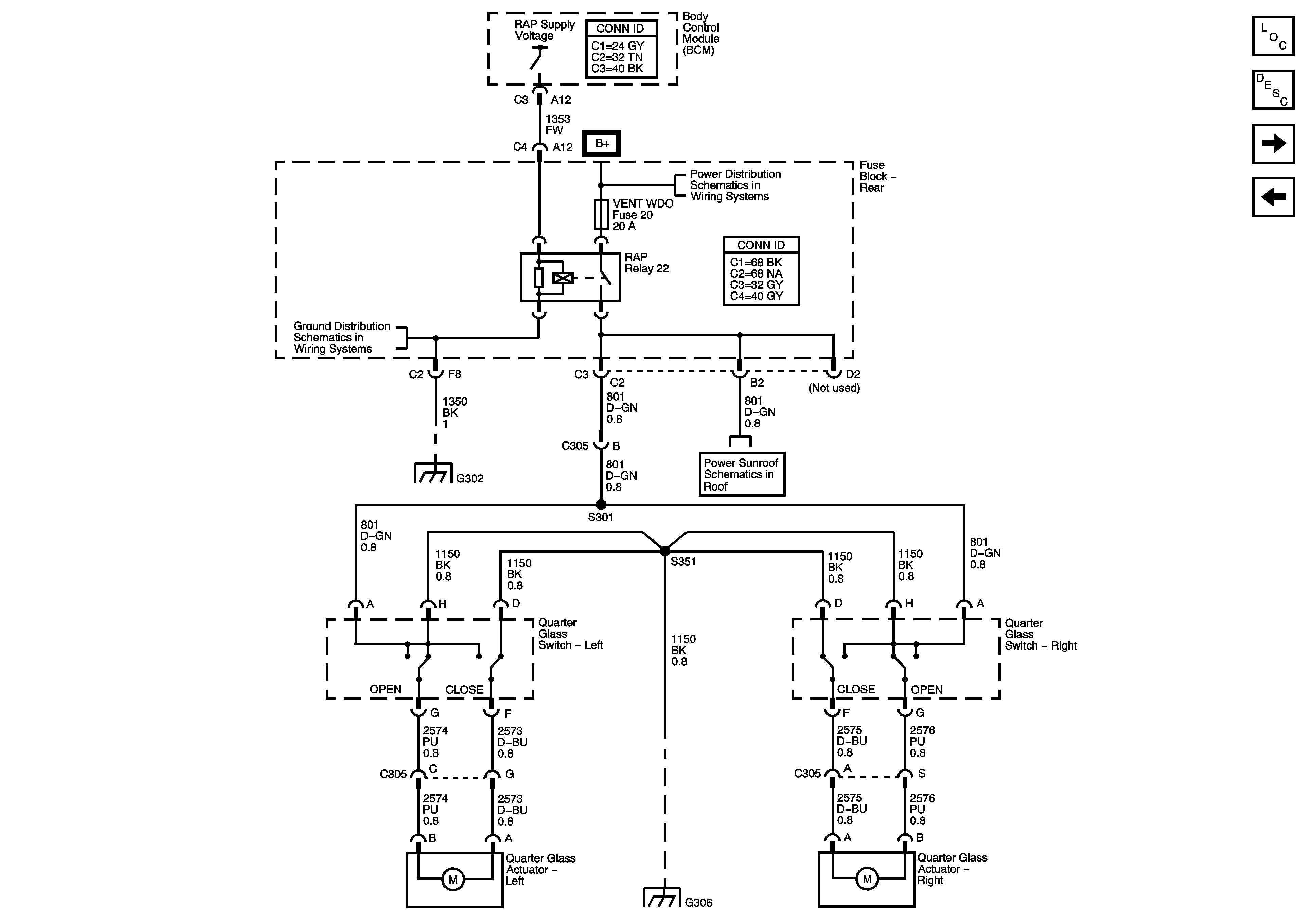

Figure 2:	Quarter Glass Windows - Long Wheelbase (LWB) Except XUV Master Electrical Component List Rear Quarter Window Description and Operation Midgate - XUV Only Liftgate - Except XUV B+ Bus - Rear Fuse Block G302 - 2 of 2 G302 - 2 of 2 Except XUV G306

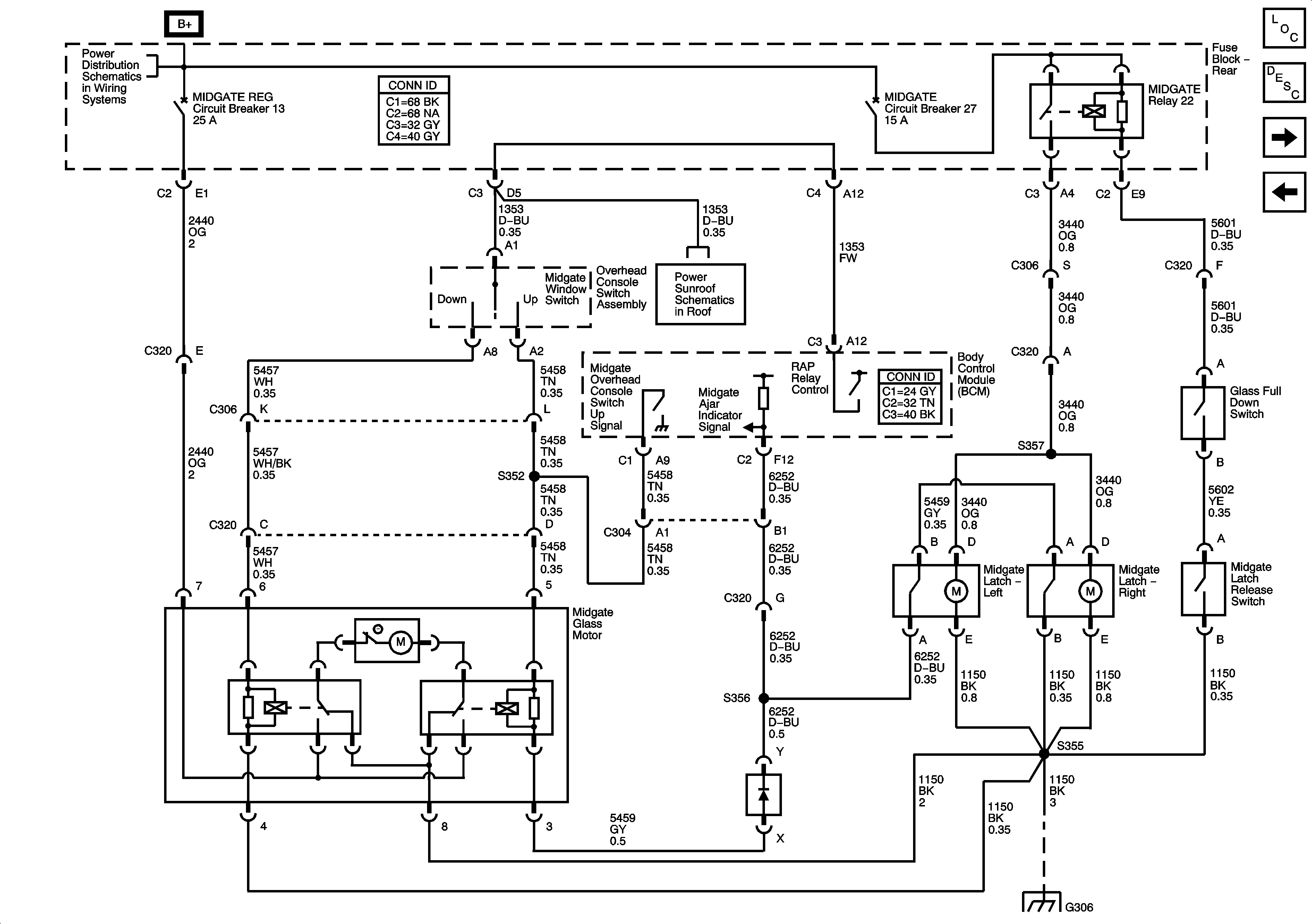

Figure 3:	Midgate - XUV Only Master Electrical Component List Midgate Description and Operation Endgate Power, Ground, and Gate Ajar - XUV Only Quarter Glass Windows - Long Wheelbase (LWB) Except XUV B+ Bus - Rear Fuse Block XUV G306
Figure 4:	Endgate Power, Gound, and Gate Ajar - XUV Only Master Electrical Component List Endgate Description and Operation Endgate Release - XUV Only Midgate - XUV Only B+ Bus - Rear Fuse Block ROOF, PWR LATCH, EGM #2, and EGM/DSM Fuses, and ROOF REG, MIDGATE REG, and ENDGLASS REG Circuit Breakers - XUV SP306 - XUV Power, Ground, Data Link Connector, and SP205 Endgate Release - XUV Only G401, G402, and G403 - XUV

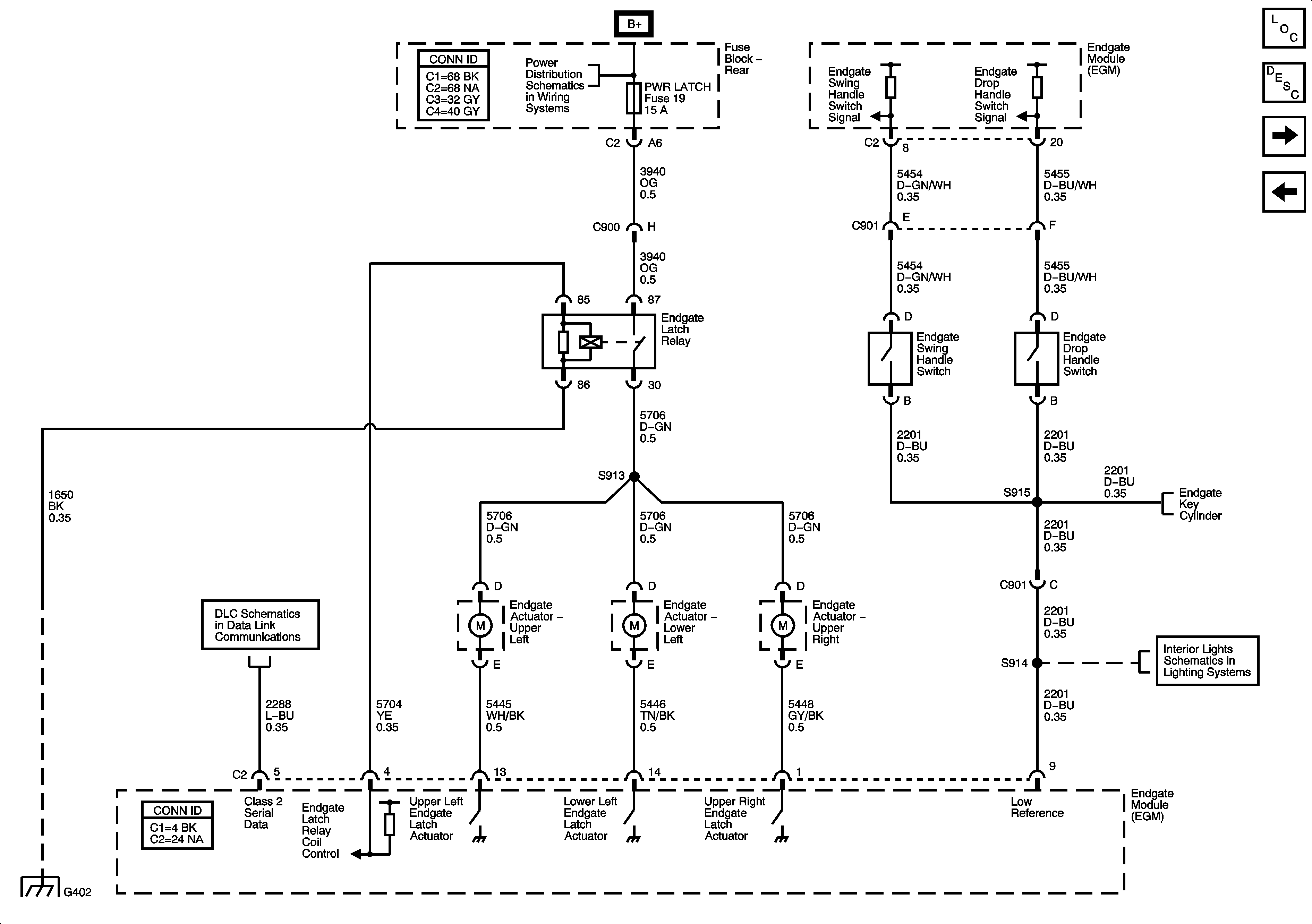

Figure 5:	Endgate Release - XUV Only Master Electrical Component List Endgate Description and Operation Endgate Window Controls - XUV Only Endgate Power, Ground, and Gate Ajar - XUV Only B+ Bus - Rear Fuse Block Endgate Window Controls - XUV Only SP306 - XUV Liftgate Module (Except XUV) and Endgate Module (XUV) Switch Inputs G401, G402, and G403 - XUV

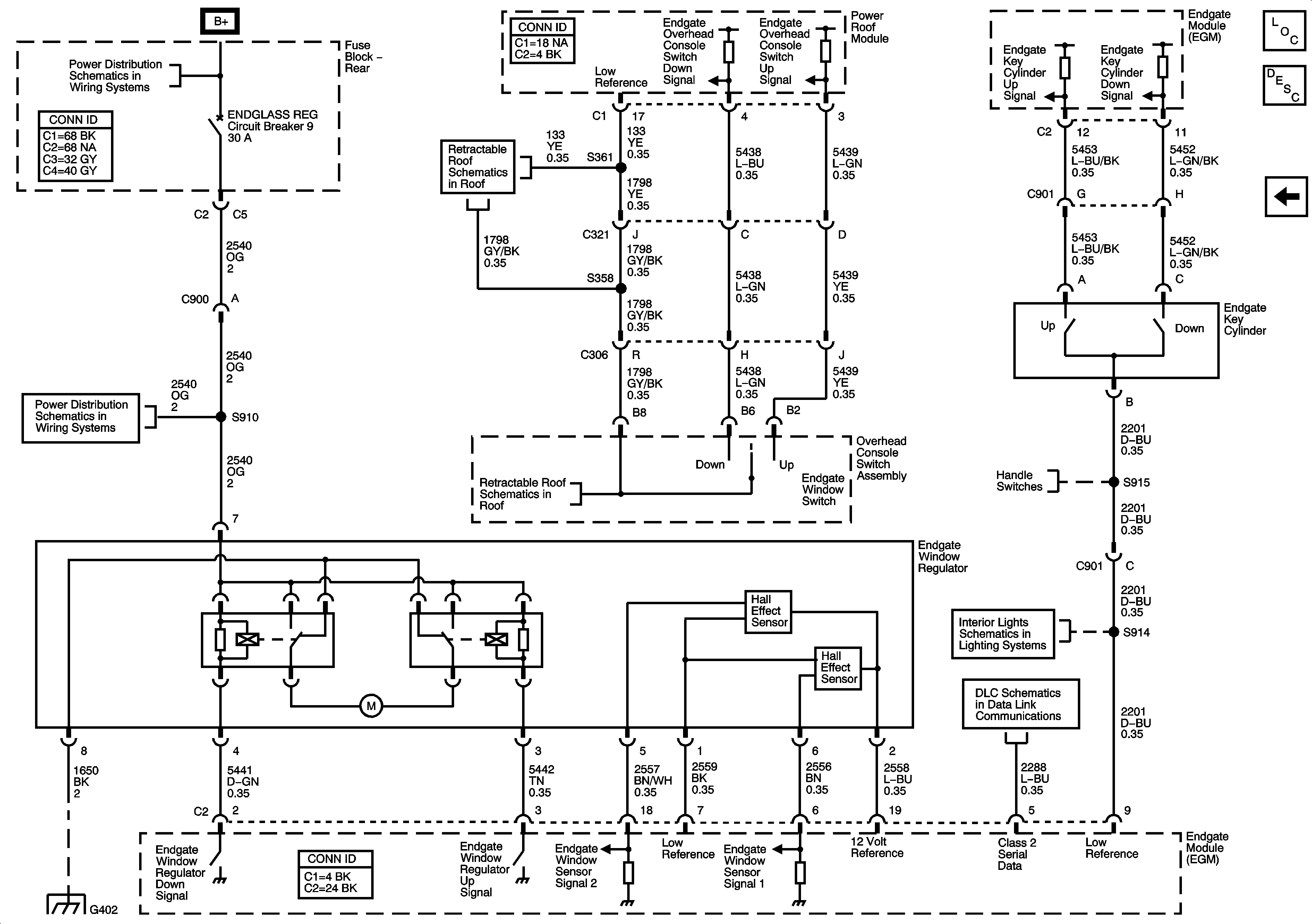

Figure 6:	Endgate Window Controls - XUV Only Master Electrical Component List Endgate Power Window Description and Operation Endgate Release - XUV Only B+ Bus - Rear Fuse Block 04 S/T Utility Retractable Roof Schematics ROOF, PWR LATCH, EGM #2, and EGM/DSM Fuses, and ROOF REG, MIDGATE REG, and ENDGLASS REG Circuit Breakers - XUV 04 S/T Utility Retractable Roof Schematics Endgate Release - XUV Only Liftgate Module (Except XUV) and Endgate Module (XUV) Switch Inputs SP306 - XUV G401, G402, and G403 - XUV
