CAMPAIGN: REAR BRAKE WHEEL CYLINDER ROTATION

MODELS/YEARS 1978, 1979 AND 1980 CUTLASS MODELS

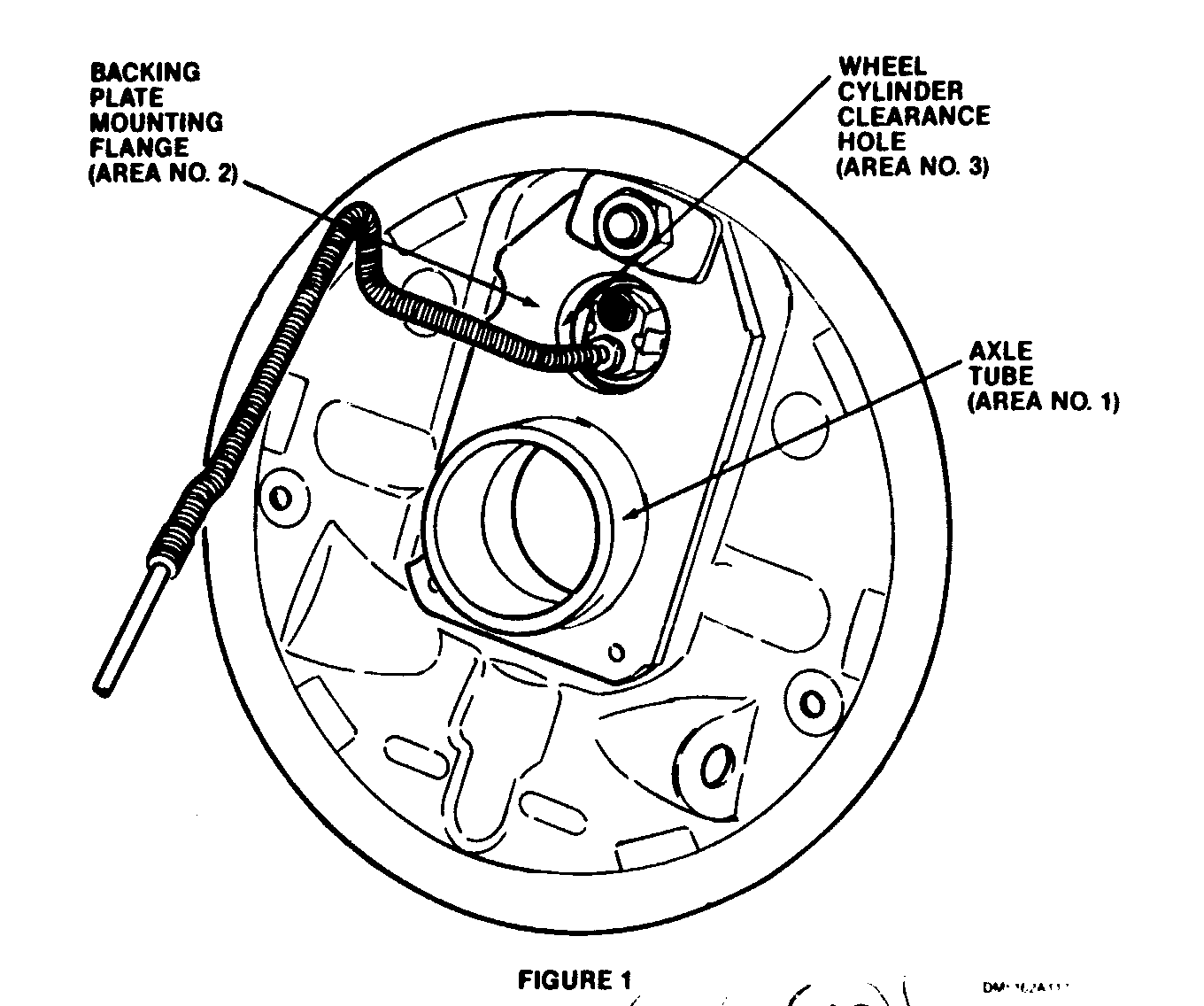

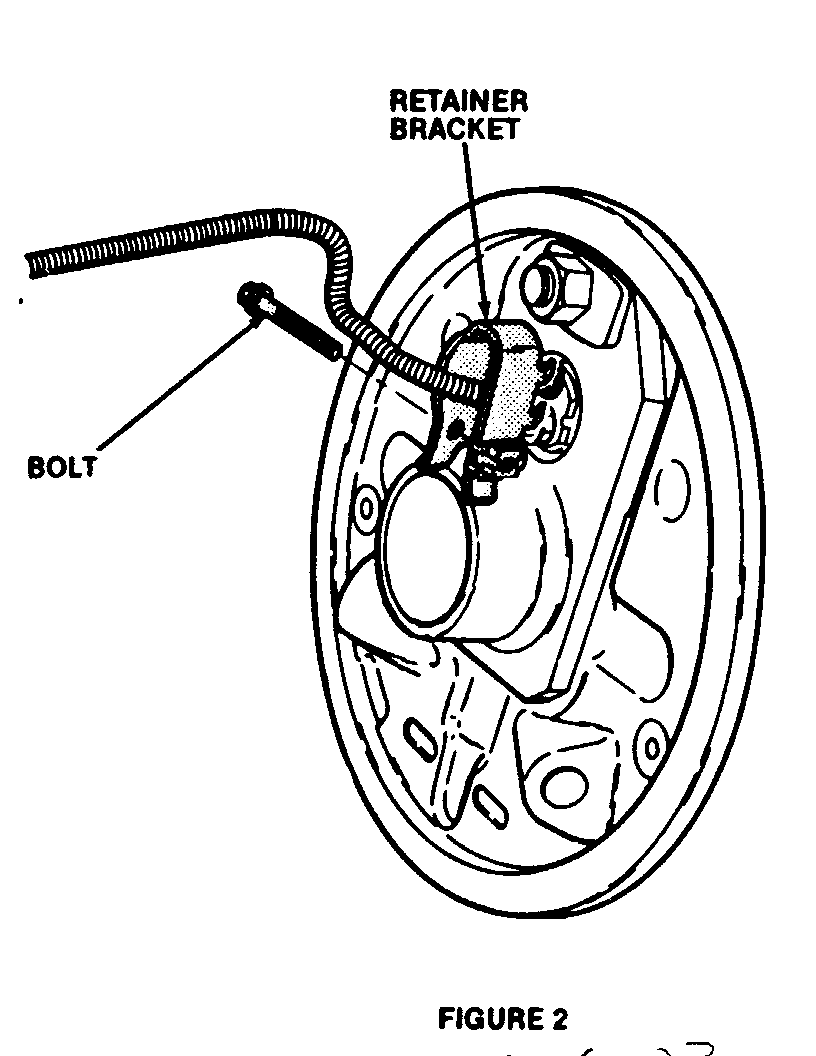

TO ENSURE THE REAR BRAKE WHEEL CYLINDER BRACKET IS PROPERLY INSTALLED, THE FOLLOWING INFORMATION IS PROVIDED AS A VISUAL AID WHEN INSTALLING RETAINER KIT. REFER TO THE SERVICE PROCEDURE ON PAGE 2 OF CAMPAIGN BULLETIN 80-C-18, DATED SEPTEMBER 12,1985.

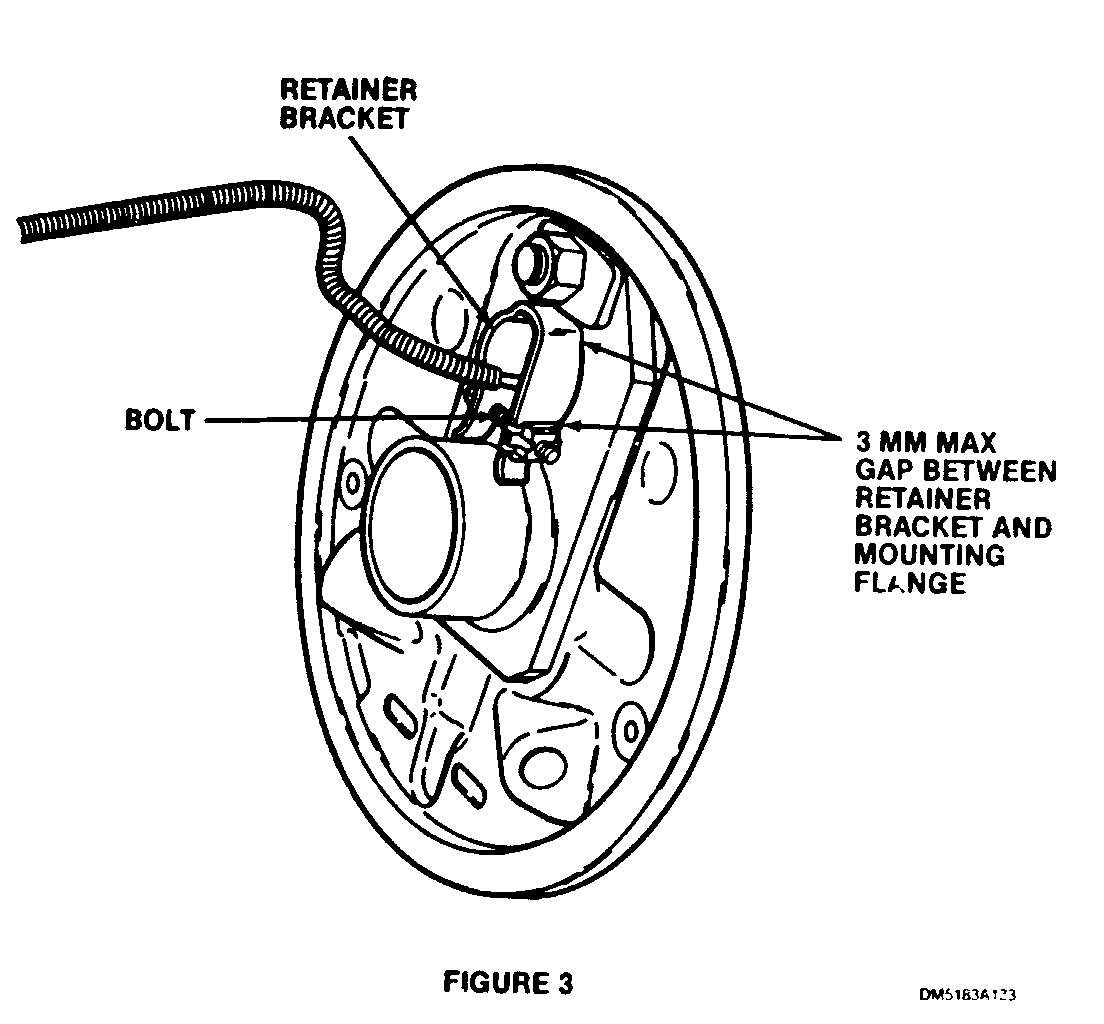

After the bracket has been installed, inspect to make sure that the bracket fingers grasp the wheel cylinder, as shown in illustration. If fingers do not grasp the cylinder, remove the bracket and repeat steps 2, 3 and 4 of the Service Procedure.

General Motors bulletins are intended for use by professional technicians, not a "do-it-yourselfer". They are written to inform those technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper service of a vehicle. Properly trained technicians have the equipment, tools, safety instructions and know-how to do a job properly and safely. If a condition is described, do not assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See a General Motors dealer servicing your brand of General Motors vehicle for information on whether your vehicle may benefit from the information.
