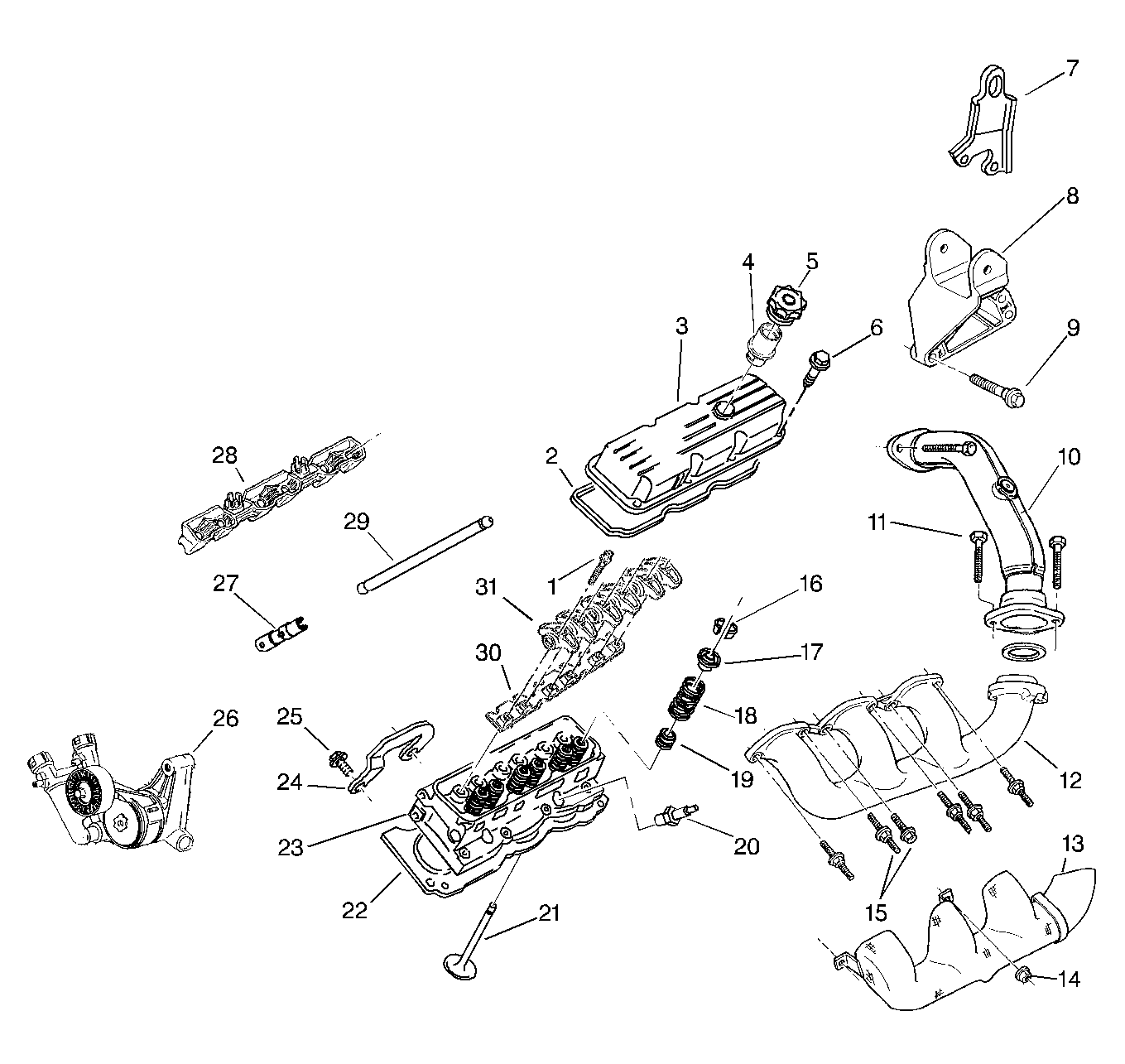

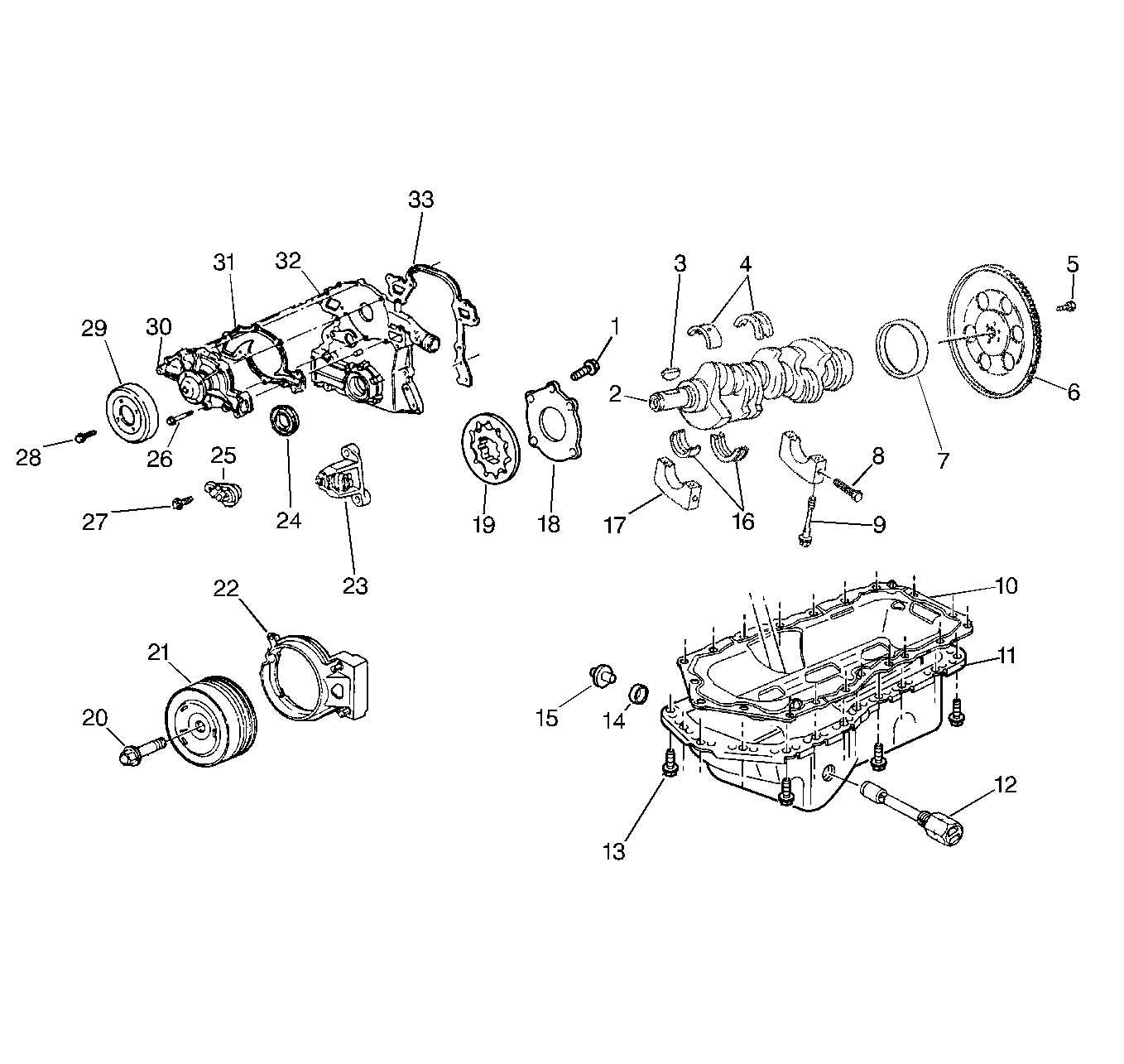

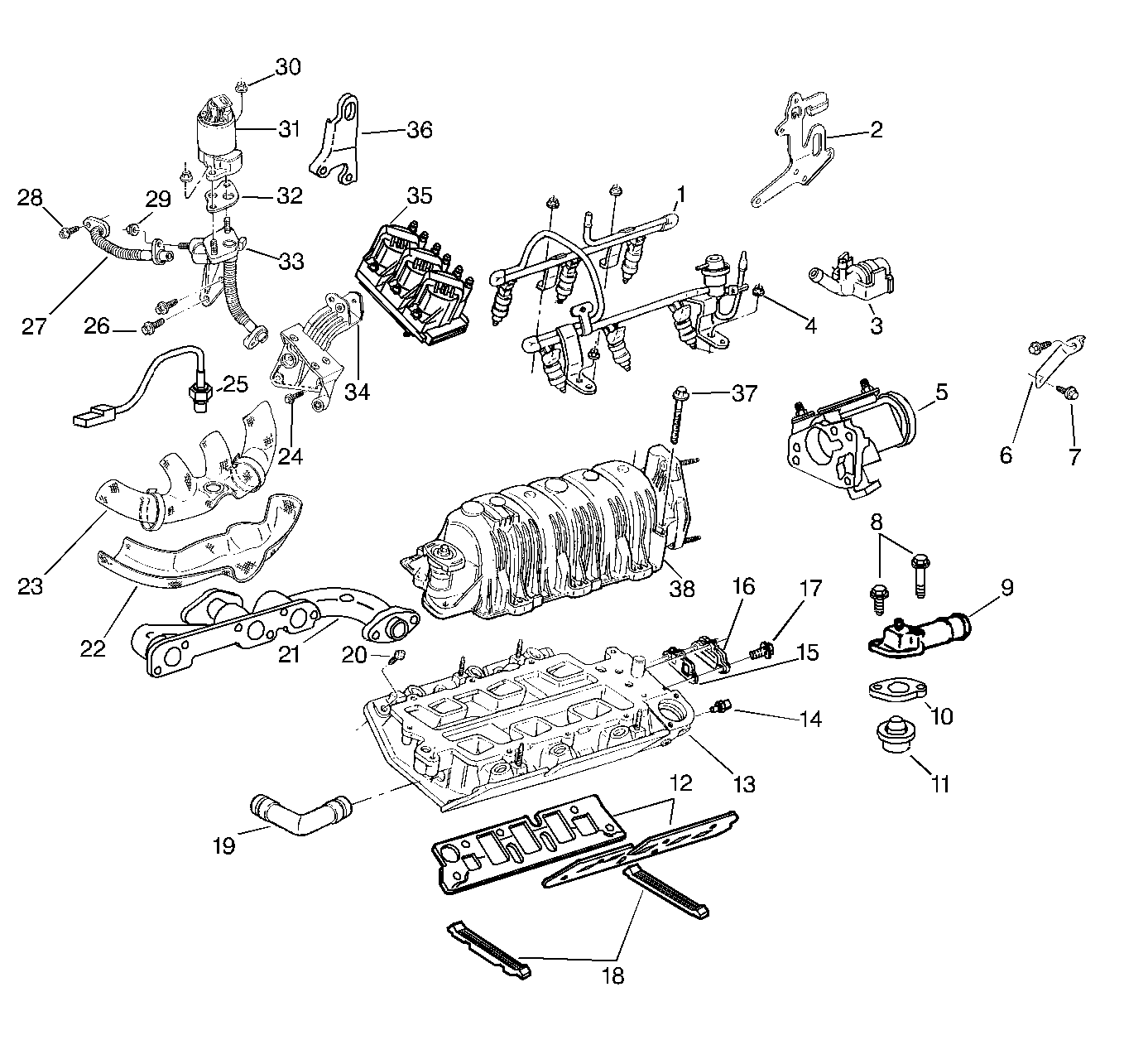

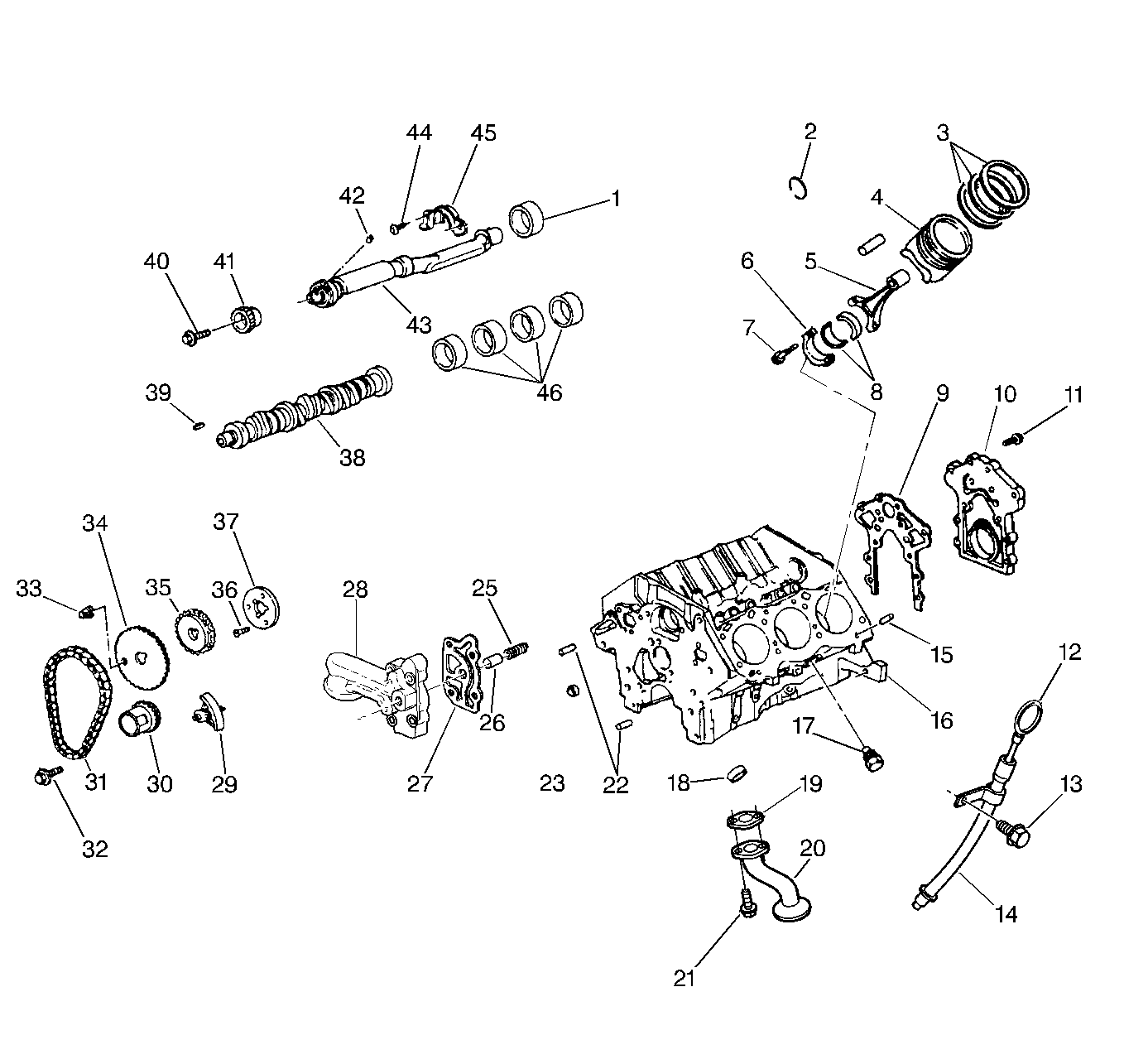

| (1) | Balance Shaft Bushing |
| (2) | Piston Pin Retainer
Clip |
| (3) | Piston Rings |
| (4) | Piston |
| (5) | Connecting Rod |
| (6) | Connecting Rod Cap |
| (7) | Connecting Rod Cap Bolt |
| (8) | Connecting Rod Cap Bearing Kit |
| (9) | Crankshaft Rear Main Oil
Seal Housing Gasket |
| (10) | Crankshaft Rear Main Oil Seal Housing |
| (11) | Crankshaft Rear Main Oil Seal Housing
Bolt |
| (12) | Oil Level Indicator |
| (13) | Oil Level Indicator Tube Bolt |
| (14) | Oil Level Indicator Tube |
| (15) | Cylinder Head Location
Hole Pin |
| (16) | Engine Cylinder Block |
| (17) | ESC Knock Sensor |
| (18) | Engine Block Core Hole Plug |
| (19) | Oil Pump Screen Gasket |
| (20) | Oil Pump Screen |
| (21) | Oil Pump Screen Bolt |
| (22) | Engine Front Cover Pin |
| (23) | Cylinder Block Oil Gallery Plug |
| (25) | Oil Pressure Relief Valve Spring |
| (26) | Oil Pressure
Relief Valve |
| (27) | Oil Filter Adapter Gasket |
| (28) | Oil Filter Adapter |
| (29) | Timing Chain Damper |
| (30) | Crankshaft Sprocket |
| (31) | Timing Chain |
| (32) | Camshaft Sprocket
Bolt |
| (33) | Camshaft Position Sensor Magnet |
| (34) | Camshaft Sprocket |
| (35) | Balance Shaft Drive Gear |
| (36) | Camshaft Thrust Plate Bolt |
| (37) | Camshaft Thrust
Plate |
| (38) | Camshaft |
| (39) | Camshaft Key |
| (40) | Balance Shaft Gear Bolt |
| (41) | Balance Shaft Gear |
| (42) | Balance Shaft Gear Pin |
| (43) | Balance Shaft |
| (44) | Balance Shaft Retainer Bolt |
| (45) | Balance Shaft Retainer |
| (46) | Camshaft
Bearings |
