Engine Controls Schematics. Oldsmobile Cutlass Supreme 1996

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1996 🢒 Cutlass Supreme 🢒 Engine 🢒 Engine Controls - 3.1L 🢒 Engine Controls Schematics

Figure 1:	MIL, Instrument Panel, and the DLC Engine Controls Components Powertrain Control Module (PCM) Ignition Control and the Knock Sensor System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Ignition Control and the Knock Sensor System Engine Controls Components Information Sensors Fuel Injectors MIL, Instrument Panel, and the DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 3:	Fuel Injectors Engine Controls Components Fuel Metering System Components Fuel Pump Relay and the Theft Deterrent System Ignition Control and the Knock Sensor System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 4:	Fuel Pump Relay and the Theft Deterrent System Engine Controls Components Fuel Metering System Components ECT, MAP, TP, IAT, and A/C Systems Fuel Injectors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	ECT, MAP, TP, IAT, and A/C Systems Engine Controls Components Information Sensors MAF, EVAP and EGR Systems Fuel Pump Relay and the Theft Deterrent System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 6:	MAF, EVAP and EGR Systems Engine Controls Components Information Sensors Heated Oxygen Sensors ECT, MAP, TP, IAT, and A/C Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 7:	Heated Oxygen Sensors Engine Controls Components Information Sensors IAC and Transmission Range Switch Systems MAF, EVAP and EGR Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 8:	IAC and Transmission Range Switch Systems Engine Controls Components Information Sensors Instrument Cluster and Vehicle Speed Sensor Systems Heated Oxygen Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 9:	Instrument Cluster and Vehicle Speed Sensor Systems Engine Controls Components Information Sensors TCC and Brake Switch Systems IAC and Transmission Range Switch Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

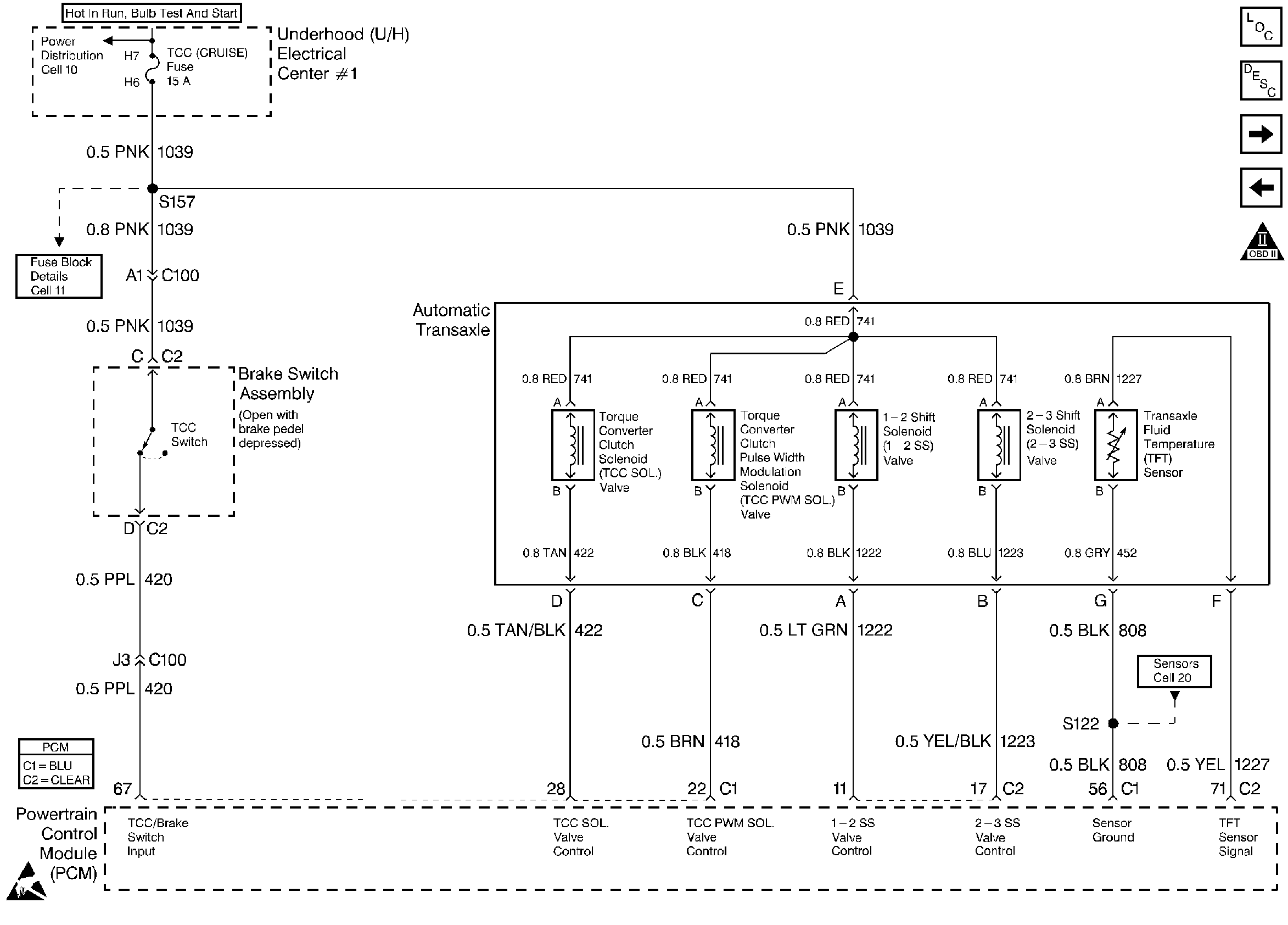

Figure 10:	TCC and Brake Switch Systems Engine Controls Components Powertrain Control Module (PCM) Generator System Instrument Cluster and Vehicle Speed Sensor Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 11:	Generator System Engine Controls Components Powertrain Control Module (PCM) Heater and A/C Compressor Clutch Systems TCC and Brake Switch Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 12:	Heater and A/C Compressor Clutch Systems Engine Controls Components Powertrain Control Module Controlled Air Conditioning Engine Cooling Fans Generator System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 13:	Engine Cooling Fans Engine Controls Components Electric Cooling Fan Diagnosis Heater and A/C Compressor Clutch Systems OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
