HVAC Air Delivery/Temperature Control Schematics. Oldsmobile Eighty Eight 1998

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1998 🢒 Eighty Eight 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 HVAC Air Delivery/Temperature Control Schematics

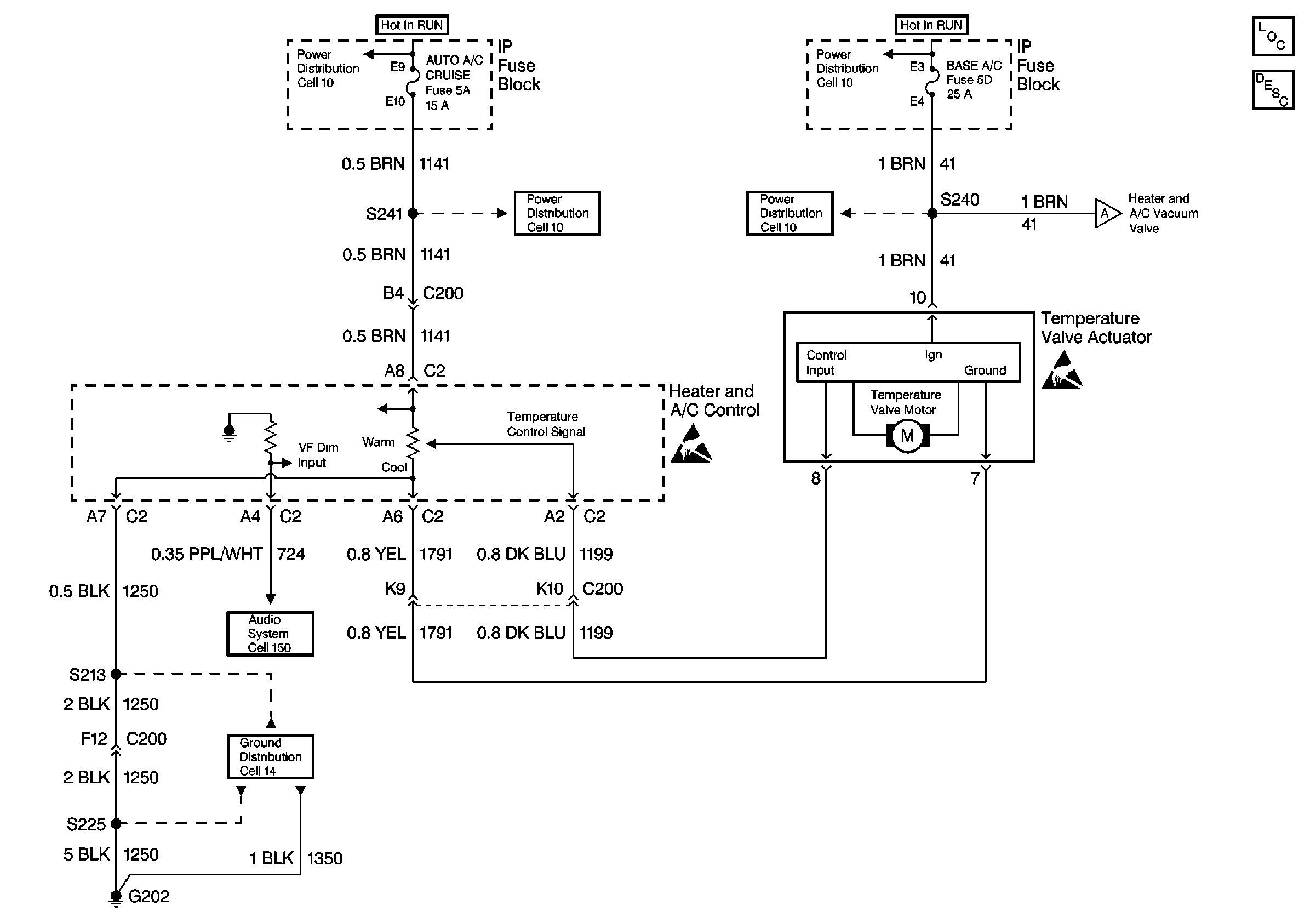

Figure 1:	Cell 65: Fuse Box, Actuator (Oldsmobile) HVAC Components Ground Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

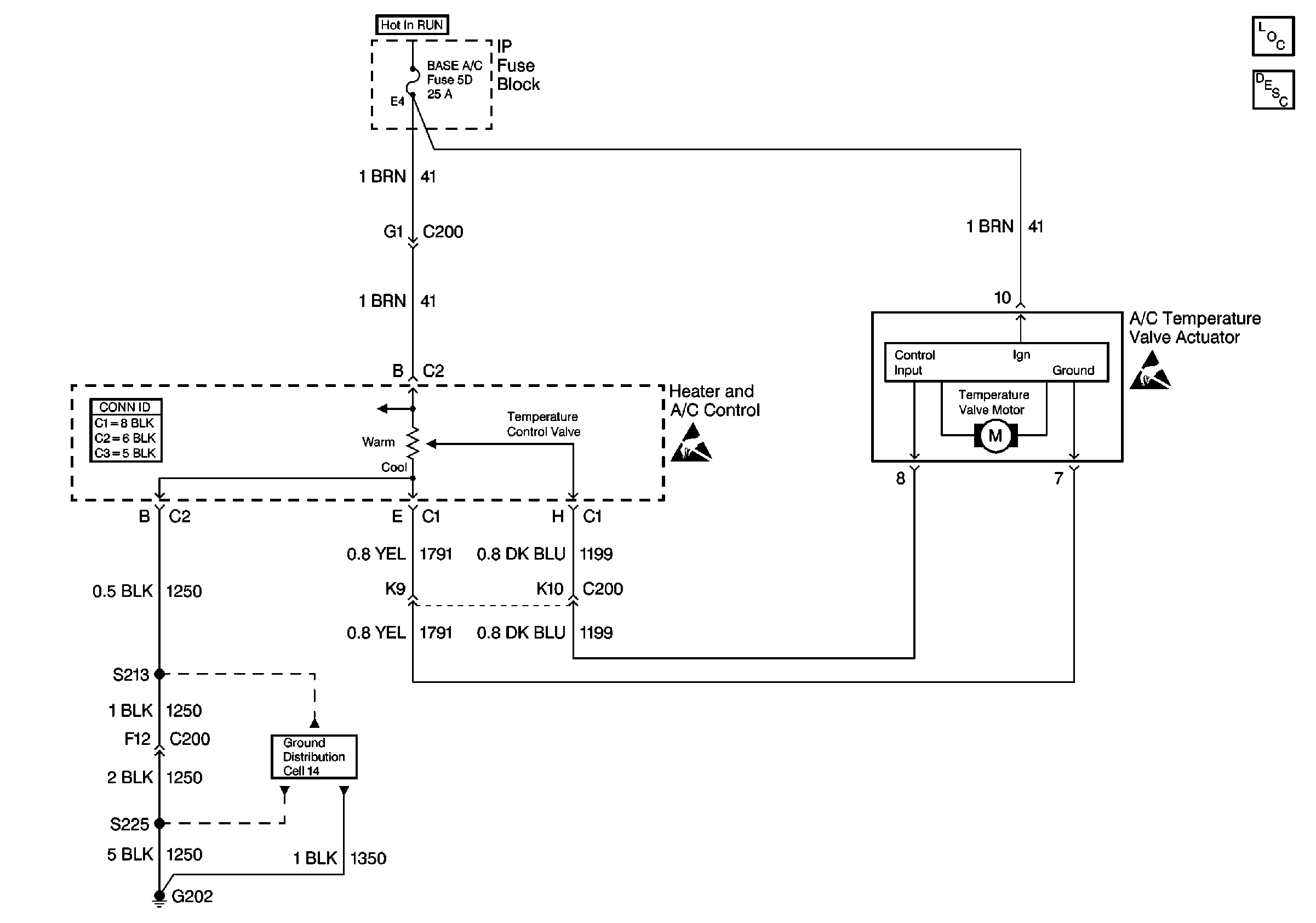

Figure 2:	Cell 65: Fuse Box, Actuator (Pontiac) HVAC Components Power Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics

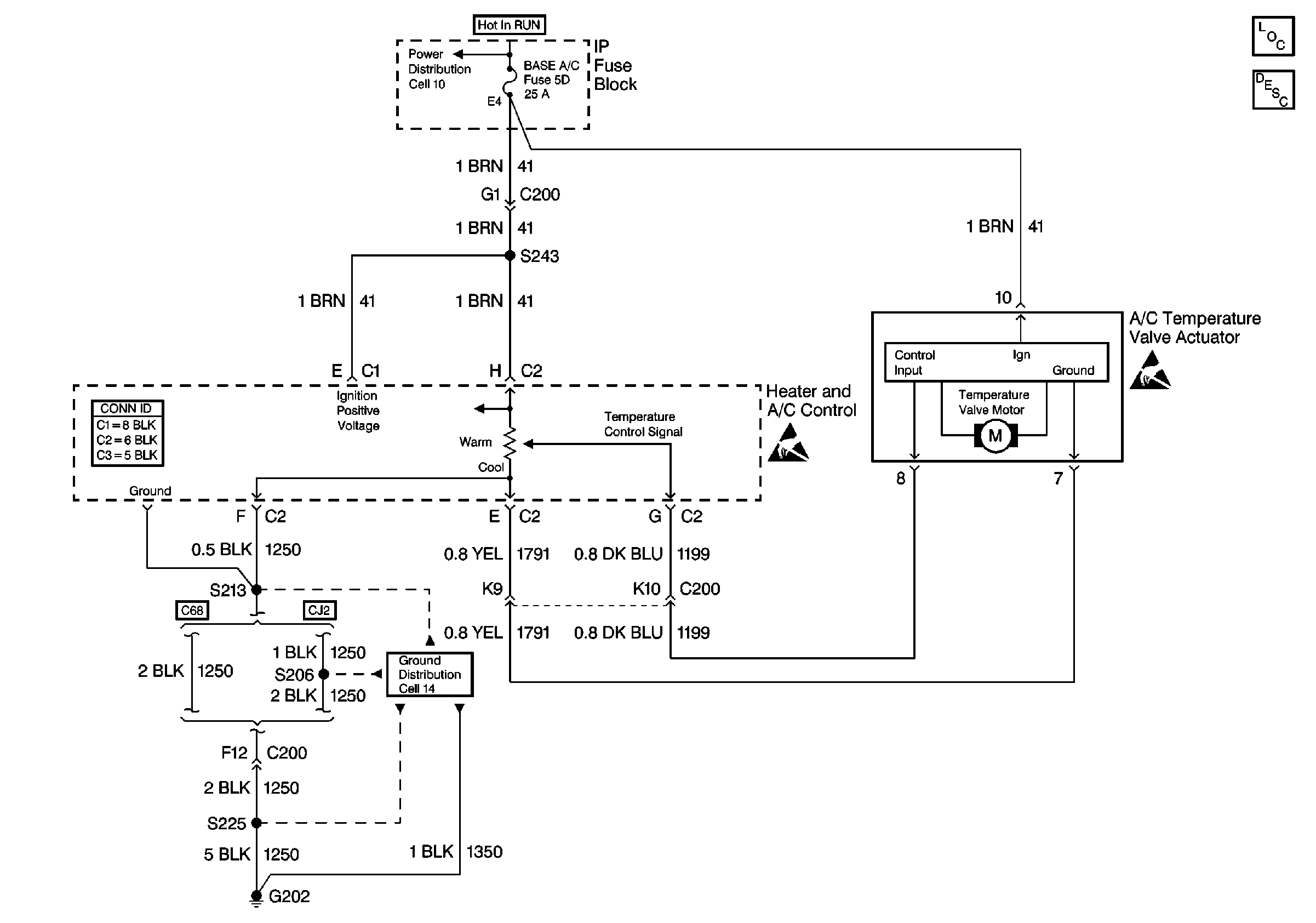

Figure 3:	Cell 65: Fuse Box, Actuator (Buick) HVAC Components Radio/Audio System Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 65: A/C Mode Selector (Buick)

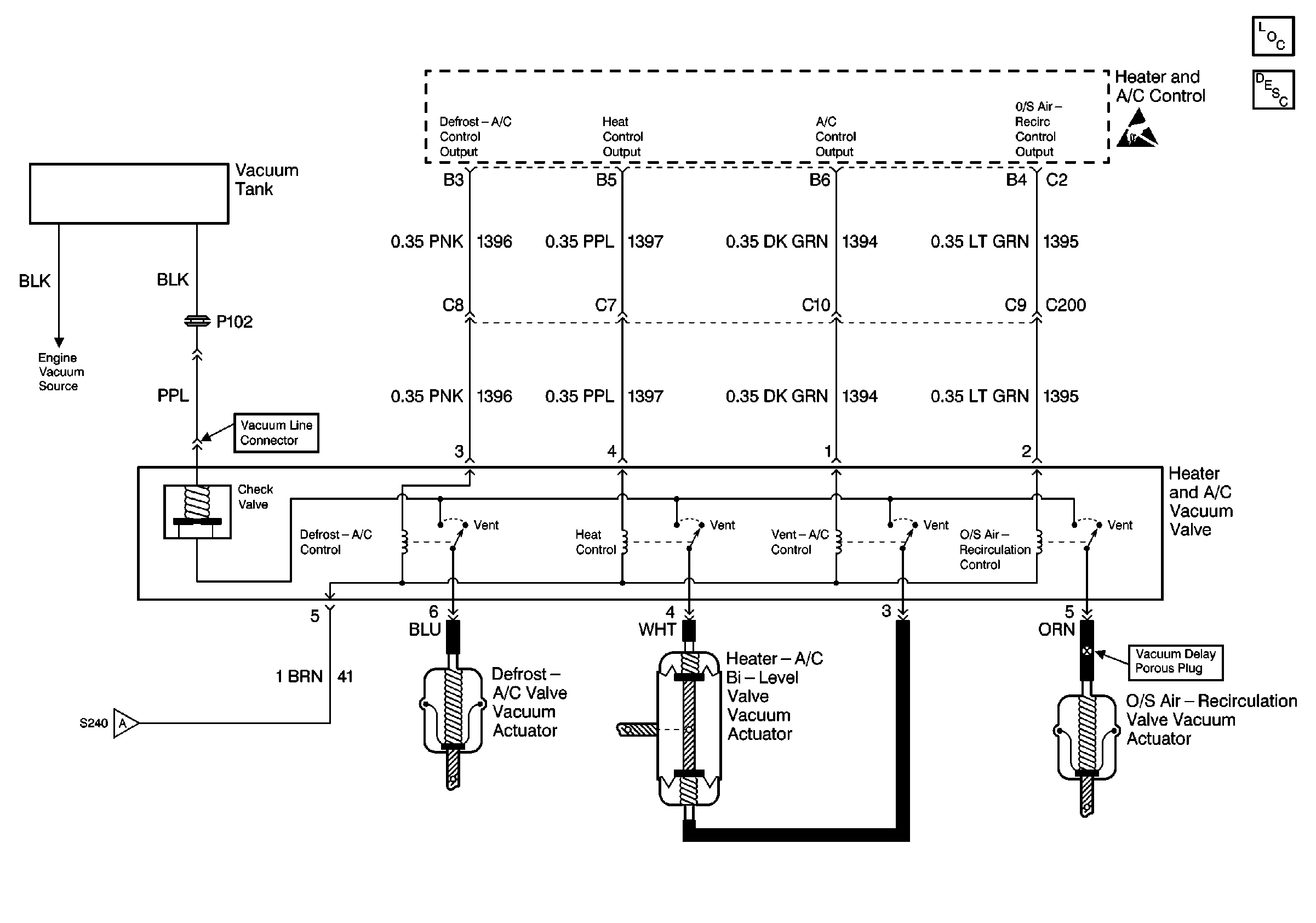

Figure 4:	Cell 65: A/C Mode Selector (Oldsmobile) HVAC Components Handling ESD Sensitive Parts Notice
Figure 5:	Cell 65: A/C Mode Selector (Buick) HVAC Components Handling ESD Sensitive Parts Notice
