Removal Procedure
  1. Disable the SIR system. Refer to Disabling the SIR System in SIR.

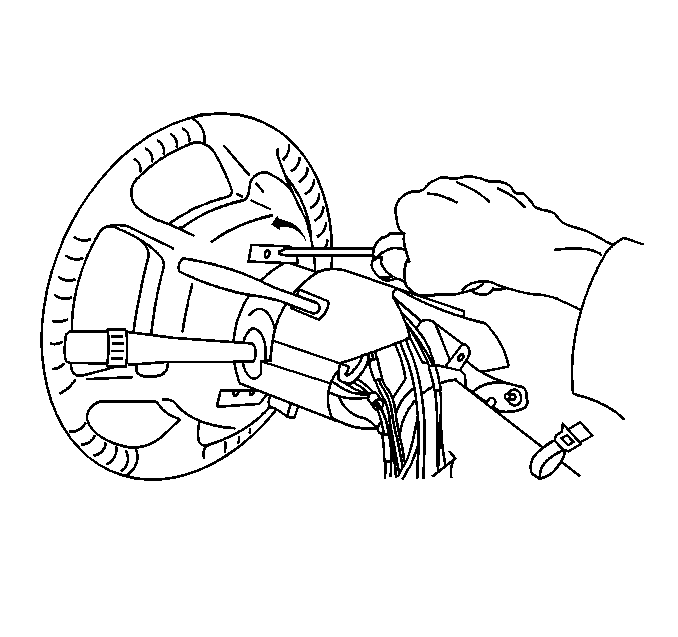

    2. Object Number: 294345 Size: SH
  2. Use a flat-blade tool on the back side of the inflatable restraint steering wheel module in order to release the four leaf springs.
  3. Pull on the module while the leaf springs are released.

    4. Object Number: 294362 Size: SH
  4. Disconnect the electrical connections from the inflatable restraint steering wheel module.

    5. Object Number: 294356 Size: SH
  5. Remove the inflatable restraint steering wheel module.

Installation Procedure

    Object Number: 294362 Size: SH
  1. Connect the electrical connections to the inflatable restraint steering wheel module.

    2. Object Number: 294356 Size: SH
  2. Install the inflatable restraint steering wheel module until it snaps into place.
  3. Enable the SIR system. Refer to Enabling the SIR System in SIR.
