Ground Distribution Schematics. Oldsmobile Intrigue 1998

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1998 🢒 Intrigue 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

Figure 1:	Cell 14: Forward Lamp Grounds G101 And G102 Power and Grounding Components Cell 14: Engine Grounds G100, G111, And G113
Figure 2:	Cell 14: Engine Grounds G100, G111, And G113 Power and Grounding Components Cell 14: Engine Ground G117 Cell 14: Forward Lamp Grounds G101 And G102
Figure 3:	Cell 14: Engine Ground G117 Power and Grounding Components Cell 14: Engine Compartment Ground G119 Cell 14: Engine Grounds G100, G111, And G113
Figure 4:	Cell 14: Engine Compartment Ground G119 Power and Grounding Components Cell 14: RH I/P Ground G200 Cell 14: Engine Ground G117

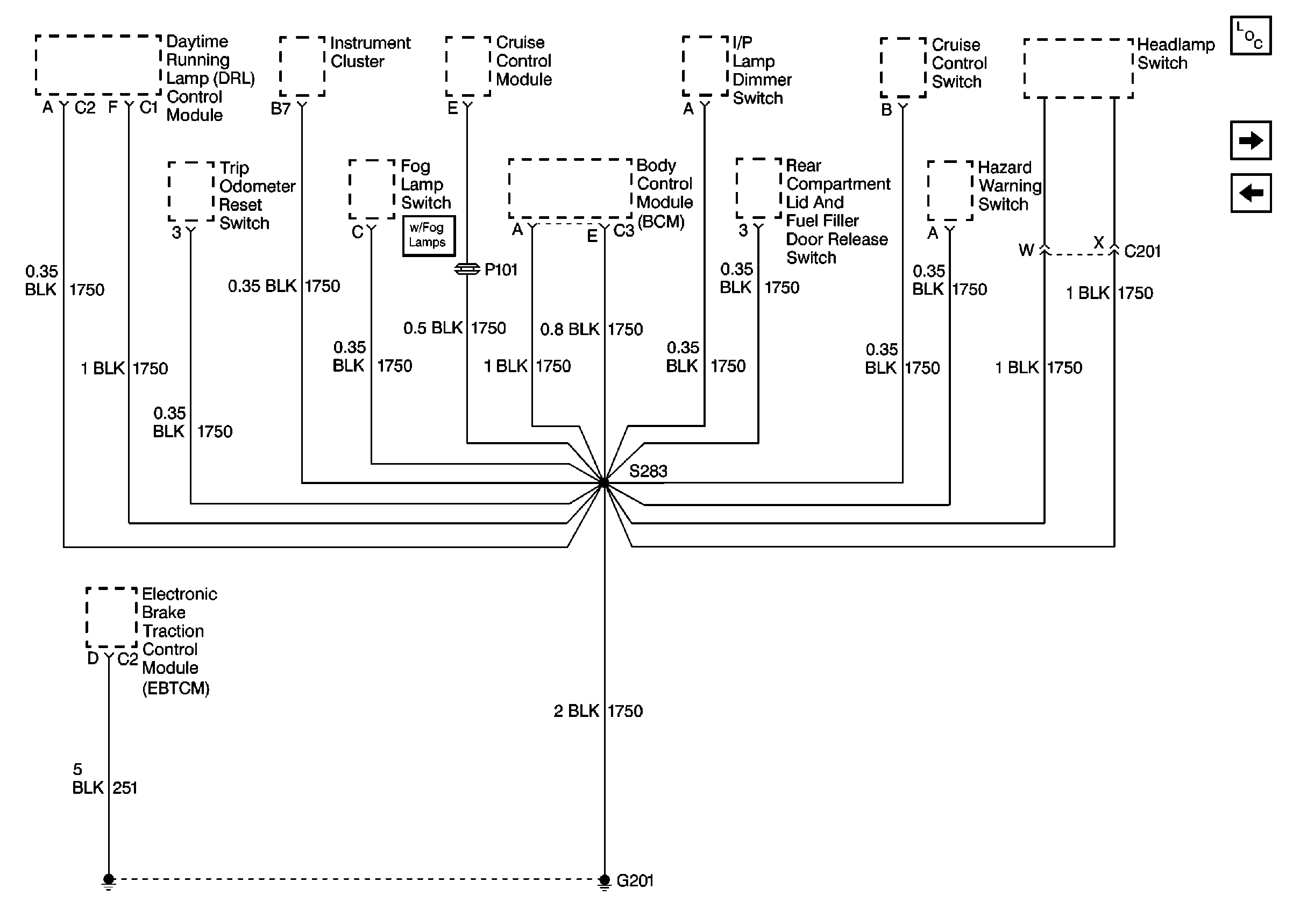

Figure 5:	Cell 14: RH I/P Ground G200 Power and Grounding Components Cell 14: LH I/P Ground G201 Cell 14: Engine Compartment Ground G119
Figure 6:	Cell 14: LH I/P Ground G201 Power and Grounding Components Cell 14: LH I/P Ground G203 Cell 14: RH I/P Ground G200
Figure 7:	Cell 14: LH I/P Ground G203 Power and Grounding Components Cell 14: LH Body Harness Ground G301 Cell 14: LH I/P Ground G201
Figure 8:	Cell 14: LH Body Harness Ground G301 Power and Grounding Components Cell 14: RH Body Harness Ground G302 Cell 14: LH I/P Ground G203

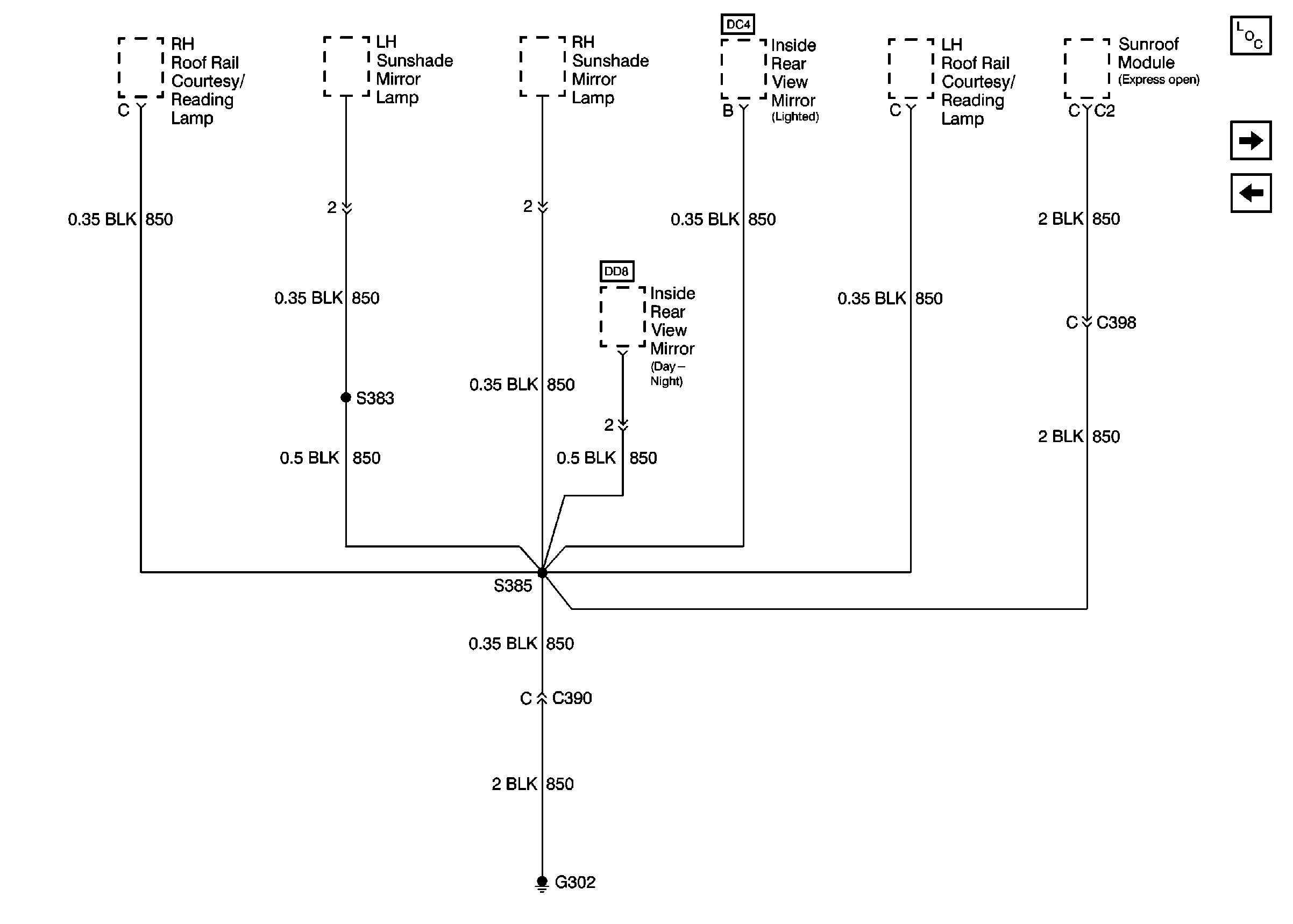

Figure 9:	Cell 14: RH Body Harness Ground G302 Power and Grounding Components Cell 14: RH Body Harness Ground G302 Cell 14: LH Body Harness Ground G301

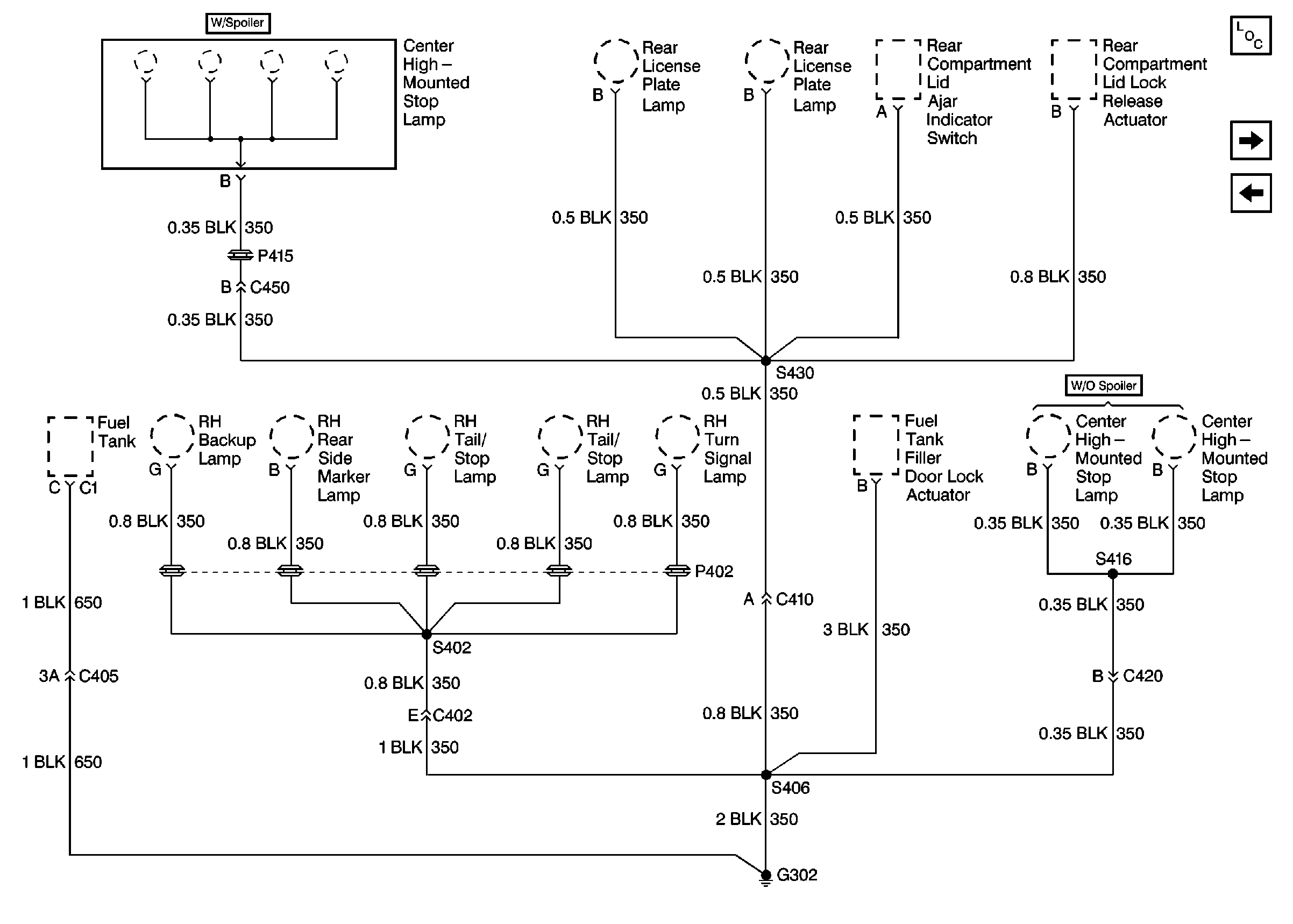

Figure 10:	Cell 14: RH Body Harness Ground G302 Power and Grounding Components Cell 14: LH Rear Compartment Ground G401 Cell 14: RH Body Harness Ground G302
Figure 11:	Cell 14: LH Rear Compartment Ground G401 Power and Grounding Components Cell 14: RH Body Harness Ground G302
