Front Bumper Fascia Lower Support Replacement with Fog Lamp

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
2. Remove the front fog lamp bracket nuts.
3. Remove the front bumper fascia lower support.

1. Install the front bumper fascia lower support to the fog lamp.
2. Install the front fog lamp bracket nuts.

Tighten
Tighten the front fog lamp bracket nuts to 10 N·m (89 lb  in).

3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .

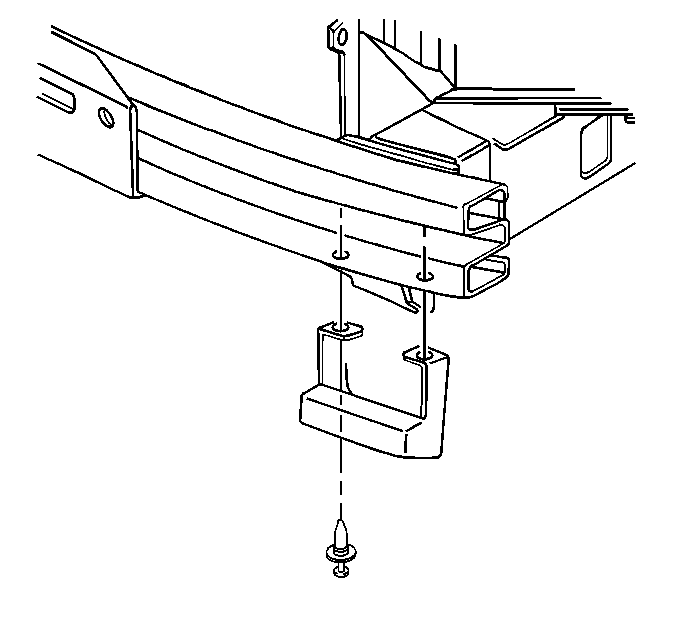

Front Bumper Fascia Lower Support Replacement without Fog Lamp

Tool Required

J 38778 Door Trim Pad and Garnish Clip Remover

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
2. Remove the front bumper fascia lower retainers using theJ 38778 .
3. Remove the front bumper fascia lower support.

1. Install the front bumper fascia lower support to the front bumper impact bar.
2. Install the front bumper fascia lower retainers.
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
