Makes 🢒 Oldsmobile 🢒 1998 🢒 Intrigue 🢒 Body and Accessories 🢒 Bumpers 🢒 Rear Bumper Impact Bar Replacement

Removal Procedure

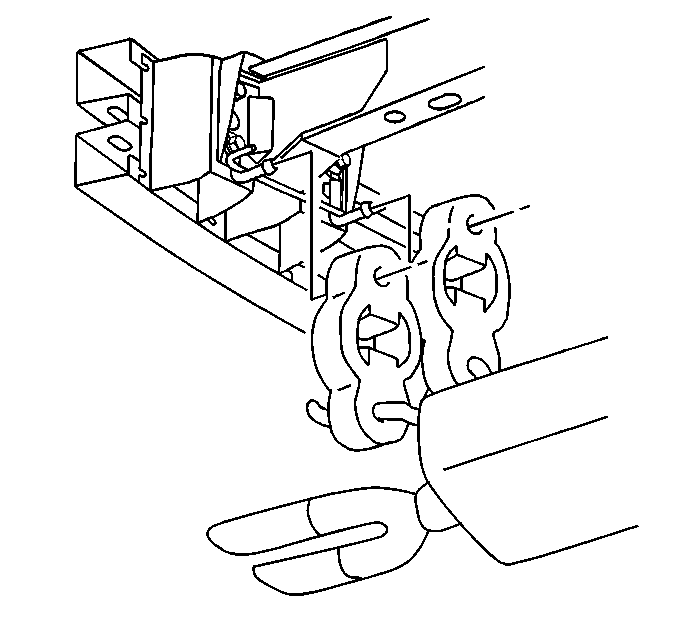

    Object Number: 364008 Size: SH
  1. Remove the rear bumper energy absorber. Refer to Rear Energy Absorber Replacement .
  2. Remove the tailpipe insulators from the exhaust muffler rear hanger bracket

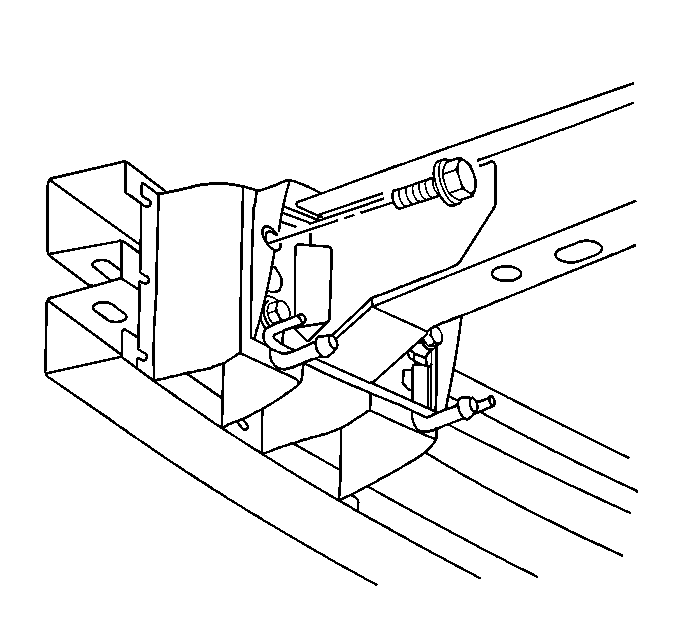

    3. Object Number: 181814 Size: SH
  3. Remove the rear bumper impact bar bolts.
  4. Remove the exhaust muffler rear hanger bracket.

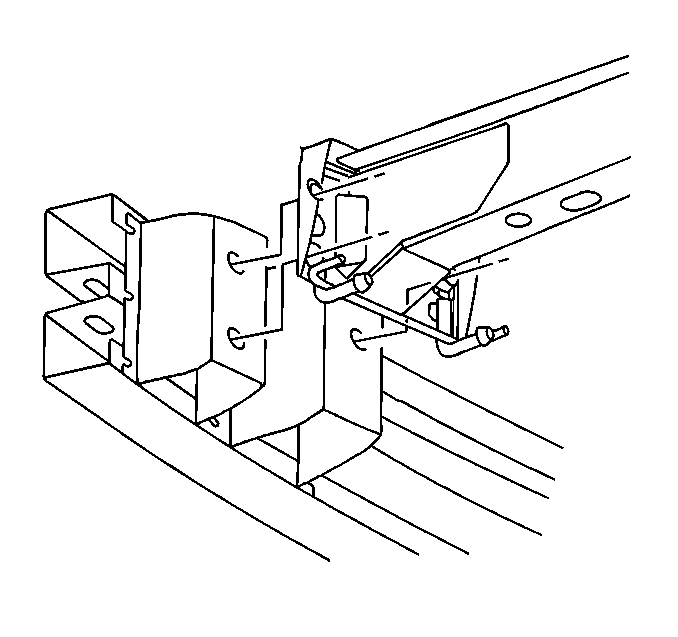

    5. Object Number: 364020 Size: SH
  5. Remove the rear bumper impact bar.

Installation Procedure

    Object Number: 364020 Size: SH
  1. Install the rear bumper impact bar to the body.

    2. Object Number: 181814 Size: SH
  2. Install the exhaust muffler rear hanger bracket.
  3. Install the rear bumper impact bar bolts.

    4. Tighten
    Tighten the rear bumper impact bar bolts to 25 N·m (18 lb ft).


    Object Number: 364008 Size: SH
  4. Install the tailpipe insulators to the exhaust muffler rear hanger bracket.
  5. Install the rear bumper energy absorber. Refer to Rear Energy Absorber Replacement .
