Wheel Speed Sensor Jumper Harness Replacement Front

1. Raise and support the vehicle on a suitable hoist. Refer to Lifting and Jacking the Vehicle in General Information.

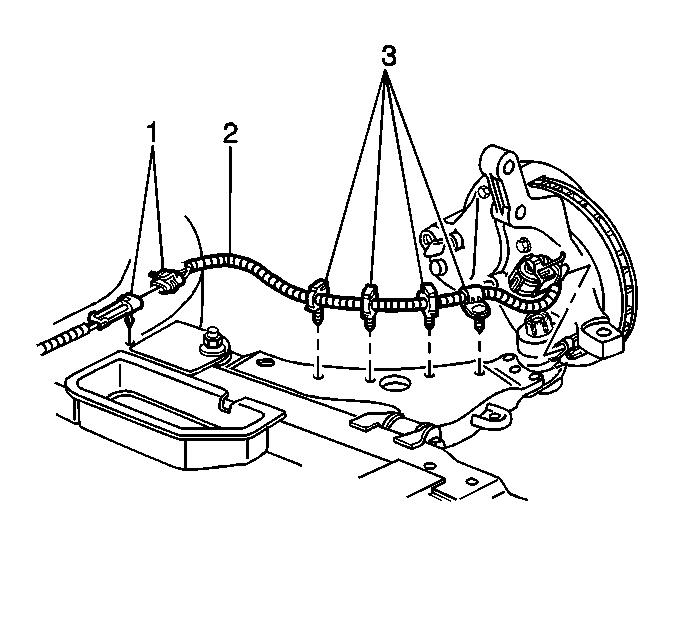

2. Disconnect the front wheel speed jumper harness connector from the ABS harness connector (1).
3. Remove the front wheel speed jumper harness (2) from the control arm retaining clips (3).



4. Disconnect the front wheel speed sensor jumper harness connector (1) from the wheel speed sensor (3).
5. Remove the front wheel speed sensor jumper harness (2) from the vehicle.

1. Connect the front wheel speed sensor jumper harness connector (1) to the wheel speed sensor (3).



2. Install the front wheel speed jumper harness (2) to control arm retaining clips (3).
3. Connect the front wheel speed sensor jumper harness connector to the ABS harness connector (1).
4. Lower the vehicle.
5. Turn the ignition switch to the ON position, with the engine off.
6. Perform the Diagnostic System Check - ABS

Wheel Speed Sensor Jumper Harness Replacement Rear

1. Raise and support the vehicle on a suitable hoist. Refer to Lifting and Jacking the Vehicle in General Information.
2. Disconnect the rear wheel speed jumper harness connector at the pass thru connector.
3. Remove the rear wheel speed sensor jumper harness (1) from the retaining clips (2).



4. Disconnect the rear wheel speed sensor jumper harness connector from the wheel speed sensor (1), located next to the rear strut (2).
5. Remove the rear wheel speed sensor jumper harness.

1. Connect the rear wheel speed sensor jumper harness connector to the wheel speed sensor (1), located next to the rear strut (2).



2. Install the rear wheel speed jumper harness (1) into the retaining clips (2).
3. Connect the rear wheel speed sensor jumper harness connector to the pass thru connector.
4. Lower the vehicle.
5. Turn the ignition switch to the ON position, with the engine off.
6. Perform the Diagnostic System Check - ABS
