Steering Assist Schematics RPO L36 with Delco VI
| Figure 1: |

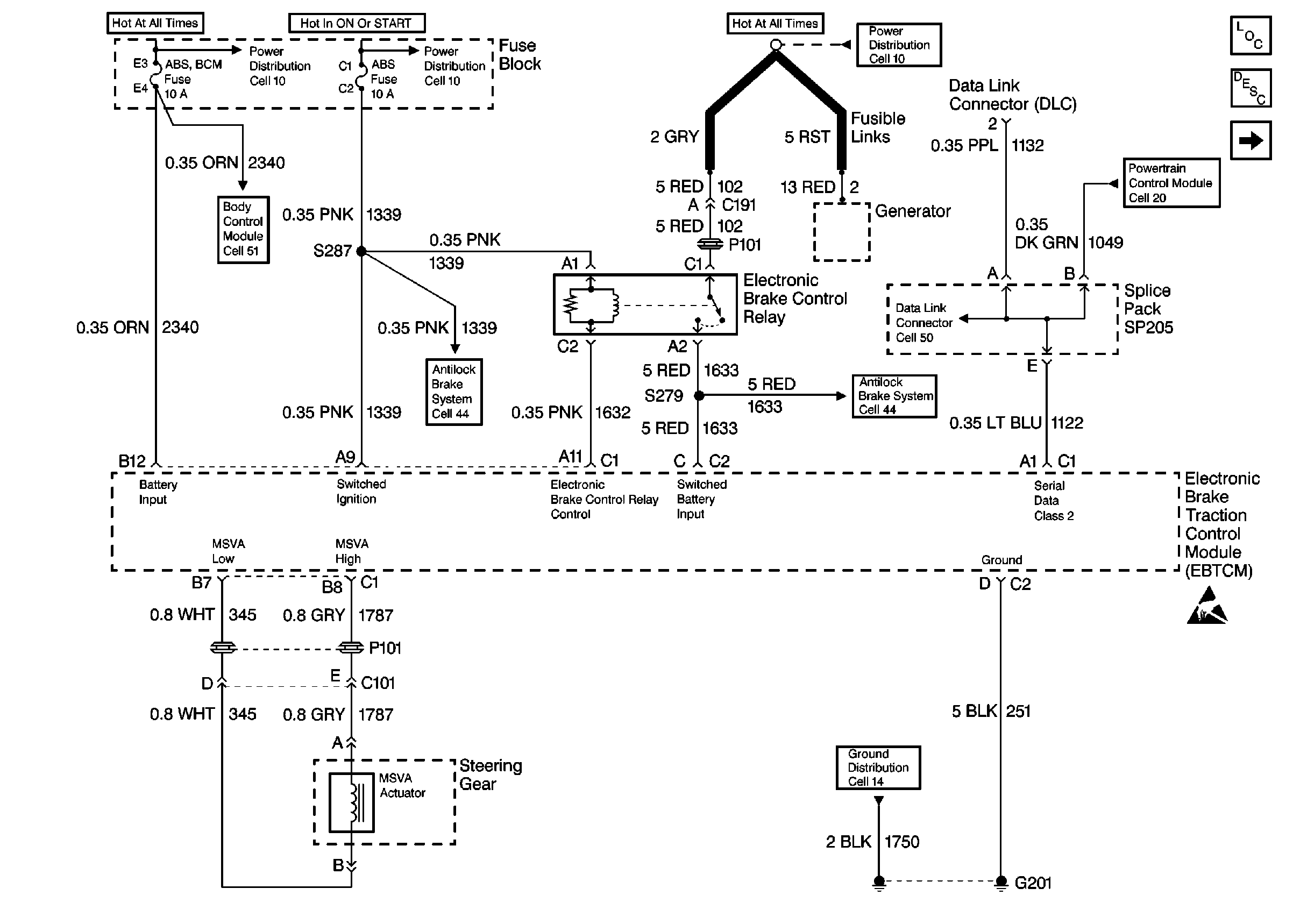

Cell 45: EBTCM, Power, Ground, Class 2, and MSVA Actuator
|
| Figure 2: |
Cell 45: EBTCM, and Wheel Speed Sensors
|
Steering Assist Schematics RPO LX5 with Bosch 5.3
| Figure 1: |

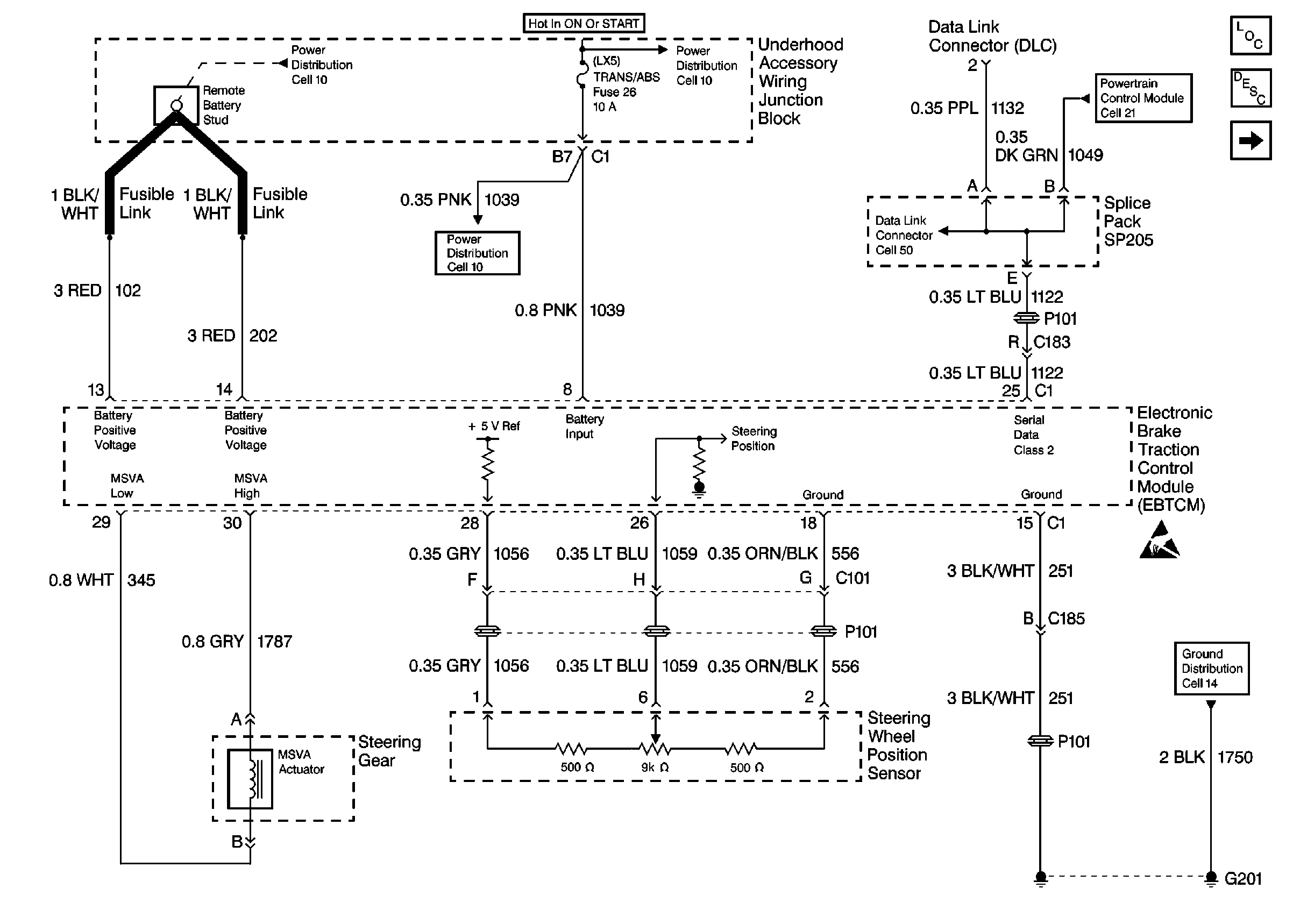

Cell 45: EBTCM, Power, Ground, Class 2, MSVA Actuator, and Steering Wheel Position Sensor
|
| Figure 2: |
Cell 45: EBTCM, and Wheel Speed Sensors
|
