Removal Procedure

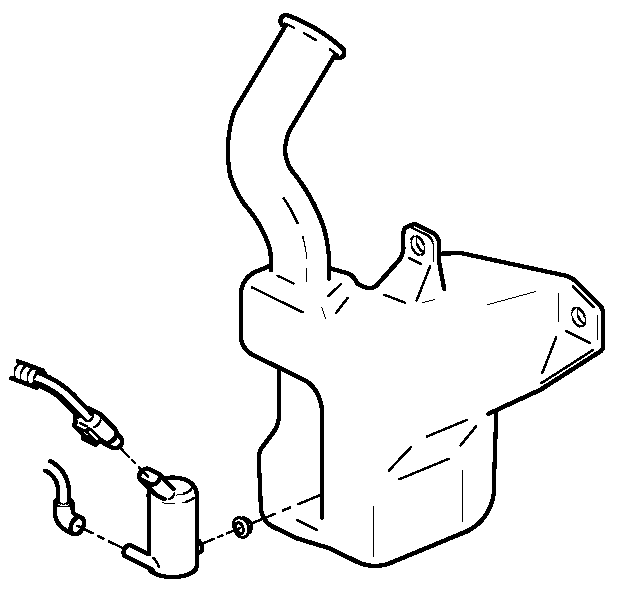

    Object Number: 334224 Size: SH
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the inner fender liner. Refer to Front Fender Liner Replacement .
  4. Remove the connector and the hose from the washer pump.
  5. Remove the washer pump from the washer solvent container.
    6. 5.1. Pull top of the washer pump out from the side of the washer solvent container.
    5.2. Remove the washer pump from the washer solvent container.
  6. Remove the washer pump seal from the washer solvent container.

Installation Procedure

    Object Number: 334224 Size: SH
  1. Install the washer pump seal in the washer solvent container.
  2. Install the washer pump in the washer solvent container.
    3. 2.1. Push the washer pump inlet into the washer solvent container completely.
    2.2. Push the top of the washer pump into the side of the washer solvent container.
  3. Install the hose and the connector to the washer pump.
  4. Install the inner fender liner. Refer to Front Fender Liner Replacement .
  5. Install the wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
