Body Rear End Component Views. Oldsmobile Intrigue 2000

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 2000 🢒 Intrigue 🢒 Body and Accessories 🢒 Body Rear End 🢒 Body Rear End Component Views

Figure 1:


(1)	IP Dimmer Switch, Fog Lamp Switch, Rear Deck Release Switch, and Fuel Door Release Switch

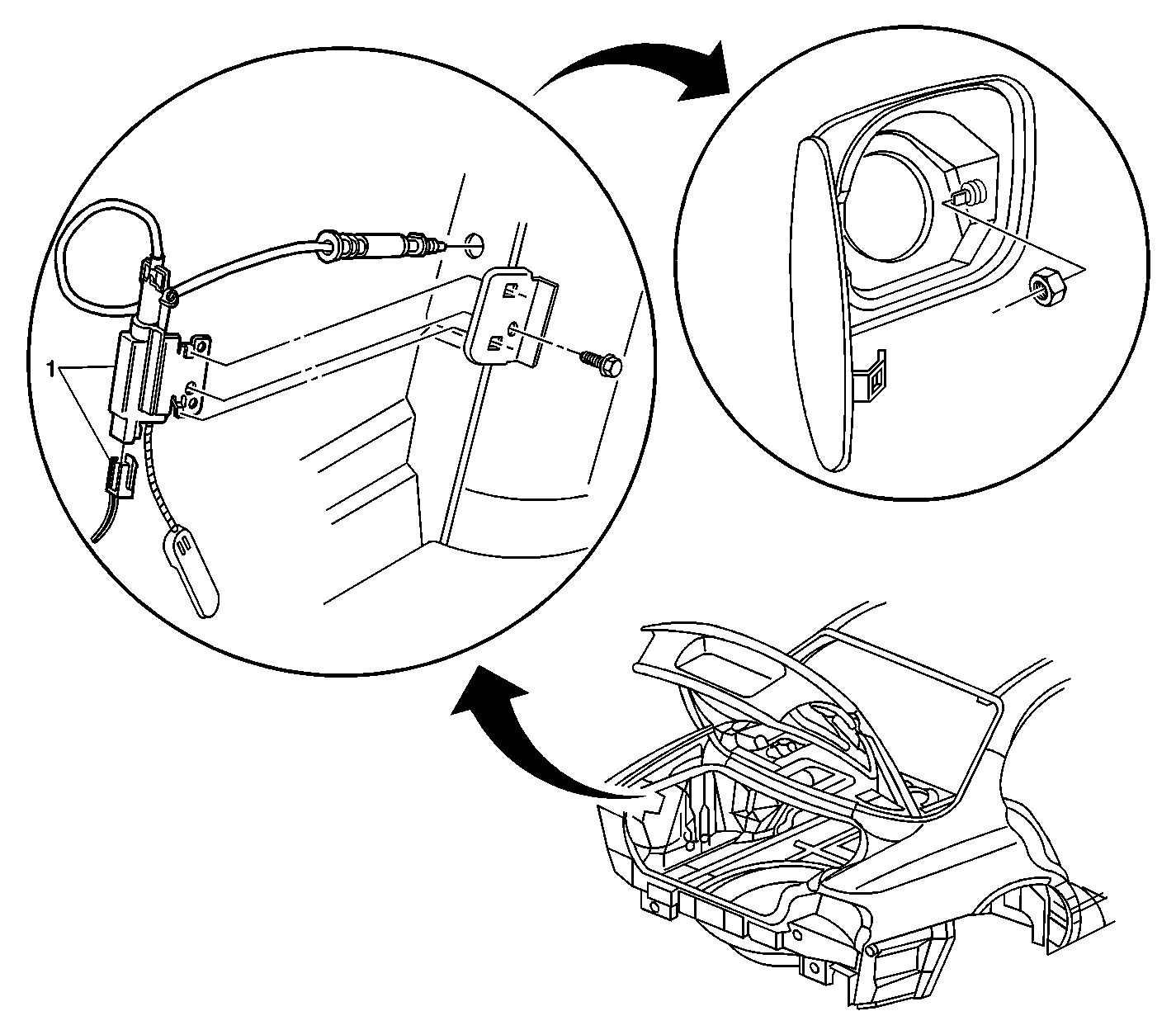

Figure 2:


(1)	Fuel Door Release Actuator

Figure 3:


(1)	Electric Actuator (RH) (w/ CJ2)
(2)	Fuel Door Release Relay
(3)	Rear Defogger Relay
(4)	Rear Compartment Lid Release Relay
(5)	Retained Accessory Power (RAP) Relay
(6)	IP Courtesy Lamp (RH)

Figure 4:


(1)	Rear Compartment Lid Release Actuator Connector
(2)	Rear Compartment Lid Ajar Switch Connector
(3)	License Lamp Connectors
(4)	C460 (w/D81)
(5)	C410

Figure 5:


(1)	Rear Compartment Lid Ajar Indicator Switch Connector
(2)	Rear Compartment Lid Release Actuator Connector
