Makes 🢒 Oldsmobile 🢒 2001 🢒 Intrigue 🢒 Engine 🢒 Engine Controls - 3.5L 🢒 Fuel Pressure Service Valve Replacement

Removal Procedure

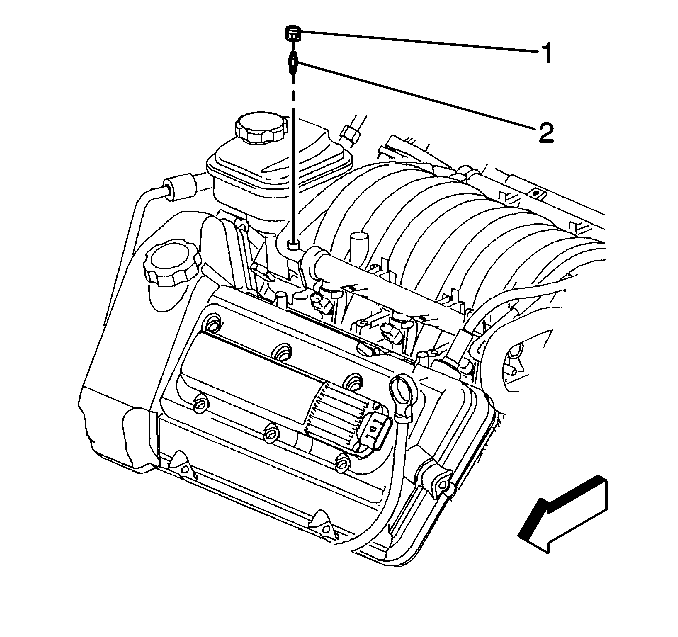

    Object Number: 566287 Size: SH
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Remove the fuel pressure connection valve (2) using a standard valve core removal and installation tool.

Installation Procedure

    Object Number: 566287 Size: SH
  1. Install the fuel pressure connection valve assembly (2) using a standard valve core removal and installation tool.
  2. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.
  3. Inspect for fuel leaks.
    4. 3.1. Turn ON the ignition switch for 2 seconds.
    3.2. Turn OFF the ignition switch for 10 seconds.
    3.3. Turn ON the ignition switch.
    3.4. Inspect for fuel leaks.
  4. Install the cap (1) on the fuel pressure connection valve.
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical-3.5L.
