Makes 🢒 Oldsmobile 🢒 2001 🢒 Intrigue 🢒 Engine 🢒 Engine Controls - 3.5L 🢒 Air Cleaner Element Replacement

Removal Procedure

    Object Number: 292975 Size: SH
  1. Disconnect the intake air temperature (IAT) sensor electrical connector (2).
  2. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .

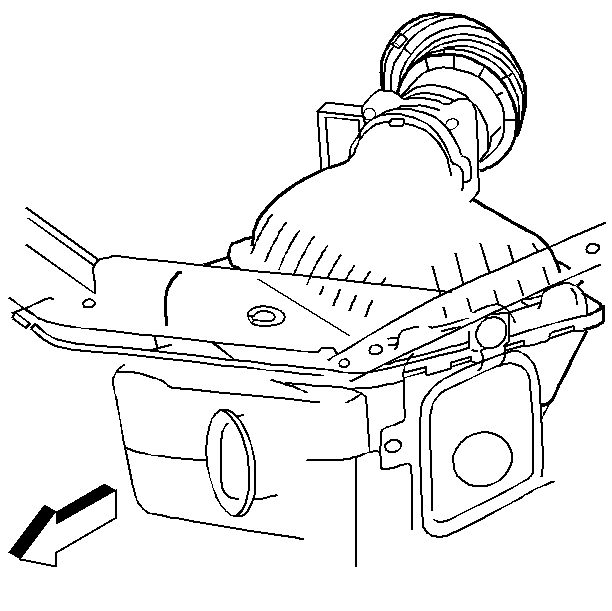

    3. Object Number: 293431 Size: SH
  3. Loosen the retaining screws on the air cleaner cover.
  4. Remove the housing cover and remove the air cleaner element.
  5. Inspect the housing cover, the seal assembly, and the air cleaner duct for damage. If a problem is found, replace as necessary.

Installation Procedure

    Object Number: 293431 Size: SH
  1. Carefully install the air cleaner element into the air cleaner assembly.
  2. Install the air cleaner housing cover and tighten the retaining screws.
  3. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .

    4. Object Number: 292975 Size: SH
  4. Connect the IAT sensor electrical connector (2).
