Makes 🢒 Oldsmobile 🢒 2001 🢒 Intrigue 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 Ambient Air Temperature Sensor Replacement

Removal Procedure
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

    2. Object Number: 284008 Size: SH

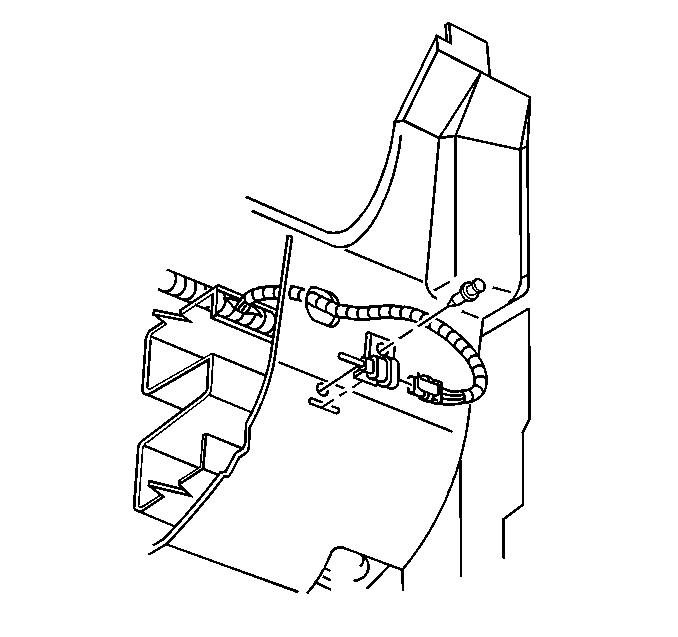

  2. Disconnect the electrical connector from the ambient air temperature sensor located on the front radiator air baffle.
  3. Remove the ambient air temperature sensor from the radiator air baffle.

Installation Procedure

    Object Number: 284008 Size: SH
  1. Install the ambient air temperature sensor to the radiator air baffle.
  2. Connect the electrical connector to the sensor.
  3. Lower the vehicle.
