Makes 🢒 Oldsmobile 🢒 2002 🢒 Intrigue 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Lighting Systems Component Views
Figure 1:

Right of Instrument Panel Cluster
Object Number: 589226 Size: LF
(1)Ignition Switch Lamp Connector
(2)Ignition Switch Connector
(3)Ignition Switch Connector
(4)Ignition Switch
(5)Passlock™ Sensor Connector
Figure 2:

Right of Steering Column
Object Number: 576900 Size: LF
(1)C203
(2)C205
(3)C201
(4)Stoplamp Switch Connector
(5)Stoplamp Switch Connector
(6)Stoplamp Switch
(7)Cruise Control Release Switch and Connector
Figure 3:

Behind Left Side of Instrument Panel
Object Number: 576896 Size: LF
(1)Air Temperature Sensor-Inside Connector
(2)Data Link Connector (DLC)
(3)Ignition Switch Connector
(4)Park Lamp Relay
(5)Footwell Courtesy Lamp-Left
(6)G201
(7)Dimmer Switch
(8)Fog Lamp Switch Connector
(9)Rear Compartment Lid Release Switch Connector
(10)Trip Odometer Reset Switch Connector
Figure 4:

Behind Instrument Panel Compartment
Object Number: 591499 Size: LF
(1)Footwell Courtesy Lamp-Right
(2)Rear Window Defogger Relay
(3)Headlamp Relay
(4)Rear Compartment Lid Release Relay
(5)Retained Accessory Power (RAP) Relay
Figure 5:

Center of Console
Object Number: 305350 Size: LF
(1)Automatic Transmission Control
(2)Instrument Panel Wiring Harness
(3)Traction Control Switch Connector
(4)PRNDL Lamp
(5)A/T Shift Lock Control Solenoid
Figure 6:

Center of Package Shelf
Object Number: 399301 Size: LF
(1)Center High Mounted Stop Lamp(CHMSL)
Figure 7:

Top Center of Instrument Panel
Object Number: 589374 Size: LF
(1)Ambient Light and Sensor Connector
(2)Sunload Sensor Connector
Figure 8:

Rear Edge of Driver Door
Object Number: 305353 Size: LF
(1)Door Lock Switch-Driver
(2)Door Lock C1
(3)Door Lock C2
Figure 9:

Left Front Fascia
Object Number: 589492 Size: LF
(1)Fog Lamp-LF
(2)Fog Lamp-LF and Connector
Figure 10:

Lower Left of Instrument Panel Cluster
Object Number: 745339 Size: LF
(1)Dimmer Switch, Fog Lamp Switch, and Rear Compartment Lid Release Switch
Figure 11:

Right of Instrument Panel Cluster
Object Number: 305339 Size: LF
(1)Cruise Control On/Off Switch and Hazard Switch
(2)Hazard Switch Connector
(3)Cruise Control On/Off Switch Connector
Figure 12:

Left Front of Vehicle
Object Number: 576561 Size: LF
(1)Headlamp-Left Connector
Figure 13:

Left Side of Instrument Panel
Object Number: 589506 Size: LF
(1)Turn Signal/Multifunction Switch
(2)Hazard Switch
(3)Windshield Wiper/Washer Lever
(4)Windshield Wiper/Washer Switch
(5)Inflatable Restraint Steering Wheel Module Coil
(6)Horn Switch -- Spring Loaded Contact
(7)Horn Switch Ground Connector
(8)Cruise Control Switches
(9)Radio Control Switches
Figure 14:

Under Rear Compartment Lid
Object Number: 589501 Size: LF
(1)Rear Compartment Lid Release Actuator Connector
(2)Rear Compartment Lid Ajar Switch Connector
(3)License Lamp Connectors
(4)C460 (w/D81)
(5)C410

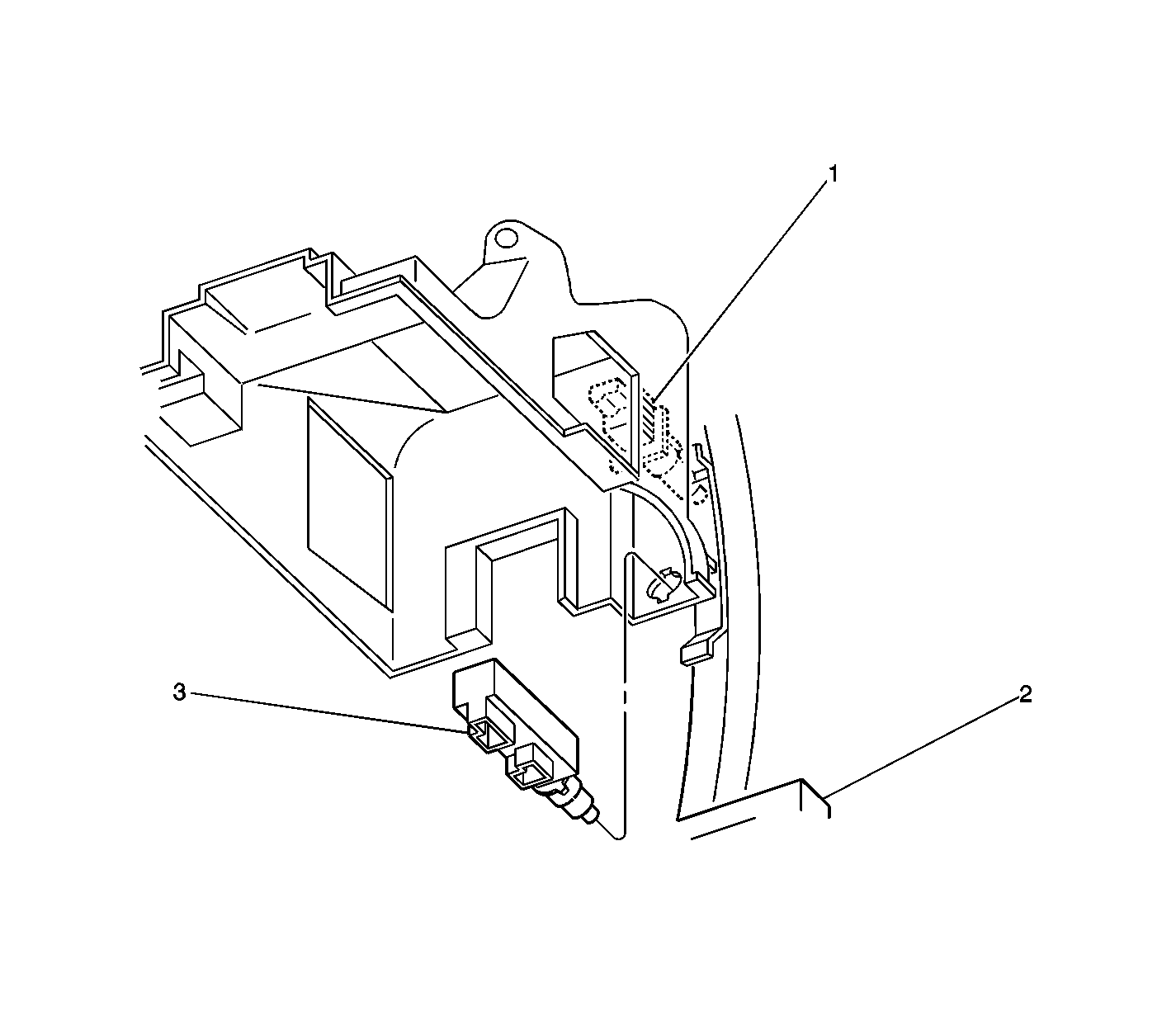

Figure 15:

Above Brake Pedal
Object Number: 589499 Size: LF
(1)Stoplamp Switch (Phantom View, Viewed When Installed)
(2)Brake Pedal
(3)Stoplamp Switch
Figure 16:

Top of Rear Compartment Lid
Object Number: 576804 Size: LF
(1)Center High Mounted Stop Lamp (CHMSL)(RPO D81)
(2)P415
(3)C450
Figure 17:

Left Rear of Vehicle
Object Number: 576801 Size: LF
(1)C401
(2)Tail Lamp-Left
(3)P401
