Makes 🢒 Oldsmobile 🢒 1999 🢒 Shelby Series 1 🢒 Engine 🢒 Engine Controls - 4.0L 🢒 Engine Controls Component Views

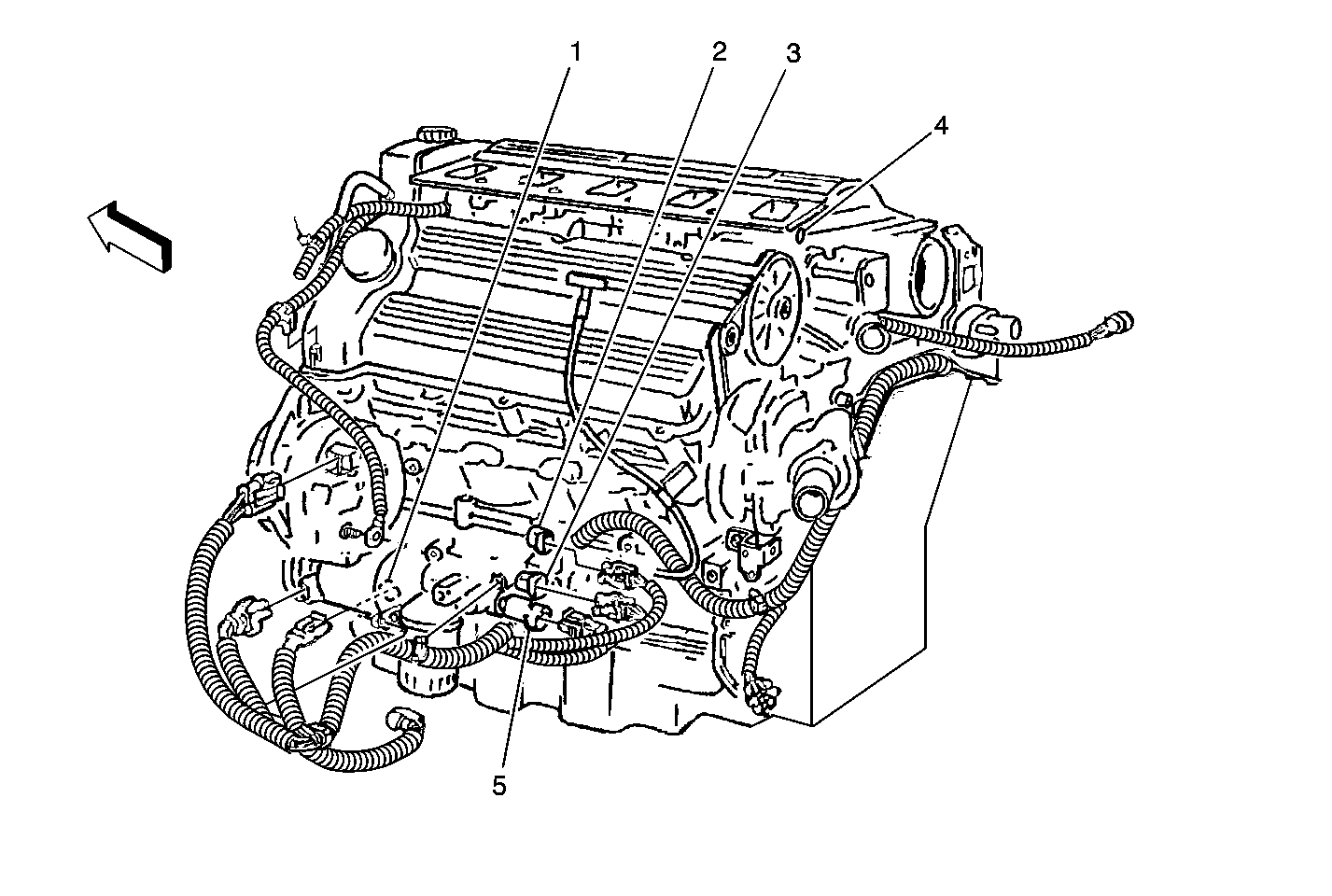

Figure 1:

Bank 2
Object Number: 622649 Size: MF
(1)Engine Oil Level Switch
(2)CKP Sensor A
(3)CKP Sensor B
(4)MAP Sensor (beneath dress cover)
(5)Engine Oil Pressure Switch

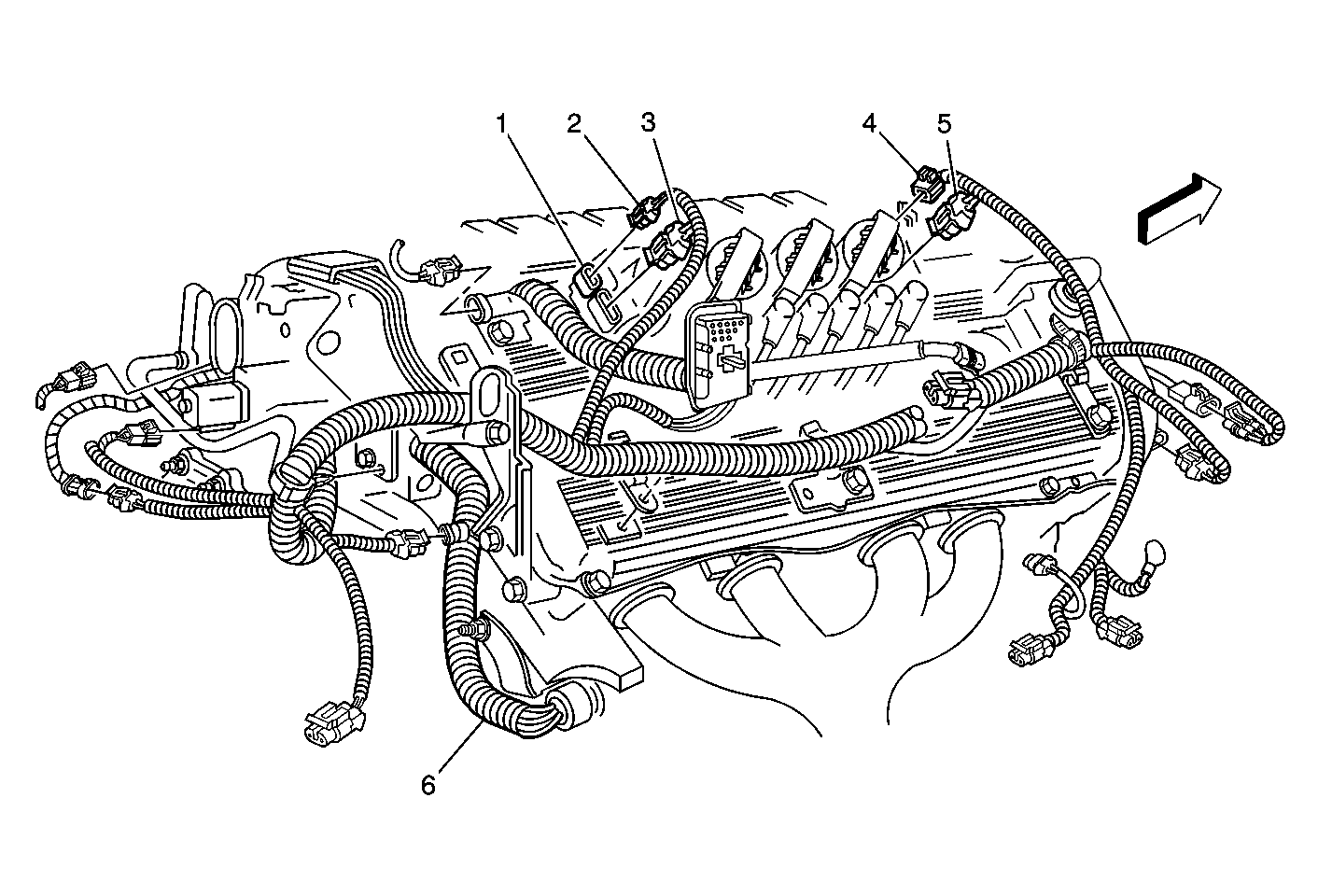

Figure 2:

Bank 1
Object Number: 622654 Size: MF
(1)IC Module
(2)IC Connector C2
(3)IC Connector C4
(4)IC Connector C3
(5)IC Connector C1
(6)ECT Sensor

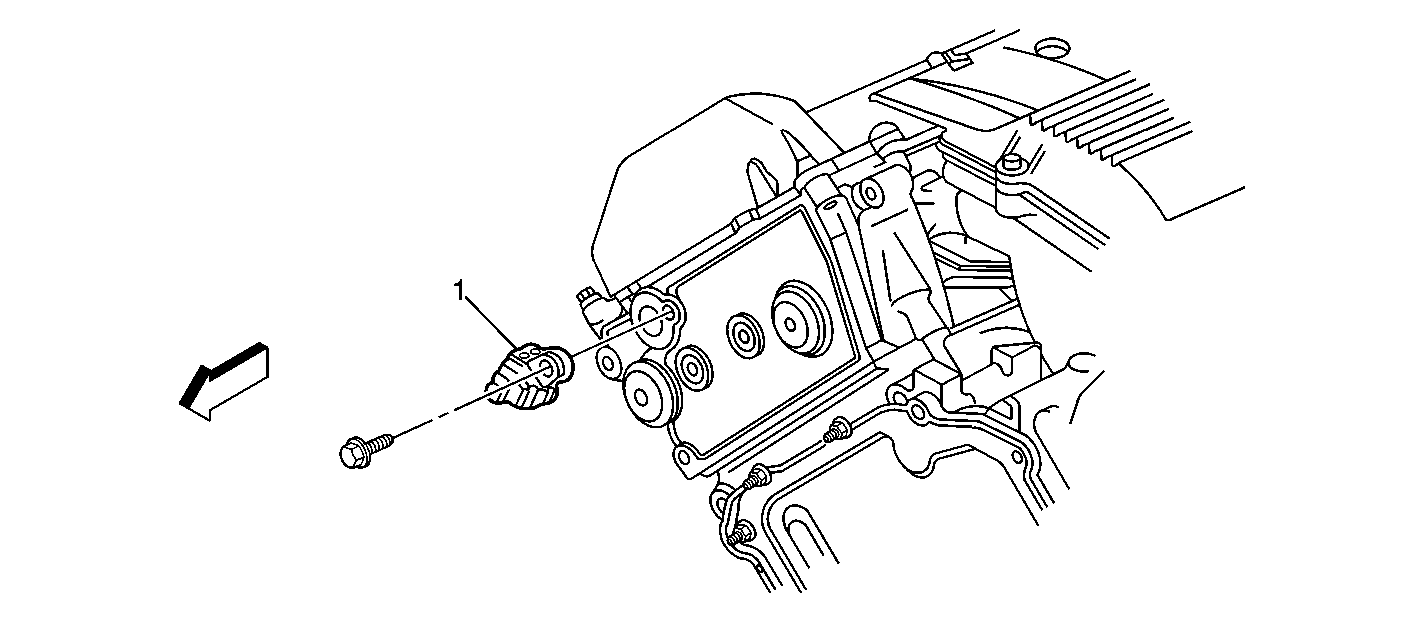

Figure 3:

Camshaft Position Sensor
Object Number: 622655 Size: SF
(1)Camshaft Position Sensor (Right Front Cylinder Head)

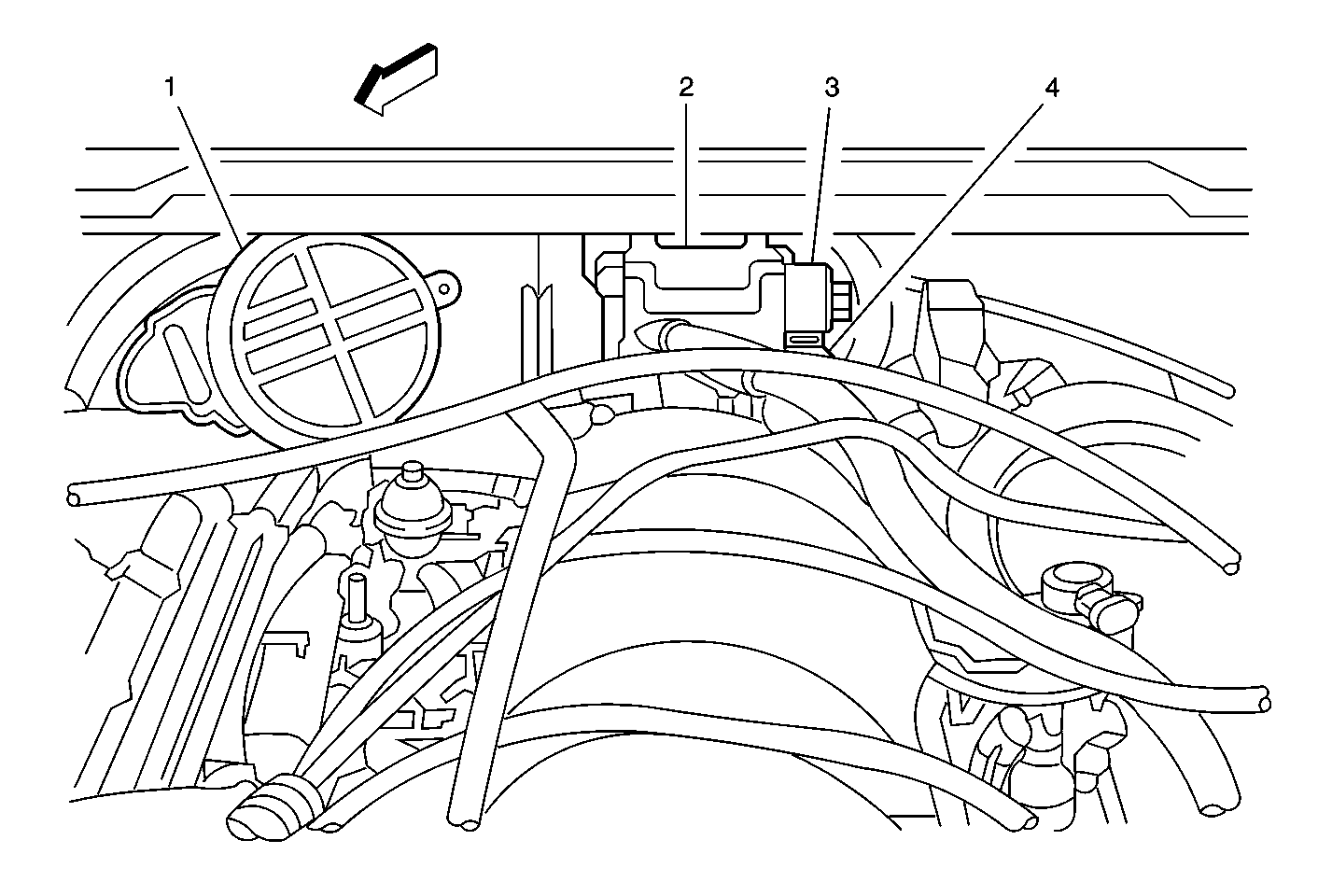

Figure 4:

MAF/IAT Sensor, TP Sensor, IAC Valve
Object Number: 622631 Size: MF
(1)Mass Airflow/Intake Air Temperature Sensor
(2)Throttle Body
(3)Idle Air Control Valve
(4)Throttle Position Sensor

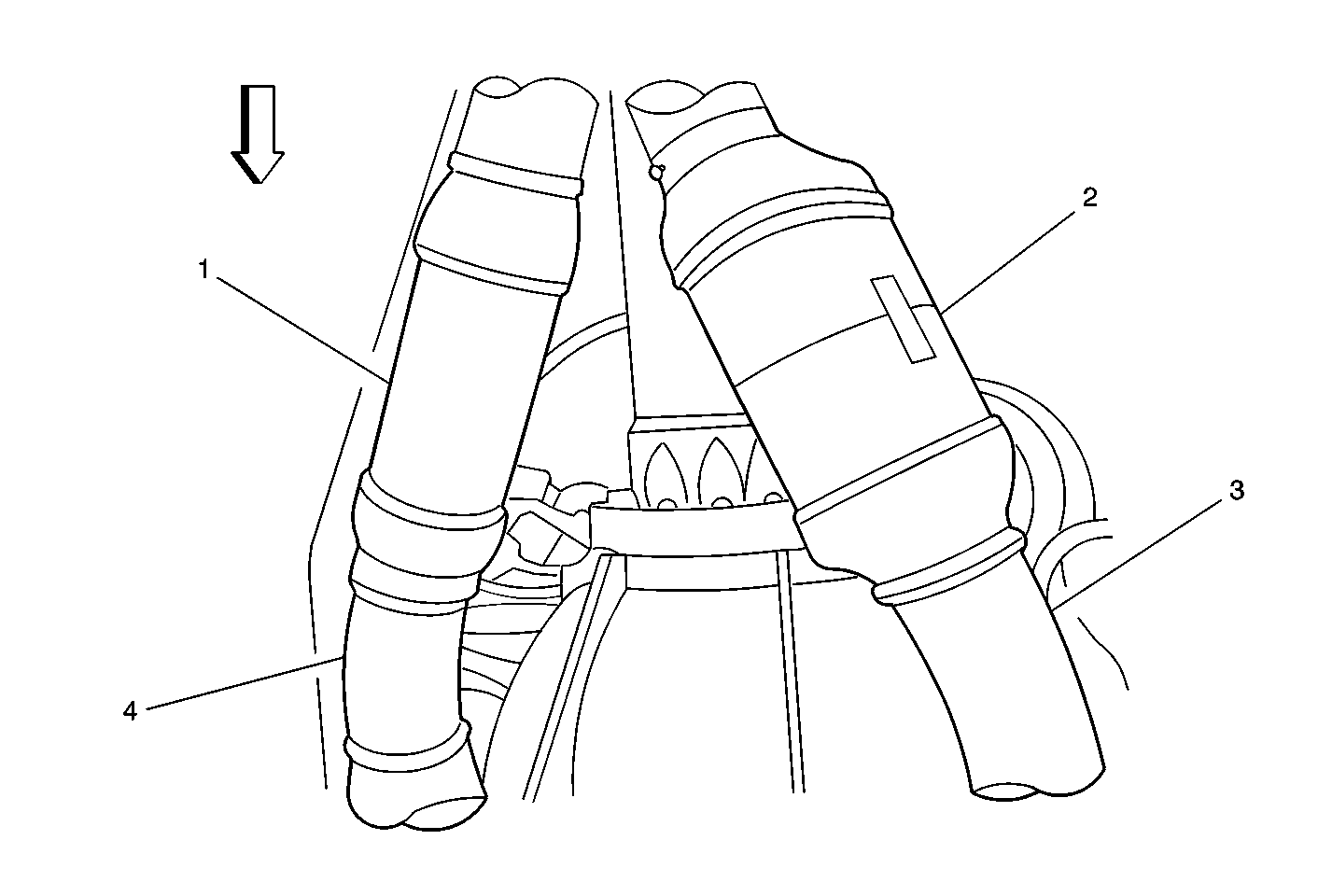

Figure 5:

Bank 1, Bank 2, HO2S 1
Object Number: 622632 Size: MF
(1)Right Exhaust Catalytic Converter
(2)Left Exhaust Catalytic Converter
(3)HO2S Bank 2 Sensor 1
(4)HO2S Bank 1 Sensor 1

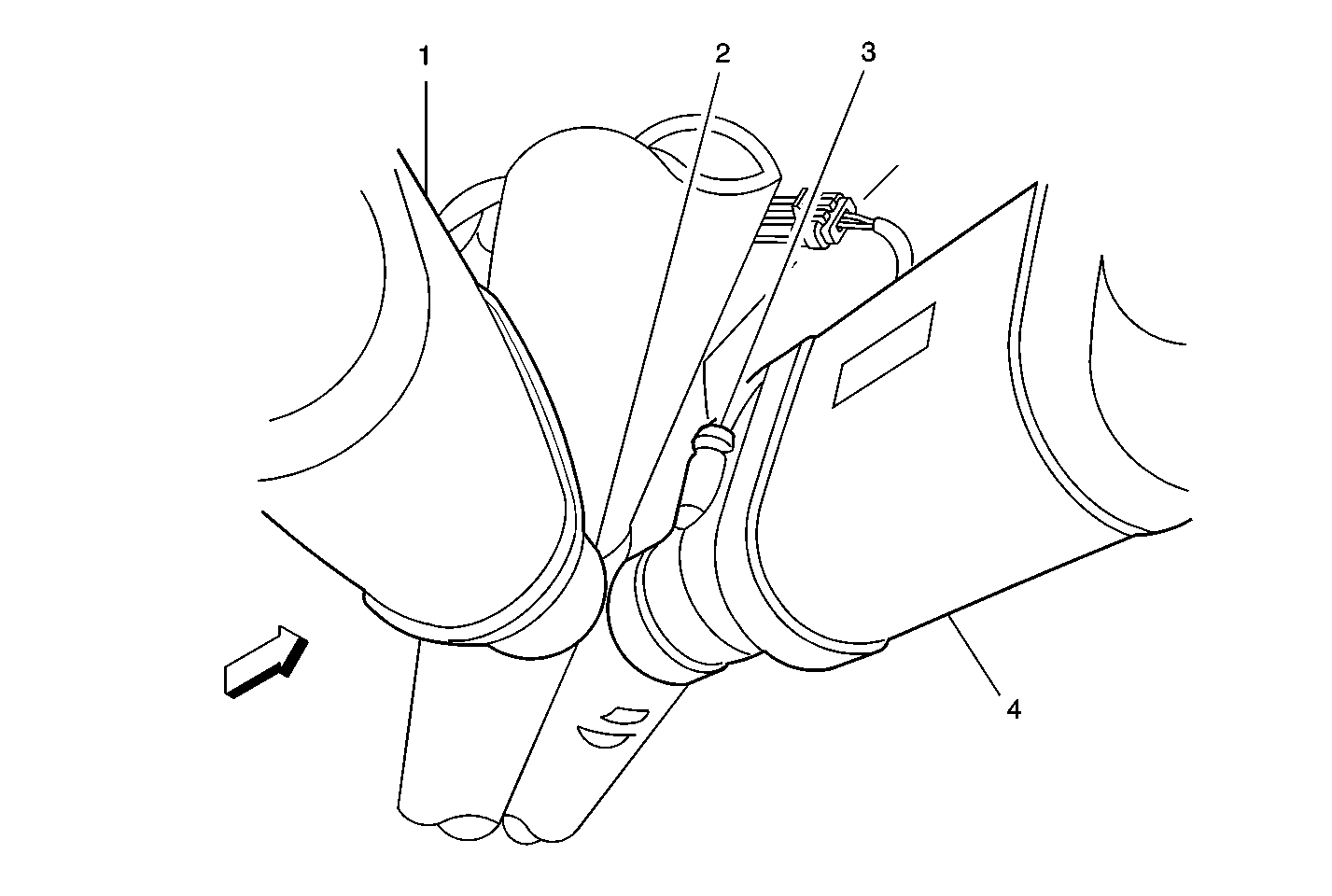

Figure 6:

Bank 1, Bank 2, HO2S 2
Object Number: 622637 Size: MF
(1)Right Exhaust Catalytic Converter
(2)HO2S Bank 1 Sensor 2
(3)HO2S Bank 2 Sensor 2
(4)Left Exhaust Catalytic Converter

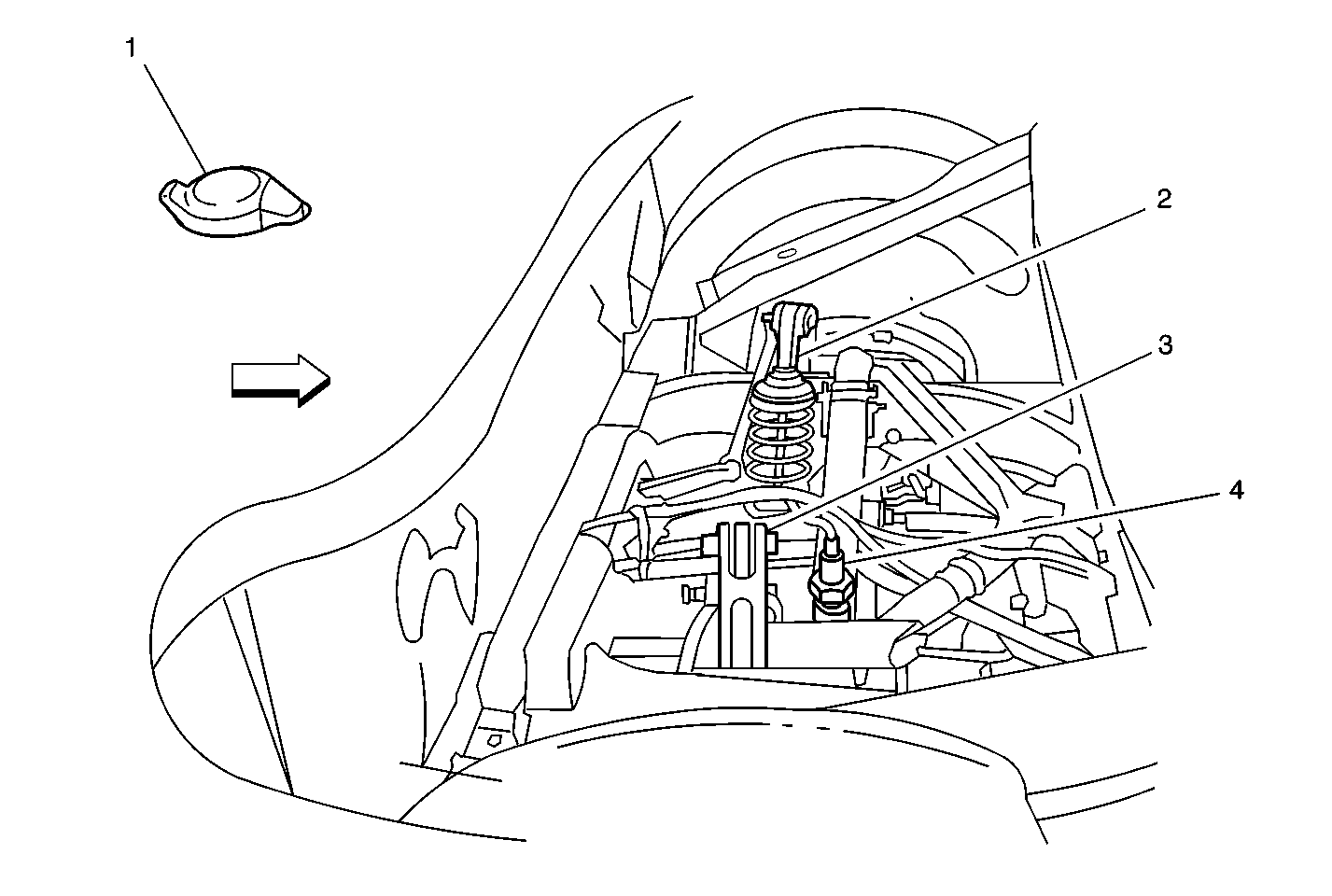

Figure 7:

Rough Road Sensor
Object Number: 622638 Size: MF
(1)Fuel Filler Cap
(2)Left Rear Shock Tower
(3)Right Rear Shock Tower
(4)Rough Road Sensor

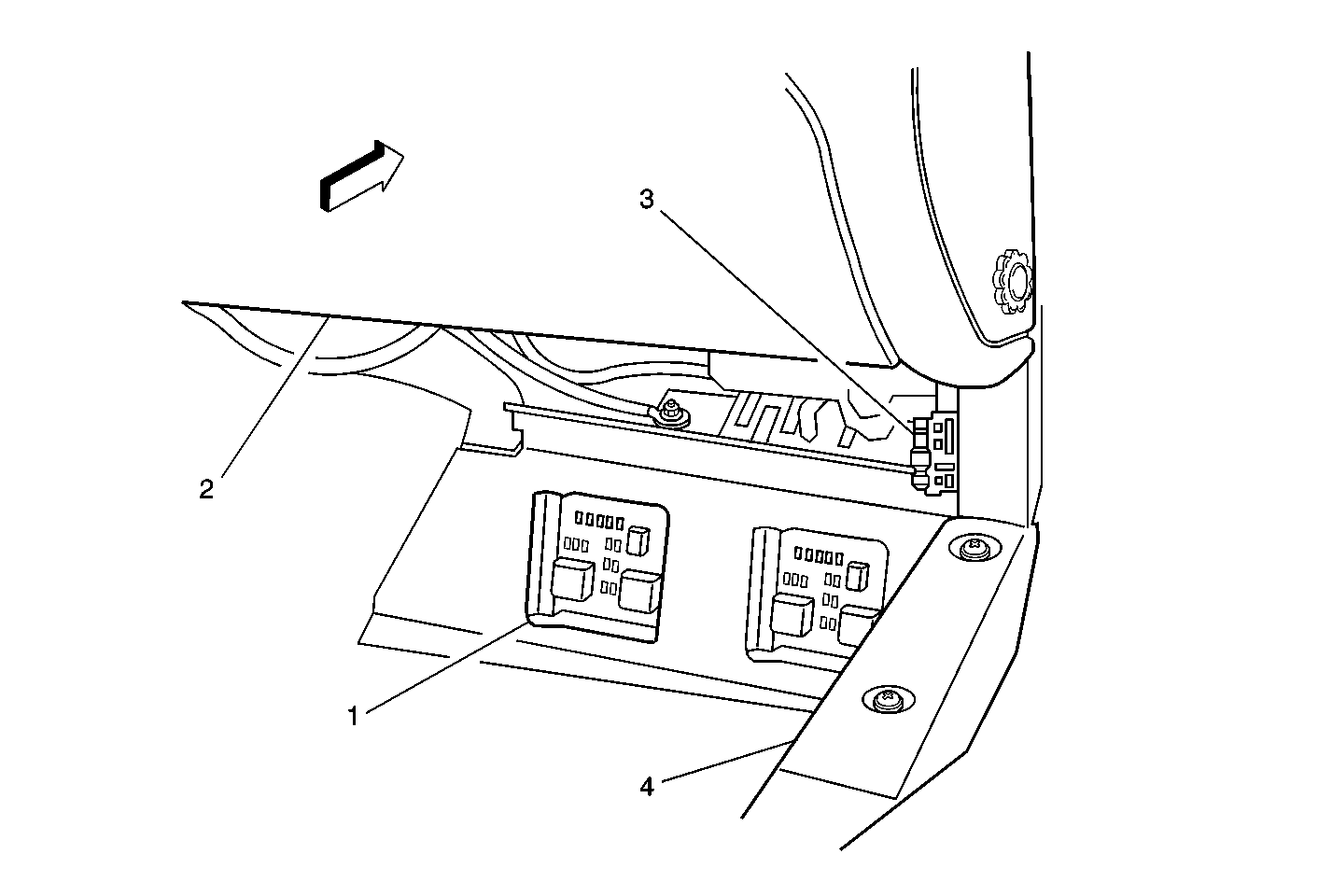

Figure 8:

Fuse/Relay Center
Object Number: 622667 Size: MF
(1)Fuse/Relay Center
(2)Knee Bolster
(3)Data Link Connector (DLC)
(4)Right Side Rocker Panel

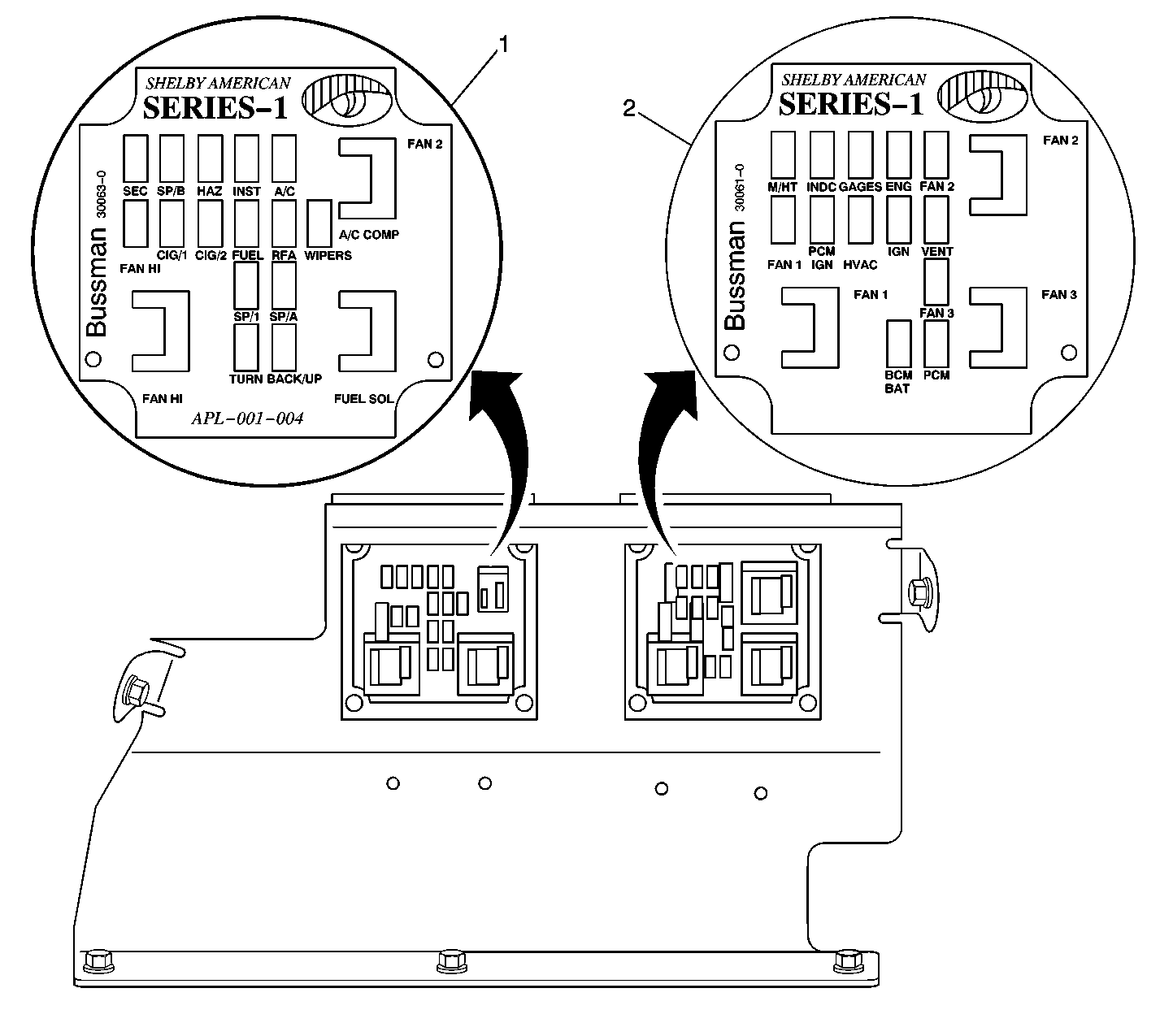

Figure 9:

Fuse/Relay Identification
Object Number: 626283 Size: LF
(1)Box 3 (Box 2 is located at left side of IP.)
(2)Box 1

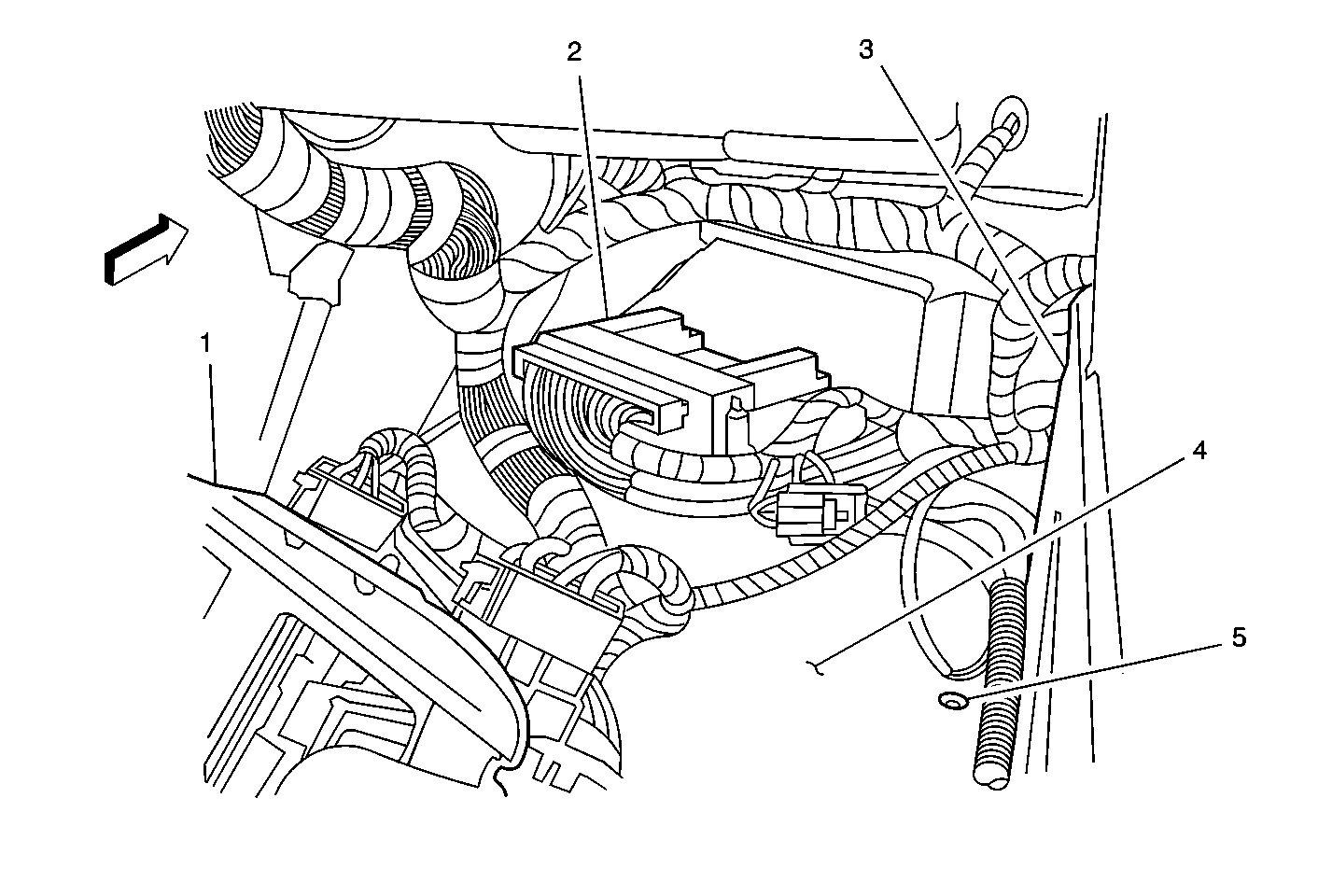

Figure 10:

Powertrain Control Module
Object Number: 622640 Size: MF
(1)Fuse and Relay Center Mounting Bracket
(2)Powertrain Control Module
(3)Right Side Rocker Panel
(4)Right Side Passenger Foot Well Compartment
(5)Mounting Bolt Holes (5) for Fuse and Relay Center Mounting Bracket
Figure 11:

EVAP Canister Purge Solenoid
Object Number: 622657 Size: SF
(1)EVAP Canister Purge Solenoid Vacuum Harness
(2)Bolt
(3)EVAP Canister Purge Solenoid Quick-Connect Hose
(4)EVAP Canister Purge Solenoid
(5)EVAP Canister Purge Solenoid Bracket
(6)EVAP Canister Purge Solenoid Electrical Connector
(7)EVAP Canister Purge Solenoid Quick-Connect Hose
(8)EVAP Service Port
(9)Vacuum Hose
(10)Intake Manifold

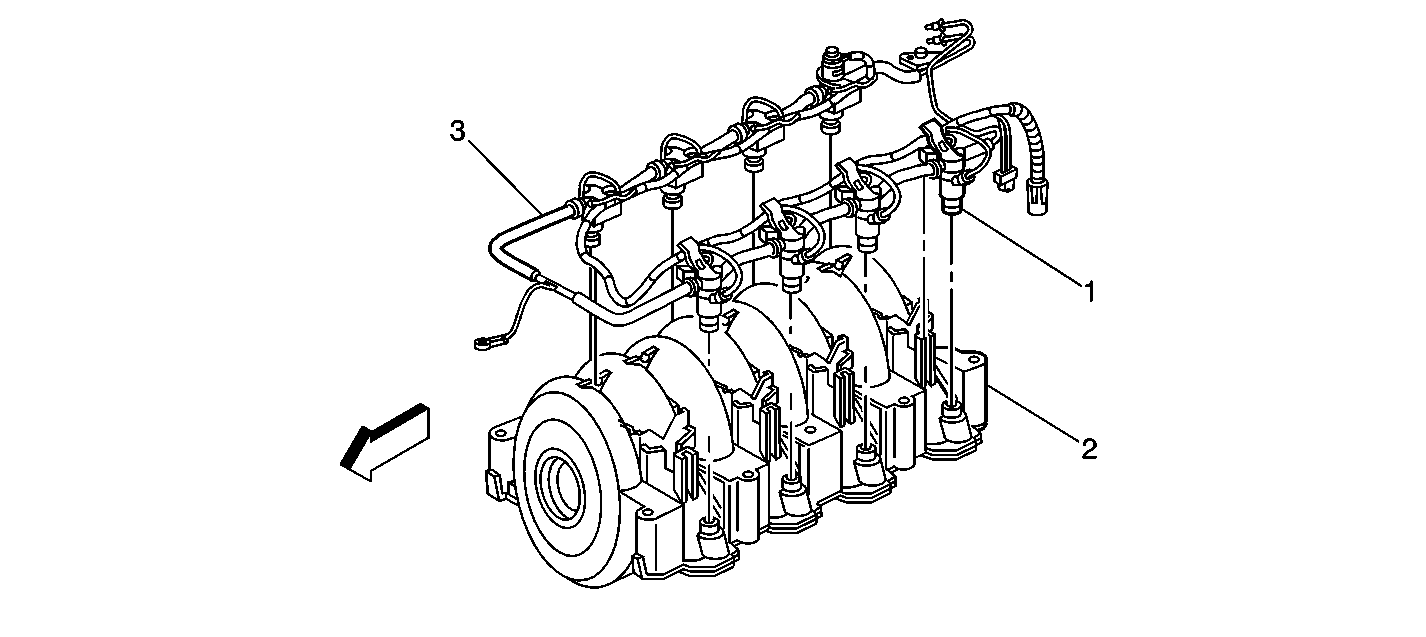

Figure 12:

Fuel Injectors
Object Number: 622658 Size: SF
(1)Fuel Injector
(2)Intake Manifold
(3)Fuel Rail Assembly
Figure 13:

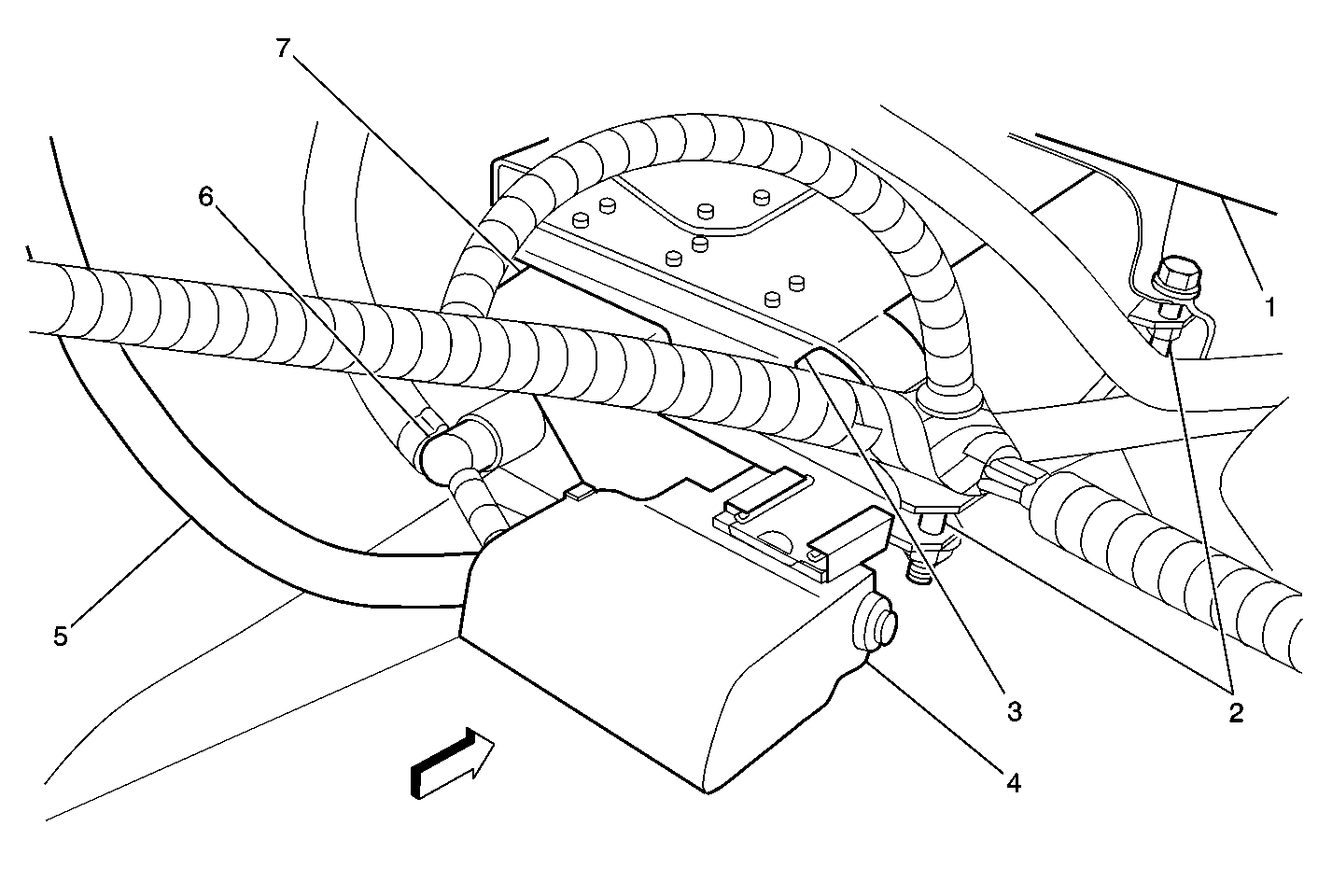

EVAP Canister, EVAP Vent Valve
Object Number: 622641 Size: MF
(1)Bottom Left Rear of Fuel Tank
(2)EVAP Canister Retaining Bolts
(3)EVAP Canister Mounting Bracket
(4)EVAP Vent Valve Solenoid (Access Behind Rear License Plate)
(5)Fuel Tank Vapor Hose
(6)EVAP Purge Hose (Quick Connect)
(7)EVAP Canister
Figure 14:

Knock Sensor
Object Number: 622660 Size: MF
(1)Knock Sensor
Figure 15:

Fuel Tank Pressure Sensor
Object Number: 622643 Size: MF
(1)Fuel Sender Assembly Electrical Connector
(2)Fuel Sender Assembly
(3)Fuel Tank Pressure Sensor
(4)Fuel Pump
(5)Float
Figure 16:

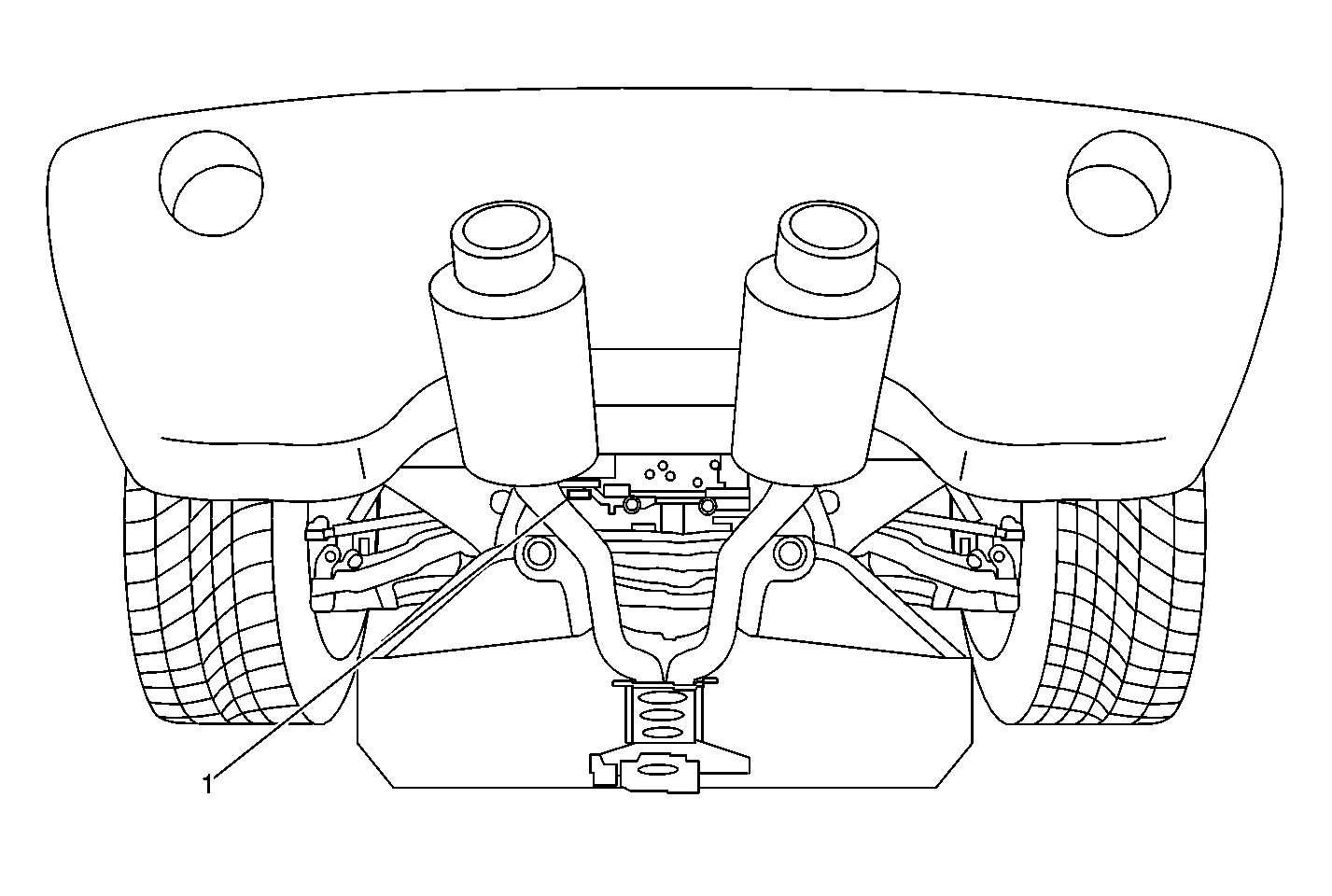

Vehicle Speed Sensor
Object Number: 622645 Size: MF
(1)Vehicle Speed Sensor (Left Side of Transmission)
