| Figure 1: |

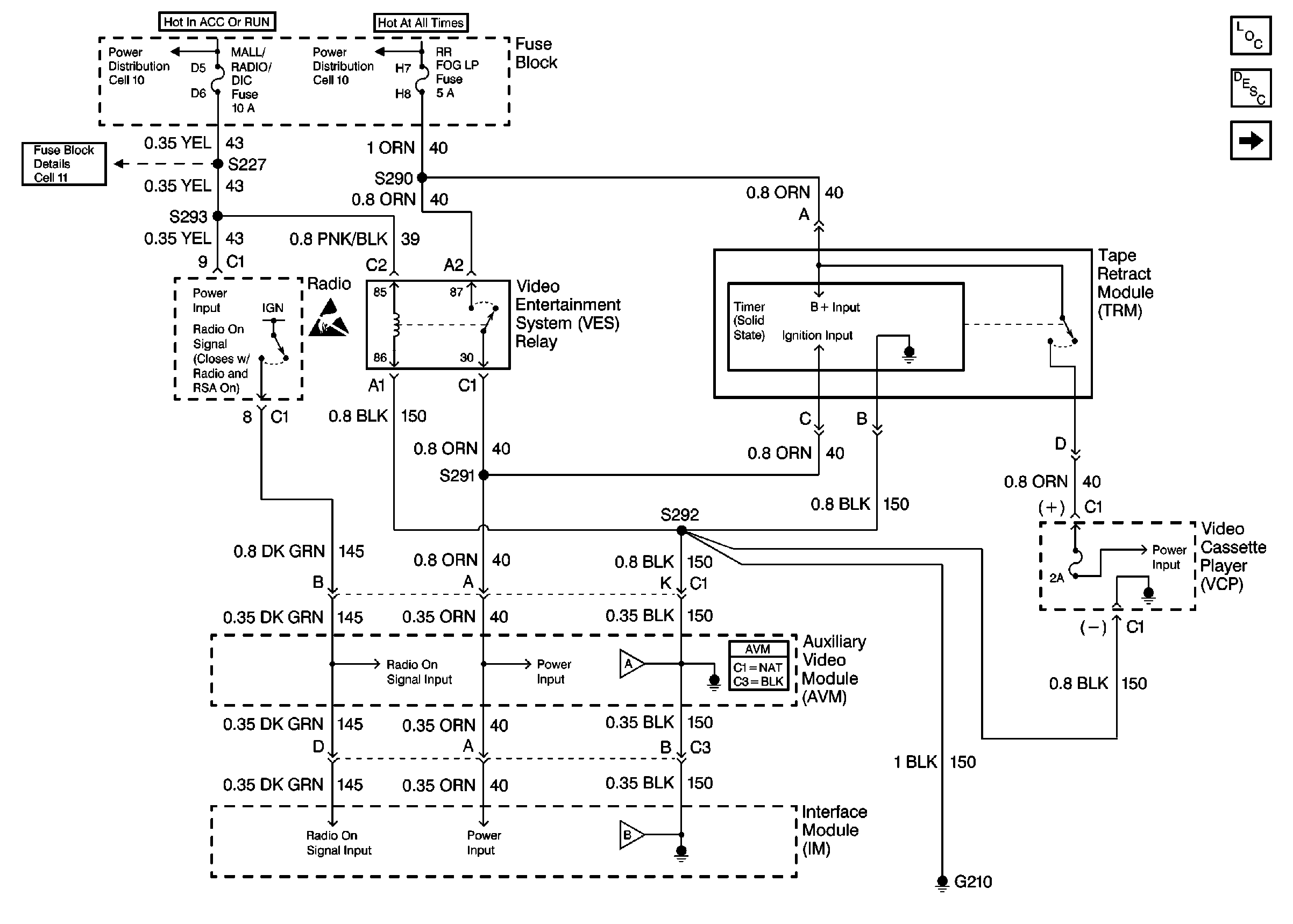

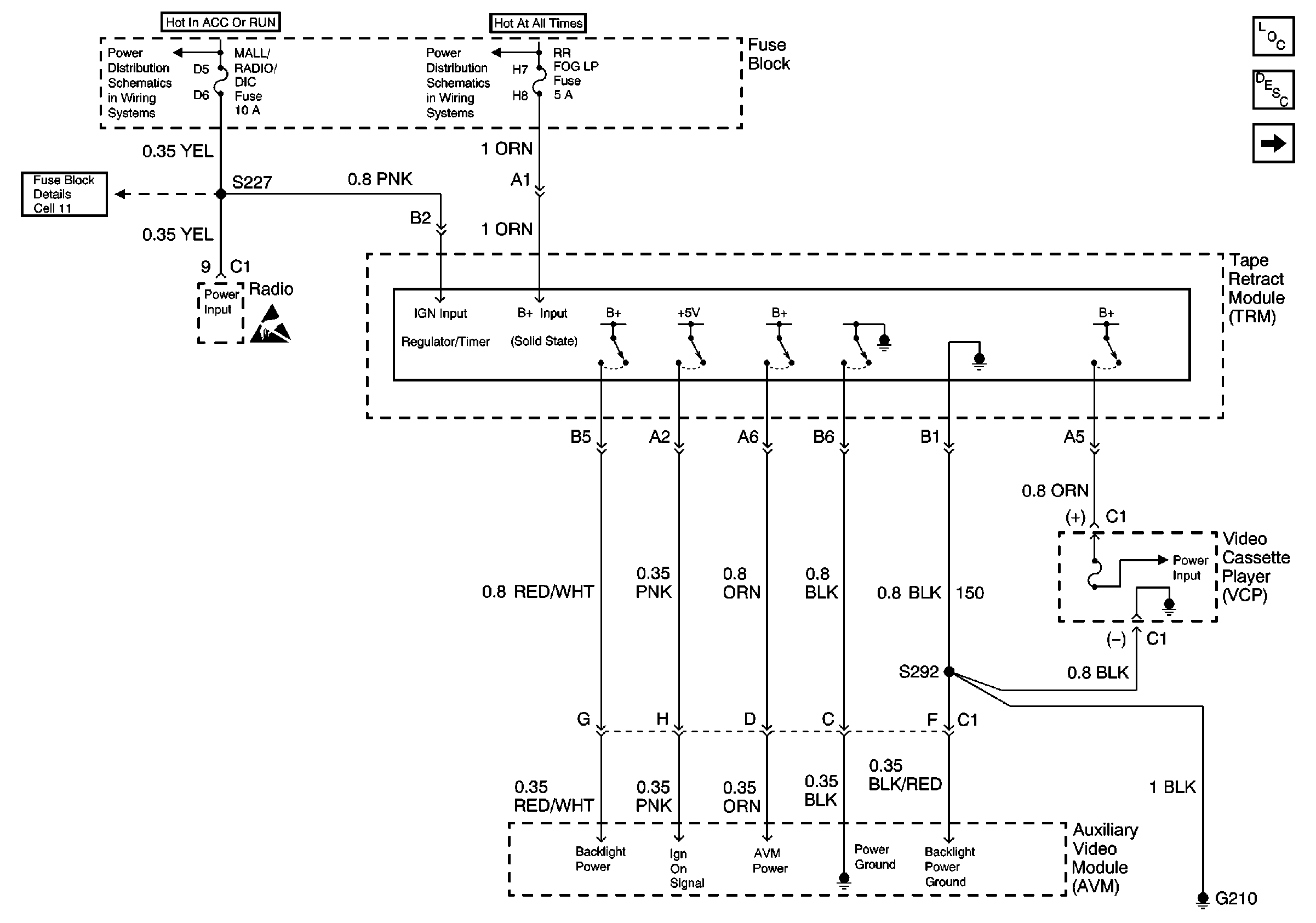

Power and Ground Distribution
|
| Figure 2: |

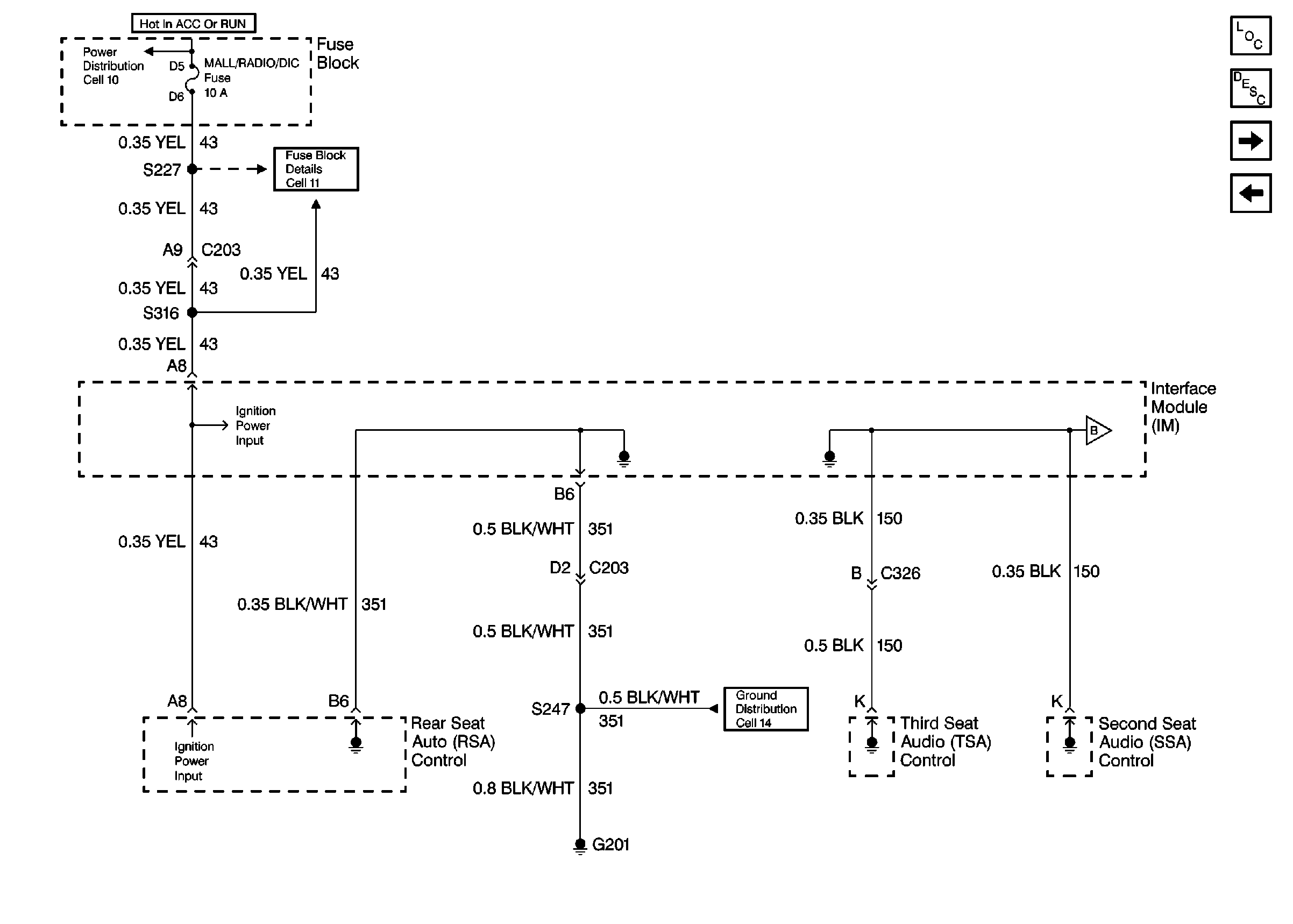

Power and Ground Distribution (w/o VES Relay)
|
| Figure 3: |
Interface Module
|
| Figure 4: |

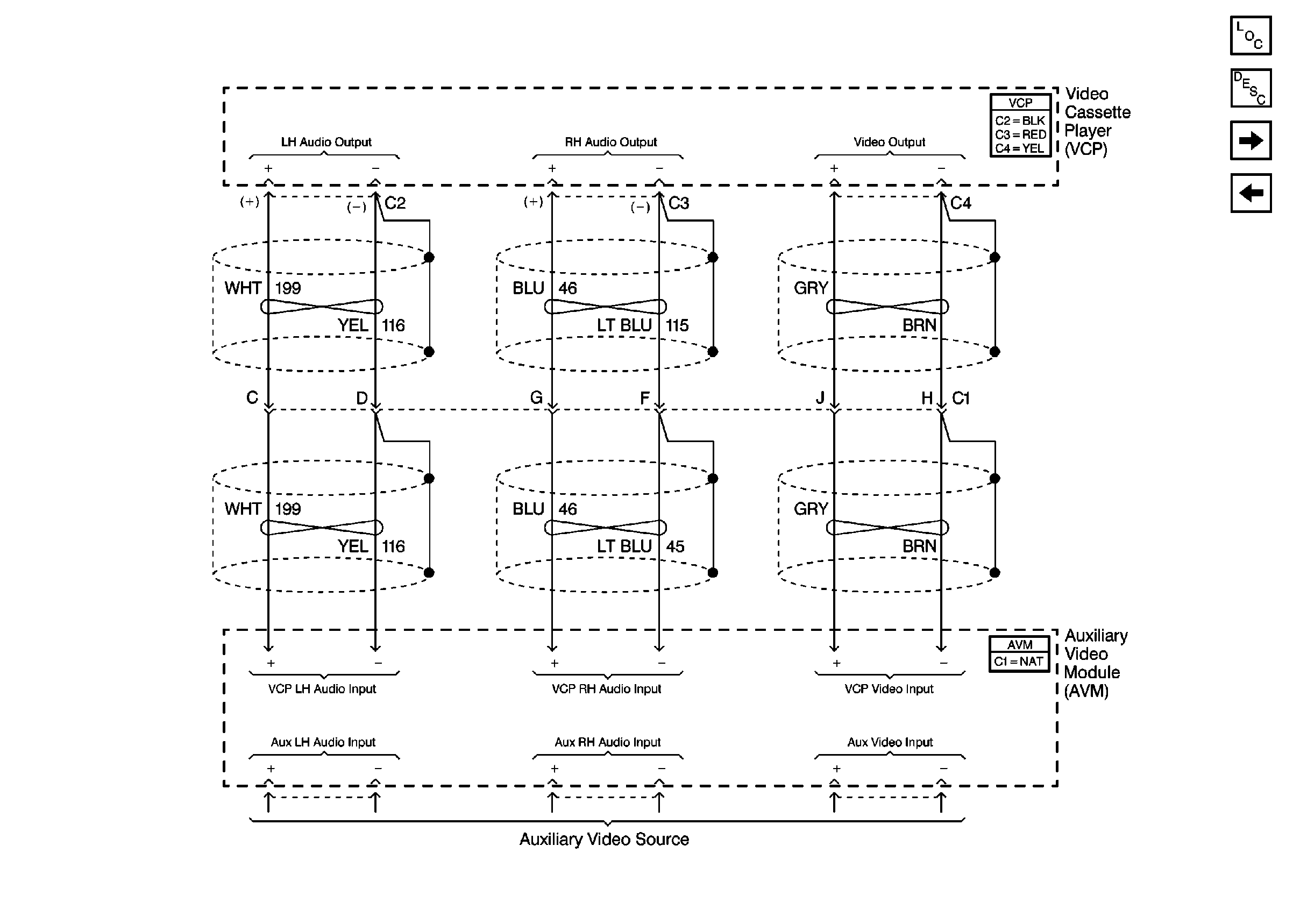

Video Cassette Player (VCP) to Auxiliary Video Module (AVM) Inputs
|
| Figure 5: |

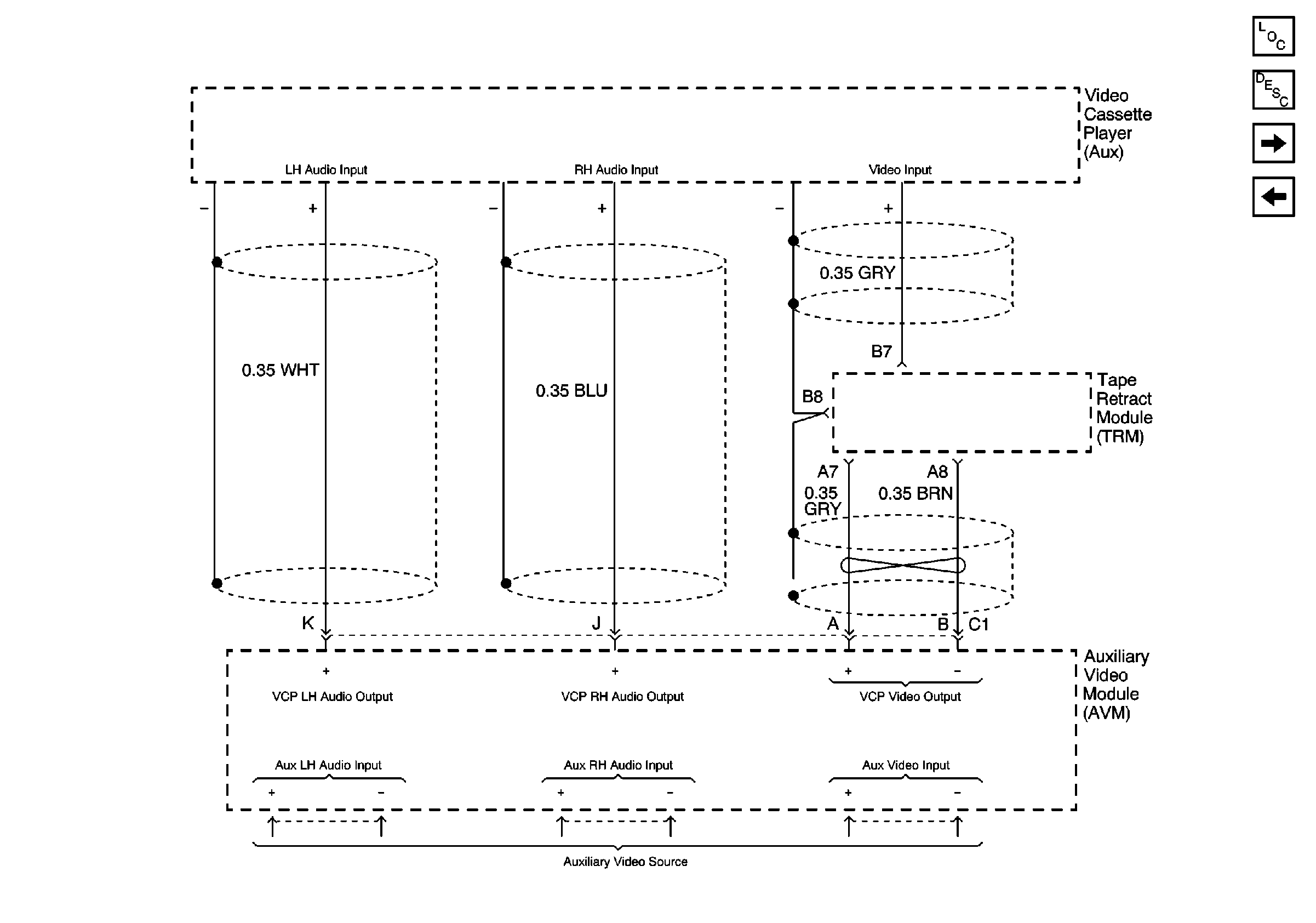

Video Cassette Player (VCP) to Auxiliary Video Module (AVM) Inputs (w/o VES Relay)
|

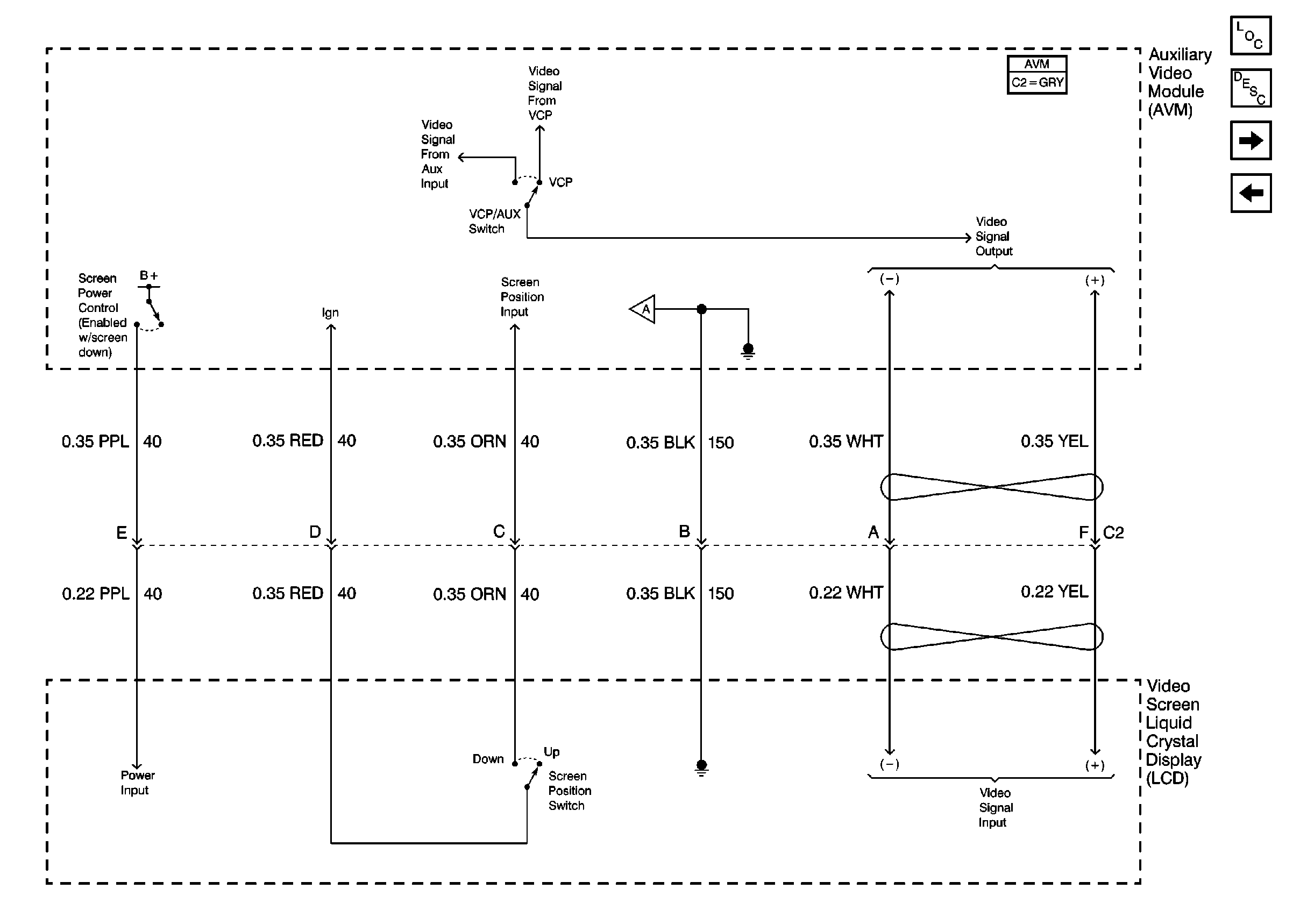

| Figure 6: |
Video Screen Controls
|
| Figure 7: |
Video Screen Controls (w/o VES Relay)
|
| Figure 8: |

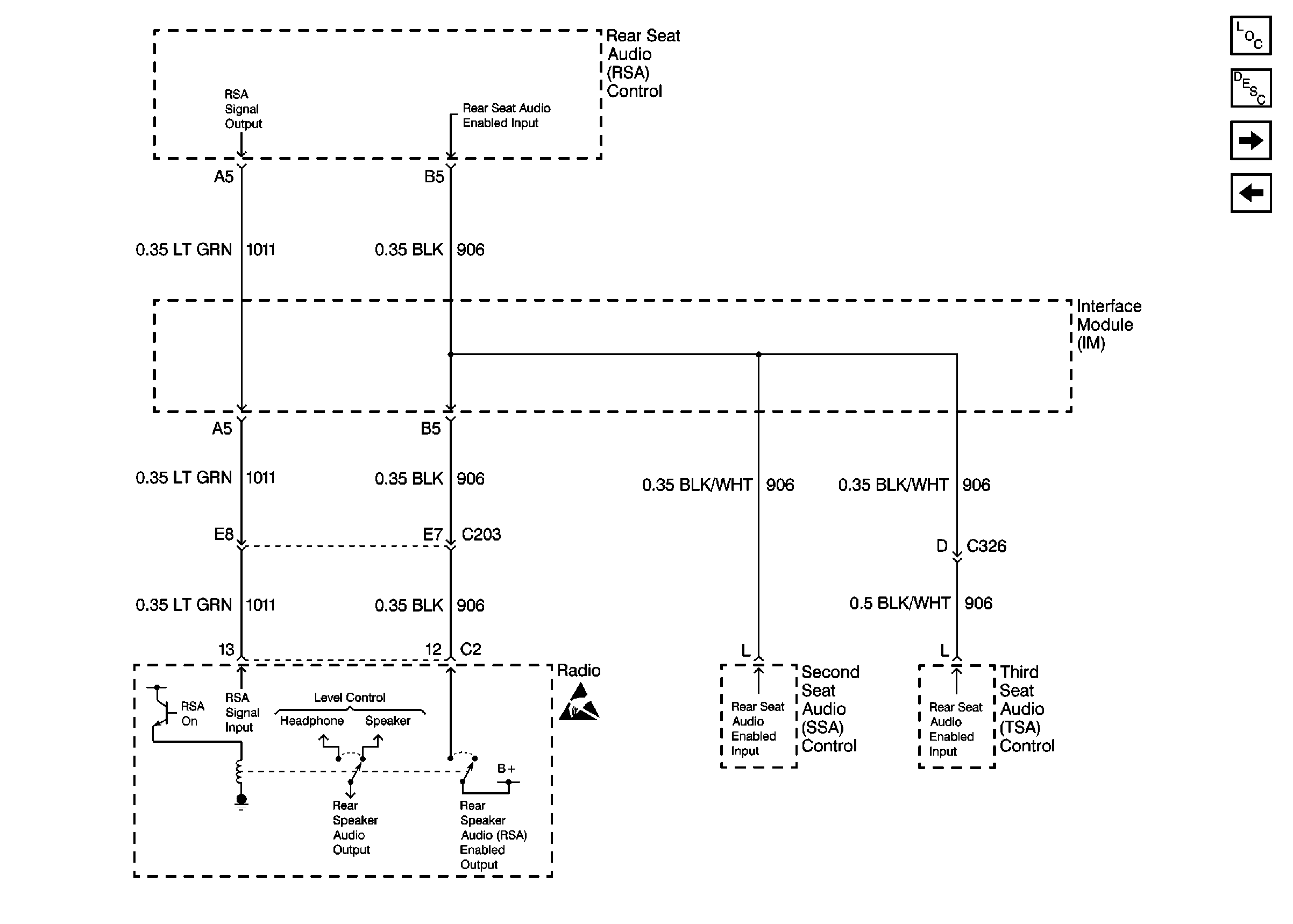

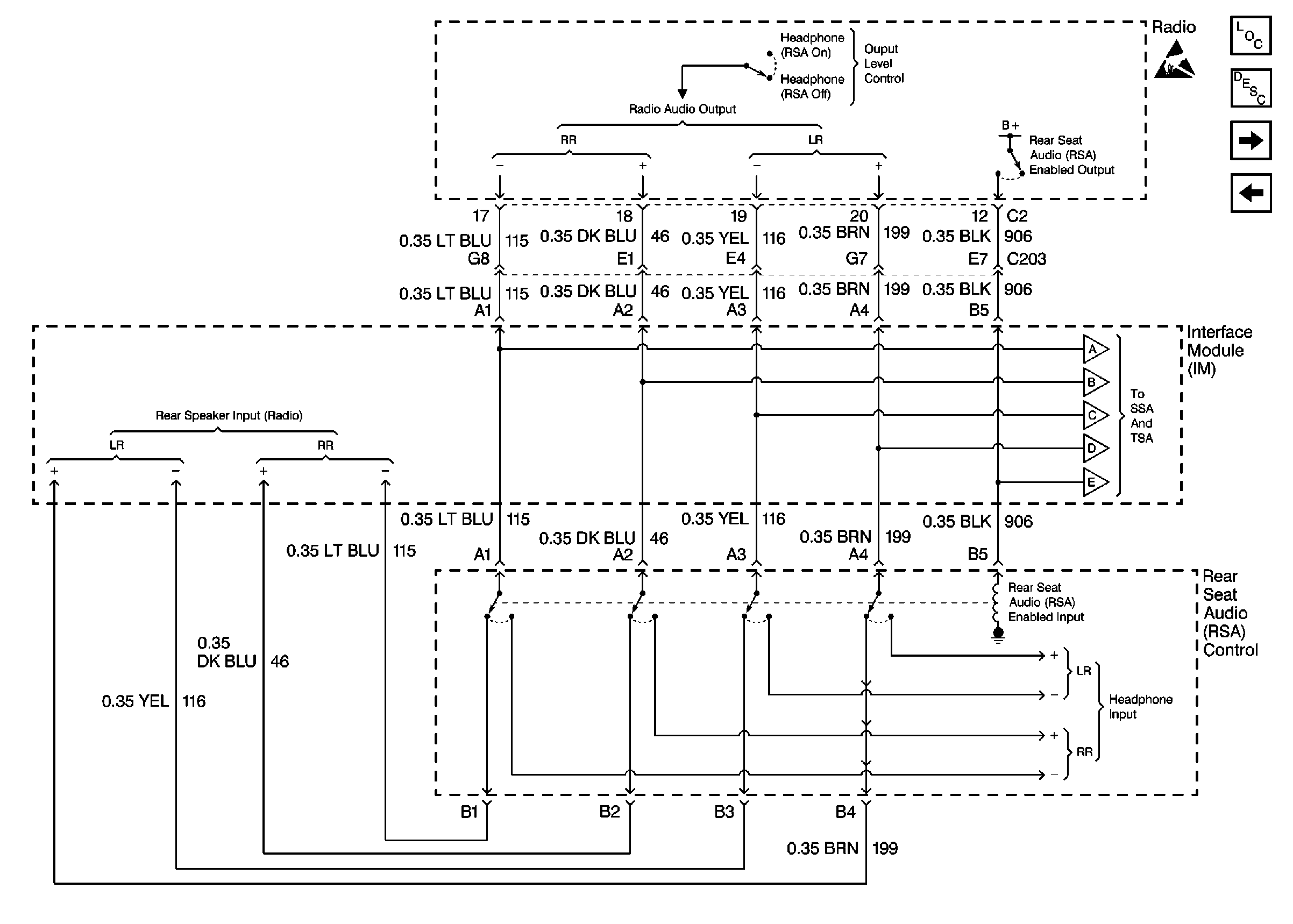

Rear Seat Audio (RSA) Enabling Circuits
|
| Figure 9: |

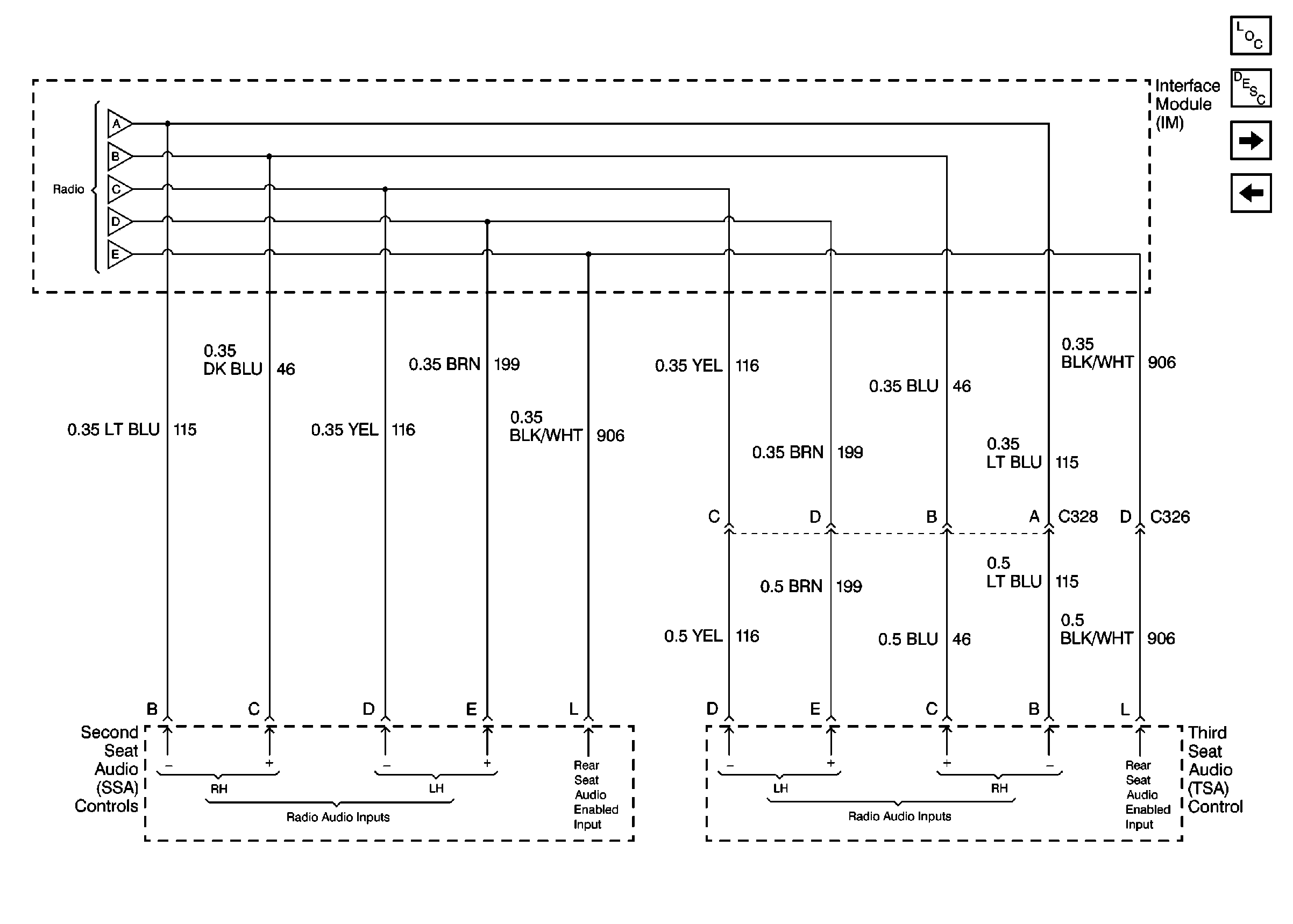

Radio Audio Channel Outputs
|
| Figure 10: |
Radio Audio Channel Outputs
|
| Figure 11: |
Video Audio Channel Outputs
|

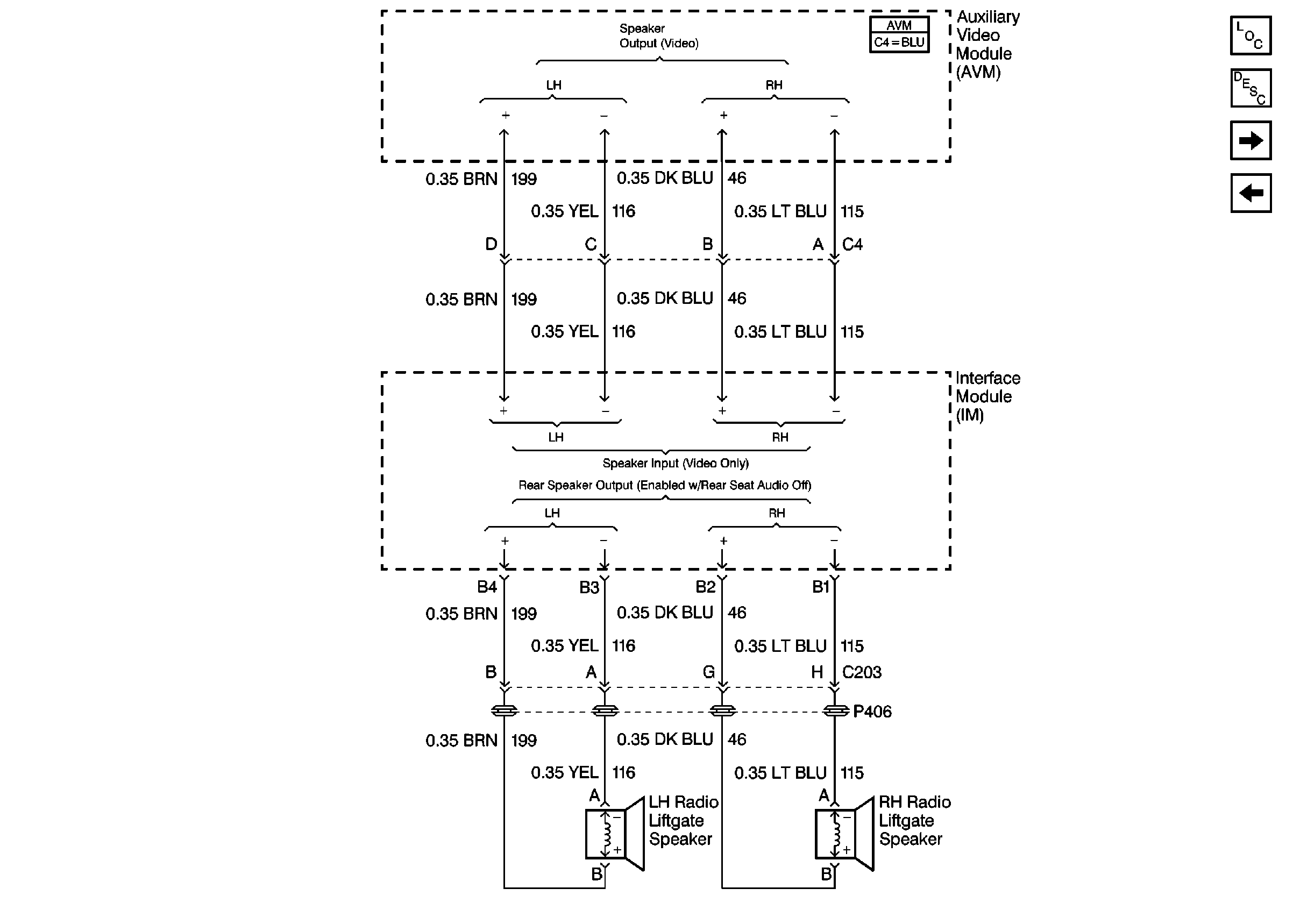

| Figure 12: |
Rear Speaker Outputs
|
| Figure 13: |
Interface Module
|
| Figure 14: |

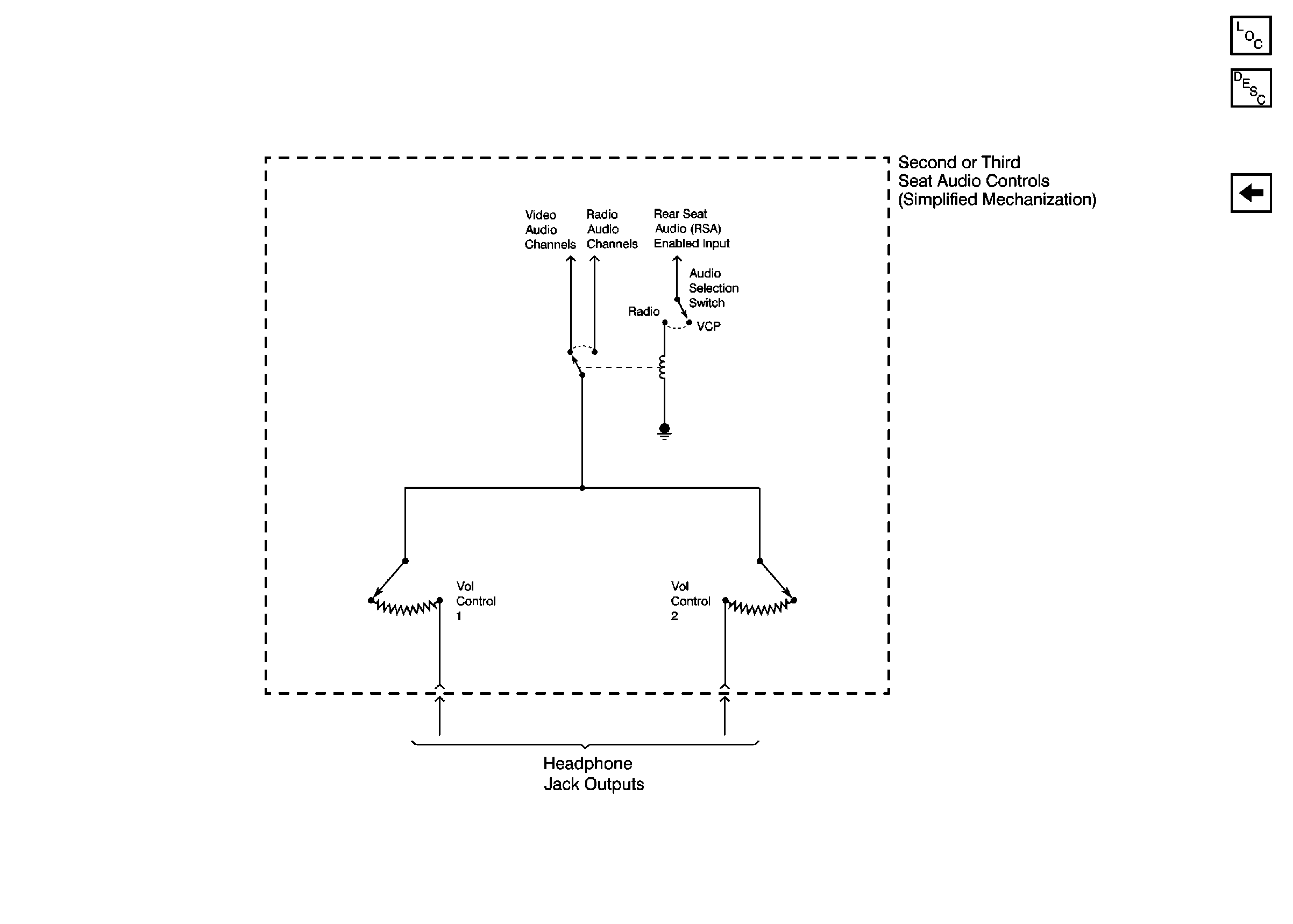

Seat Audio Controls Mechanization
|
