Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

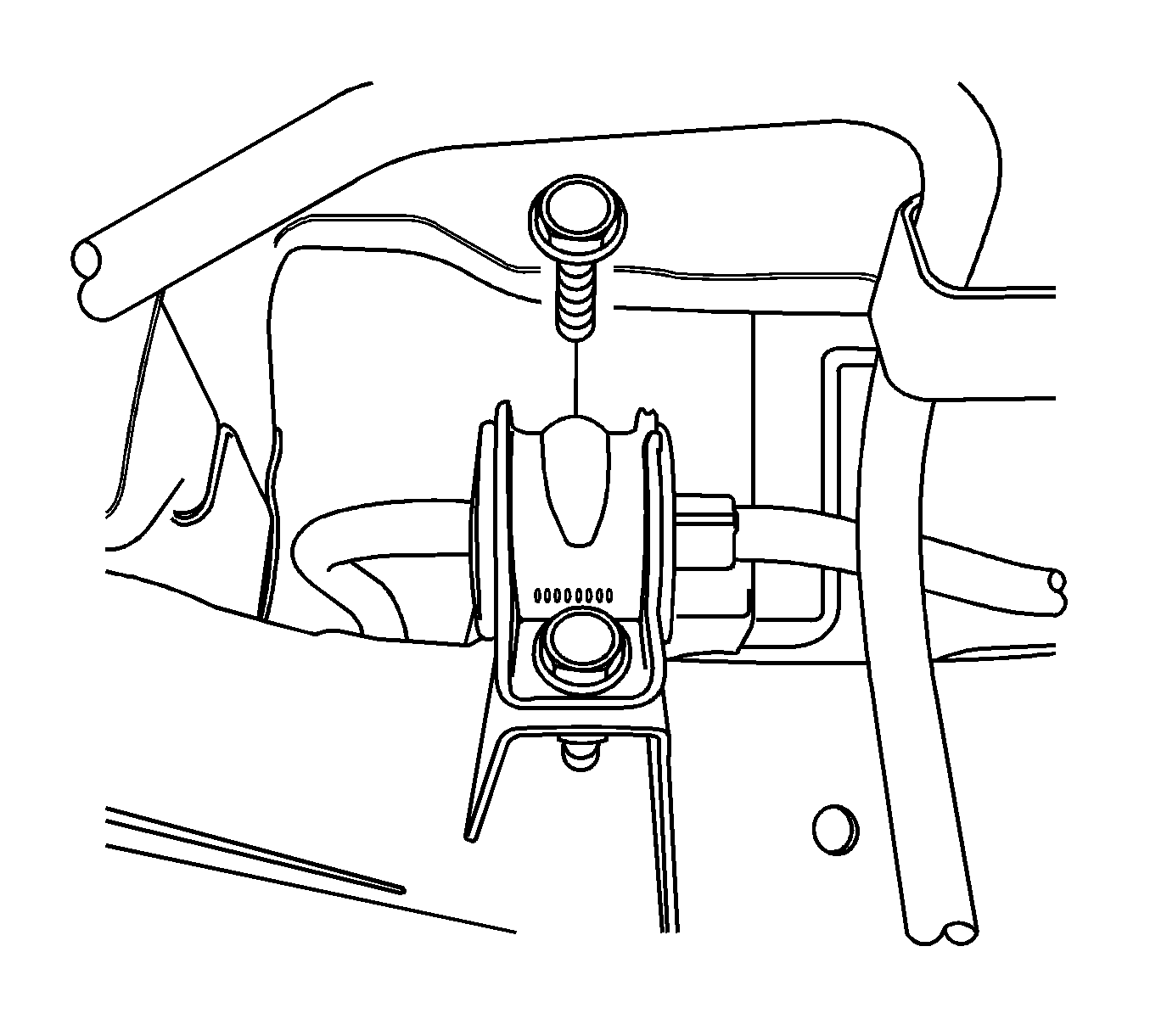

    2. Object Number: 1768942 Size: SH
  2. Loosen the stabilizer shaft clamp bolts.

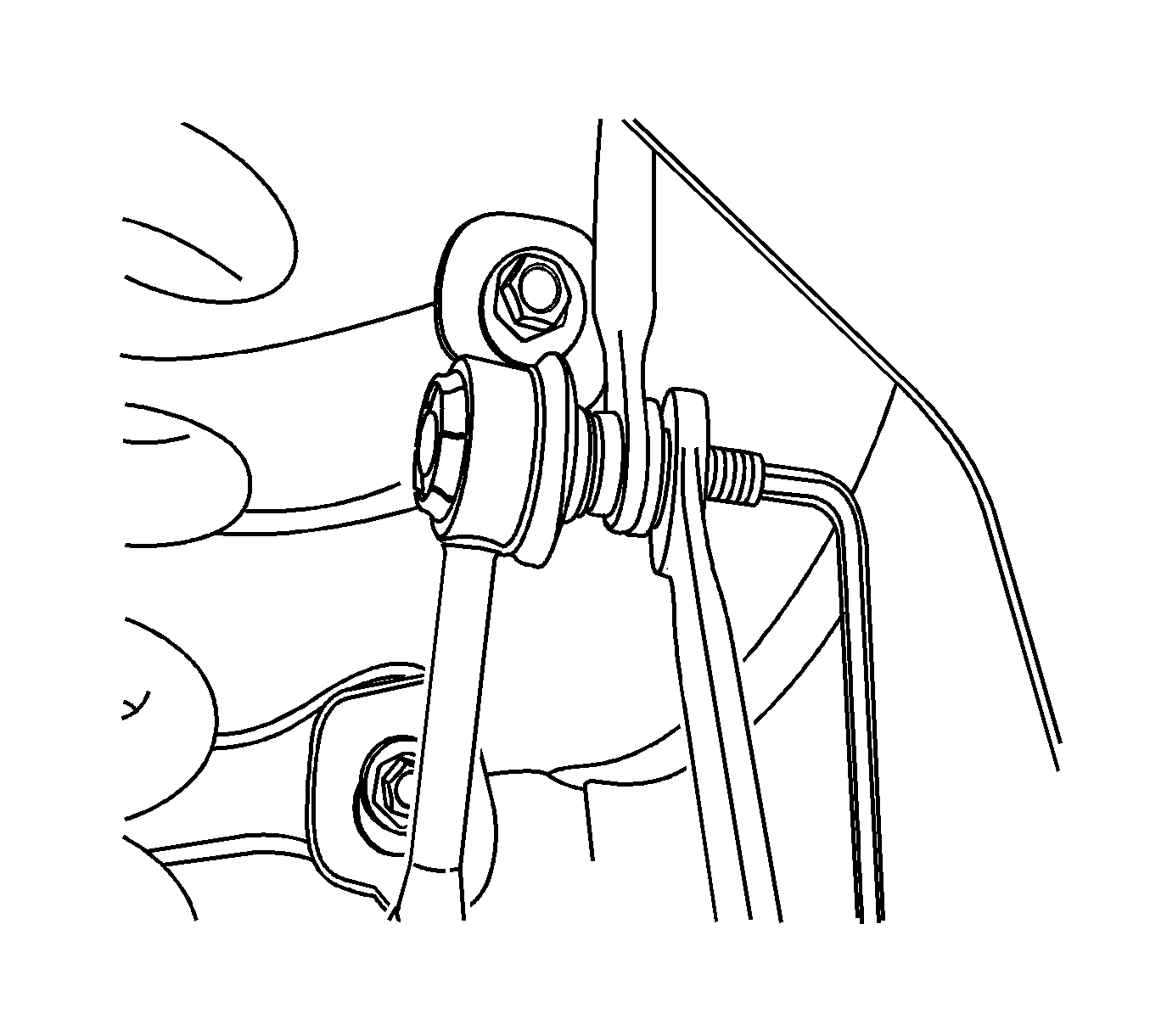

    3. Object Number: 1768939 Size: SH

    Important: When disconnecting the stabilizer link, hold the link with a wrench to prevent turning.

  3. Remove the stabilizer link to stabilizer shaft nut.

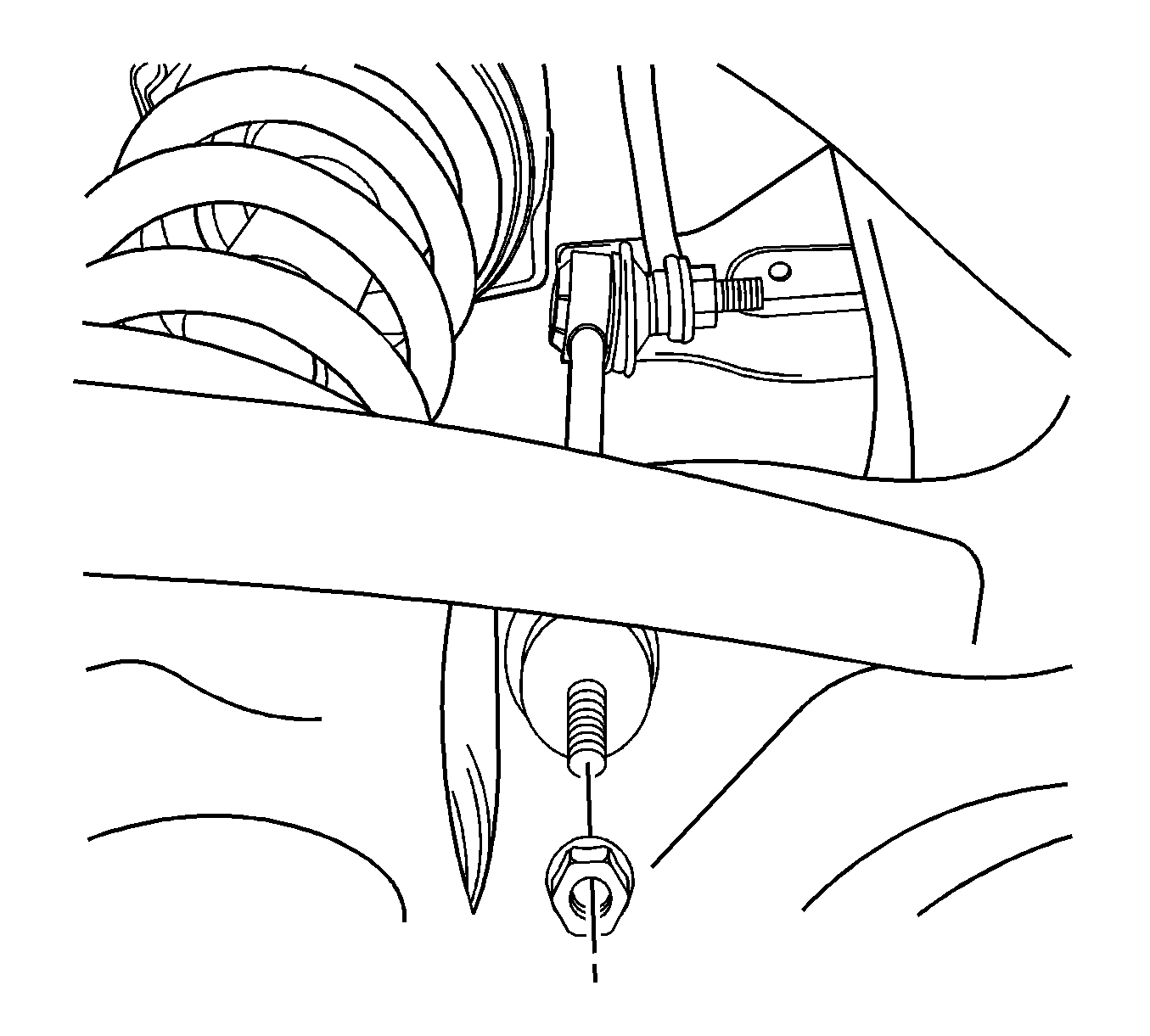

    4. Object Number: 1768921 Size: SH

    Important: When disconnecting the stabilizer link, hold the link with a wrench to prevent turning.

  4. Remove the stabilizer link to lower control arm nut.
  5. Remove the stabilizer link from the vehicle.

Installation Procedure


    Object Number: 1768921 Size: SH
  1. Position the stabilizer link through the lower control arm.

    2. Notice: Refer to Fastener Notice in the Preface section.

    Important: When connecting the stabilizer link, hold the link with a wrench to prevent turning.

  2. Install the stabilizer link to control arm nut.

    3. Tighten
    Tighten the nut to 15 N·m (11 lb ft).


    Object Number: 1768939 Size: SH
  3. Install the stabilizer link to stabilizer shaft nut.

    4. Tighten
    Tighten the nut to 57 N·m (42 lb ft).


    Object Number: 1768942 Size: SH
  4. Tighten the stabilizer shaft clamp bolts.

    5. Tighten
    Tighten the bolts to 70 N·m (52 lb ft).

  5. Lower the vehicle.
