Preliminary Procedure

Remove the engine cover. Refer to Engine Cover Replacement.

1

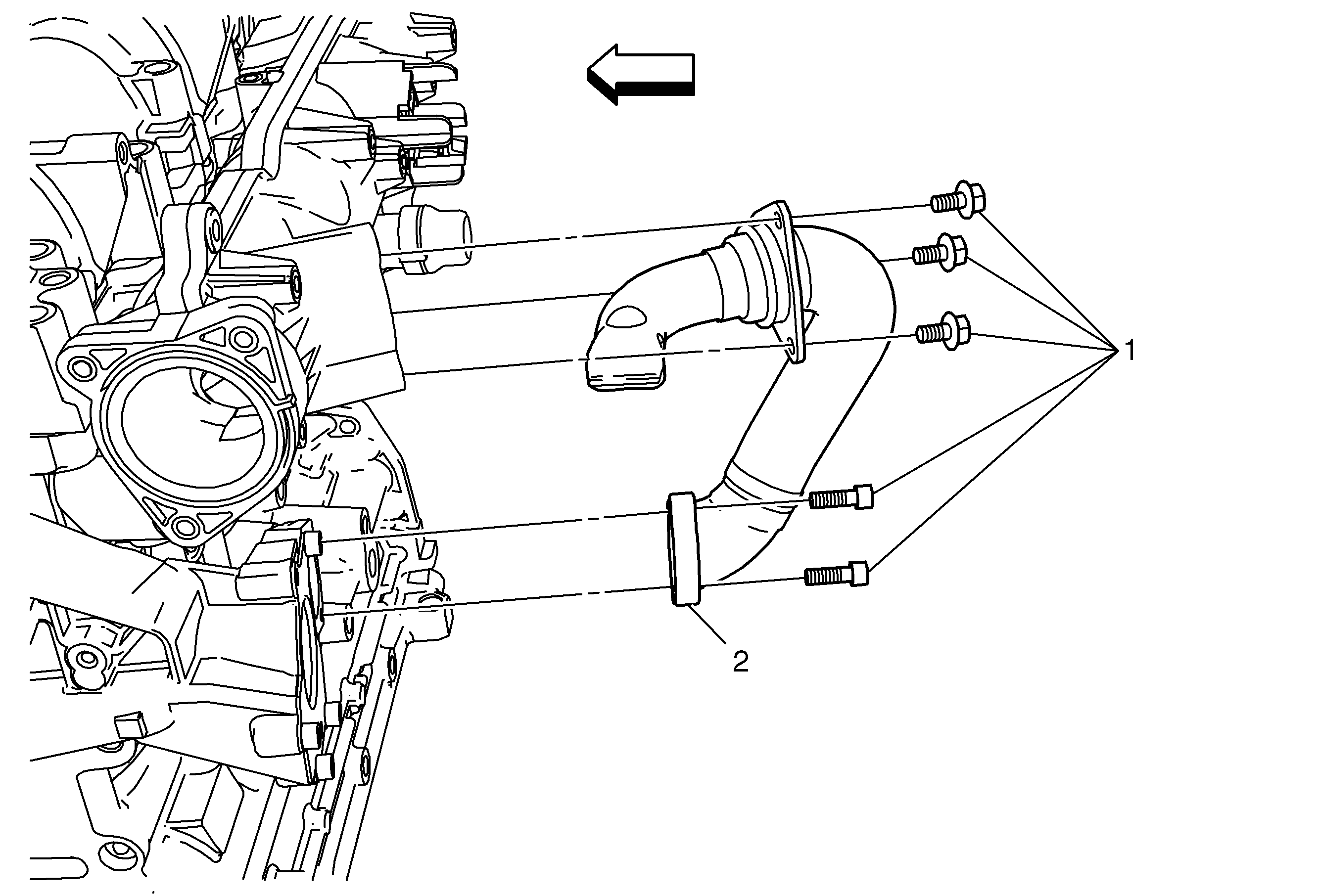

Exhaust Gas Recirculation Pipe Fastener (Qty 5)

Caution: Refer to Fastener Caution in the Preface section.

Tighten:
To cylinder head (Qty:3): 8 N·m (71 lb in)

Tighten:
To EGR cooler (Qty:2): 9 N·m (80 lb in)

2

Exhaust Gas Recirculation Pipe
