Engine Coolant Fan Motor Replacement. Opel Insignia NB (Global Epsilon) 2009

For 1990-2009 cars only

Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Cooling 🢒 Engine Coolant Fan Motor Replacement

Engine Coolant Fan Motor Replacement Diesel

Callout	Component Name
Preliminary Procedure Remove the cooling fan shroud. Refer to Engine Coolant Fan Shroud Replacement

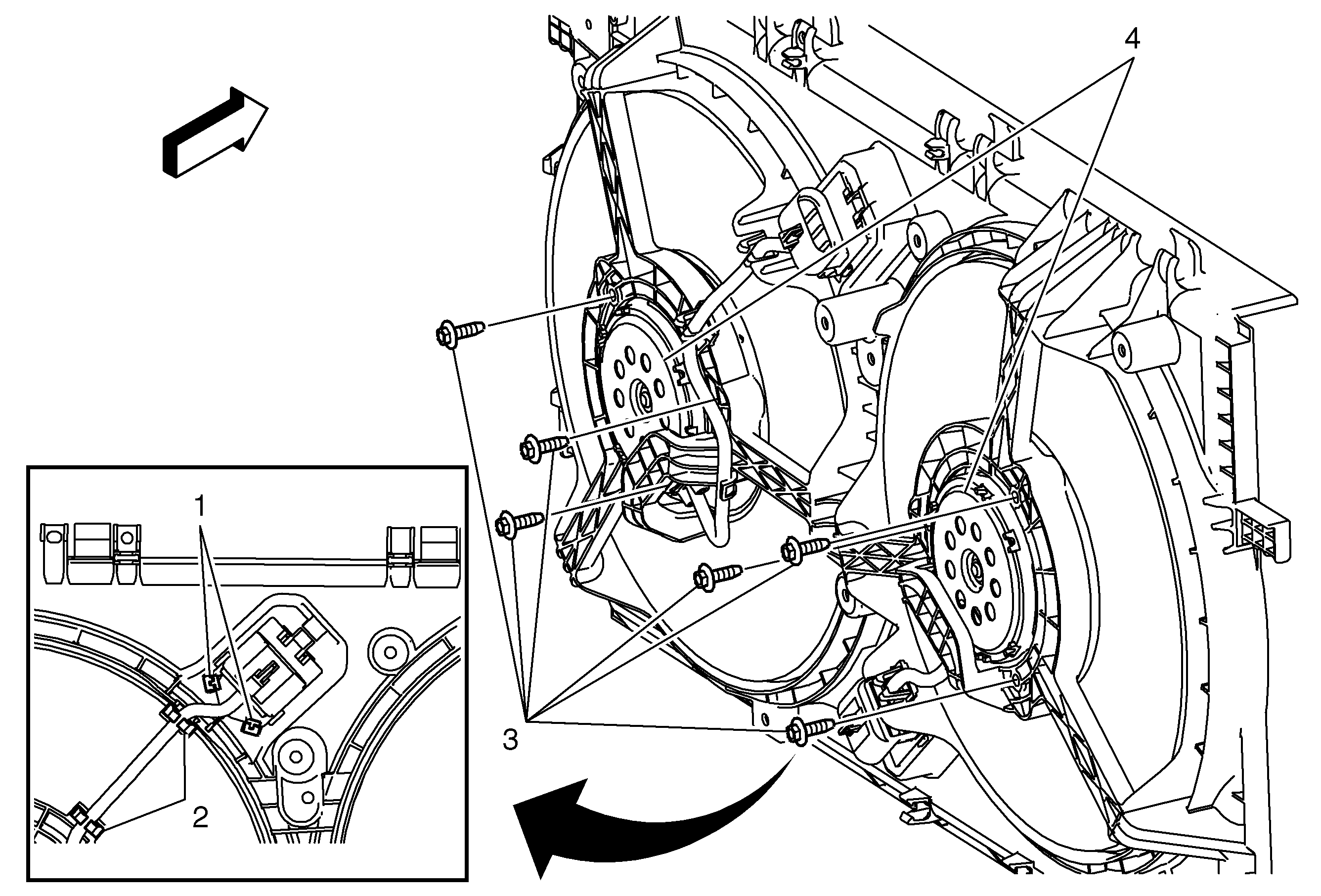

1	Fan Motor Connector (Qty: 2)
2	Fan Wiring Harness (Qty: 2) Procedure Release the cooling fan motor wiring harness from the fan shroud.
3	Fan Motor Fasteners (Qty: 6) Caution: Refer to Fastener Caution in the Preface section. Procedure Remove the coolant fan retaining bolts. Tighten 10 N·m(89 lb in)
4	Engine Coolant Fan Motor

Callout	Component Name
Preliminary Procedures Remove the radiator. Refer to Radiator Replacement. Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement.

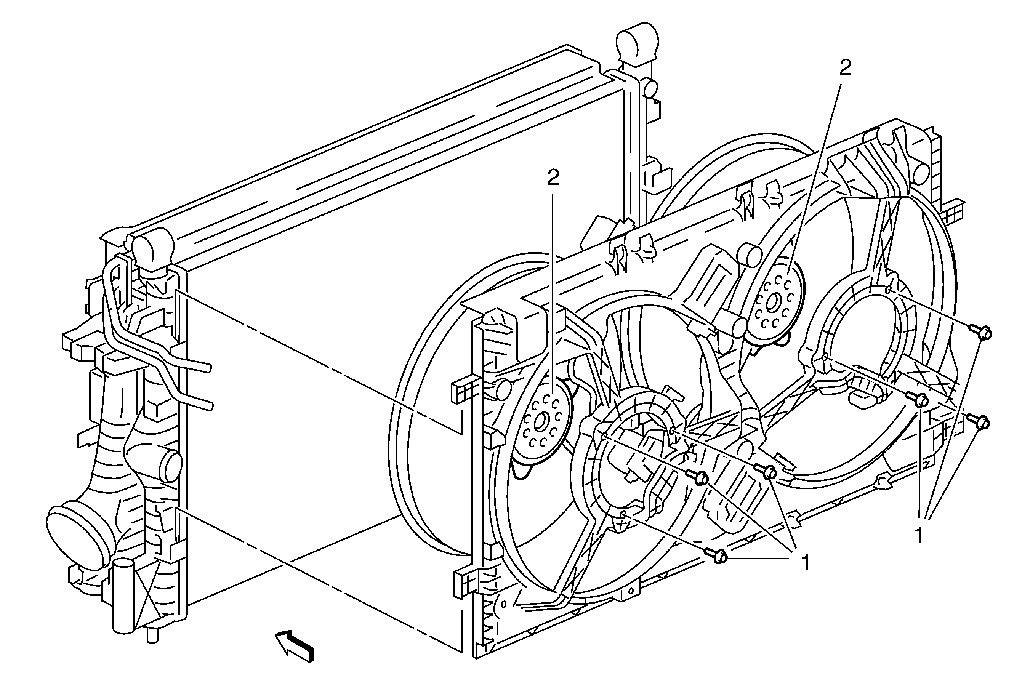

1	Engine Coolant Fan Motor Fastener (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Procedure Disconnect the electrical connector of the engine coolant fan motor. Tighten X N·m (X lb ft)
2	Engine Coolant Fan Motor

Callout

Component Name

Remove the radiator. Refer to Radiator Replacement.
Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement.

Engine Coolant Fan Motor Fastener (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Disconnect the electrical connector of the engine coolant fan motor.

Tighten
X N·m (X lb ft)

Engine Coolant Fan Motor
