Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Cooling 🢒 Engine Coolant Air Bleed Hose Replacement

Engine Coolant Air Bleed Hose Replacement LDE/A16XER, 2H0/A18XER


Object Number: 2020129 Size: MF

Callout

Component Name

1

Engine Coolant Air Bleed Hose

2

Engine Coolant Air Bleed Hose

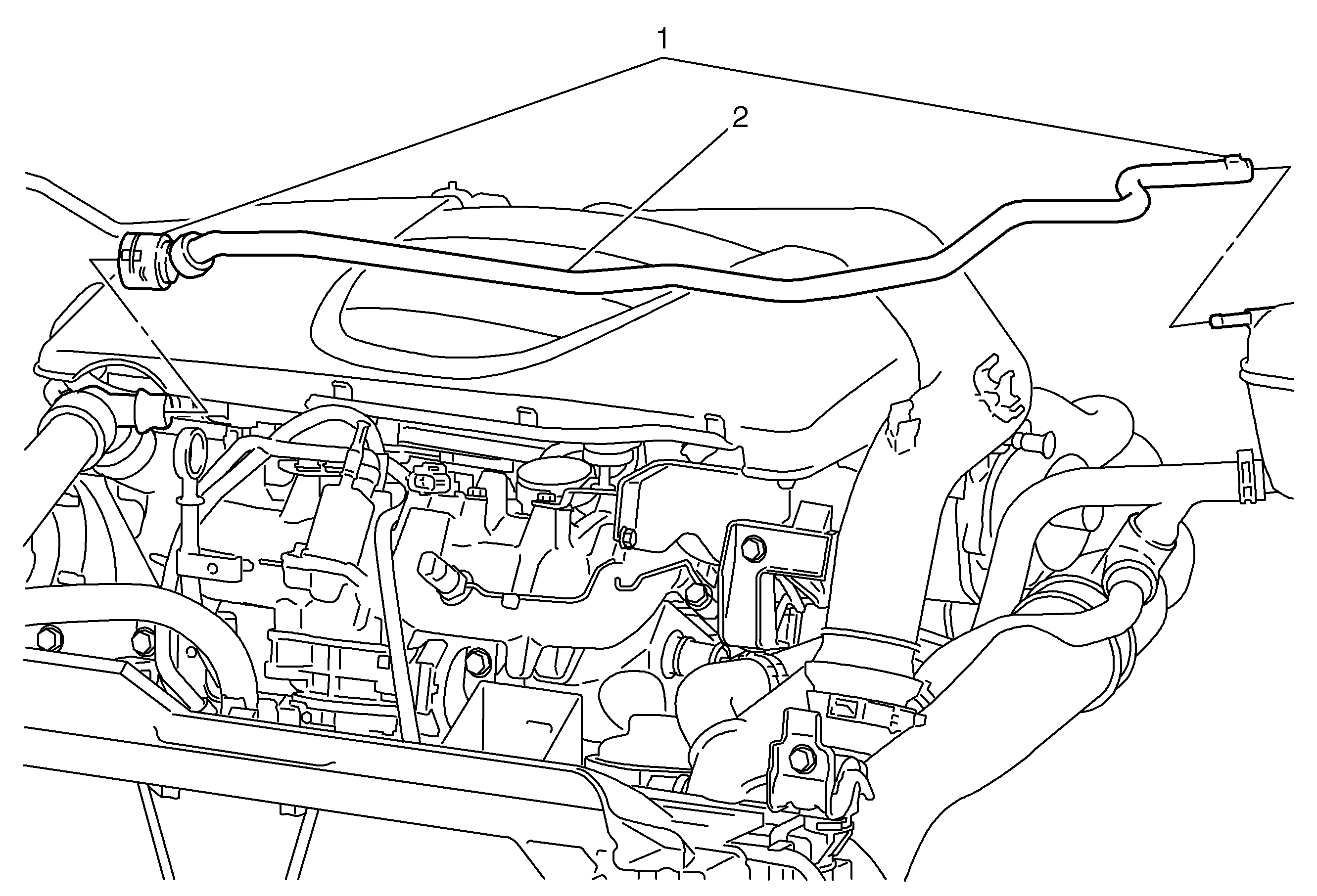

Engine Coolant Air Bleed Hose Replacement LDK/A20NHT


Object Number: 2020552 Size: MF

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling.

1

Engine Coolant Air Bleed Hose Retainer (Qty: 2)

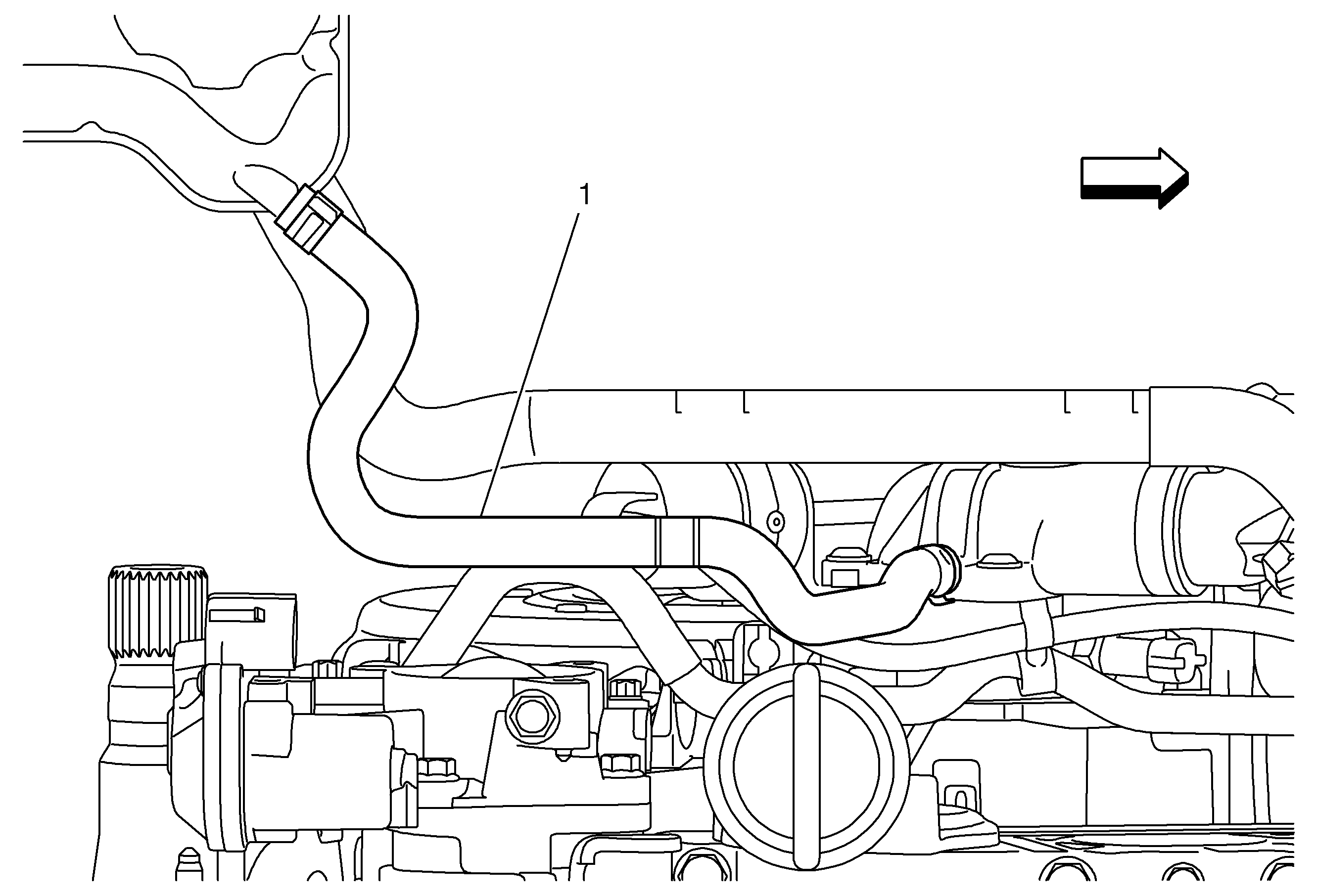

Engine Coolant Air Bleed Hose Replacement Diesel


Object Number: 2018753 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the engine cover. Refer to Engine Cover Replacement.

1

Engine Coolant Air Bleed Hose.

Procedure

  1. Release the hose clip from the surge tank and detach the hose.
  2. Release the hose clip from the engine and detach the bleed hose.
  3. After installation, fill the cooling system. Refer to Cooling System Draining and Filling.
  4. After repairs, inspect the cooling system for leaks.
