Turbocharger Oil Feed Pipe Replacement. Opel Insignia NB (Global Epsilon) 2009

For 1990-2009 cars only

Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Exhaust 🢒 Turbocharger Oil Feed Pipe Replacement

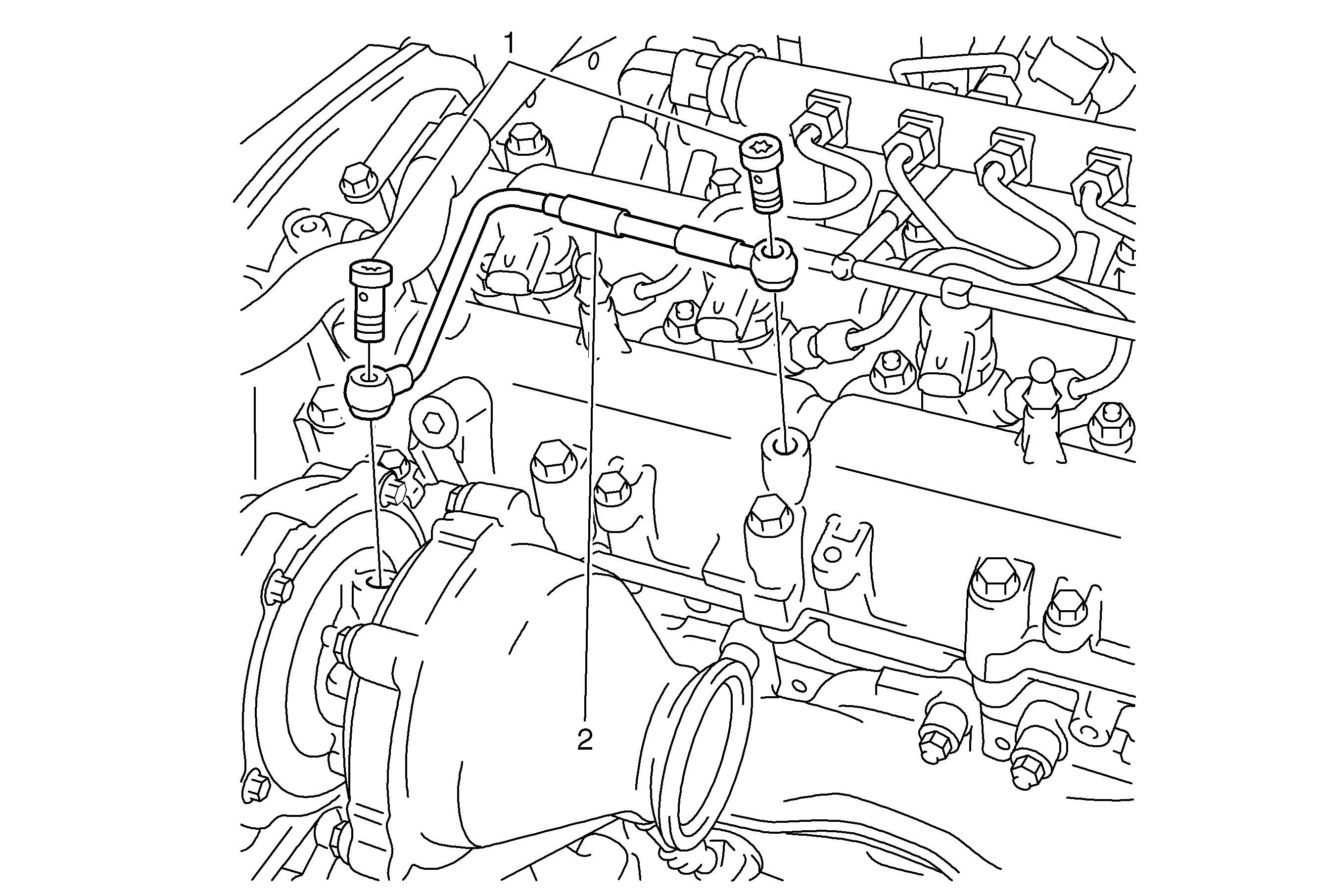

Callout	Component Name
Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement
1	Turbocharger Oil Feed Pipe Fastener (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tighten 30 N·m (22 lb ft)
2	Turbocharger Oil Feed Pipe Procedure Discard the and install a NEW turbocharger oil feed pipe gaskets prior to installation of the pipe.

Callout

Component Name

Remove the engine cover. Refer to Engine Cover Replacement
Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement

Turbocharger Oil Feed Pipe Fastener (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
30 N·m (22 lb ft)

Turbocharger Oil Feed Pipe

Discard the and install a NEW turbocharger oil feed pipe gaskets prior to installation of the pipe.
