Special Tools

EN-45059 Torque Angle Sensor Kit

Note: Inspect the installation position.

1. Install the crankshaft bearing clips, oil bearing clips.
2. Install the crankshaft.

Note: Inspect the installation position.

3. Install the crankshaft bearing caps 1-4.

•	Oil bearing clips.

•	Install the 8 bolts.

Note: Inspect the installation position.

4. Install the crankshaft bearing cap.

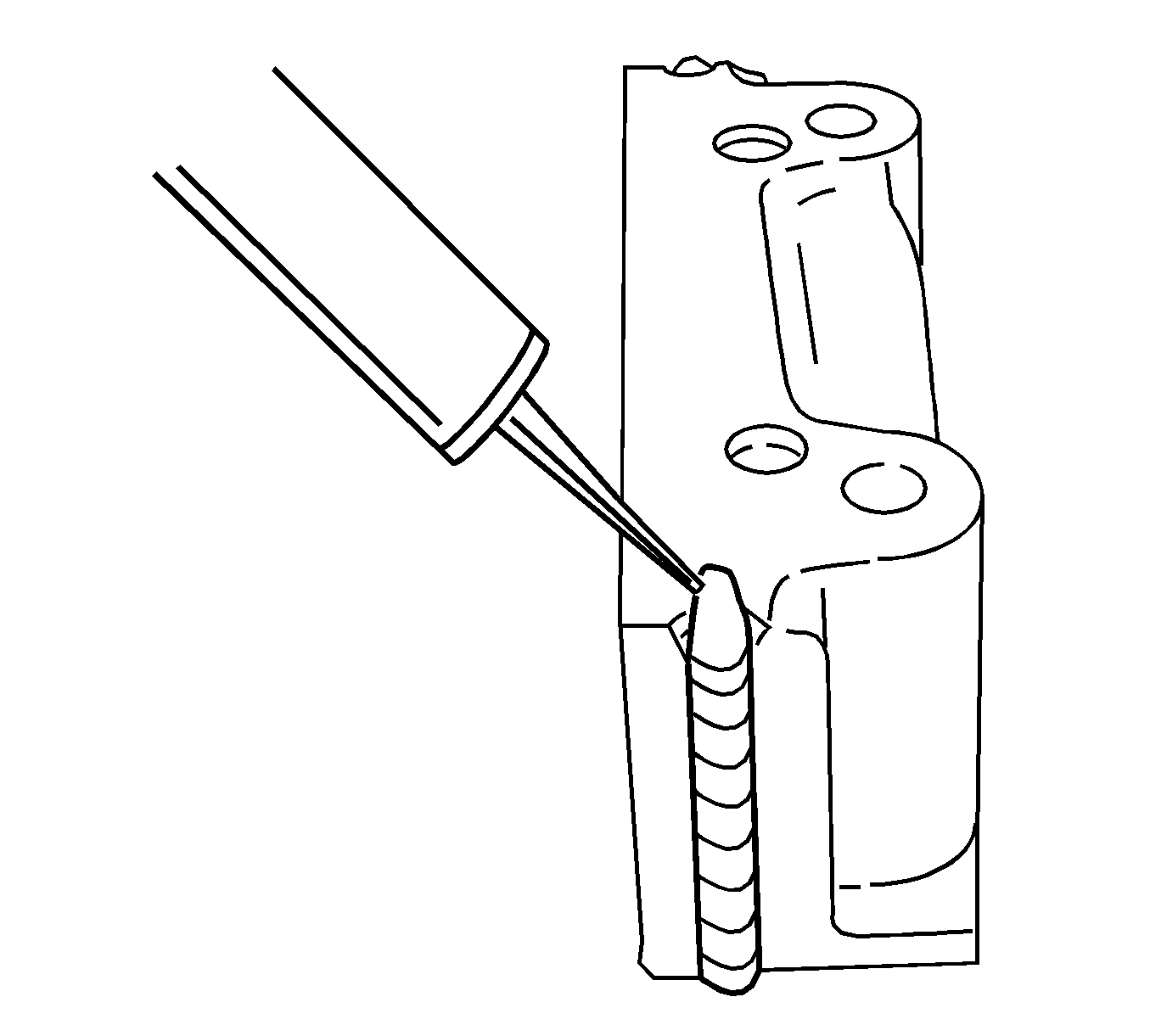

4.1.	Apply black adhesive sealing compound to the grooves of the rear crankshaft bearing cap.

4.2.	Install the 2 bolts.

Caution: Refer to Fastener Caution in the Preface section.




5. Tighten the crankshaft bearing cap (1).
6. Install 10 NEW bolts and tighten in 3 passes use the EN-45059 sensor kit:

•	First pass to  50 N·m (37 lb ft).

•	Second pass to  45 degrees.

•	Third pass to  15 degrees.





Note: Inspect the installation position.

7. Install the connecting rod bearing caps 2 and 3 (1) and oil the bearing clips.
8. Tighten the 4 connecting rod bearing cap bolts in 3 passes use the EN-45059 sensor kit:

•	First pass to  35 N·m (26 lb ft)

•	Second pass to  45 degrees

•	Third pass to  15 degrees




9. Turn the crankshaft through 180 degrees.

Note: Inspect the installation position.

10. Install the connecting rod bearing caps 1 and 4 (1) and oil the bearing clips.
11. Tighten the 4 connecting rod bearing cap bolts in 3 passes use the EN-45059 sensor kit:

•	First pass to  35 N·m (26 lb ft)

•	Second pass to  45 degrees

•	Third pass to  15 degrees
