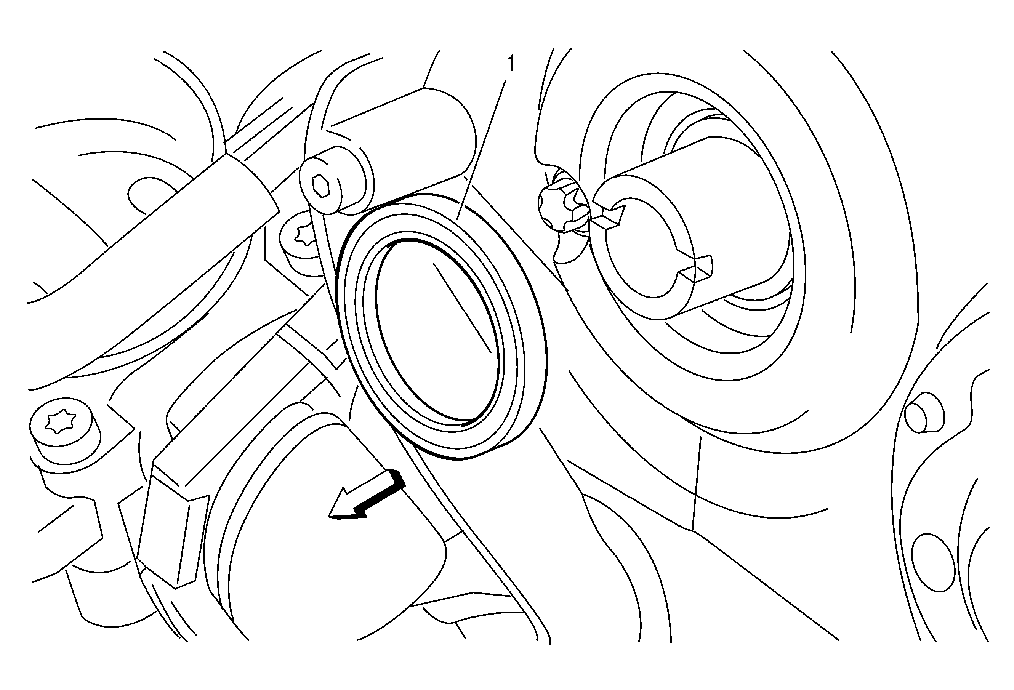

Camshaft Front Oil Seal Replacement Intake


Object Number: 2020191 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the Camshaft exhaust Sprocket. Refer to XXX.

1

Camshaft Front Oil Seal

Special Tools

    • EN-45000 Remover
    • EN-422 Installer

Camshaft Front Oil Seal Replacement Exhaust


Object Number: 2020191 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the Camshaft exhaust Sprocket. Refer to XXX.

1

Camshaft Front Oil Seal

Special Tools

    • EN-45000 Remover
    • EN-422 Installer
