Timing Belt Rear Cover Installation LLU

1. Clean the 4 rear timing belt cover threads.
2. Apply threadlock to the 4 NEW rear timing belt cover bolts. Refer to Adhesives, Fluids, Lubricants, and Sealers.

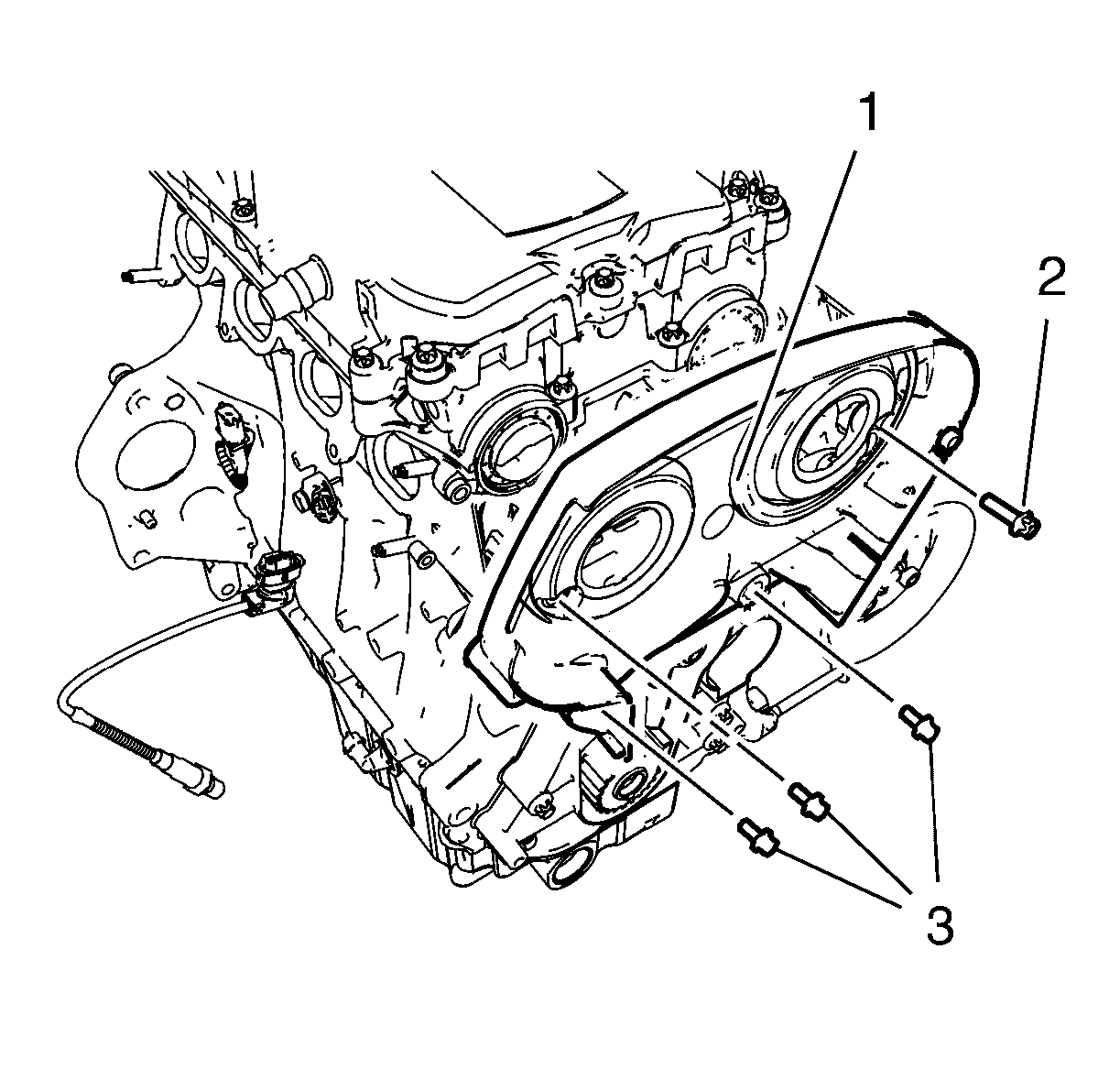

3. Install the timing belt rear cover (1).

Caution: Refer to Fastener Caution in the Preface section.

4. Install the 4  timing belt rear cover bolts (2 ;3) and tighten to  6 N·m (53 lb in).
