Turbocharger Installation LLU

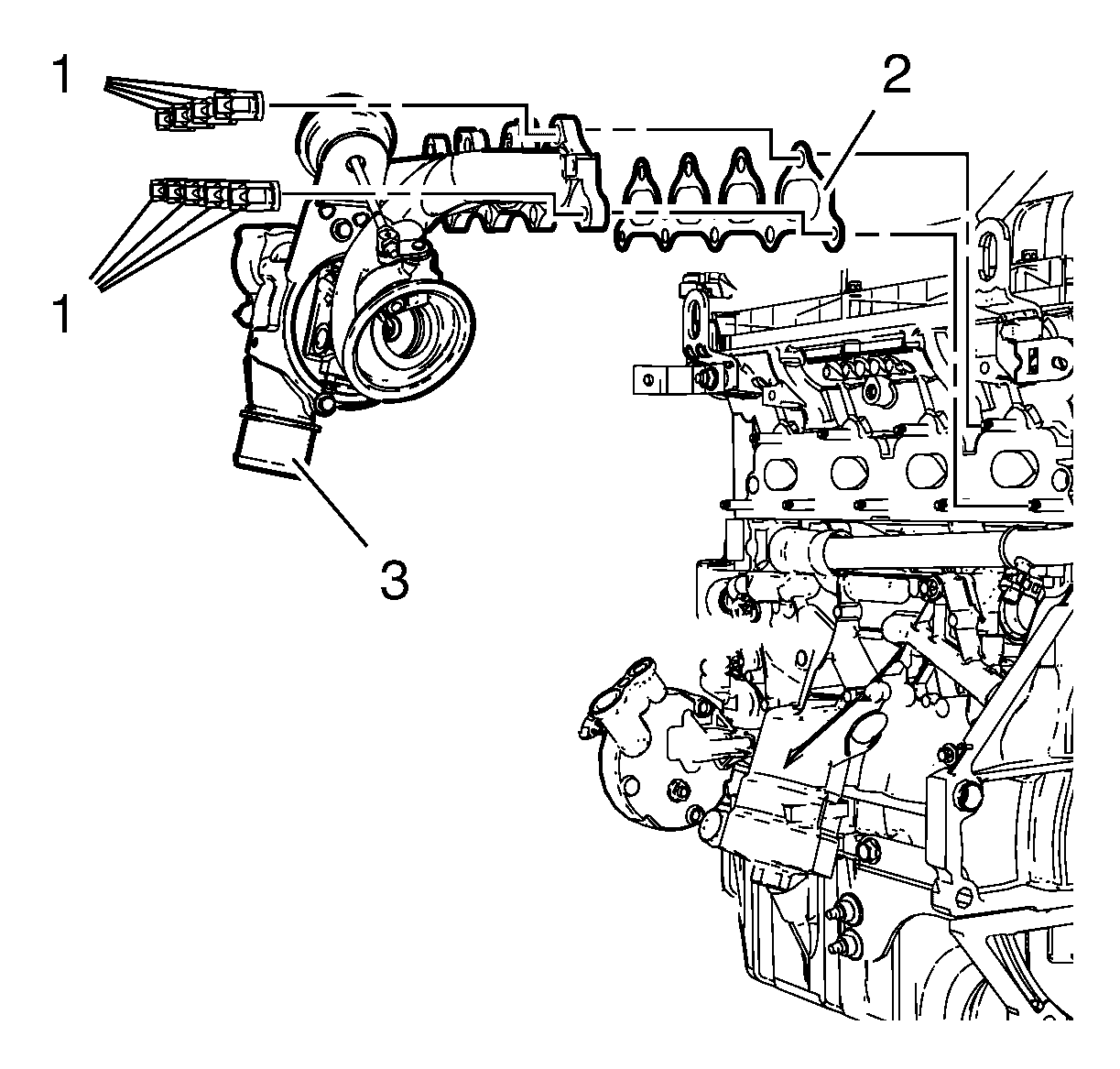

    Object Number: 2188670 Size: SH
  1. Install the NEW turbocharger gasket (2).
  2. Install the turbocharger (3).

    3. Caution: Refer to Fastener Caution in the Preface section.

  3. Install the 9 turbocharger bolts (1) and tighten to  8 N·m (71 lb in).
