Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Mechanical - 2.8L, 3.0L, 3.2L, or 3.6L 🢒 Camshaft Cover Removal - Bank 2

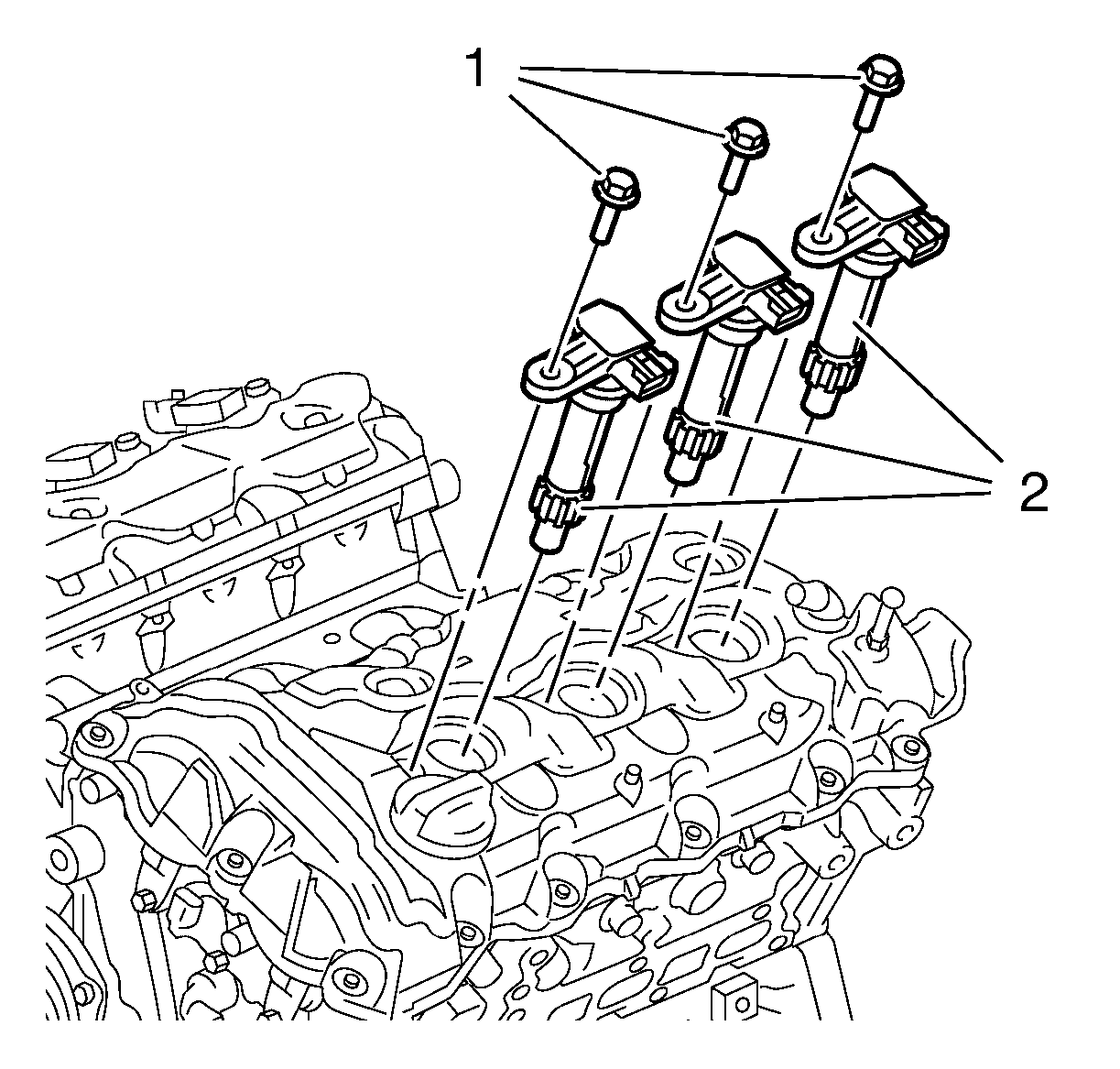

    Object Number: 2026523 Size: SH
  1. Remove the 3 ignition coil bolts (1).
  2. Remove the 3 ignition coils (2).

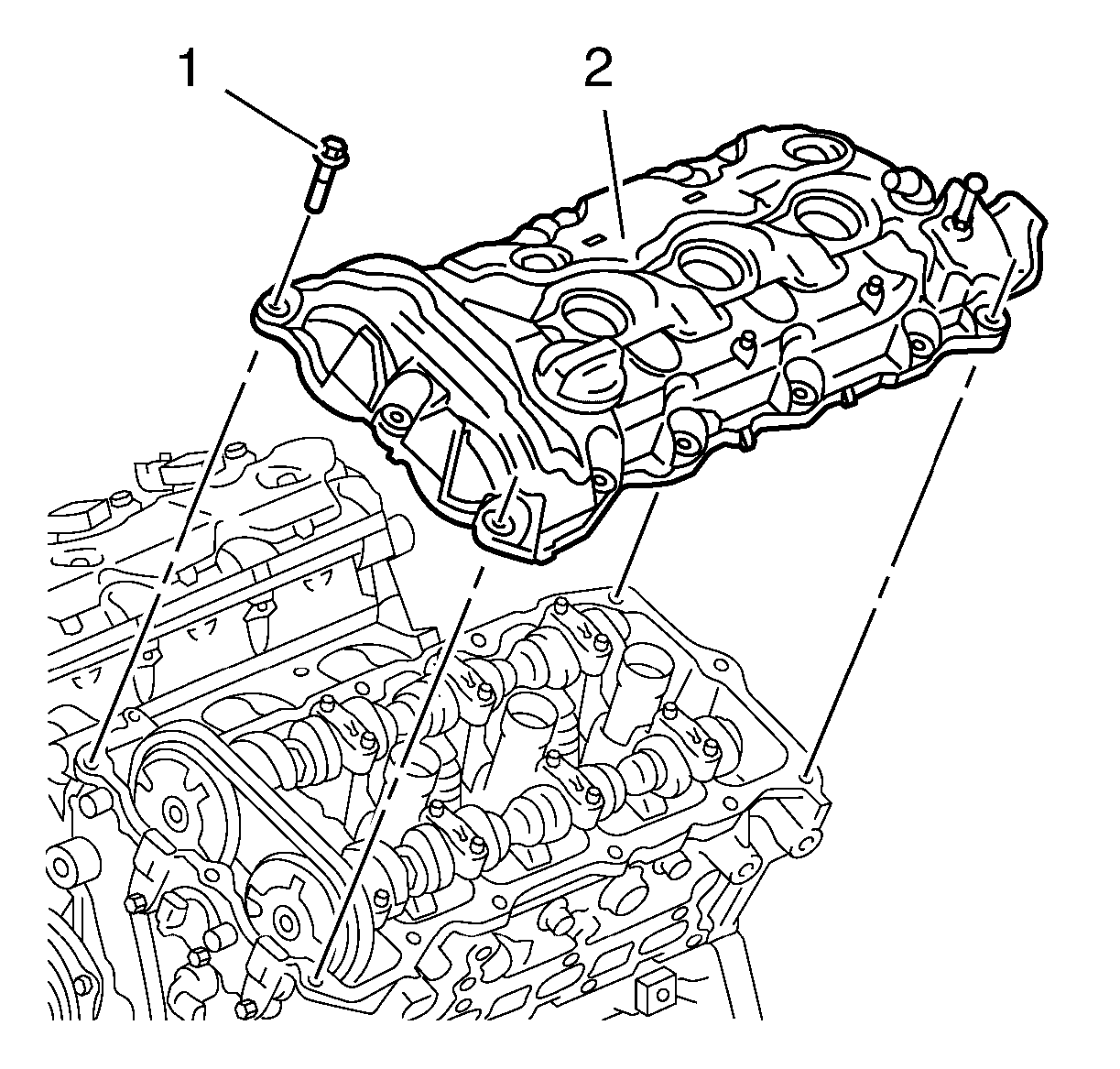

    3. Object Number: 2026524 Size: SH
  3. Remove the 13 camshaft cover bolts (1).
  4. Remove and discard the camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.
  5. Remove the camshaft cover (2) bank 2 from the cylinder head bank 2.
