    Object Number: 2026566 Size: SH

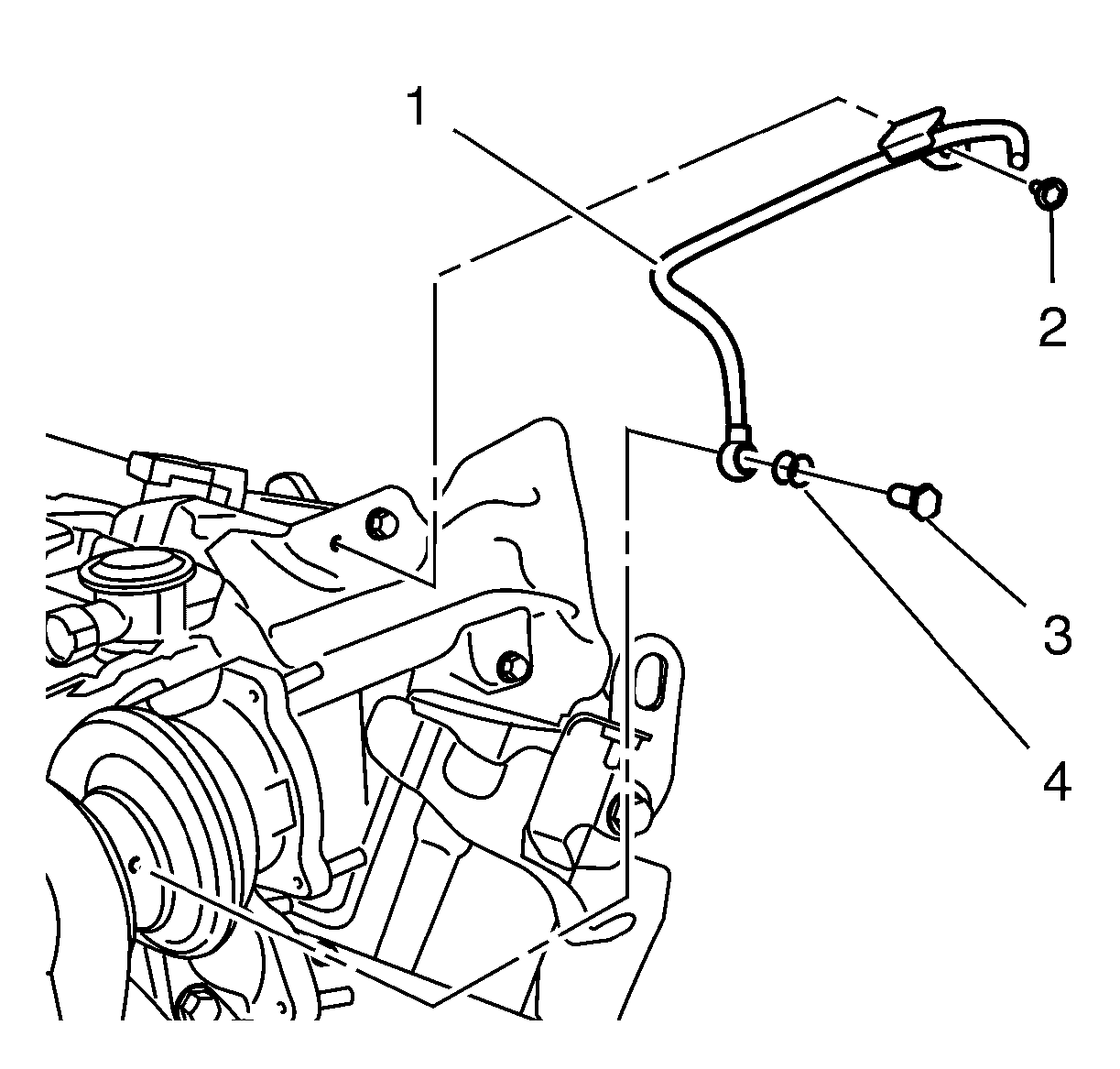

  1. Install the turbocharger coolant return pipe (1).

    2. Caution: Refer to Fastener Caution in the Preface section.

  2. Install the NEW turbocharger coolant return pipe fitting (4) and (2) and tighten the banjo screw to  30 N·m (22 lb ft).
  3. Install the turbo charger coolant return pipe bolt (3) and tighten to  10 N·m (89 lb in).
