Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Mechanical - 2.8L, 3.0L, 3.2L, or 3.6L 🢒 Primary Timing Chain Guide Installation - Upper

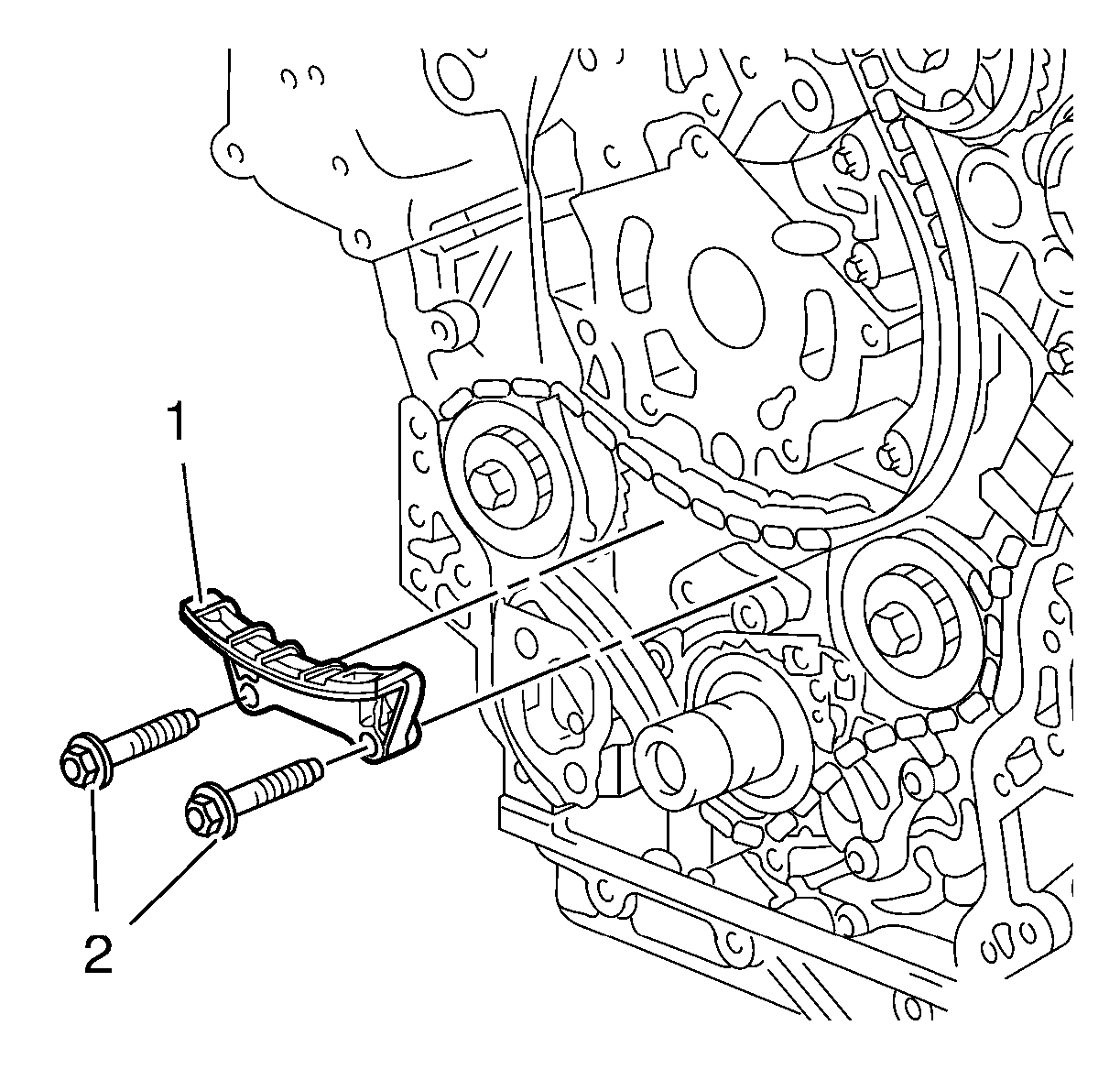

    Object Number: 2026596 Size: SH
  1. Install the primary timing chain upper guide (1).

    2. Caution: Refer to Fastener Caution in the Preface section.

  2. Install the 2 primary timing chain upper guide bolts (2) and tighten to  23 N·m (17 lb ft).
