Special Tools
| • | EN 47981 Crankshaft Balancer Holding Tool
|
| • | EN 956 1 Tool Extension
|
| • | EN 41998 B Crankshaft Balancer Installer
|
| • | EN 45059 Torque Angle Sensor Kit
|
For equivalent regional tools, refer to
Special Tools.
- Place the crankshaft balancer in position on the crankshaft.
- Thread the
EN 41998 B installer
in the crankshaft. Ensure you engage at least 10 threads of the
EN 41998 B installer
before pressing the crankshaft balancer in place.
- Push the crankshaft balancer into position by tightening the nut on the
EN 41998 B installer
until the large washer bottoms out on the crankshaft end.
- Remove the
EN 41998 B installer
.

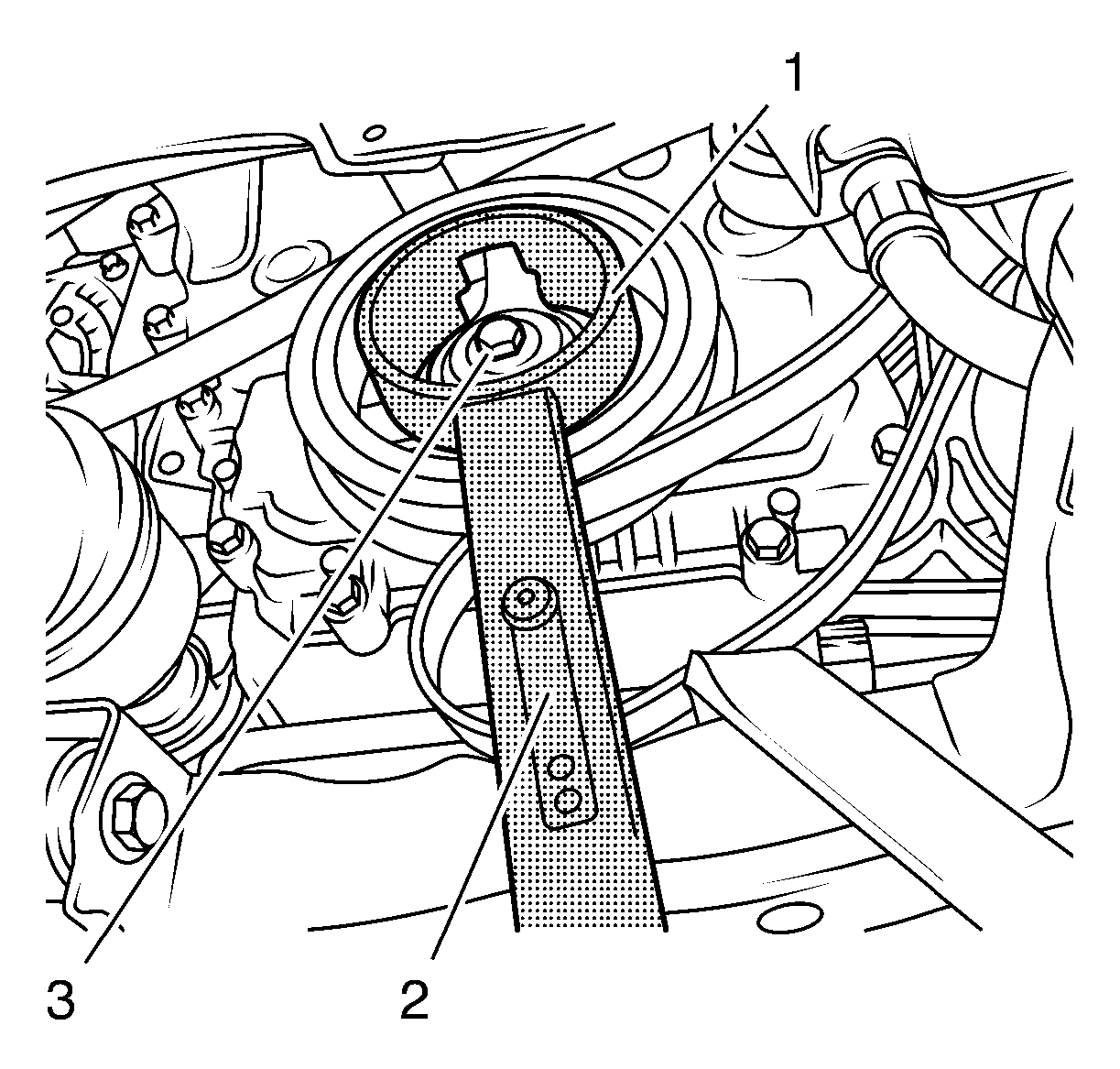

- Install the
EN 47981 holder
(1) with
EN 956 1 extension
(2) to crankshaft balancer.
Caution: Refer to Fastener Caution in the Preface section.
- Install the crankshaft balancer bolt (3) and tighten in first pass to
100 N·m (22 lb ft).
- Tighten the crankshaft balancer bolt a second pass to
150 degrees using the
EN 45059 sensor kit
.
