Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Engine 🢒 Engine Mechanical - 2.8L, 3.0L, 3.2L, or 3.6L 🢒 Lower Intake Manifold Replacement

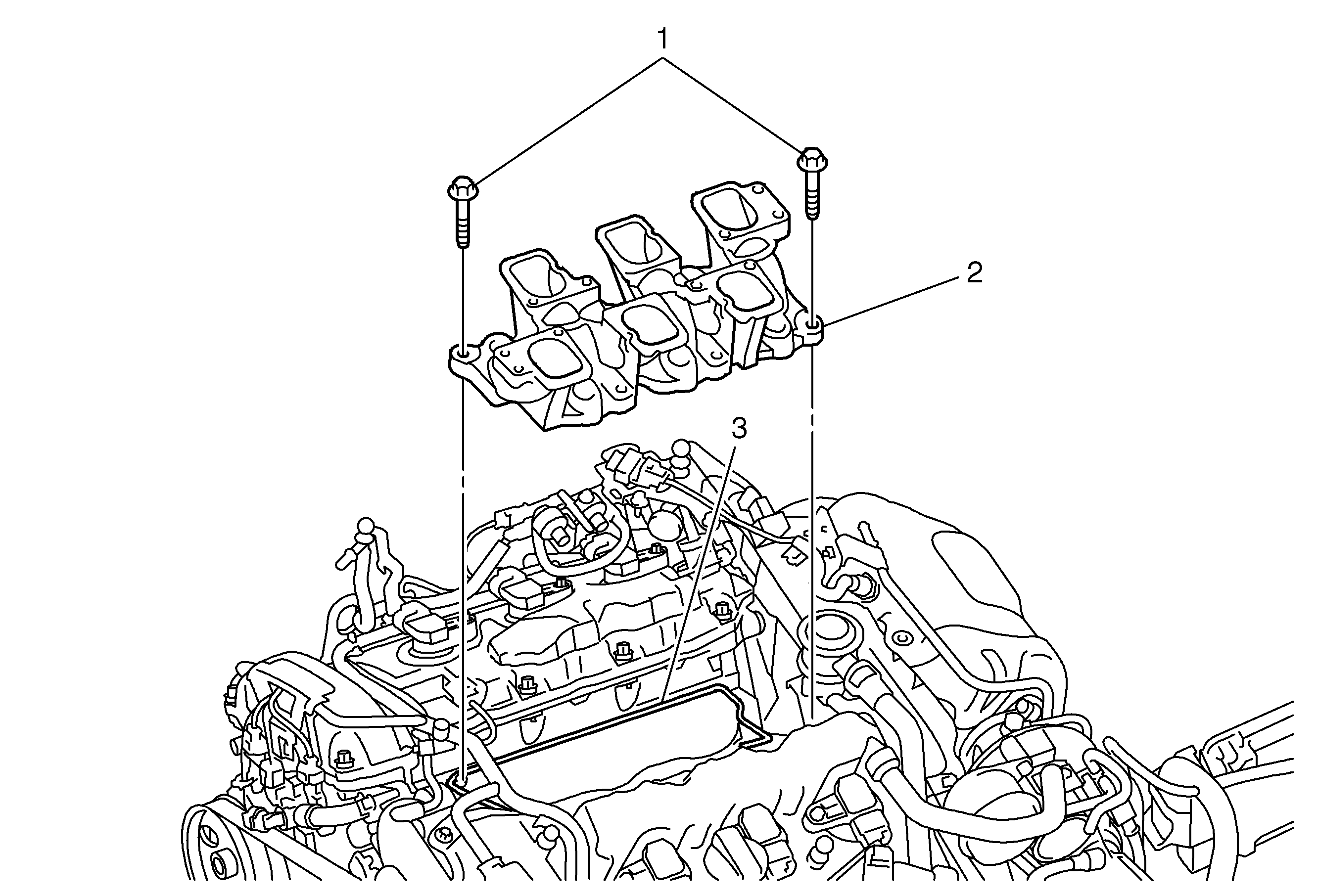

Object Number: 2020016 Size: MF

Callout

Component Name

Preliminary Procedures

Remove the fuel injectors. Refer to Fuel Injector Replacement.

1

Lower Intake Manifold Fastener (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
23 N·m (17 lb ft)

2

Lower Intake Manifold

3

Lower Intake Manifold Gasket
