Preliminary Procedures

1. Remove the driver knee bolster. Refer to Link.
2. Release the electrical connector.

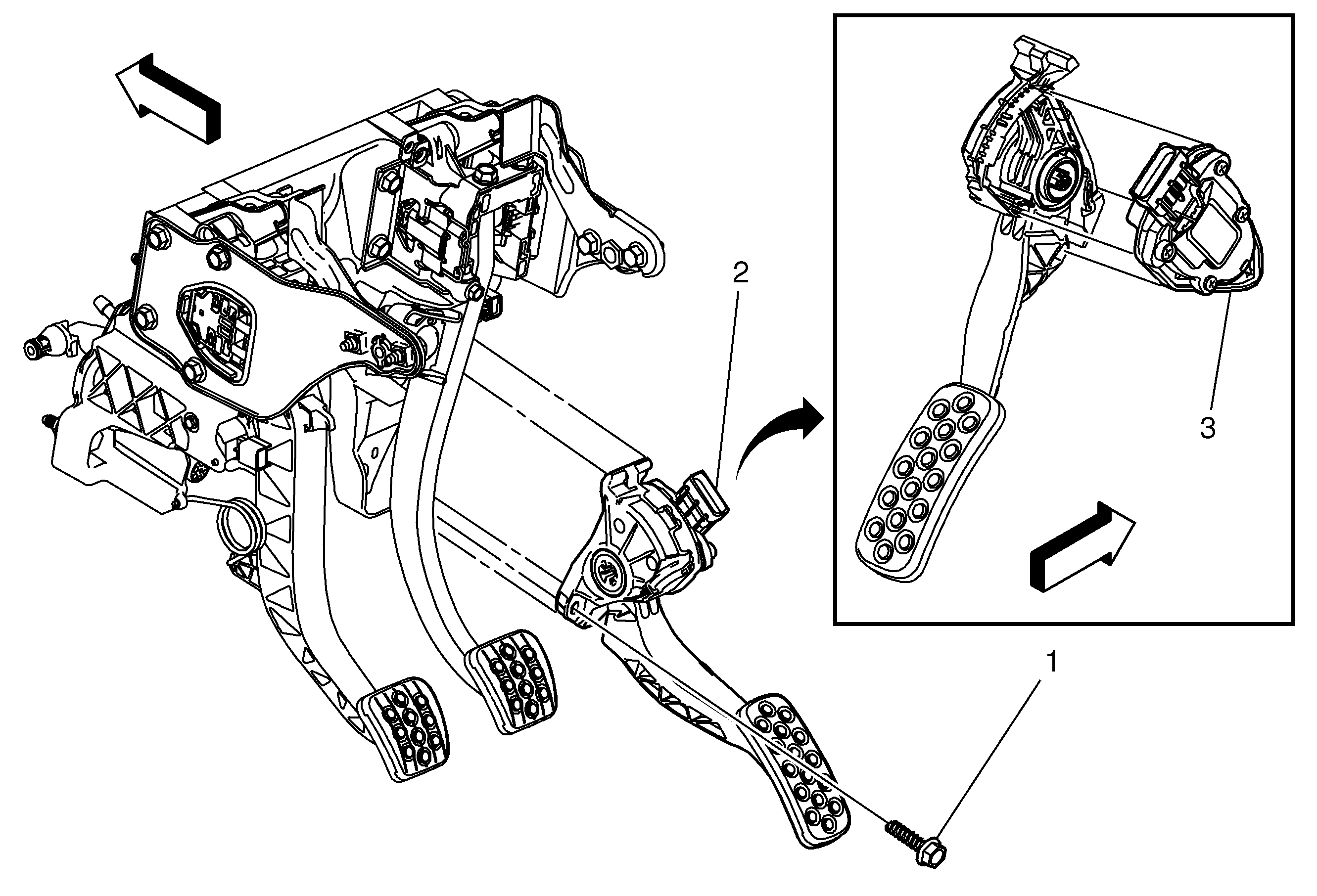

1

Ac celerator Pedal Fastener

Caution: Refer to Fastener Caution in the Preface section.

Tighten
3.5 N·m 36  lb in

2

Accelerator Pedal Assembly

Procedure

1. Twist the accelerator pedal upwards.
2. Move the accelerator pedal downwards.
3. Remove the Accelerator pedal.

3

Accelerator Pedal Position Sensor

Procedure

Release the retainers to remove the accelerator pedal position sensor.
