Removal
  1. Remove the transmission. Refer to Transmission Replacement.

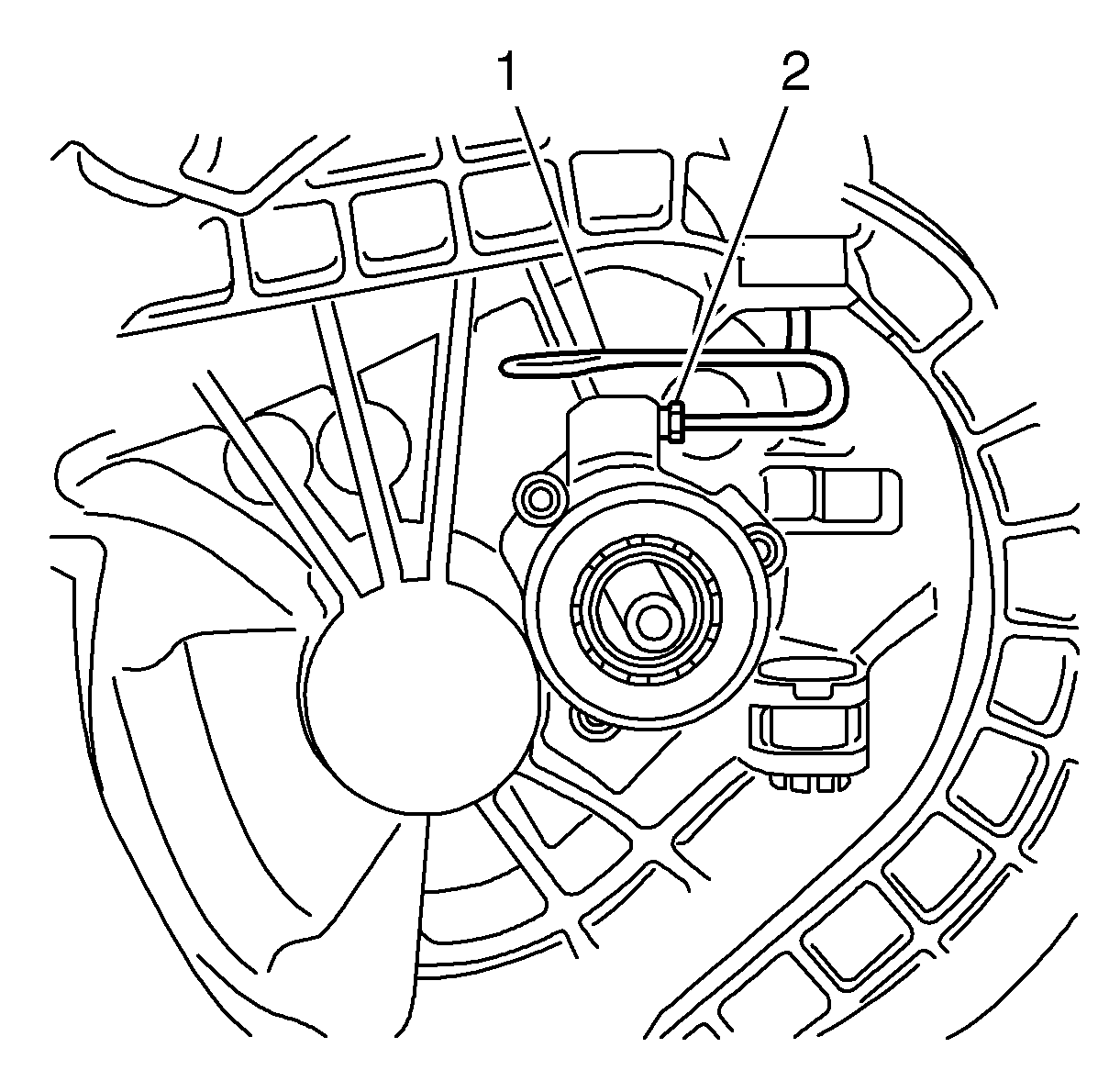

  2. Detach pressure line (1) from central release and unscrew bolt (2).

    3. Object Number: 2018717 Size: SH

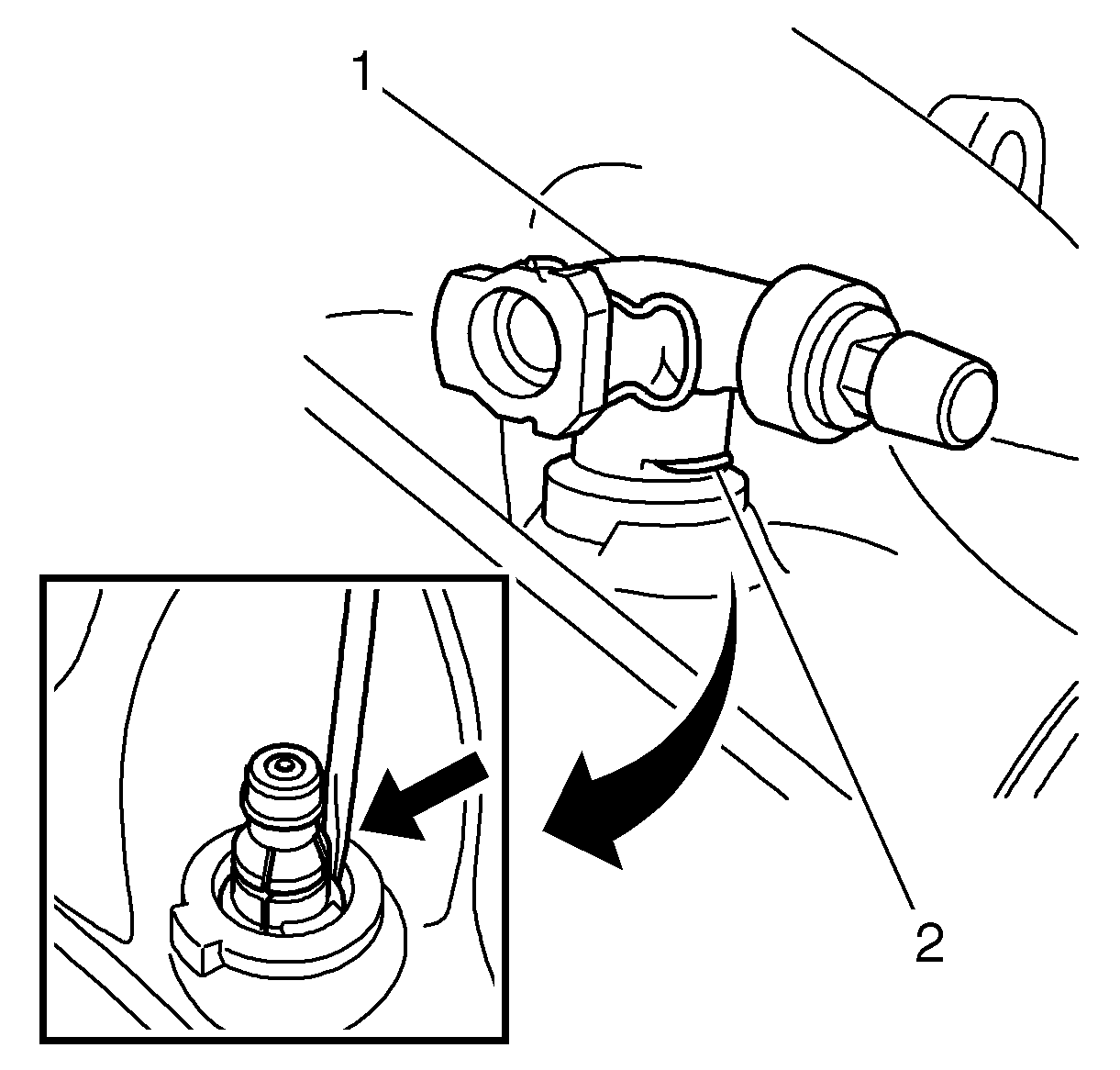

  3. Remove connector for pressure line (1).

    4. Object Number: 2018718 Size: SH
    • Remove retaining clip (2).
    • Remove connector.
    • Replace retaining clip in connector.

       Note: If necessary, bend squeeze together slightly.

  4. Remove pressure line.
    5. • Clip pressure line out of fastening sleeve using a screwdriver or equivalent.

       Note: Carefully disengage retaining lugs.

    • Remove pressure line.

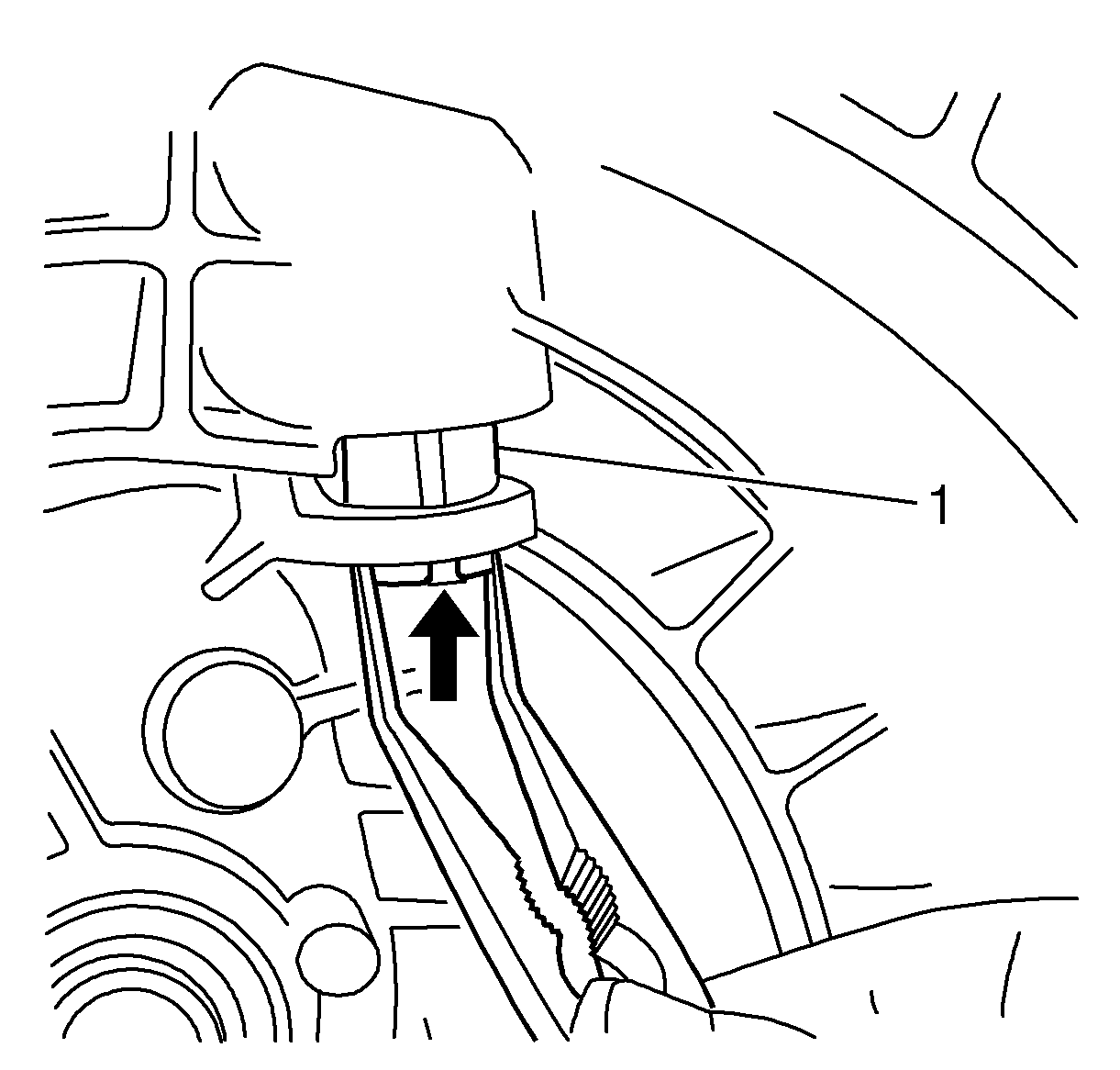

  5. Remove fastening sleeve.

    6. Note: Fastening sleeve must be replaced after removal.

    • Disengage fastening sleeve (1) from clutch housing.
    • Slide fastening sleeve upwards.
    • Remove fastening sleeve.

    Object Number: 2018719 Size: SH
  6. Check seal ring and pressure line for damage, replace if necessary.

Installation

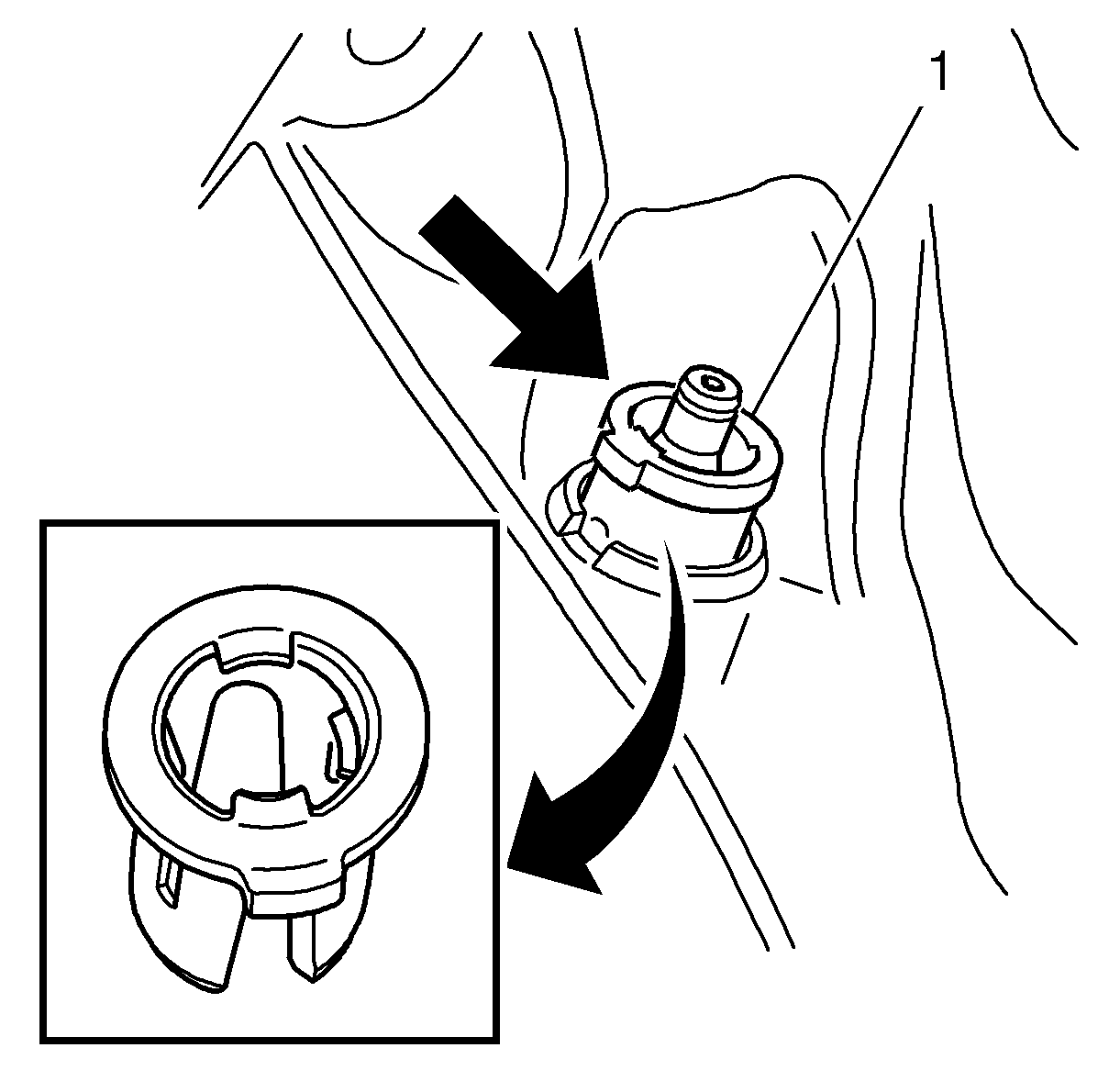

  1. Attach fastening sleeve (1). Push into transmission housing - must noticeably engage.

    2. Note: Insert projection on sleeve in the slot provided in the transmission.


    Object Number: 2018720 Size: SH
  2. Install pressure line (1) and insert in fastening sleeve - must noticeably engage.

    3. Object Number: 2018717 Size: SH
  3. Attach pressure line and tighten nut (2).

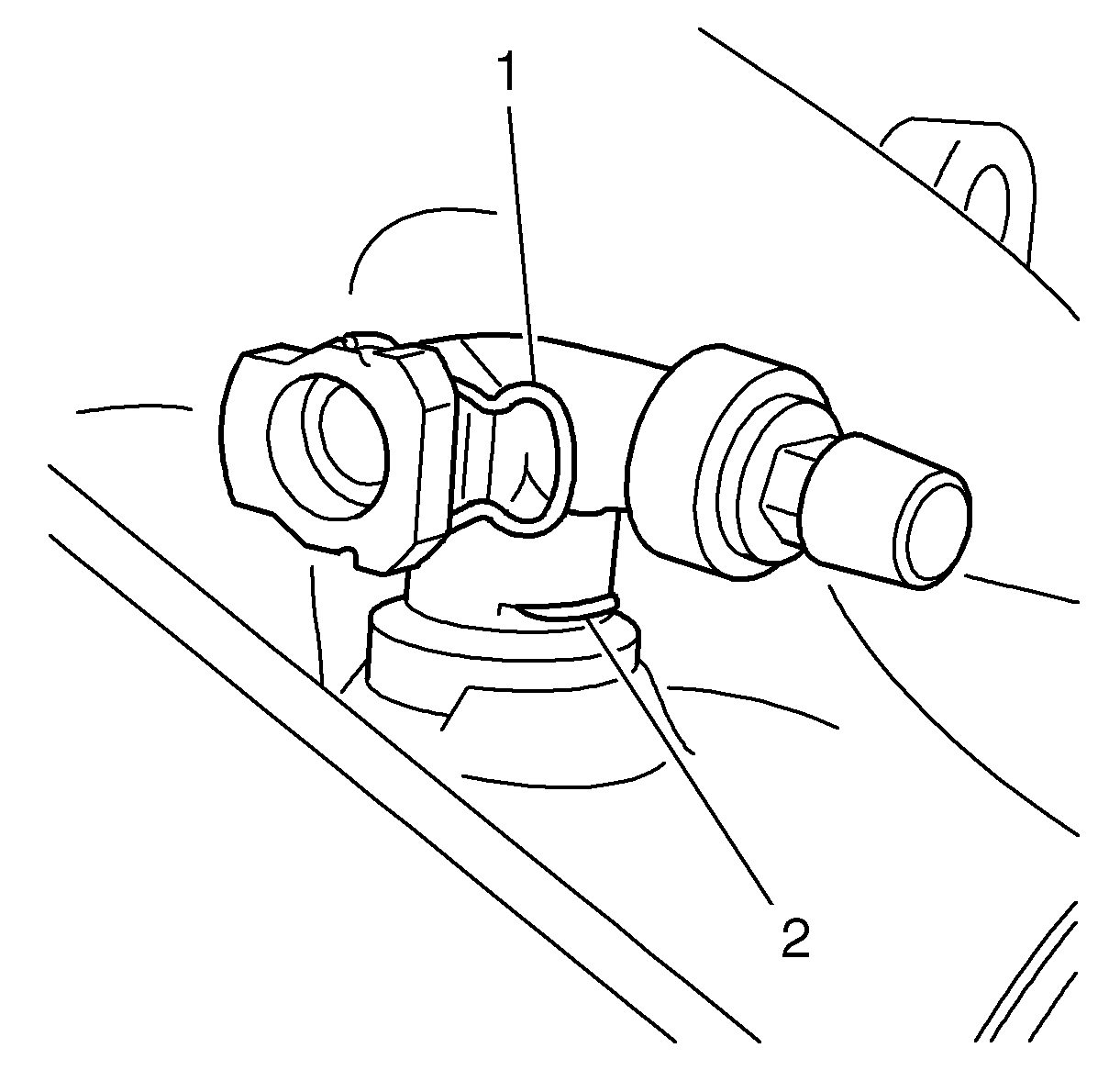

  4. Attach connector for pressure line (1) and put connector on pressure line - retaining clip (2) must noticeably engage.

    5. Object Number: 2018721 Size: SH
  5. Install the transmission. Refer to Transmission Replacement.
