Rear Side Door Window Frame Front Cover Replacement. Opel Insignia NB (Global Epsilon) 2009

For 1990-2009 cars only

Makes 🢒 Opel 🢒 2009 🢒 Insignia NB (Global Epsilon) 🢒 Body Hardware and Trim 🢒 Exterior Trim 🢒 Rear Side Door Window Frame Front Cover Replacement

Callout	Component Name
Preliminary Procedures Place the rear door window in the full down position. Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement.

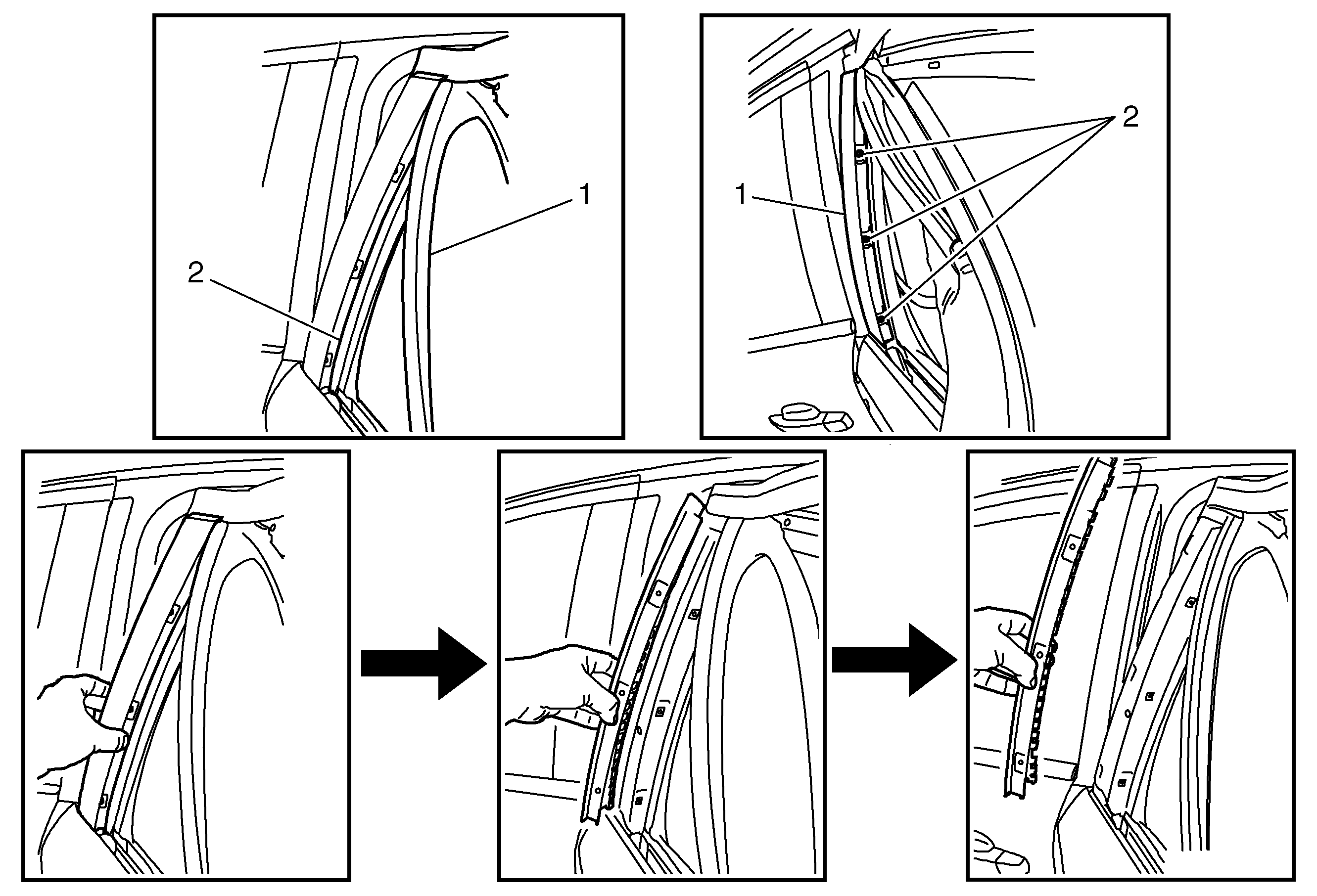

1	Rear Side Door Window Frame Front Cover Fastener (Qty: 3) Procedure Pull the rear side door window weatherstrip from the applique to expose the fasteners.
2	Rear Side Door Window Frame Front Cover

Callout

Component Name

Place the rear door window in the full down position.
Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement.

Rear Side Door Window Frame Front Cover Fastener (Qty: 3)

Pull the rear side door window weatherstrip from the applique to expose the fasteners.

Rear Side Door Window Frame Front Cover
