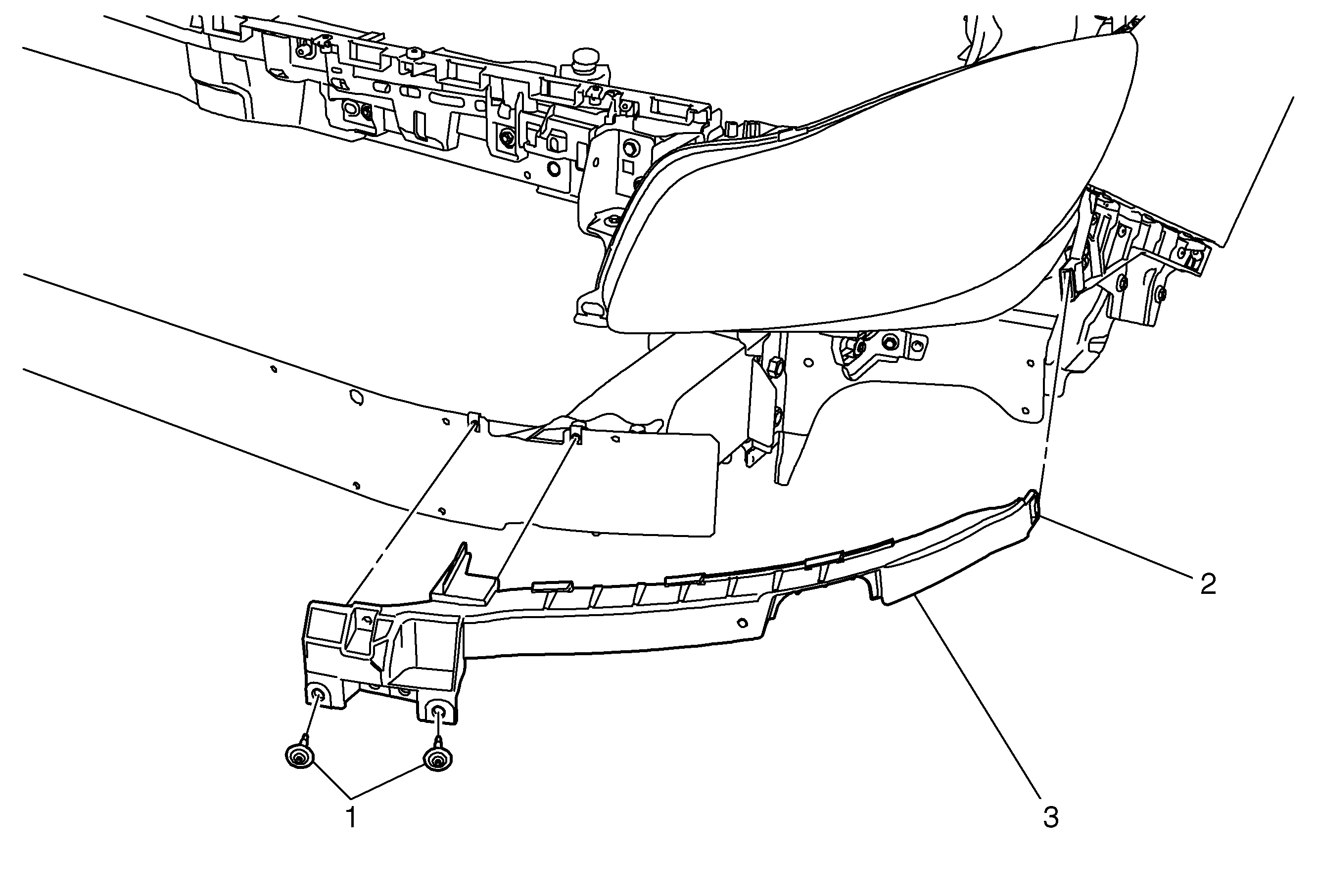

Front Bumper Fascia Support Replacement Left Side

Object Number: 2019592 Size: MF

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
1	Front Bumper Fascia Support Fastener (Qty: 2)
2	Front Bumper Fascia Support Retainer
3	Front Bumper Fascia Support Procedure Using a small flat-bladed tool, release the one outer locking retainer from the front bumper fascia outer bracket support.

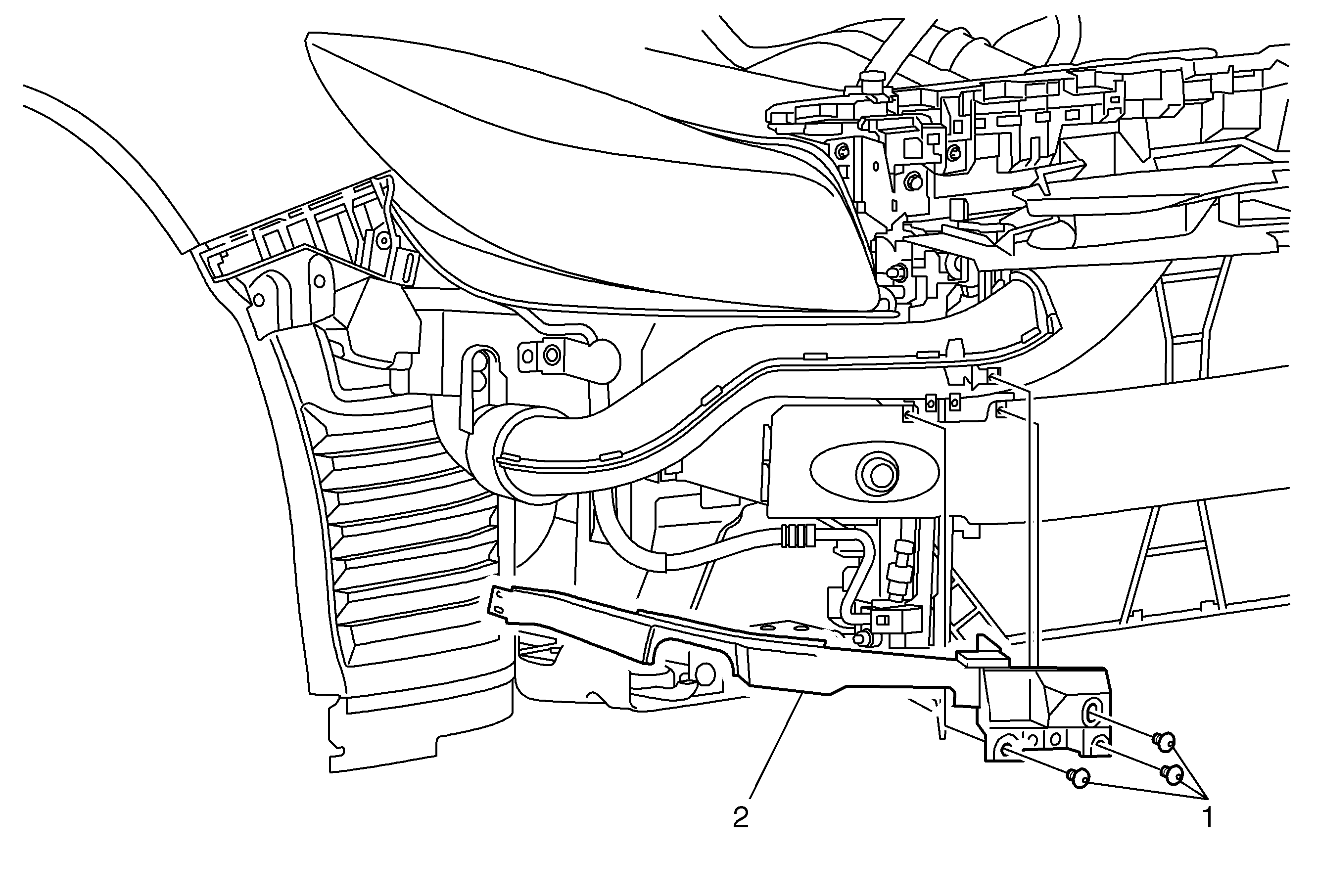

Front Bumper Fascia Support Replacement Right Side

Object Number: 2019593 Size: MF

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
1	Front Bumper Fascia Bracket Support Fastener (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 2 N·m (18 lb in)
2	Front Bumper Fascia Bracket Support Retainer
3	Front Bumper Fascia Bracket Support Procedure Using a small flat-bladed tool, release the one outer locking retainer from the front bumper fascia outer bracket support.
