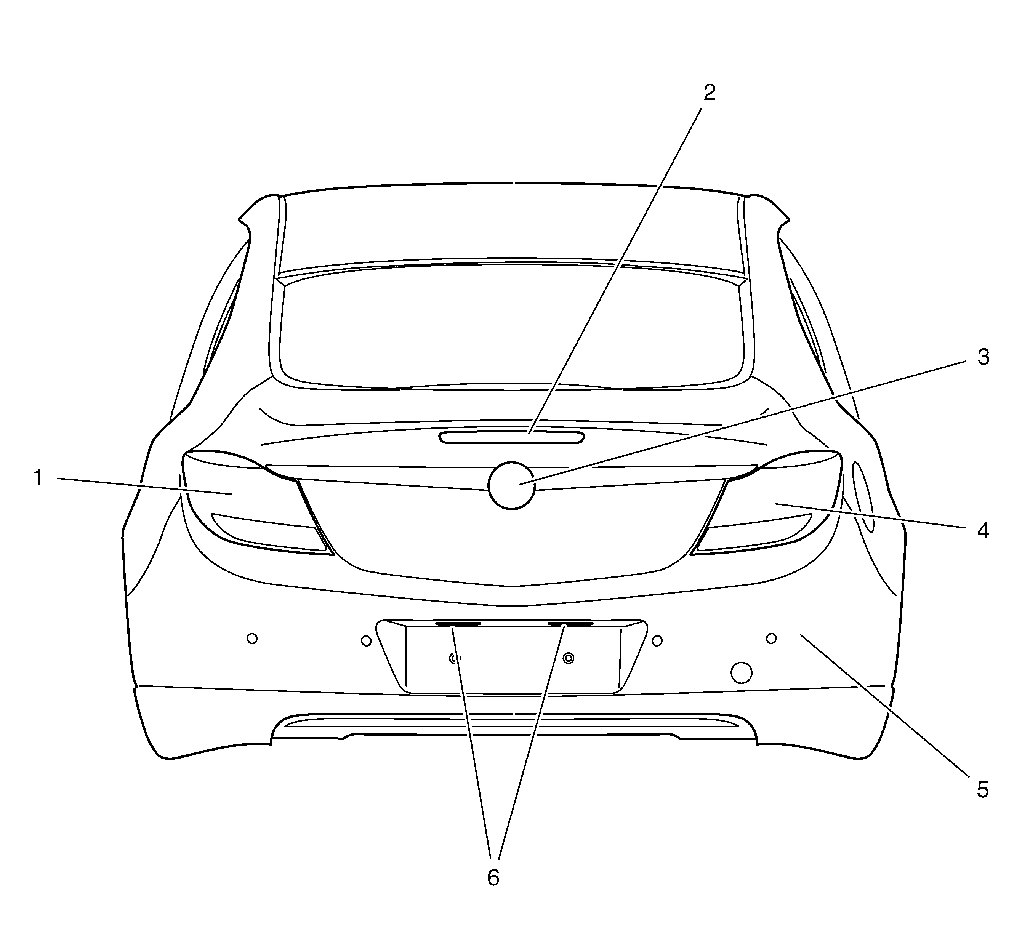

Luggage Compartment/Rear of Vehicle Component Views Early
1 | Tail Lamp Left |
2 | High Mount Stop Lamp |
3 | Rear Compartment Lid Release Switch |
4 | Tail Lamp Right |
5 | Rear Object Sensor |
6 | Rear License Plate Lamp |
Luggage Compartment/Rear of Vehicle Component Views Late
| Figure 1: |
Left Side of the Luggage Compartment Components
|
| Figure 2: |
Right Side of the Luggage Compartment Components (HB/KW)
|
| Figure 3: |
Right Side of the Luggage Compartment Components (NB)
|
| Figure 4: |
Liftgate Components
|
| Figure 5: |
Tailgate Components
|
