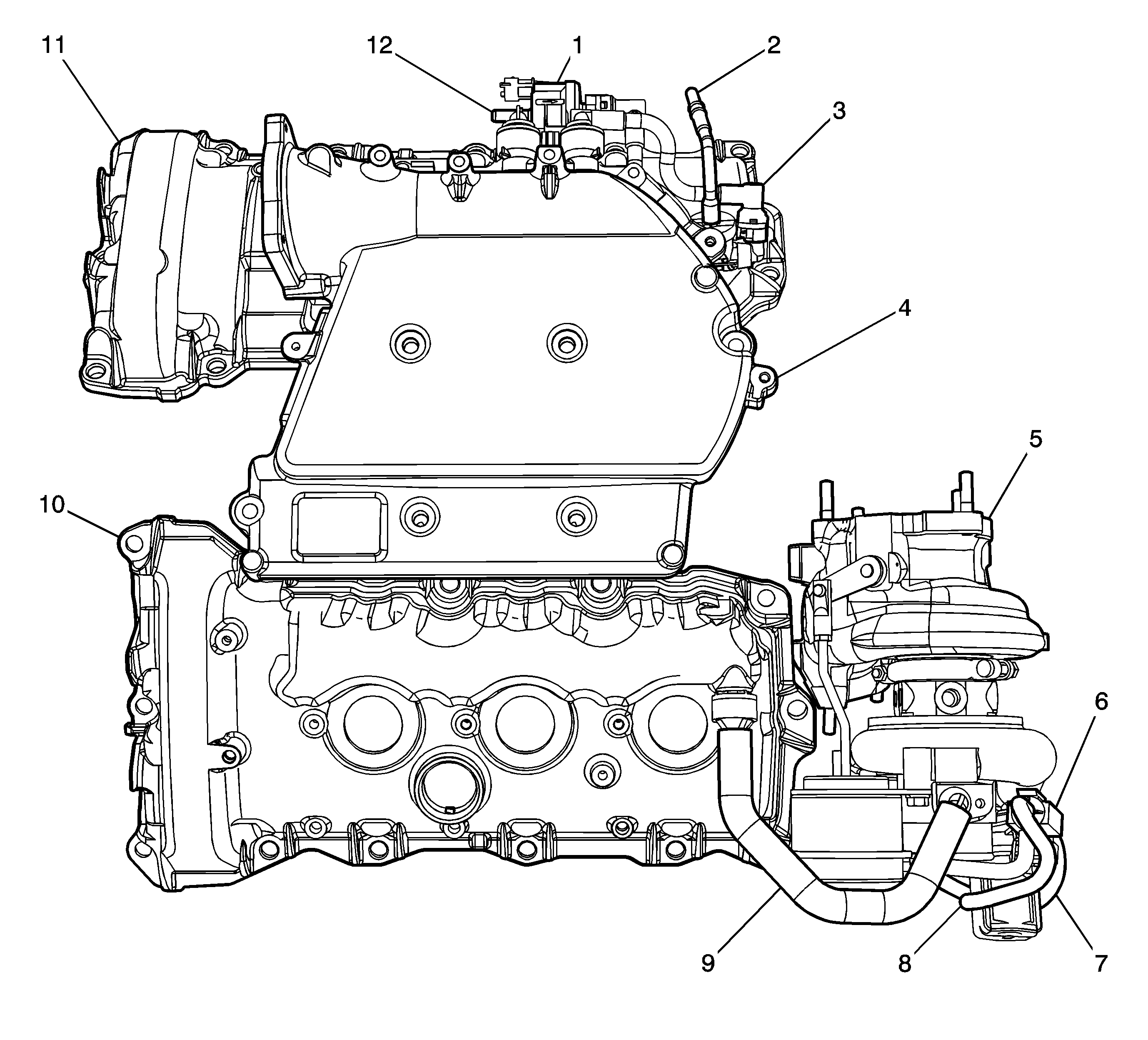

| (1) | Evaporative Emission (EVAP) Purge Solenoid Valve |
| (2) | Brake Booster Vacuum Supply Hose |
| (3) | Positive Crankcase Ventilation (PCV) Orifice |
| (4) | Intake Manifold |
| (5) | Turbocharger Assembly |
| (6) | Turbocharger Wastegate Actuator Solenoid Valve |
| (7) | Controlled Vacuum Supply Hose to Turbocharger Wastegate Actuator |
| (8) | Vacuum Supply Hose to Turbocharger Wastegate Actuator Solenoid Valve |
| (9) | Fresh Air Inlet to Crankcase |
| (10) | Camshaft Cover Bank 2 |
| (11) | Camshaft Cover Bank 1 |
| (12) | EVAP Purge Hose/Pipe to EVAP Canister |
