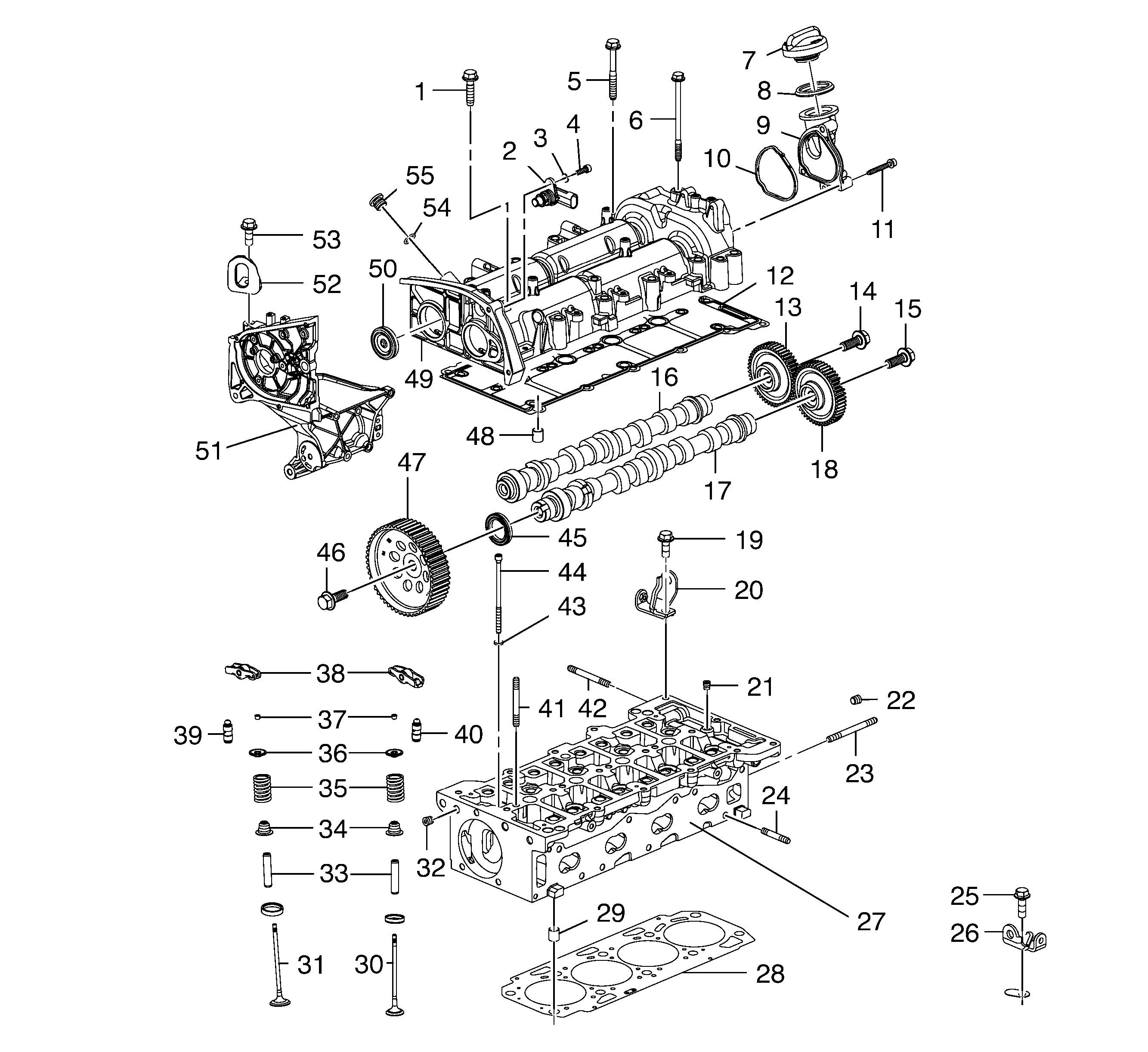

| (1) | Camshaft Cover Housing Bolt - Short |
| (2) | Camshaft Position Sensor |
| (3) | Camshaft Position Sensor Washer |
| (4) | Camshaft Position Sensor Bolt |
| (5) | Camshaft Cover Housing Bolt - Medium |
| (6) | Camshaft Cover Housing Bolt - Long |
| (7) | Cap Oil Filler |
| (8) | Cap Oil Filler Gasket |
| (9) | Camshaft Rear Cover |
| (10) | Camshaft Rear Cover Gasket |
| (11) | Camshaft Rear Cover Bolt |
| (12) | Camshaft Housing Gasket |
| (13) | Intake Camshaft Sprocket Wheel |
| (14) | Intake Camshaft Sprocket Wheel Bolt |
| (15) | Exhaust Camshaft Sprocket Wheel Bolt |
| (16) | Intake Camshaft |
| (17) | Exhaust Camshaft |
| (18) | Exhaust Camshaft Sprocket Wheel |
| (19) | Intake Manifold Bracket Bolt |
| (20) | Intake Manifold Bracket |
| (21) | Threaded Plug |
| (22) | Threaded Plug |
| (23) | EGR Valve Bracket Stud |
| (24) | Exhaust manifold Stud |
| (25) | Engine Lift Bracket Bolt - Camshaft Housing Rear |
| (26) | Engine Lift Bracket - Camshaft Housing Rear |
| (27) | Cylinder Head |
| (28) | Cylinder Head Gasket |
| (29) | Cylinder Head Locating Pin |
| (30) | Exhaust Valve |
| (31) | Intake Valve |
| (32) | Threaded Plug |
| (33) | Valve Guide |
| (34) | Valve Retainer |
| (35) | Valve Spring |
| (36) | Valve Retainer |
| (37) | Valve Stem Oil Seal |
| (38) | Roller Followers |
| (39) | Hydraulic Valve Lash Adjuster - Intake Valve |
| (40) | Hydraulic Valve Lash Adjuster - Exhaust Valve |
| (41) | Fuel Injector Bracket Stud |
| (42) | Intake Manifold Stud |
| (43) | Cylinder Head Bolt Washer |
| (44) | Cylinder Head Bolt |
| (45) | Exhaust Camshaft Gasket |
| (46) | Camshaft Sprocket Wheel Bolt |
| (47) | Camshaft Sprocket Wheel |
| (48) | Camshaft Housing Locating Pin |
| (49) | Camshaft Housing |
| (50) | Intake Camshaft Plug |
| (51) | Fuel Injection Pump Bracket |
| (52) | Engine Lift Bracket - High Pressure Pump |
| (53) | Engine Lift Bracket Bolt - High Pressure Pump |
| (54) | Plug Gasket |
| (55) | Plug |
