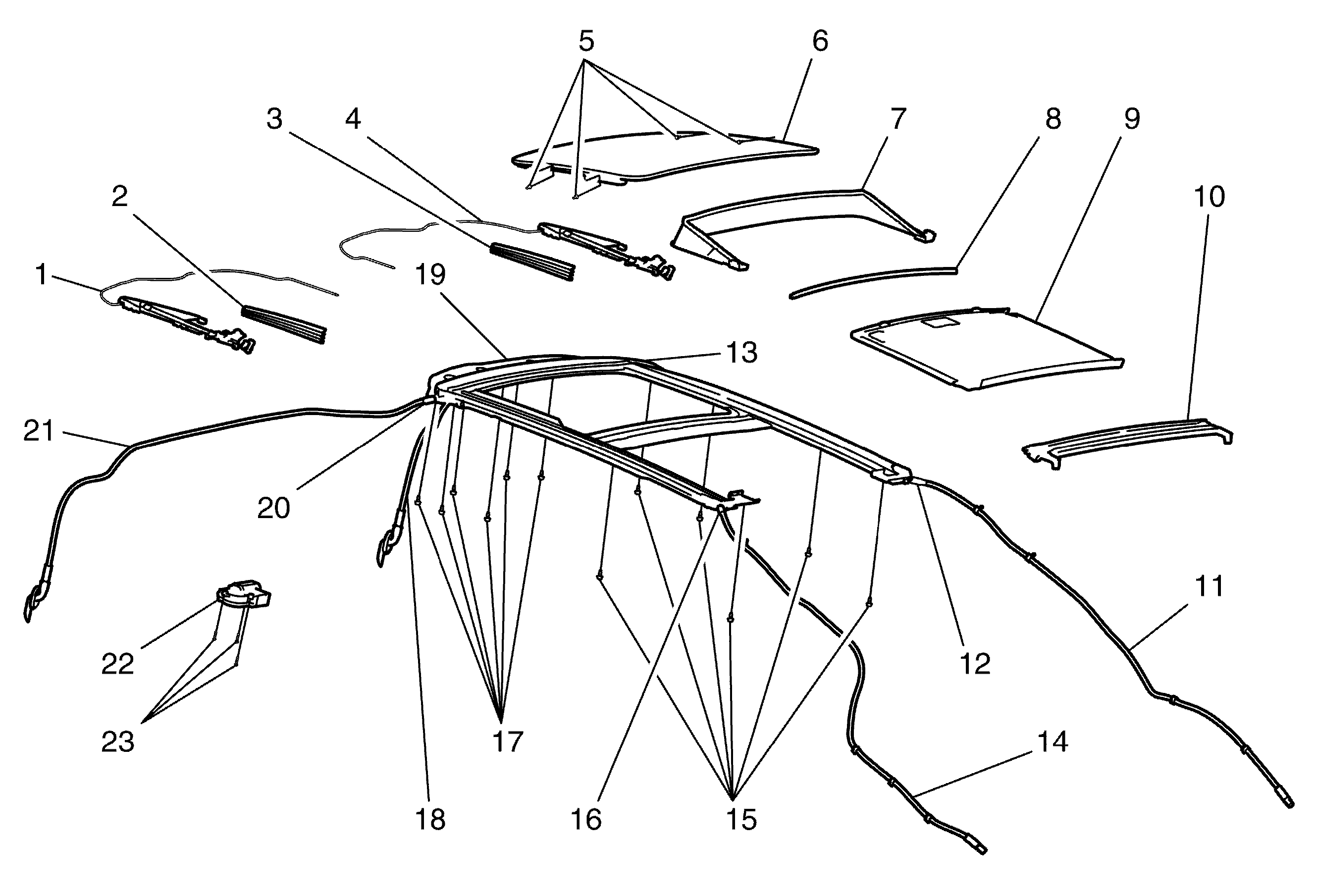

| (1) | Sunroof Sliding Block Assembly - Left Side |
| (2) | Sunroof Air Deflector Cover - Left Side |
| (3) | Sunroof Air Deflector Cover - Right Side |
| (4) | Sunroof Sliding Block Assembly - Right Side |
| (5) | Sunroof Window Glass Panel Bolts |
| (6) | Sunroof Glass Panel |
| (7) | Sunroof Air Deflector |
| (8) | Sunroof Window Edge Seal |
| (9) | Sunroof Sunshade Panel |
| (10) | Sunroof Water Gutter Panel |
| (11) | Sunroof Drain Hose Rear - Right Side |
| (12) | Sunroof Grommet Water Drain Hose Rear - Right Side |
| (13) | Sunroof Grommet Water Drain Hose Front - Right Side |
| (14) | Sunroof Drain Hose Rear - Left Side |
| (15) | Sunroof Housing Bolts |
| (16) | Sunroof Grommet Water Drain Hose Rear - Left Side |
| (17) | Sunroof Housing Bolts |
| (18) | Sunroof Drain Hose Front |
| (19) | Sunroof Window Housing |
| (20) | Sunroof Grommet Water Drain Hose Front - Left Side |
| (21) | Sunroof Drain Hose Front - Left Side |
| (22) | Sunroof Power Motor/Actuator |
| (23) | Sunroof Motor/Actuator Bolts |
