Makes 🢒 Pontiac 🢒 2000 🢒 Bonneville 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Entertainment Component Views

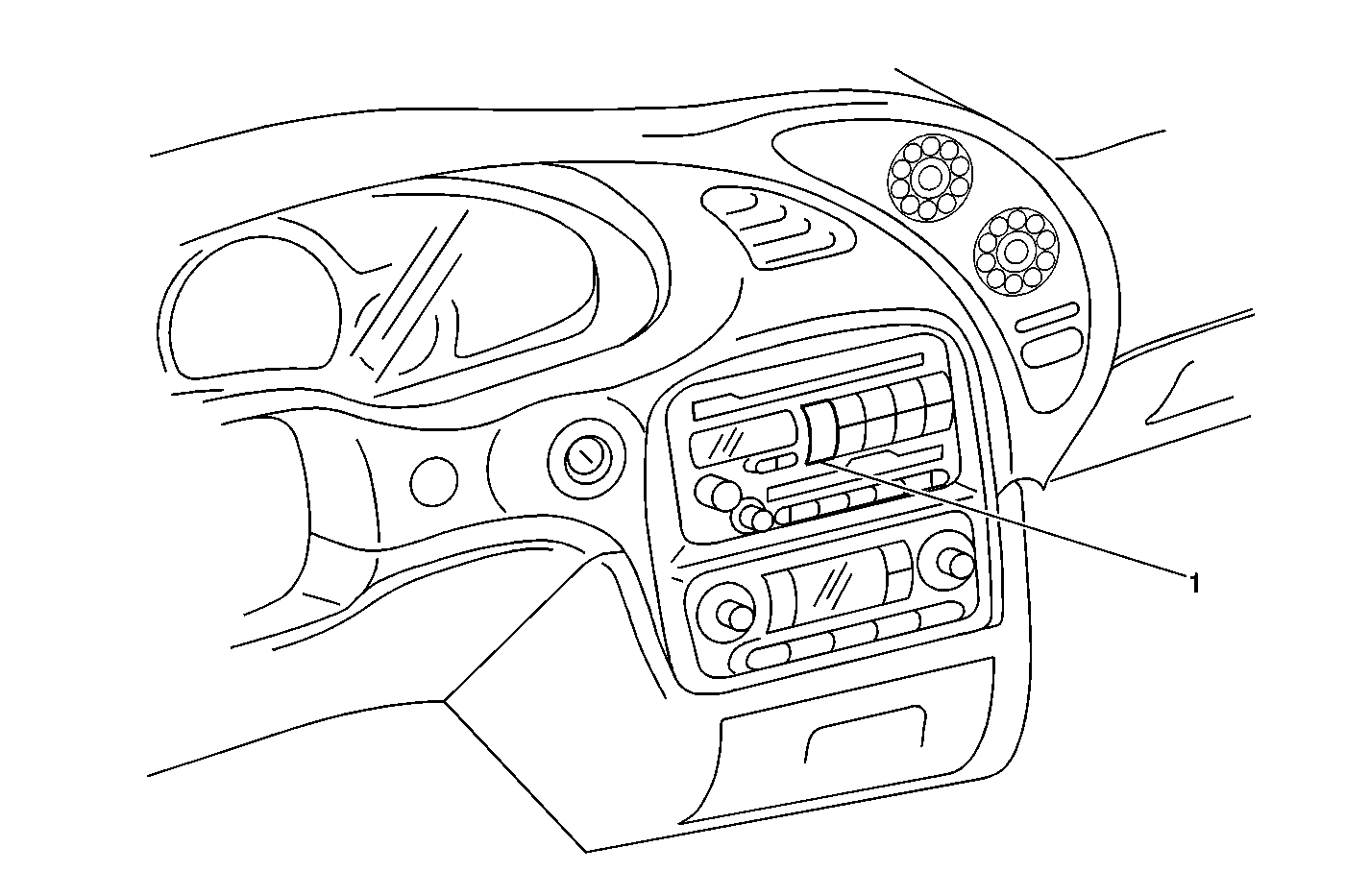

Figure 1:

Center of the instrument panel, above the A/C controls
Object Number: 553624 Size: MF
(1)Radio

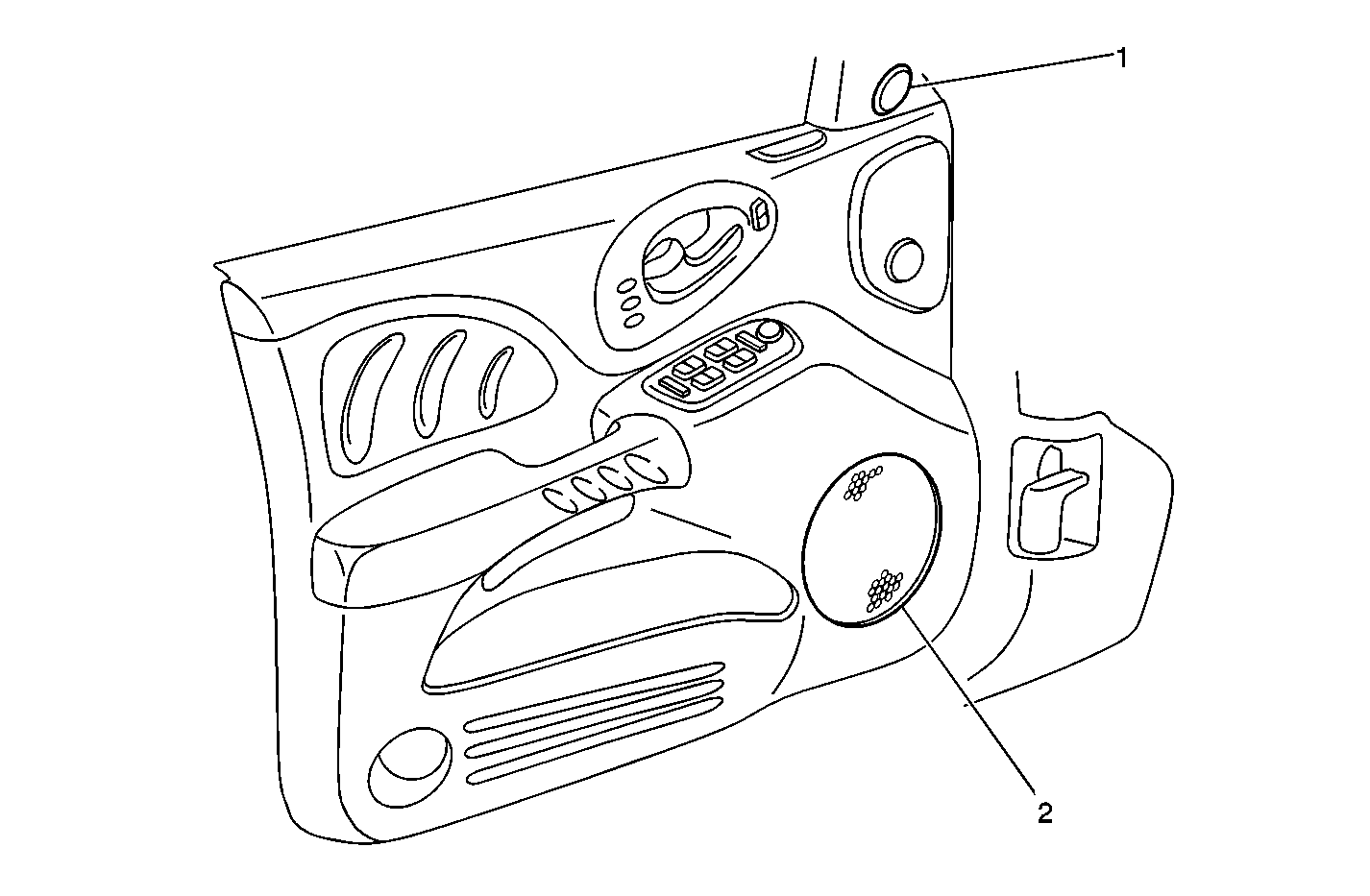

Figure 2:

Drivers Door Trim Panel (Passenger Door Similar)
Object Number: 553625 Size: MF
(1)LH Door Tweeter
(2)LH Door Speaker

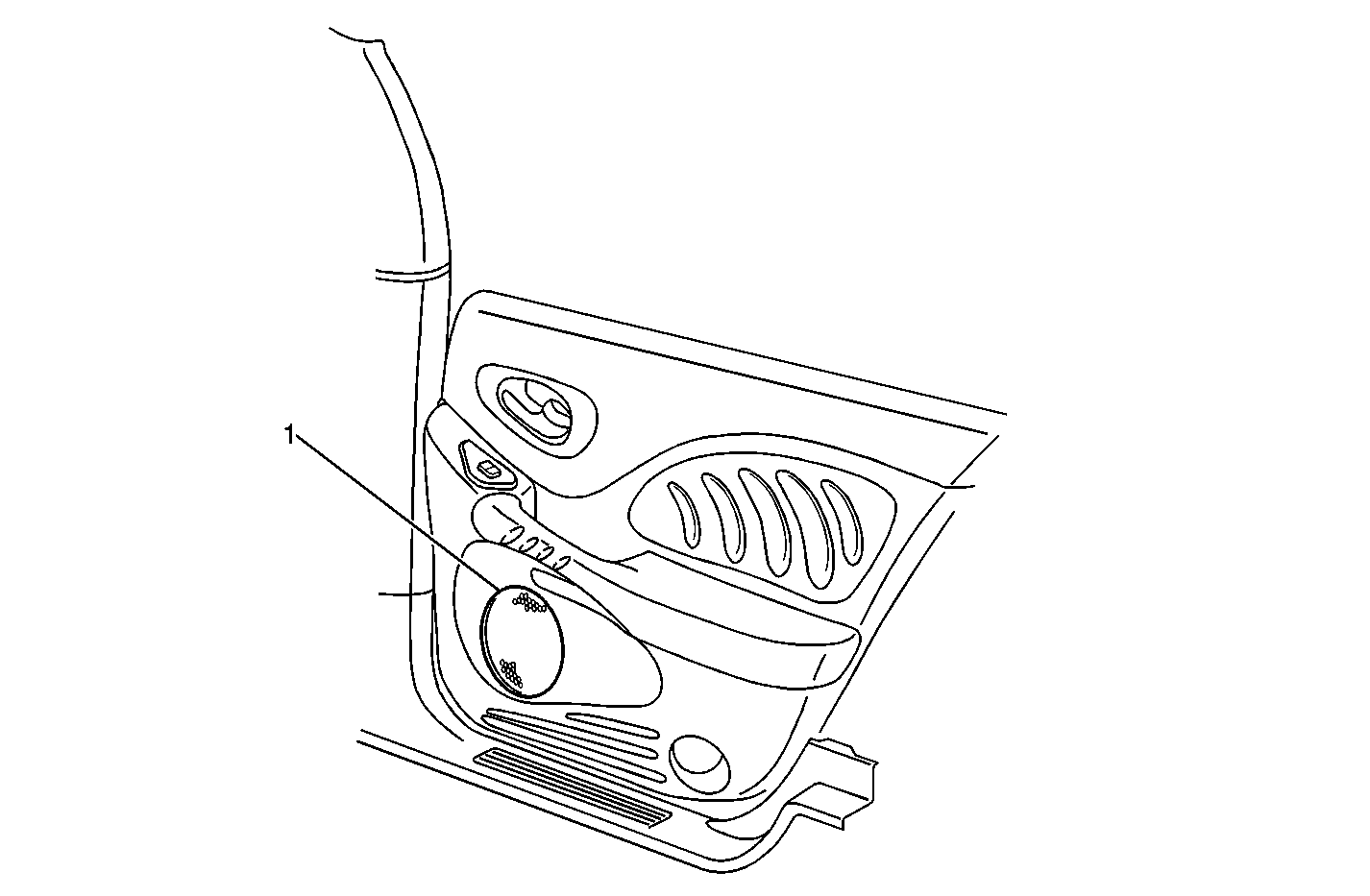

Figure 3:

Right Rear Door Trim Panel (Left Rear Door Similar)
Object Number: 553630 Size: MF
(1)Right Rear Door Speaker

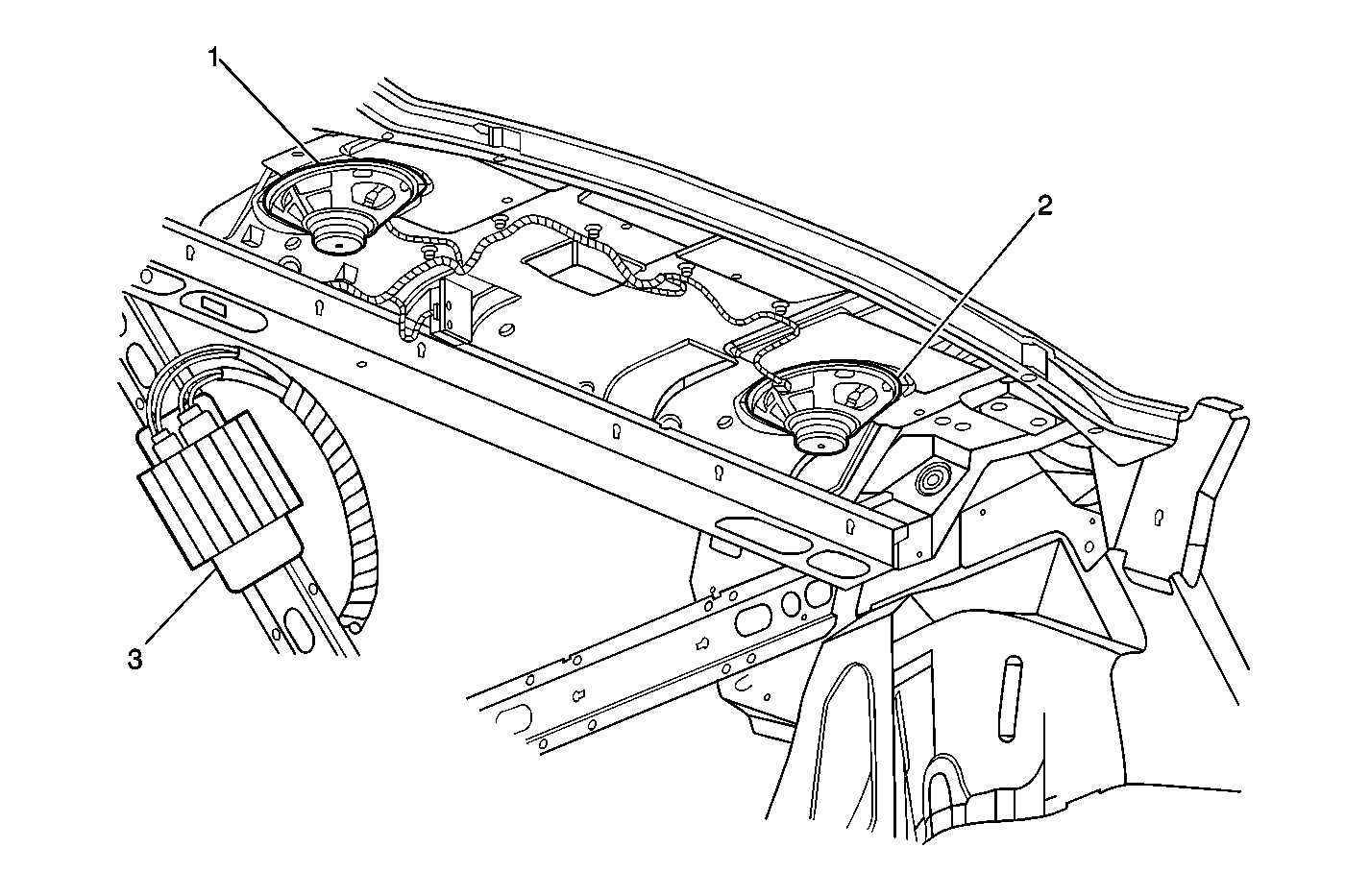

Figure 4:

Front of Rear Compartment
Object Number: 553622 Size: MF
(1)LH Sub-Woofer
(2)RH Sub-Woofer
(3)Amplifier
Figure 5:

Center Rear of Headliner
Object Number: 492796 Size: MF
(1)RF Radio Signal Coax Cable
(2)Front Windshield FM Antenna Coax Cable
(3)Radio Antenna Module
(4)Radio Antenna Module Connector
(5)Rear Glass Antenna Connector
Figure 6:

Right Side of Rear Compartment
Object Number: 609869 Size: MF
(1)Remote CD Changer
(2)Remote CD Changer Electrical Connector

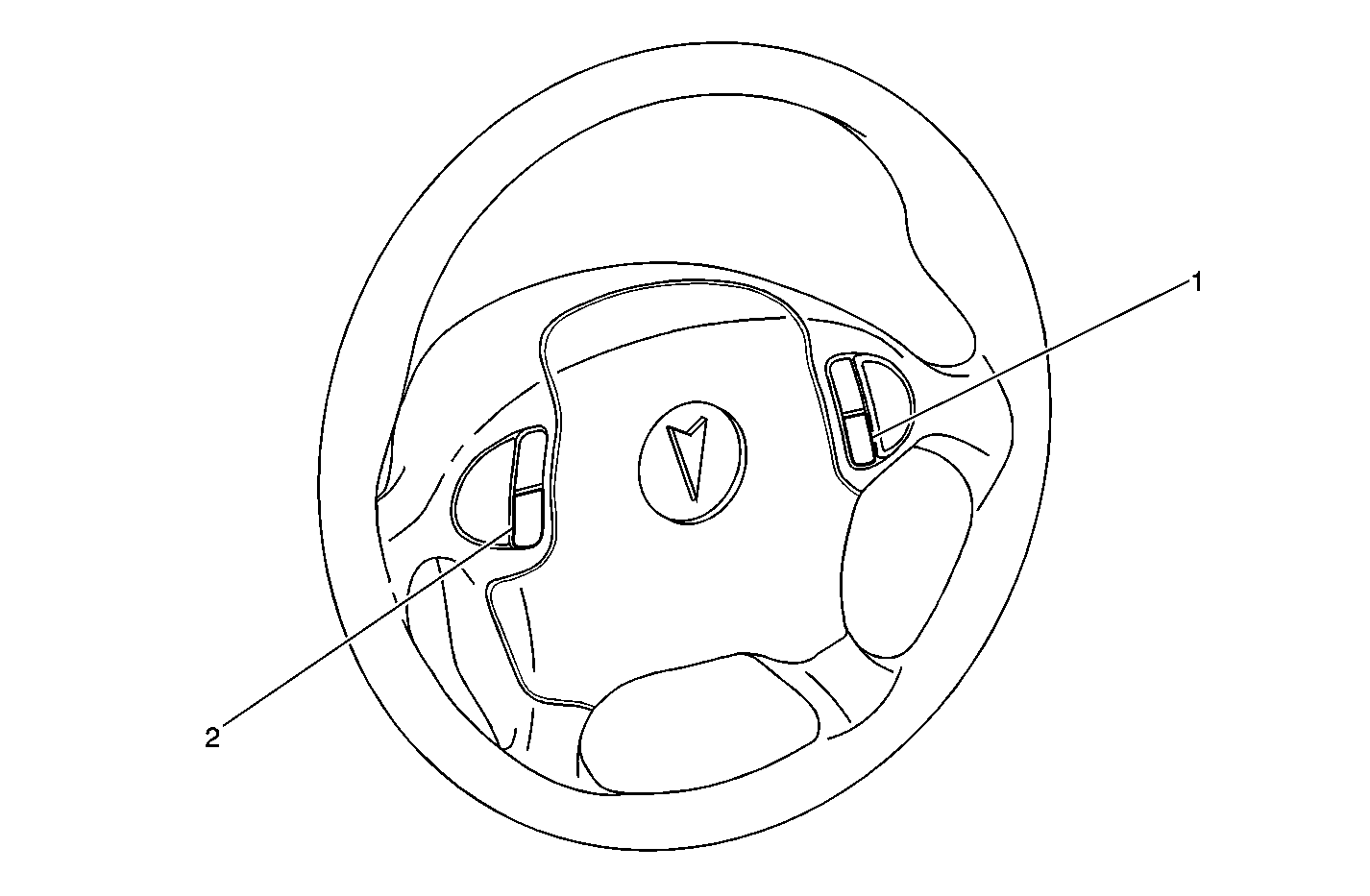

Figure 7:

Steering Wheel
Object Number: 553632 Size: MF
(1)RH Steering Wheel Control Switch
(2)LH Steering Wheel Control Switch
