Exterior Lights Schematics. Pontiac Bonneville 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2000 🢒 Bonneville 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

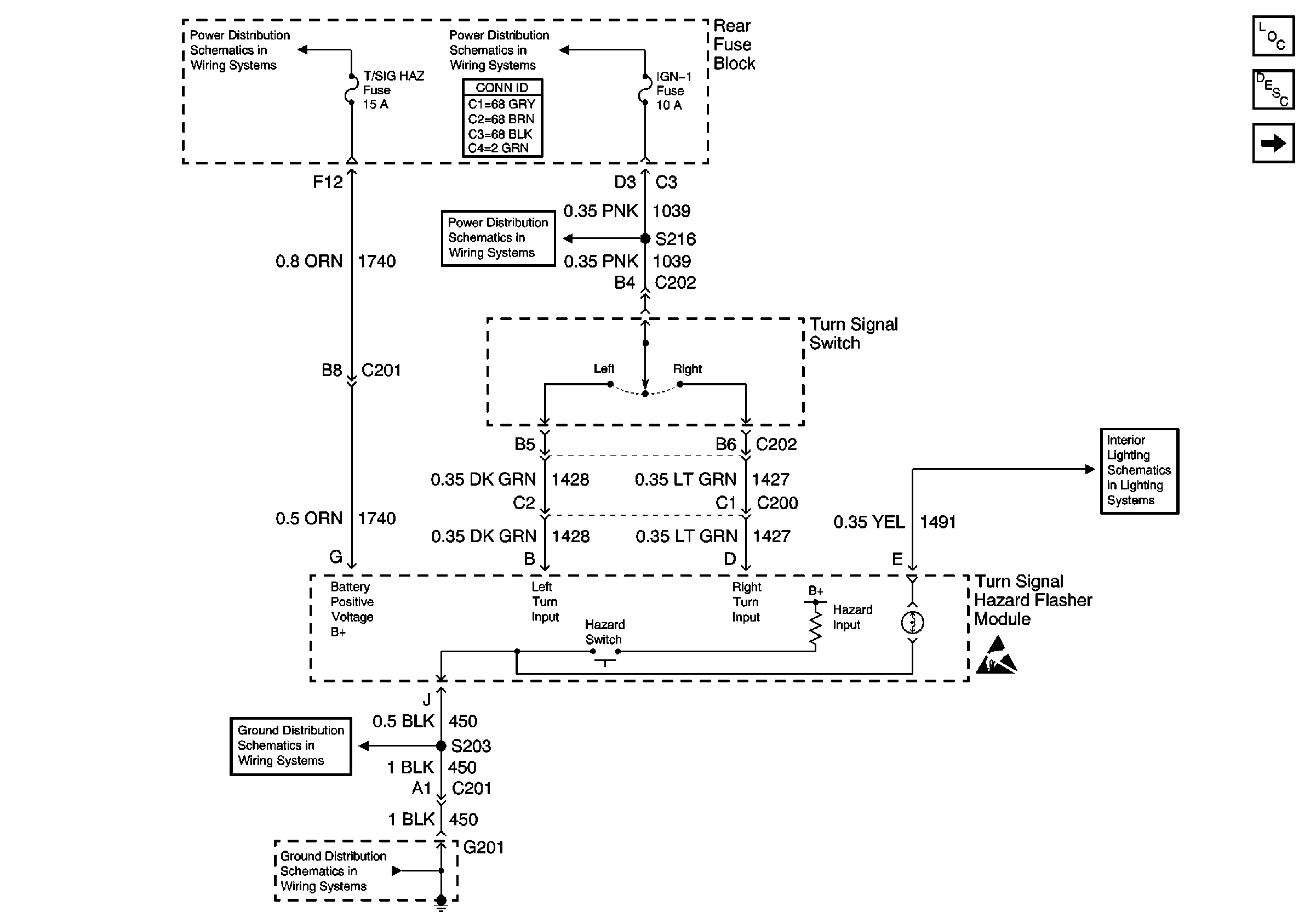

Figure 1:	Turn Signal, Hazard Flasher Module Inputs Lighting Systems Components Exterior Lights Circuit Description Turn Signal Lamps Handling ESD Sensitive Parts Notice Battery Voltage to the Rear Fuse Block Battery Voltage to the Rear Fuse Block IGN-1 Relay, TRANS, DIS, OXY SEN, and IGN 1 Fuses (Underhood Fuse Block) Instrument Panel and Console Dimming G201 (1 of 3) G201 (1 of 3)
Figure 2:	Turn Signal Lamps Lighting Systems Components Exterior Lights Circuit Description Stop Lamps Turn Signal, Hazard Flasher Module Inputs Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G402 G401 (2 of 2) RH Park Lamps G402 Turn Signal, Hazard Flasher Module Inputs G401 (2 of 2) G401 (2 of 2) G103 G103
Figure 3:	Stop Lamps Lighting Systems Components Exterior Lights Circuit Description LH Park Lamps Turn Signal Lamps Cruise Control Switch, CCM Power and Grounds LH Park Lamps LH Park Lamps RH Park Lamps RH Park Lamps G402 G401 (1 of 2) G401 (2 of 2) G401 (2 of 2) PWR, GND, Stoplamp Switch, Solenoid Valves, and Pump Motor
Figure 4:	LH Park Lamps Lighting Systems Components Exterior Lights Circuit Description RH Park Lamps Stop Lamps License Plate Lamps, Park Lamp Relay Stop Lamps Turn Signal Lamps G402 G402 G103

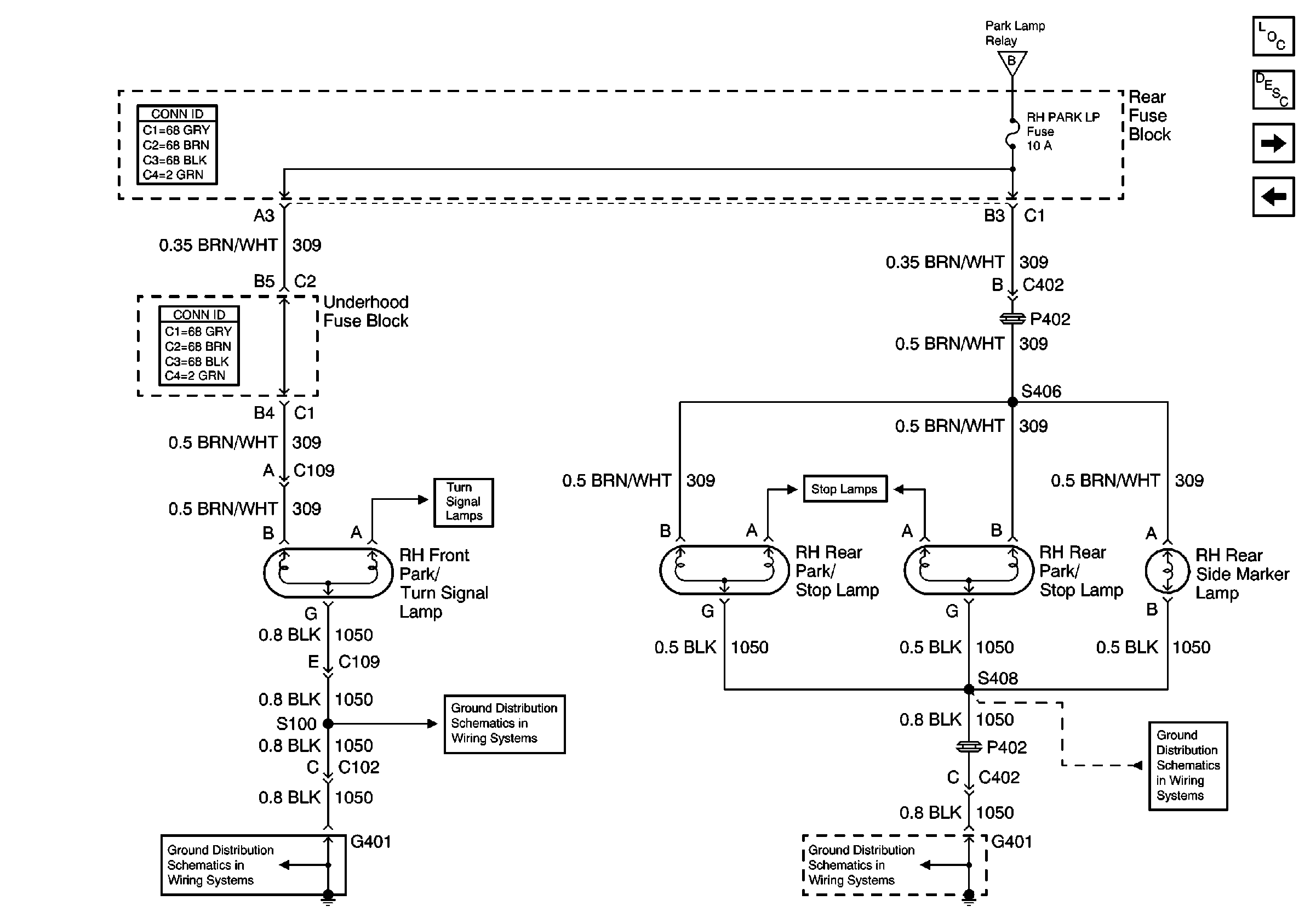

Figure 5:	RH Park Lamps Lighting Systems Components Exterior Lights Circuit Description License Plate Lamps, Park Lamp Relay LH Park Lamps License Plate Lamps, Park Lamp Relay Turn Signal Lamps Stop Lamps G401 (2 of 2) G401 (2 of 2) G401 (2 of 2) G401 (2 of 2)
Figure 6:	License Plate Lamps, Park Lamp Relay Lighting Systems Components Exterior Lights Circuit Description RH Park Lamps RH Park Lamps LH Park Lamps Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G401 (2 of 2) G401 (2 of 2)
