The base radio system consists of the following components:
| • | A radio receiver with a cassette player and programmable equalizer |
| • | An antenna module with front and rear window antennas |
The radio system may also include the following options:
| • | A radio receiver with a CD player and programmable equalizer |
| • | A radio receiver with a cassette player, CD player and programmable
equalizer |
| • | A remote 6 disc CD changer |
| • | A 6 speaker sound system |
| • | A 8 speaker sound system with amplifier |
The following radio systems are available:

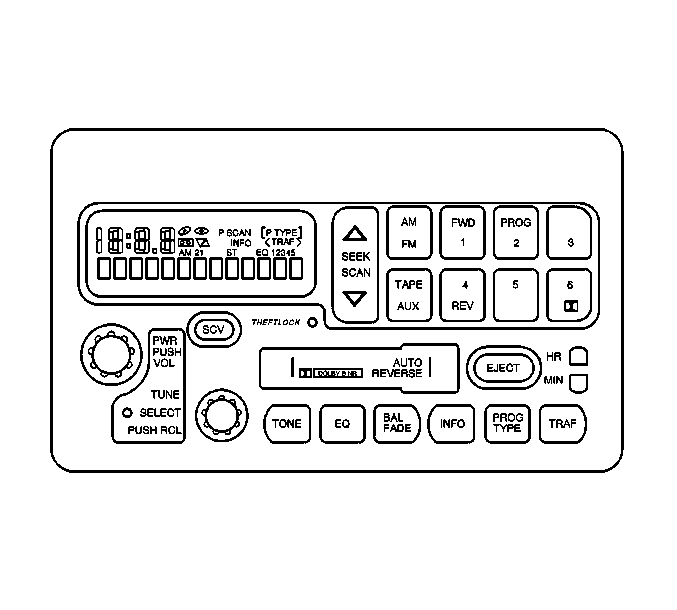

| • | U1N-AM/FM Stereo Cassette
with programmable equalizer |

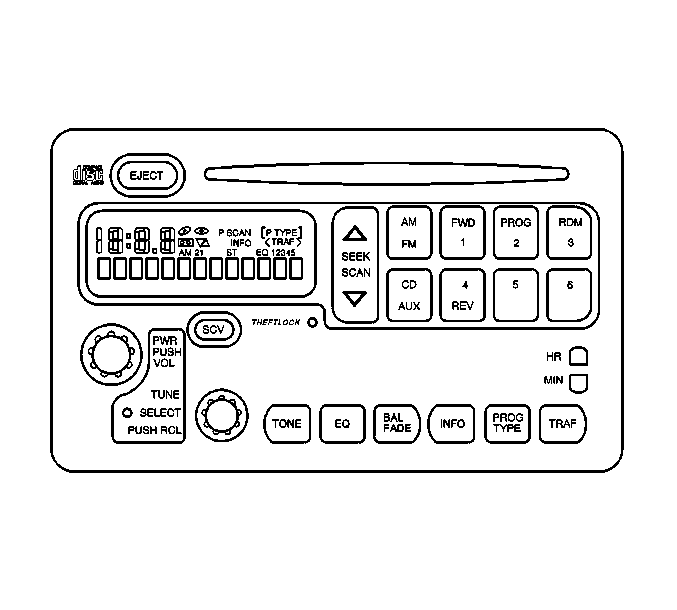

| • | U1P-AM/FM Stereo CD with
programmable equalizer |

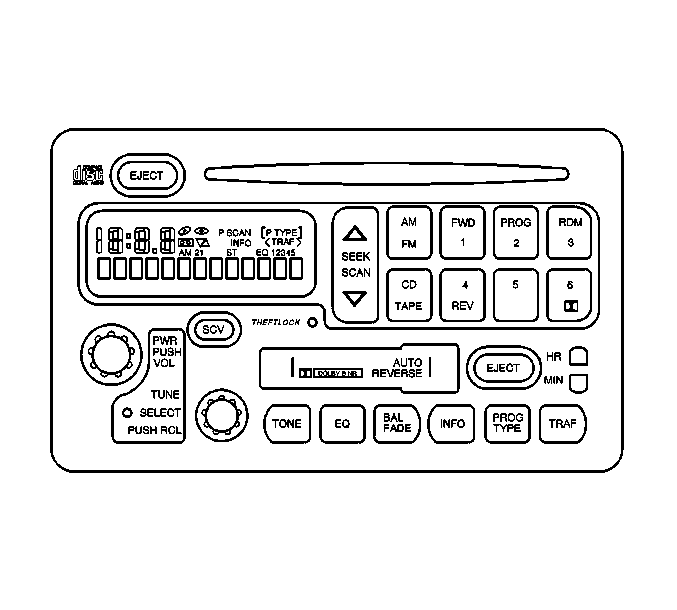

| • | U1Q-AM/FM Stereo Cassette/CD
with programmable equalizer |
Antenna Module
The radio receives tuner signals from an antenna module. This module
uses the following antennas to pick up tuner signals:
| • | Front Windshield Antenna - Mounted in the upper right corner
of the windshield and used for FM reception only |
| • | Rear Window Antenna - Mounted along the top grid of the
rear window and used for AM and FM reception |
The module utilizes the signals of the two antennas for the following
reasons:
| • | To reduce the amount of fade and breakup due to tall buildings
in cities |
| • | Additional signal strength in fringe reception areas |
The radio sends a signal to the module to adjust the signal strength
received by it for optimal FM reception.
