Body Control System Schematics. Pontiac Bonneville 2002

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2002 🢒 Bonneville 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

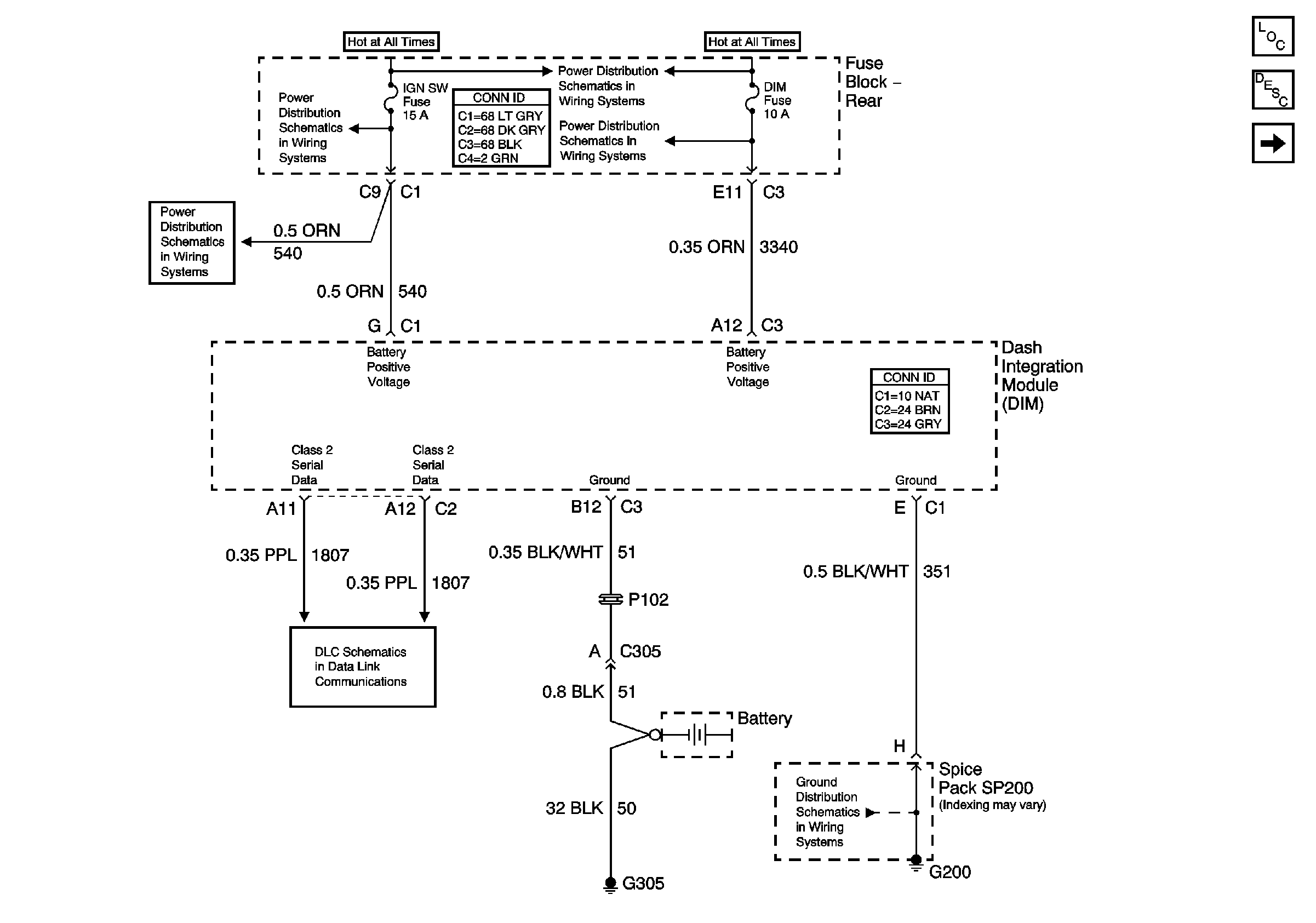

Figure 1:	DIM Power and Ground Master Electrical Component List Body Control System Description and Operation IGN SW, PRK/REV Fuses and the PARK and REVERSE Relays (Fuse Block Rear) IGN SW, PRK/REV Fuses and the PARK and REVERSE Relays (Fuse Block Rear) Serial Data Class 2 Battery Voltage to the Rear Fuse Block HTDST RF, HTDST LF, DIM, and Mem Fuses (Fuse Block Rear) G200 Ignition Inputs
Figure 2:	Ignition Inputs Master Electrical Component List Body Control System Description and Operation Ignition Switch RUN and START/RUN Positions Ignition Switch Positions Serial Data Class 2 DIM Inputs/Outputs DIM Power and Ground
Figure 3:	DIM Inputs/Outputs Master Electrical Component List Body Control System Description and Operation Steering Wheel Controls Schematics Headlamp, Foglamp, and Ambient Light Sensor Inputs (w/C67) DRL Controls and High Beam Headlamps Headlamp, Foglamp, and Ambient Light Sensor Inputs (w/C67) Park LP Relay and License Lamps Power and Ground DRL Controls and High Beam Headlamps Low Beam Headlamps Low Beam Headlamps Fog Lamp Schematics Dimming Control IPM Power and Ground Ignition Inputs

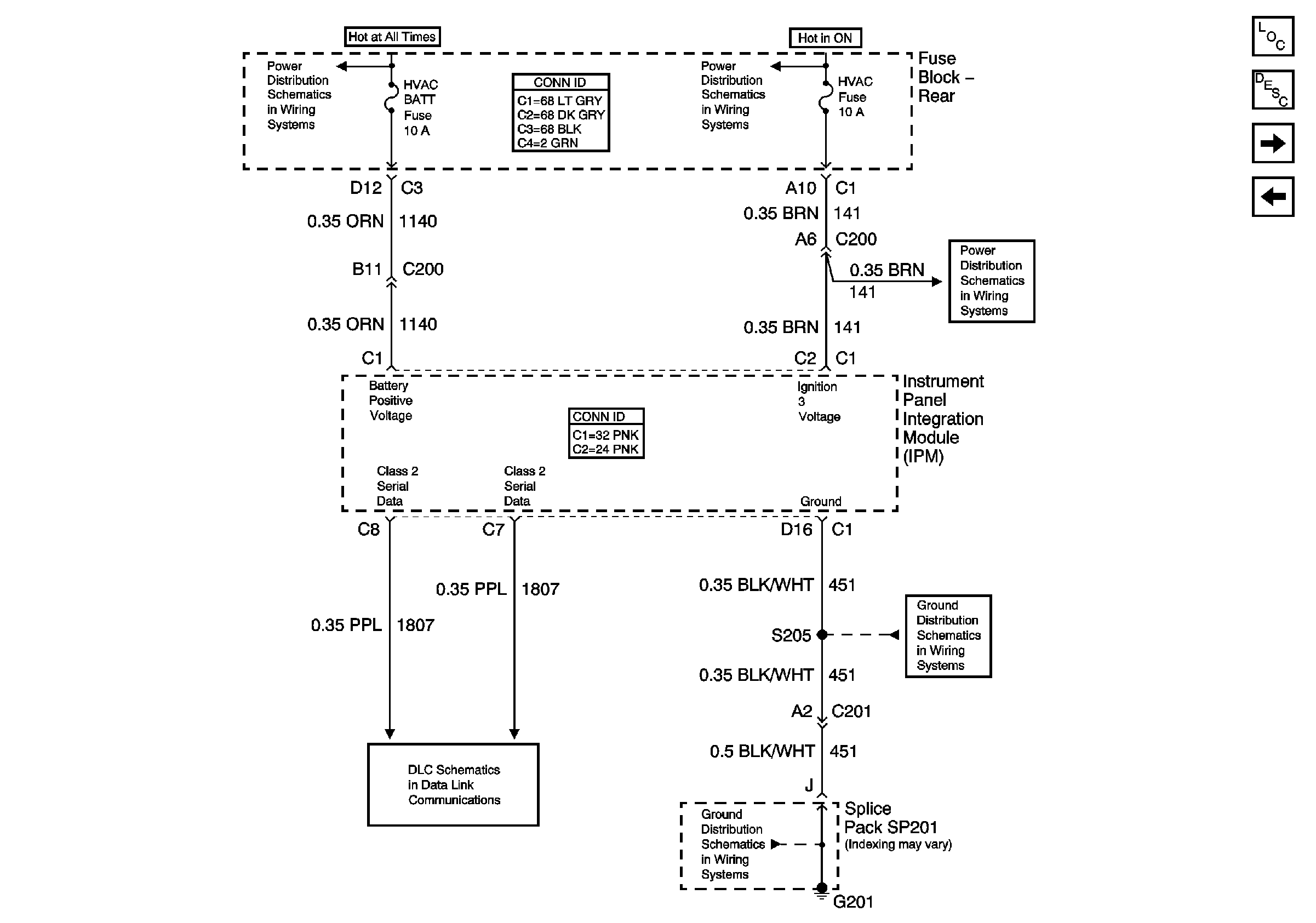

Figure 4:	IPM Power and Ground Master Electrical Component List Body Control System Description and Operation HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses (Fuse Block Rear) Serial Data Class 2 Battery Voltage to the Rear Fuse Block HVAC Fuse (Fuse Block Rear) G201 (2 of 2) G201 (2 of 2) IPM Input/Outputs (1 of 2 w/CJ2) DIM Inputs/Outputs
Figure 5:	IPM Input/Outputs (1 of 2 w/CJ2) Master Electrical Component List Body Control System Description and Operation Dimming Control Headlamp, Foglamp, and Ambient Light Sensor Inputs (w/CJ2) Headlamp, Foglamp, and Ambient Light Sensor Inputs (w/CJ2) Dimming Control Left Courtesy, Rear Compartment, and Ignition Cylinder Lamps Indicators and the Traction Control Switch Rear Compartment Lid Release (1 of 2) Fog Lamp Schematics Dimming Control Radio, Door, and Ignition Switch Audible Warnings HVAC Control w/CJ2 IPM Input/Outputs (2 of 2 w/CJ2) IPM Power and Ground
Figure 6:	IPM Input/Outputs (2 of 2 w/CJ2) Master Electrical Component List Body Control System Description and Operation Air Delivery w/CJ2 Temp Sensors w/CJ2 Blower Control w/CJ2 RIM Power and Ground IPM Input/Outputs (1 of 2 w/CJ2)

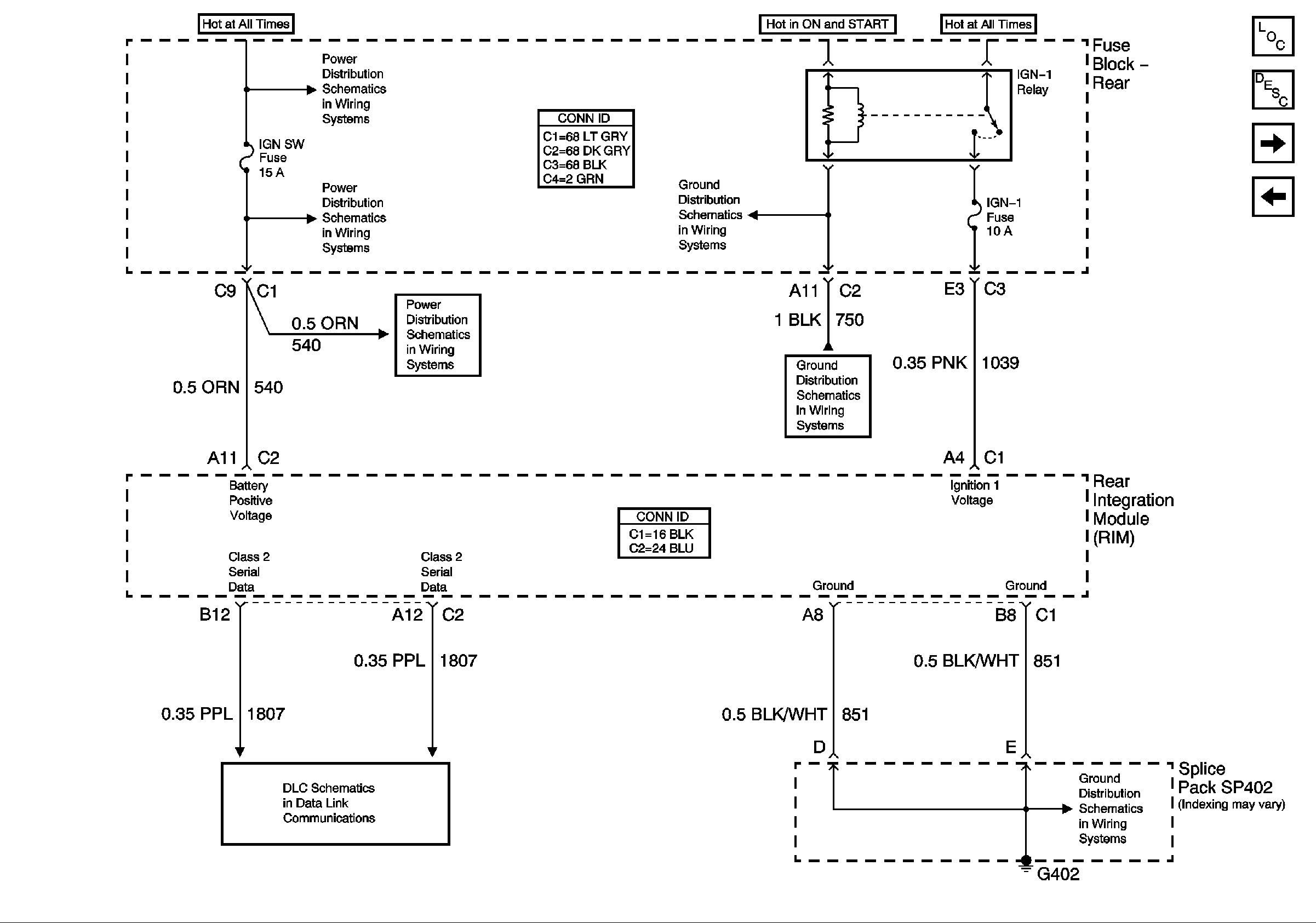

Figure 7:	RIM Power and Ground Master Electrical Component List Body Control System Description and Operation Battery Voltage to the Rear Fuse Block IGN SW, PRK/REV Fuses and the PARK and REVERSE Relays (Fuse Block Rear) IGN SW, PRK/REV Fuses and the PARK and REVERSE Relays (Fuse Block Rear) Serial Data Class 2 G302 G302 G402 RIM Inputs/Outputs (1 of 2) IPM Input/Outputs (2 of 2 w/CJ2)
Figure 8:	RIM Inputs/Outputs (1 of 2) Master Electrical Component List Body Control System Description and Operation Right Courtesy, and I/P Compartment Lamps Cigar Lighter/Auxiliary Output Right Courtesy, and I/P Compartment Lamps Interior Lamp Relay Controls Backup Lamps Fuel Door Lock Rear Compartment Lid Release (1 of 2) Rear Compartment Lid Release (2 of 2) Rap Schematic RIM Inputs/Outputs (2 of 2) RIM Power and Ground
Figure 9:	RIM Inputs/Outputs (2 of 2) Master Electrical Component List Body Control System Description and Operation Power and Rim Controls Defogger Schematic ALC Schematic Power, Ground, and Solenoid Circuits RIM Inputs/Outputs (1 of 2)
