Door Control Module Schematics. Pontiac Bonneville 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2005 🢒 Bonneville 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Door Control Module Schematics

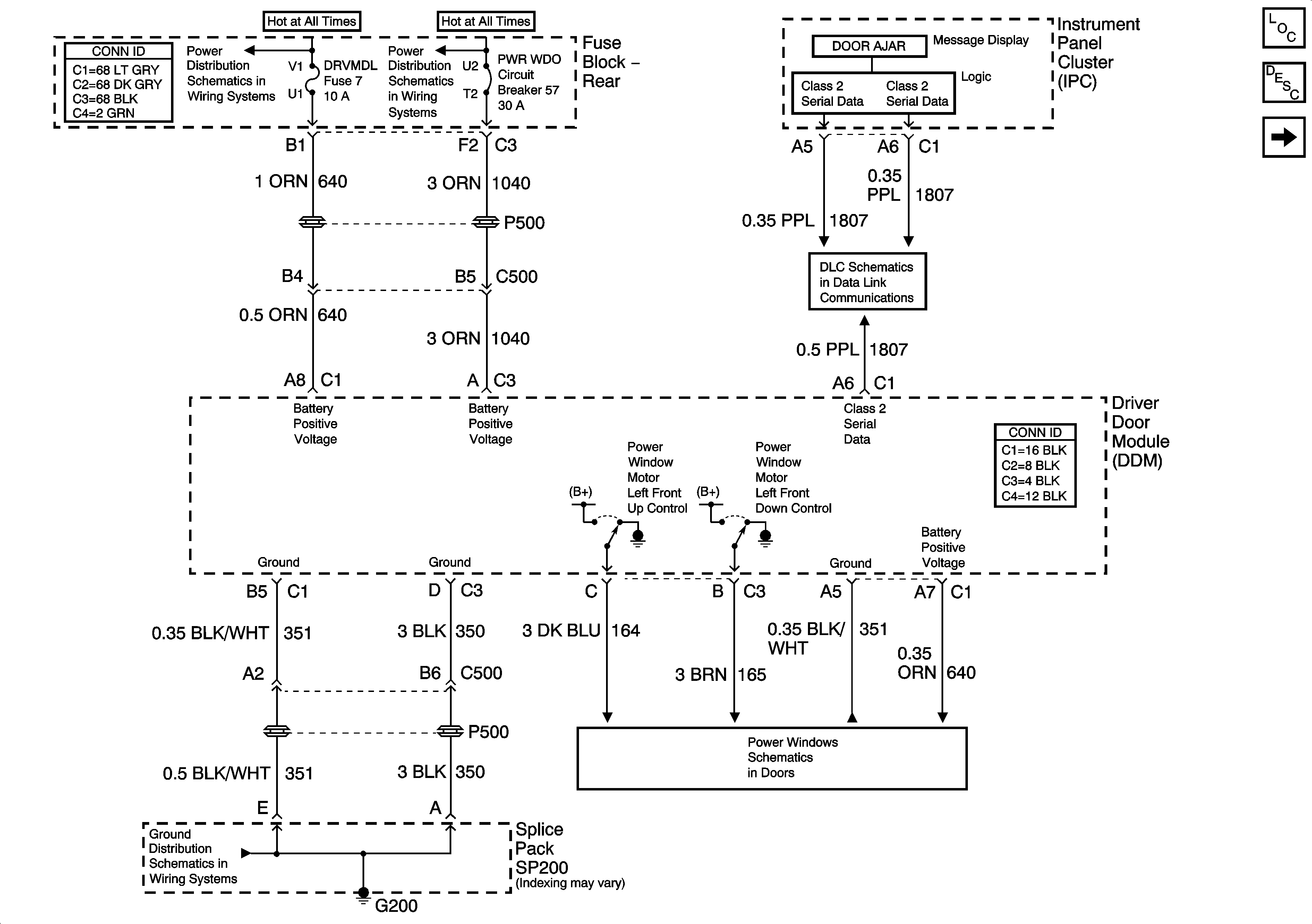

Figure 1:	DDM Power and Ground Master Electrical Component List Power Door Locks Description and Operation PDM Power and Ground HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses PWR WDO and PWR SEAT Circuit Breakers Serial Data Class 2 G200 Left Front Door

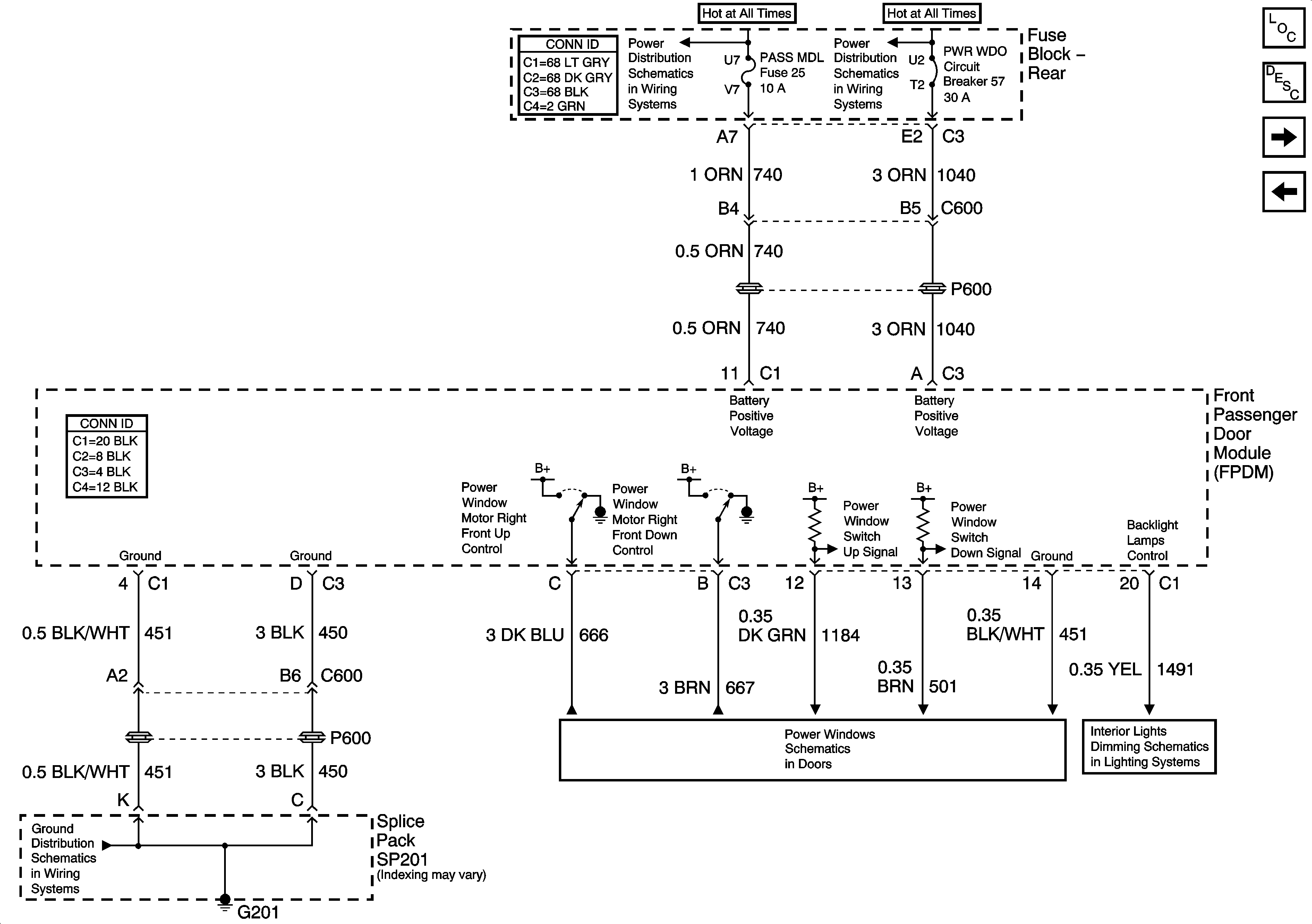

Figure 2:	PDM Power and Ground Master Electrical Component List Power Door Locks Description and Operation DDM Inputs/Outputs DDM Power and Ground HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses PWR WDO and PWR SEAT Circuit Breakers G201 - 1 of 2 Right Front Door Front Floor Lamps, and Heated Seat Dimming

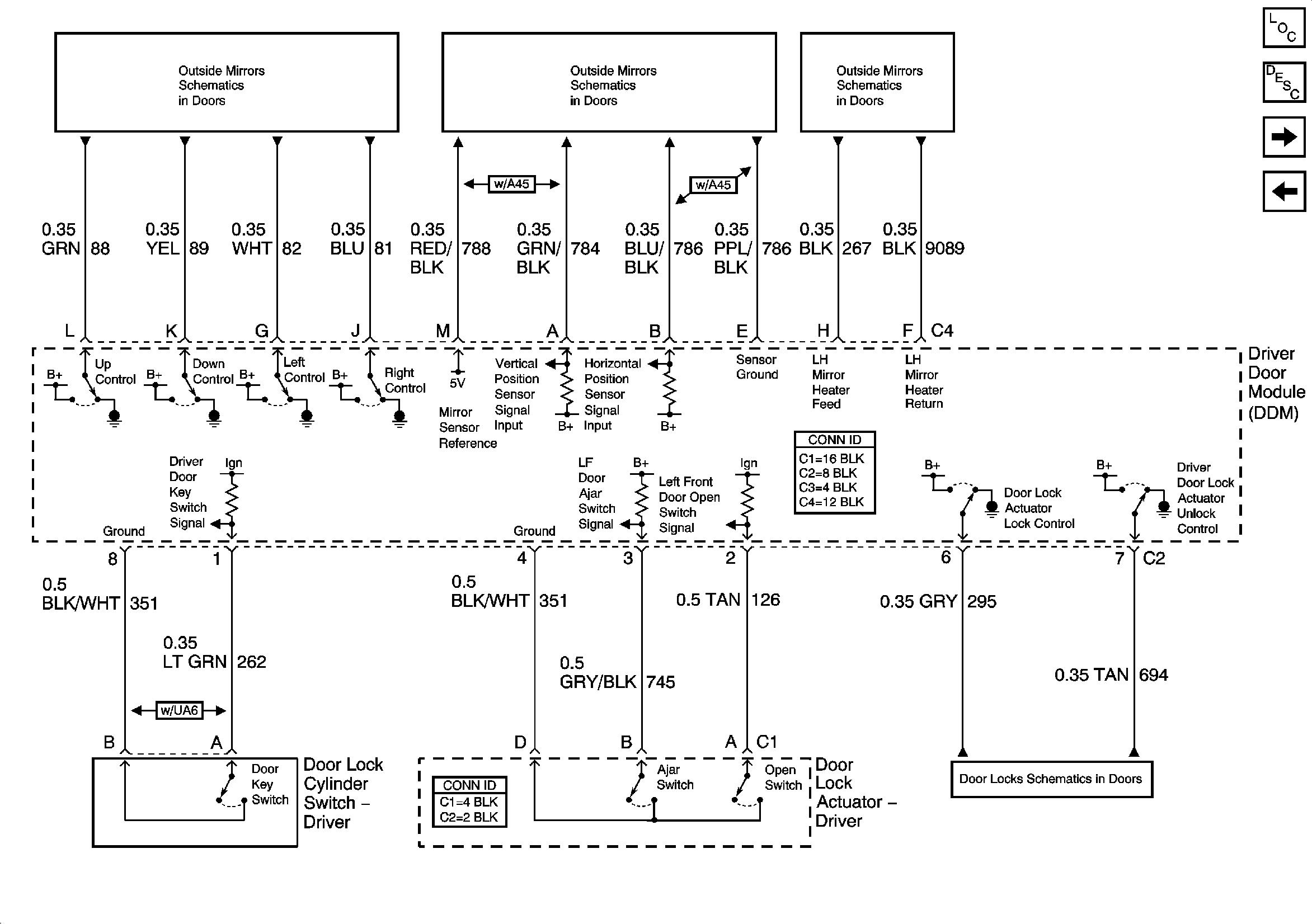

Figure 3:	DDM Inputs/Outputs Master Electrical Component List Power Door Locks Description and Operation PDM Inputs/Outputs PDM Power and Ground Left Mirror (w/o A45) Left Mirror (A45) Heated Mirrors (DK5) Left Front Door

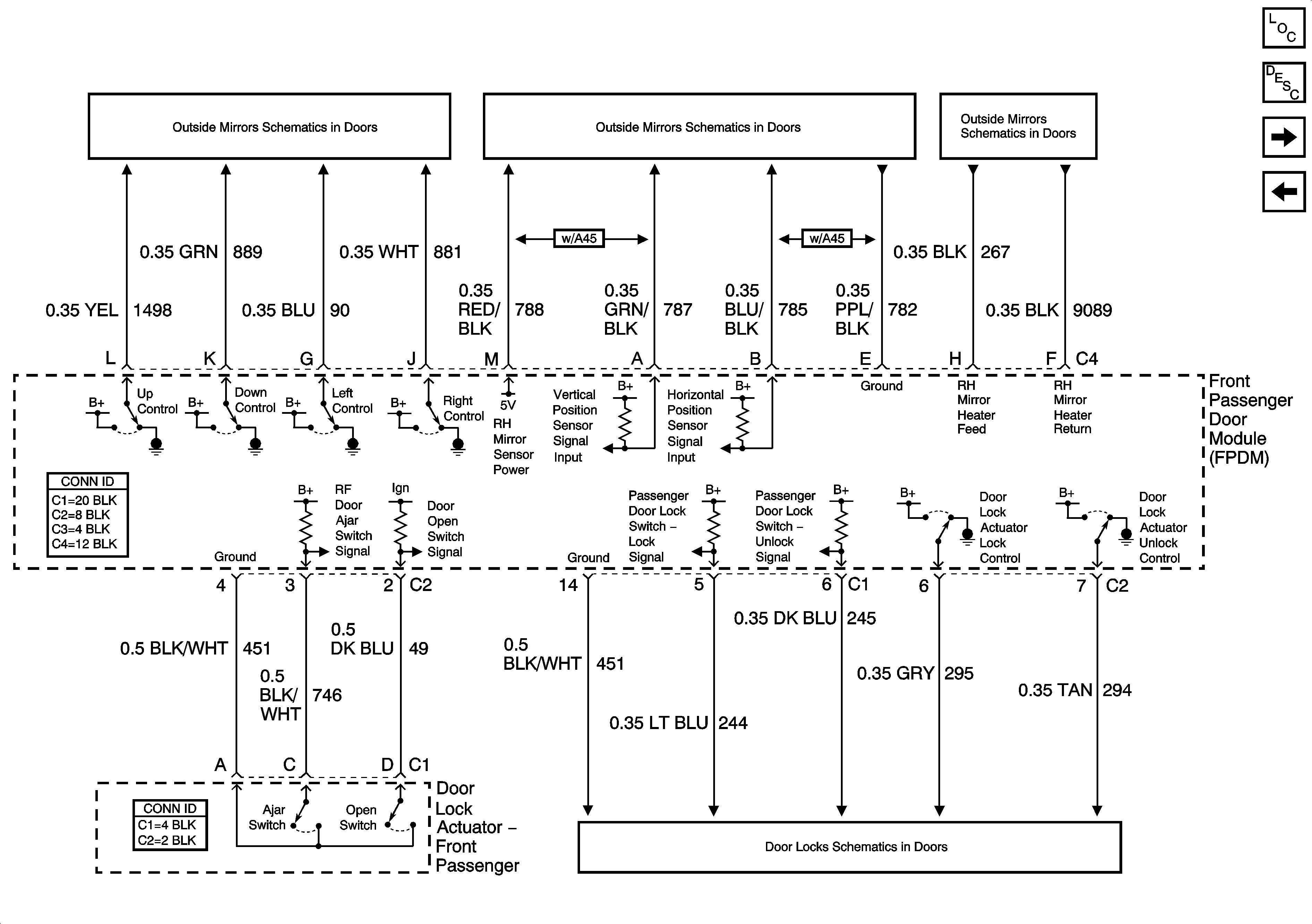

Figure 4:	PDM Inputs/Outputs Master Electrical Component List Power Door Locks Description and Operation Left Rear Door Module DDM Inputs/Outputs Right Mirror (w/o A45) Right Mirror (A45) Heated Mirrors (DK5) Right Front Door

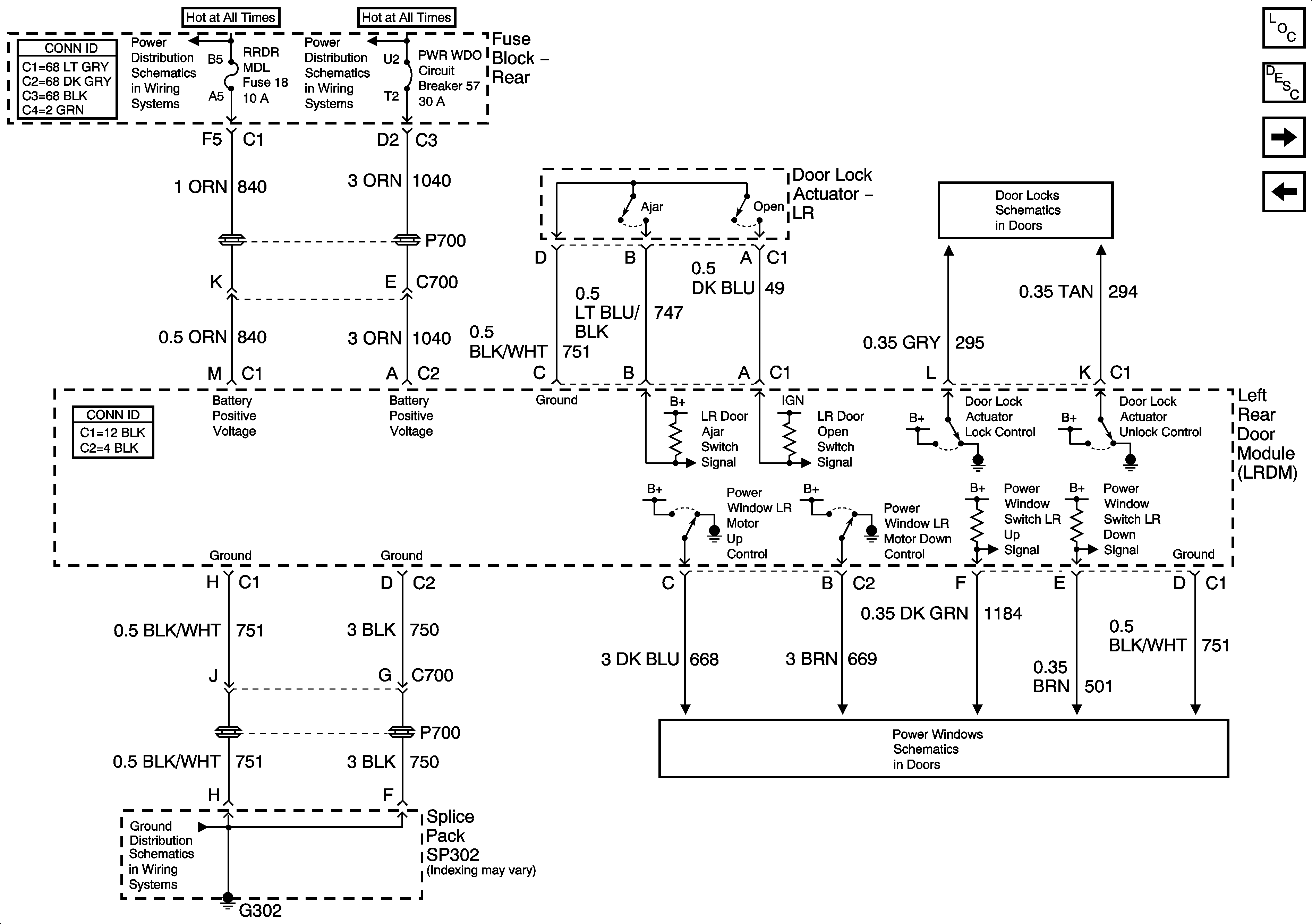

Figure 5:	LRDM Master Electrical Component List Power Door Locks Description and Operation Right Rear Door Module PDM Inputs/Outputs HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses PWR WDO and PWR SEAT Circuit Breakers Left Rear Door G302 Left Rear Door

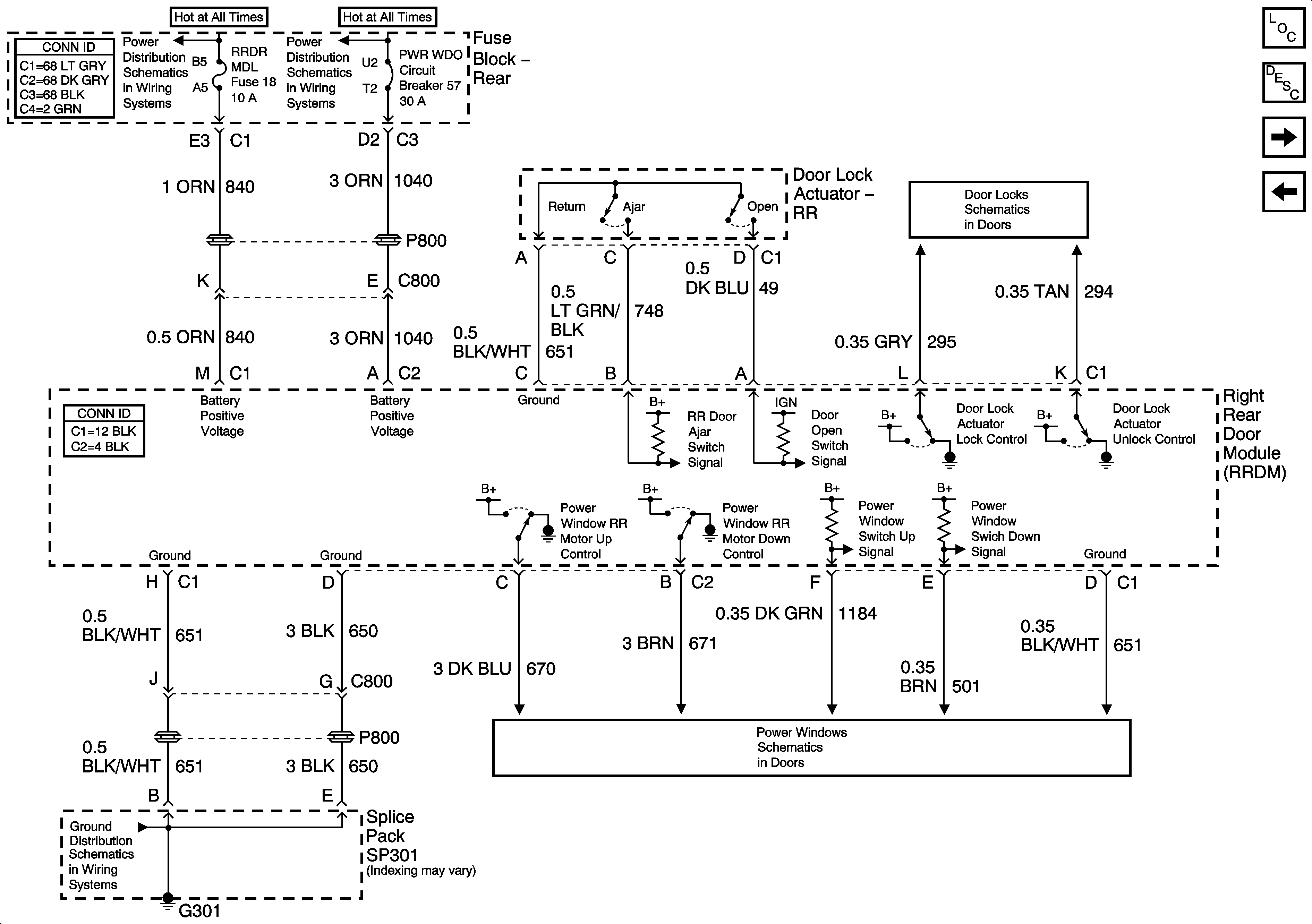

Figure 6:	RRDM Master Electrical Component List Power Door Locks Description and Operation Driver Door Switch Assembly Left Rear Door Module HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses PWR WDO and PWR SEAT Circuit Breakers Right Rear Door G300 and G301 - 1 of 2 Right Rear Door
Figure 7:	Driver Door Switch Assembly Master Electrical Component List Power Door Locks Description and Operation Simple Bus Interface (SBI) Right Rear Door Module I/P and Console Dimming Front Floor Lamps, and Heated Seat Dimming
Figure 8:	Simple Bus Interface (SBI) Master Electrical Component List Power Door Locks Description and Operation Driver Door Switch Assembly
