Power Distribution Schematics. Pontiac Bonneville 2005

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2005 🢒 Bonneville 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Power Distribution Schematics

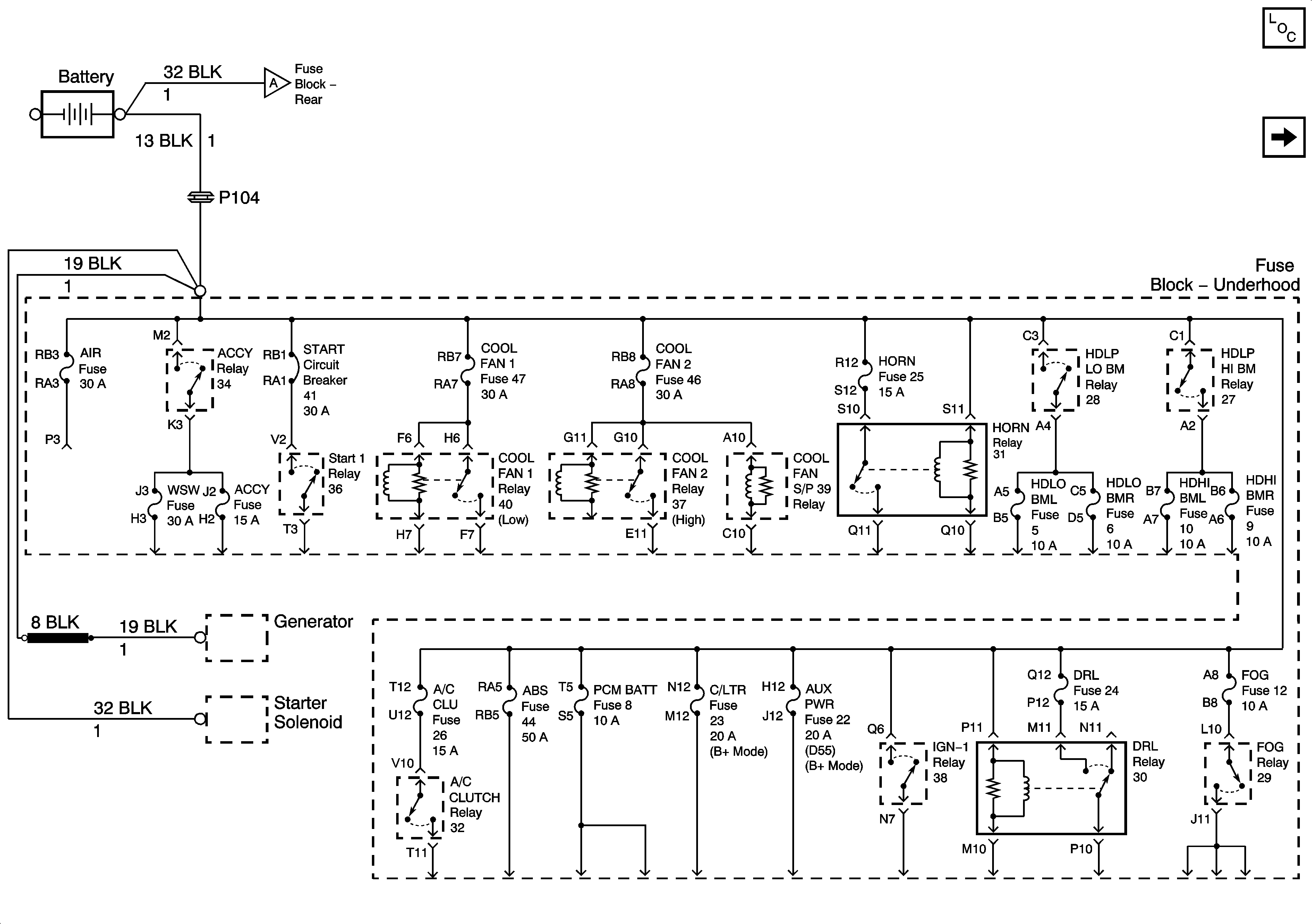

Figure 1:	Underhood Fuse Block B+ Bus - 3.8L Master Electrical Component List Underhood Fuse Block B+ Bus - 4.3L Rear Fuse Block B+ Bus G303, G305, G310, and G404

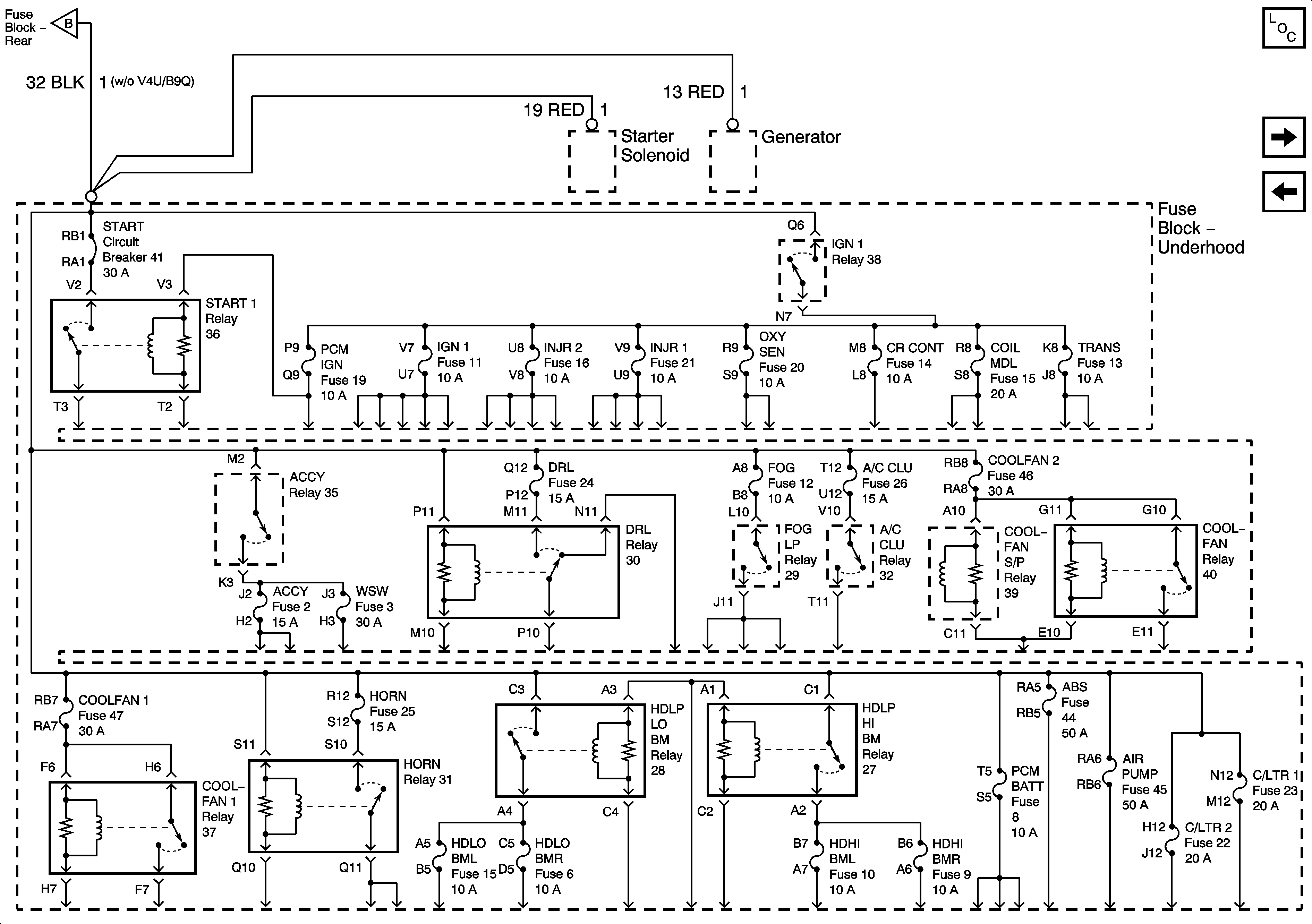

Figure 2:	Underhood Fuse Block B+ Bus - 4.6L Master Electrical Component List Rear Fuse Block B+ Bus Underhood Fuse Block B+ Bus - 3.8L Rear Fuse Block B+ Bus

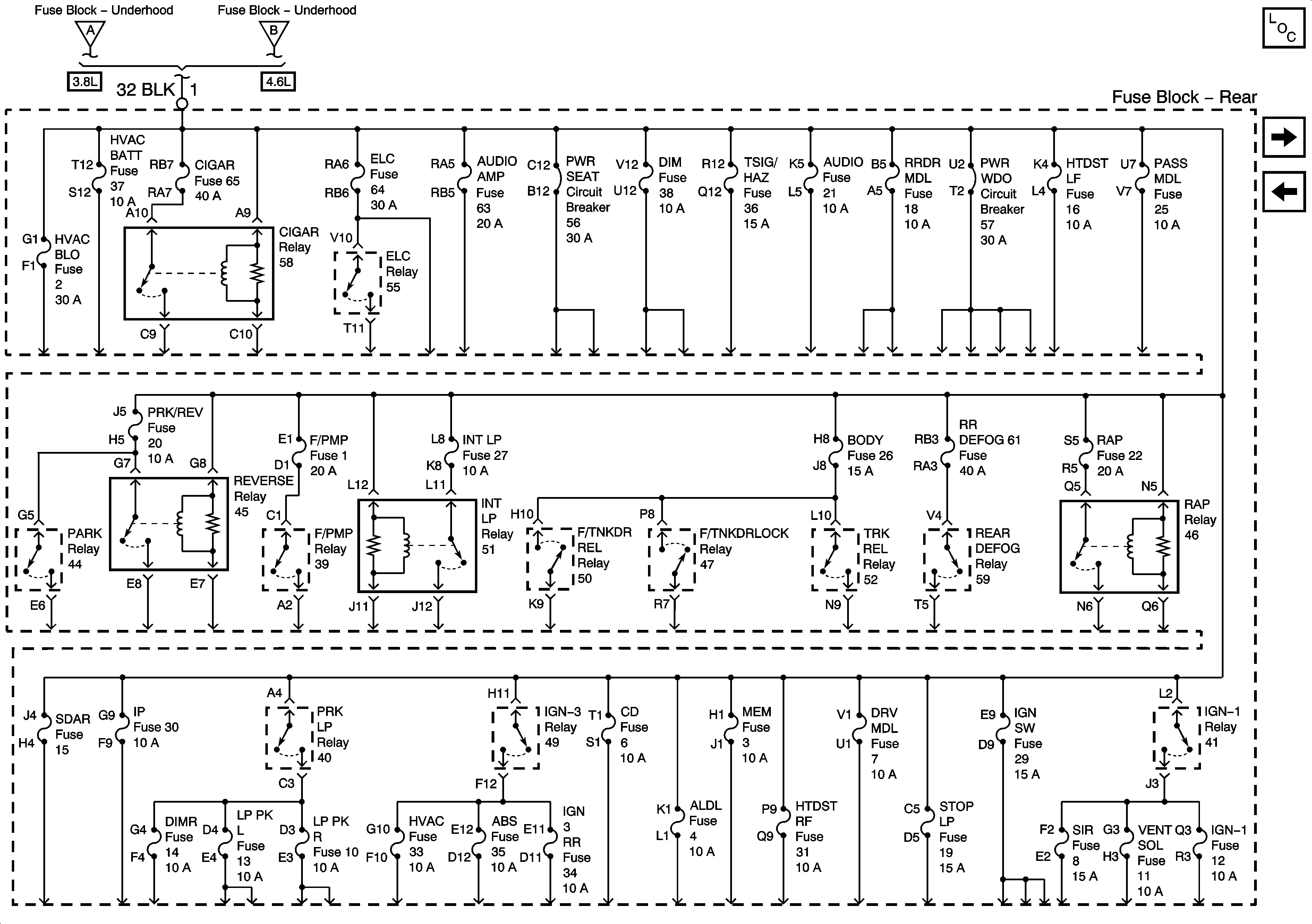

Figure 3:	Rear Fuse Block B+ Bus Master Electrical Component List TRANS, DIS, OXY SEN, and IGN 1 Fuses - 3.8L Underhood Fuse Block B+ Bus - 4.3L Underhood Fuse Block B+ Bus - 3.8L Underhood Fuse Block B+ Bus - 4.3L

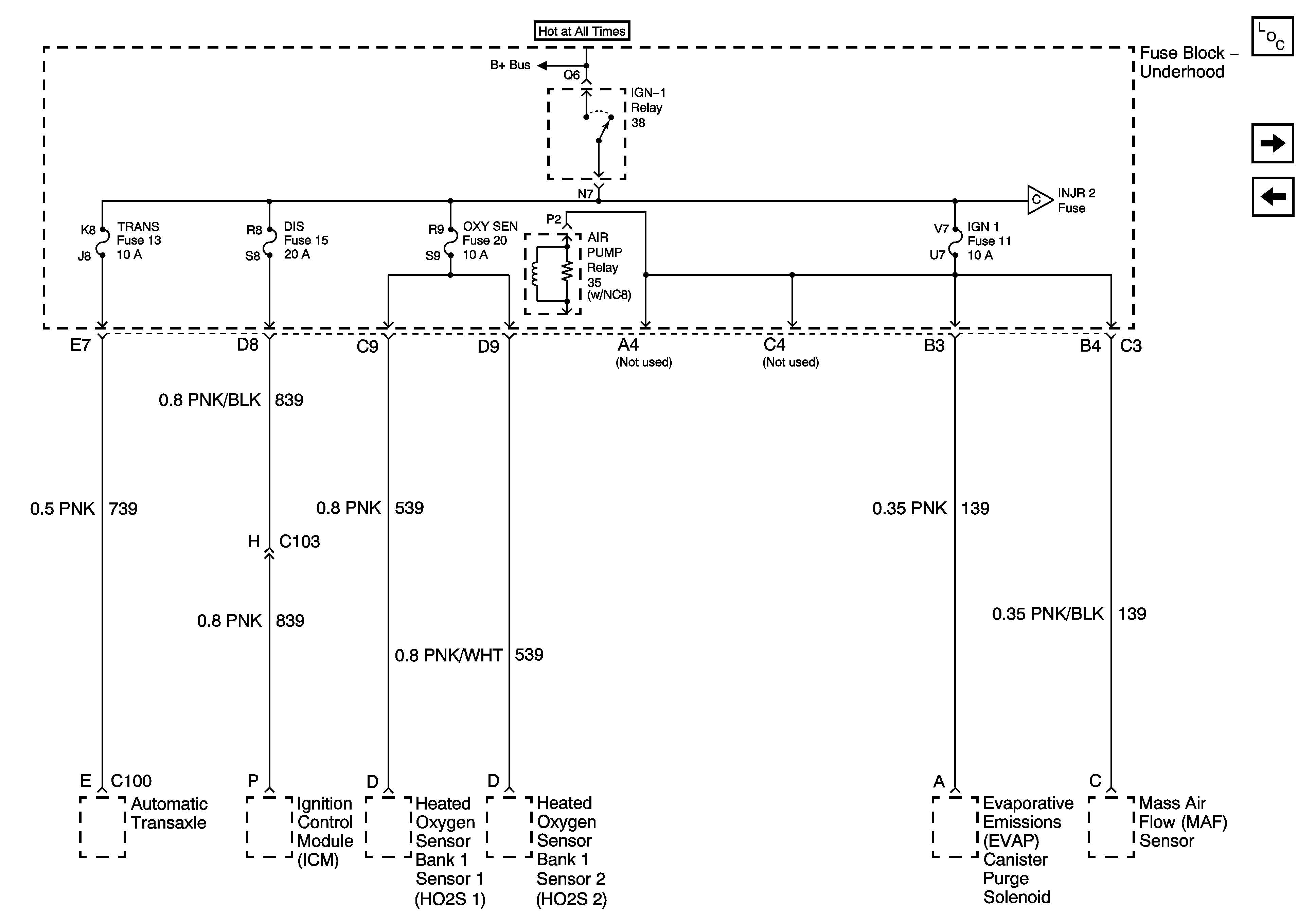

Figure 4:	TRANS, DIS, OXY SEN, and IGN 1 Fuses - 3.8L Master Electrical Component List INJR 2, PCM IGN, CR CONT, and INJR 1 Fuses - 3.8L Rear Fuse Block B+ Bus Underhood Fuse Block B+ Bus - 3.8L INJR 2, PCM IGN, CR CONT, and INJR 1 Fuses - 3.8L
Figure 5:	INJR 2, PCM IGN, CR CONT, and INJR 1 Fuses - 3.8L Master Electrical Component List START Circuit Breaker, HORN and A/C CLU Fuses - 3.8L TRANS, DIS, OXY SEN, and IGN 1 Fuses - 3.8L TRANS, DIS, OXY SEN, and IGN 1 Fuses - 3.8L

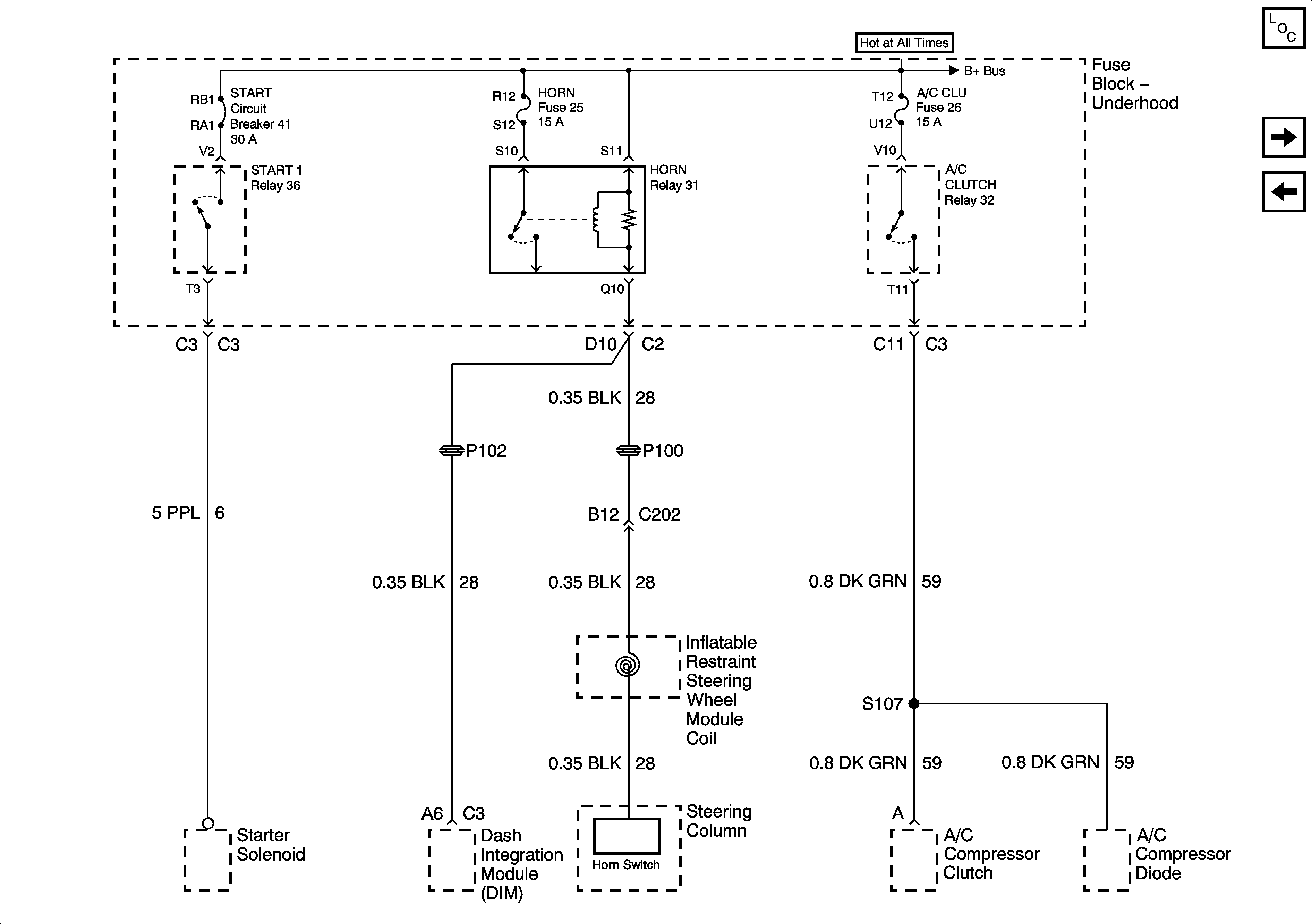

Figure 6:	Start Circuit Breaker, HORN, and A/C CLU Fuses - 3.8L Master Electrical Component List DRL, HDHIBML, HDHIBMR, HDLOBML, and HDLOBMR Fuses - 3.8L INJR 2, PCM IGN, CR CONT, and INJR 1 Fuses - 3.8L Underhood Fuse Block B+ Bus - 3.8L

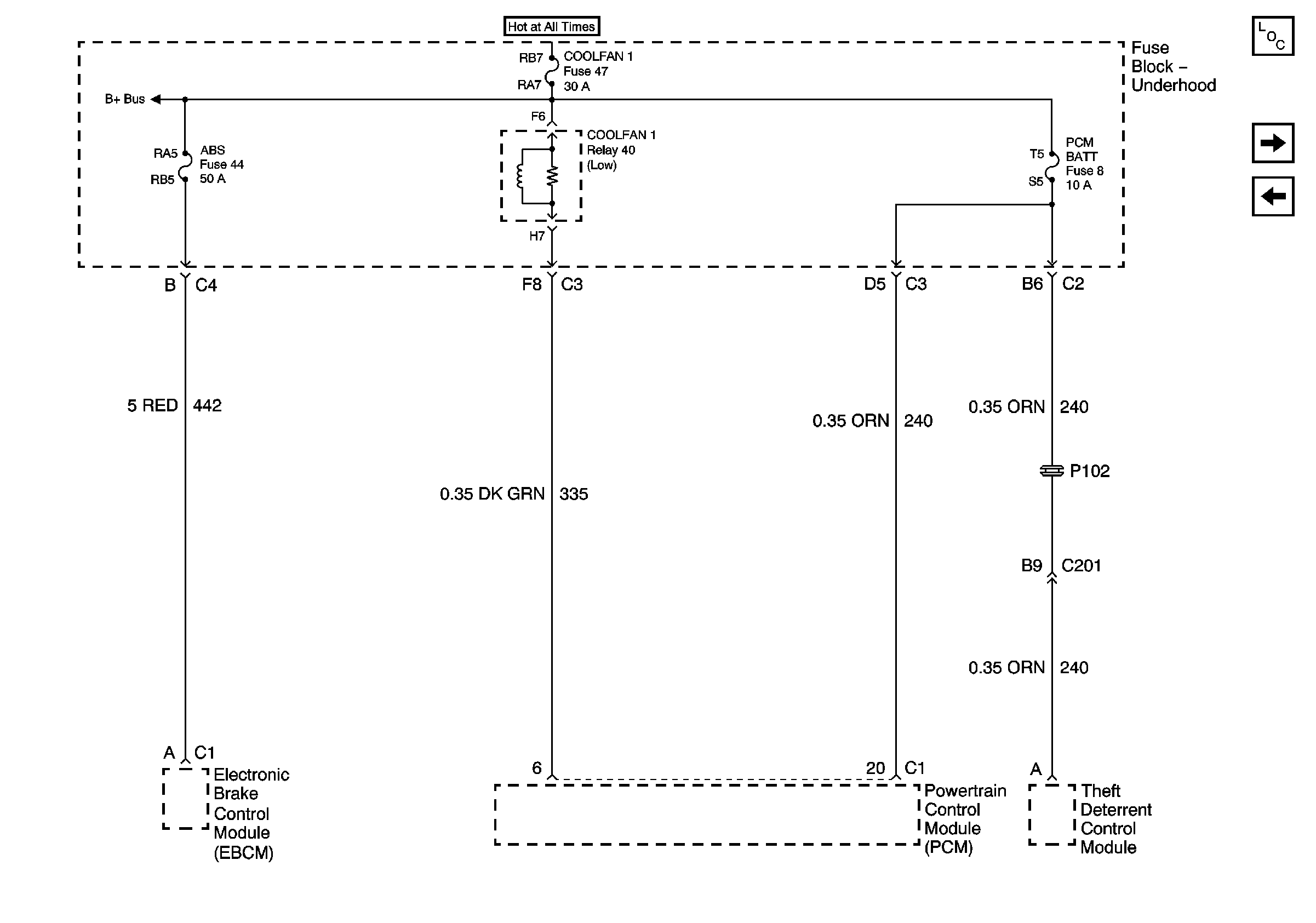

Figure 7:	ABS, PCM BATT, and the Cool Fan 1 Fuses - 3.8L Master Electrical Component List AIR, C/LTR, AUX PWR, WSW, and ACCY Fuses - 3.8L DRL, HDHIBML, HDHIBMR, HDLOBML, and HDLOBMR Fuses - 3.8L Underhood Fuse Block B+ Bus - 3.8L

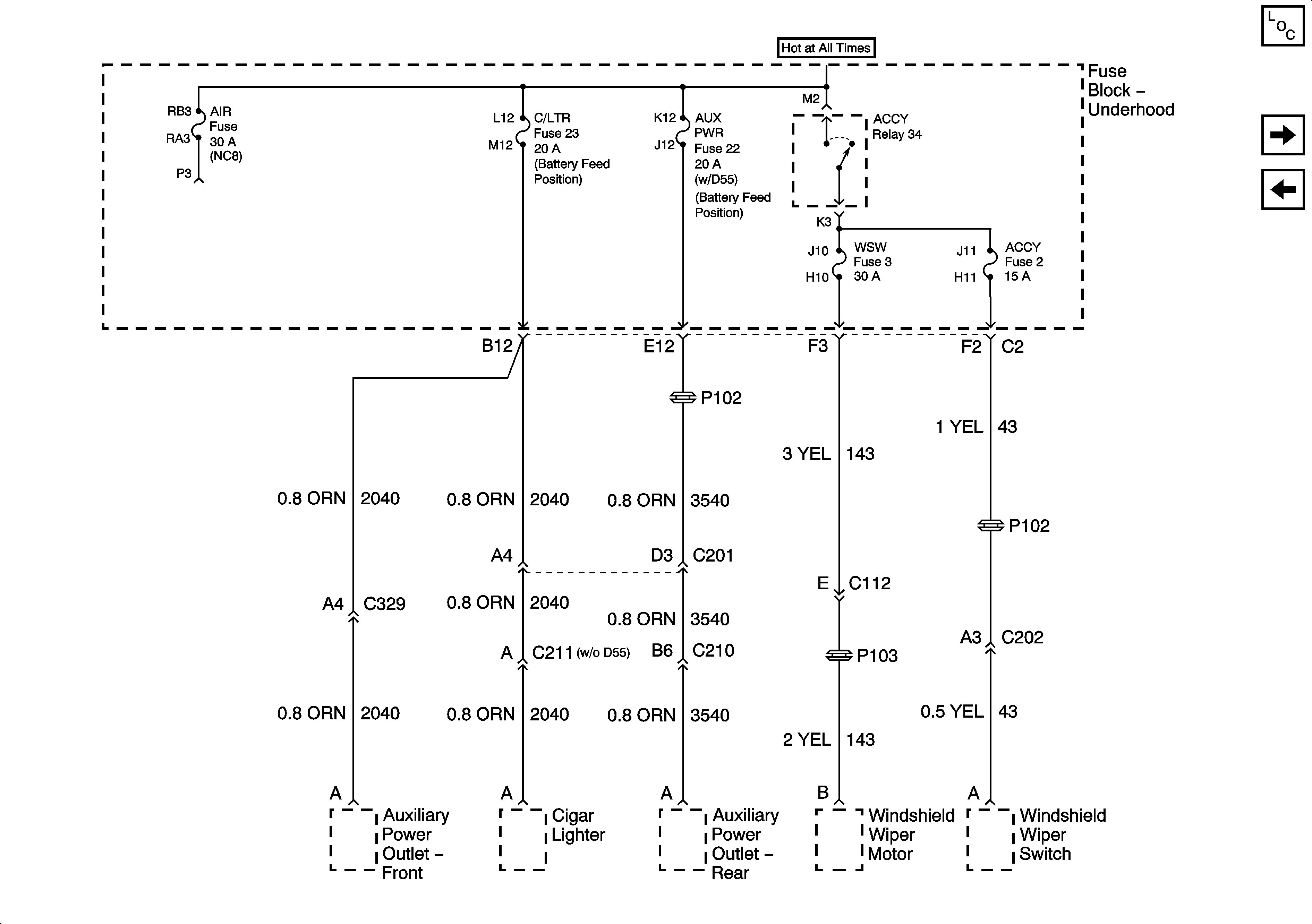

Figure 8:	AIR, C/LTR, AUX PWR, WSW, and ACCY Fuses - 3.8L Master Electrical Component List OXY SEN, CR CONT, COIL MDL, and TRANS Fuses - 4.6L ABS, PCM BATT, and COOLFAN 1 Fuses - 3.8L

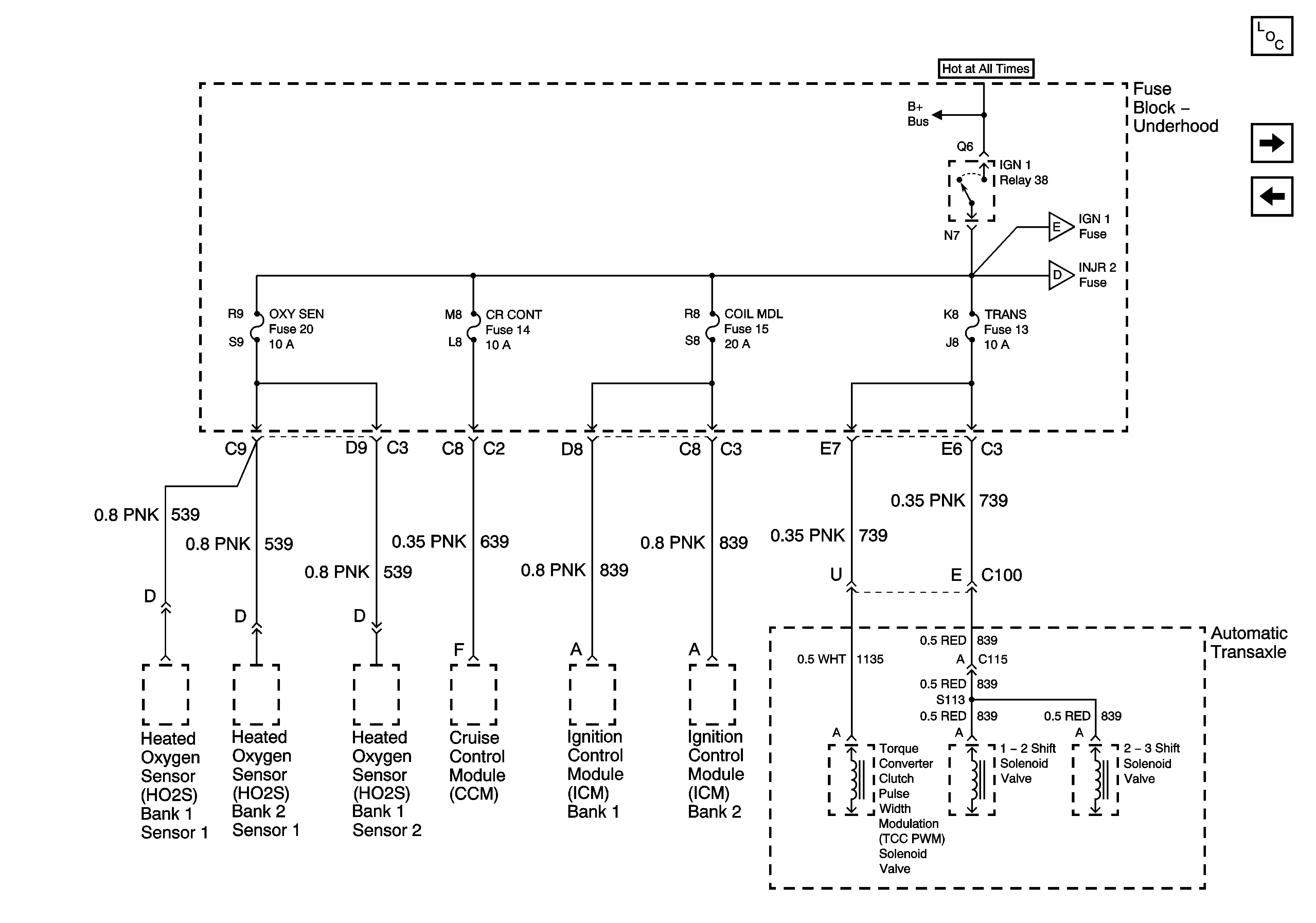

Figure 9:	OXY SEN, CR CONT, COIL MDL, and TRANS Fuses - 4.6L Master Electrical Component List PCM IGN and IGN 1 Fuses - 4.6L AIR, C/LTR, AUX PWR, WSW, and ACCY Fuses - 3.8L Underhood Fuse Block B+ Bus - 3.8L PCM IGN and IGN 1 Fuses - 4.6L INGR 1 and INGR 2 Fuses - 4.6L

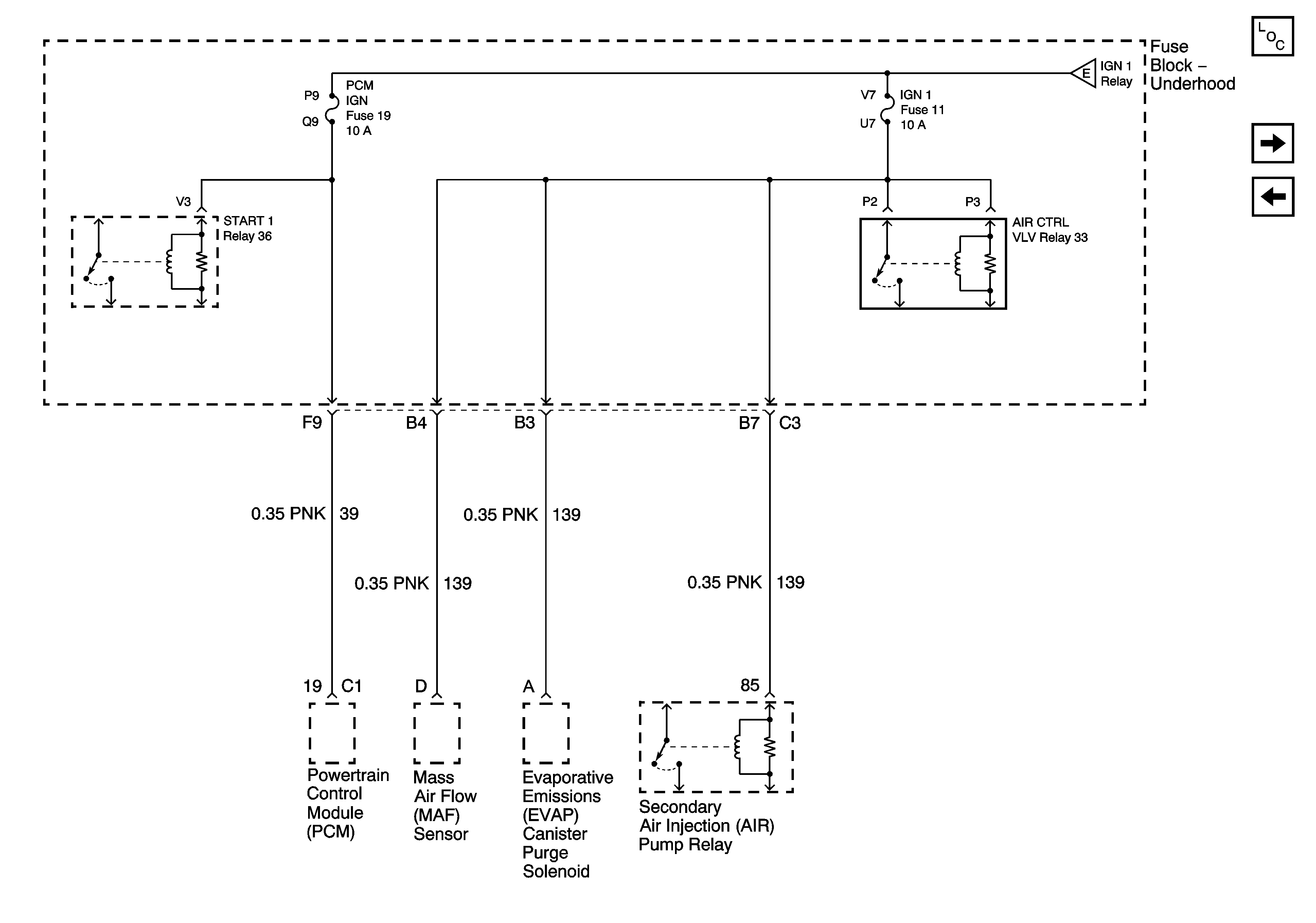

Figure 10:	PCM IGN and IGN 1 Fuses - 4.6L Master Electrical Component List INGR 1 and INGR 2 Fuses - 4.6L OXY SEN, CR CONT, COIL MDL, and TRANS Fuses - 4.6L OXY SEN, CR CONT, COIL MDL, and TRANS Fuses - 4.6L

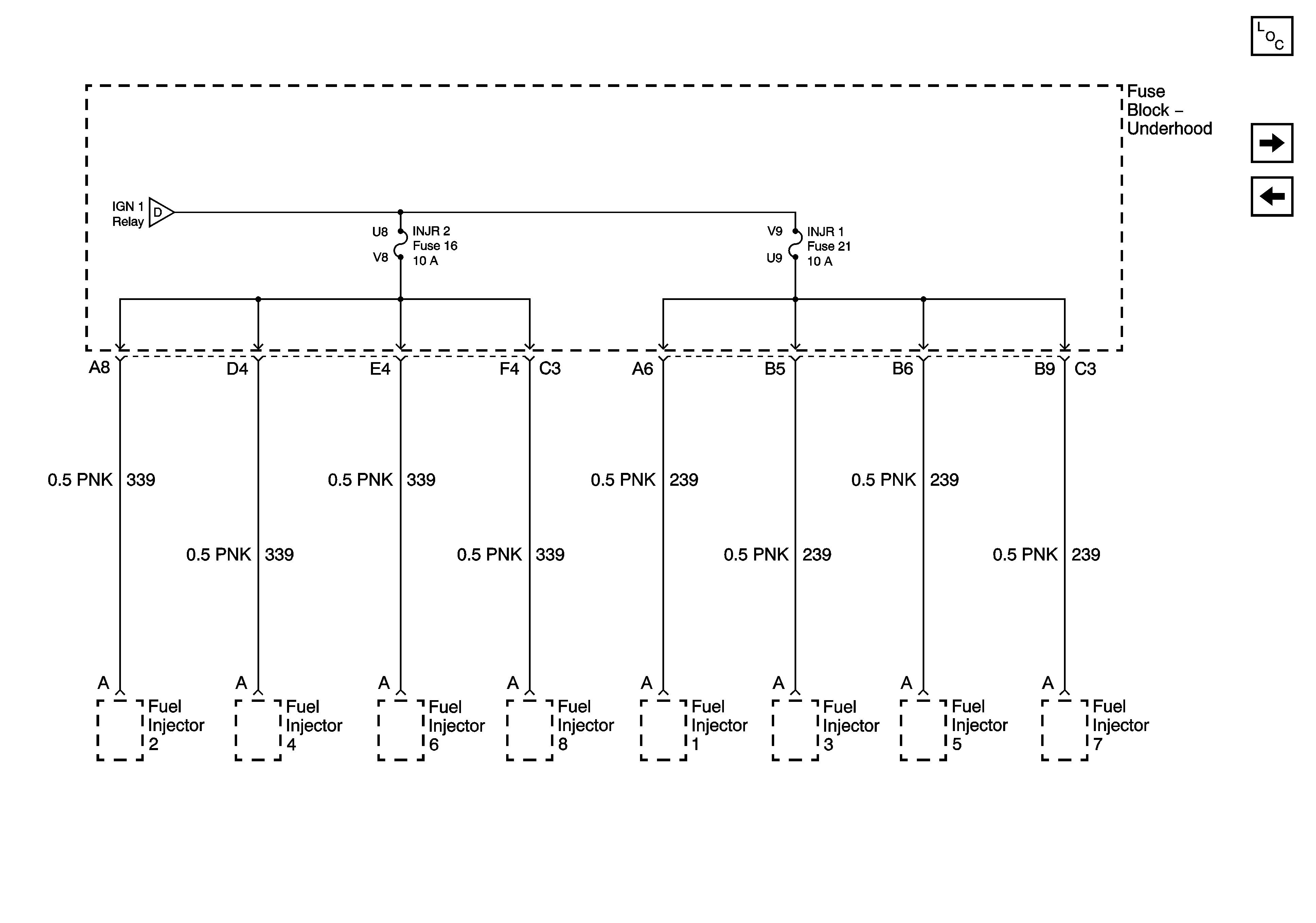

Figure 11:	INGR1 and INGR2 Fuses - 4.6L Master Electrical Component List ACCY, WSW, HDLOBMR, HDLOBML, HDHIBML, and HDHIBMR Fuses PCM IGN and IGN 1 Fuses - 4.6L OXY SEN, CR CONT, COIL MDL, and TRANS Fuses - 4.6L

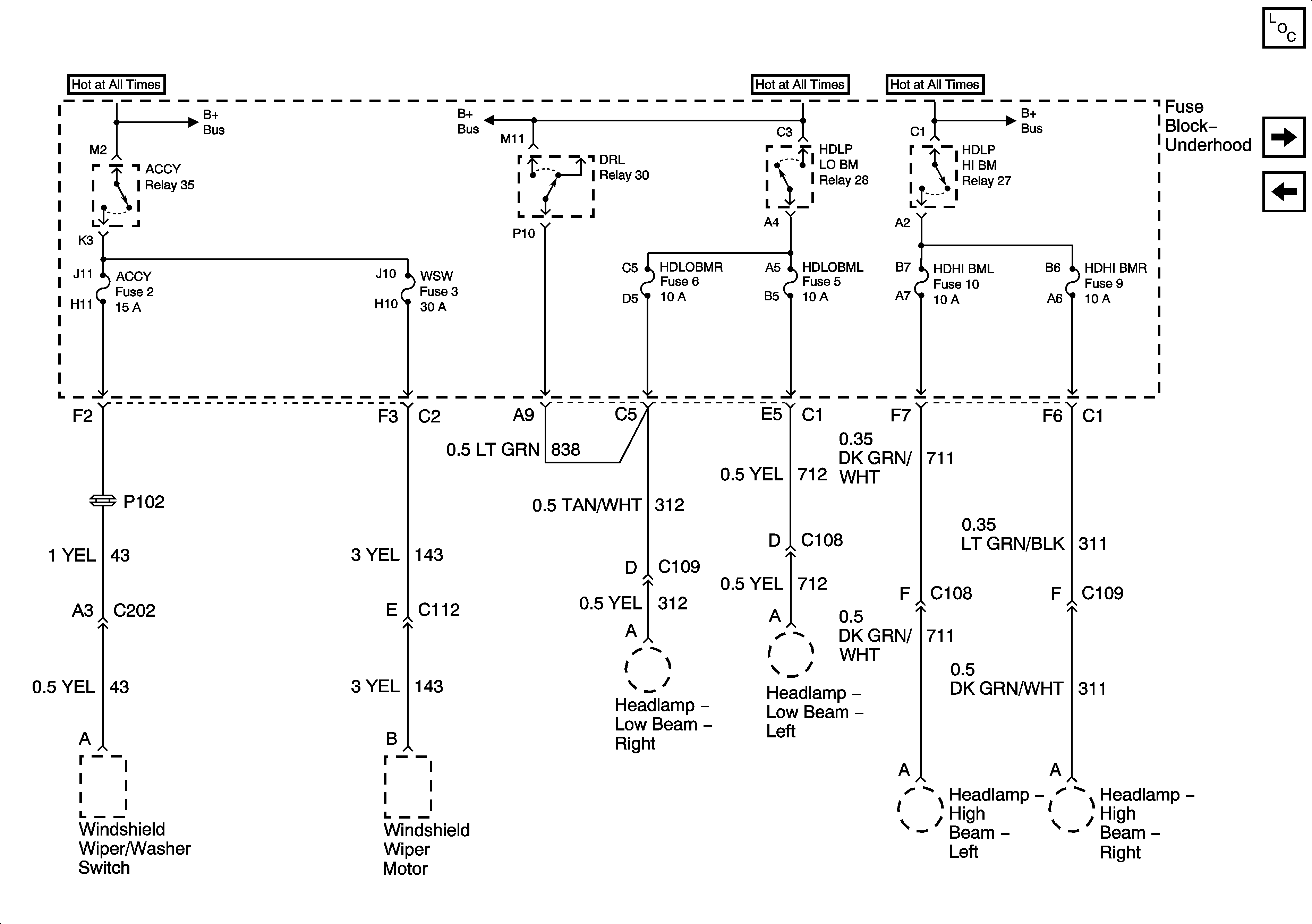

Figure 12:	ACCY, WSW, HDLOBML, HDLOBMR, HDHIBML, HDHIBMR Fuses Master Electrical Component List PCM BATT, ABS, AIR PUMP, C/LTR1 and C/LTR2 Fuses - 4.6L INGR 1 and INGR 2 Fuses - 4.6L Underhood Fuse Block B+ Bus - 3.8L Underhood Fuse Block B+ Bus - 3.8L Underhood Fuse Block B+ Bus - 3.8L

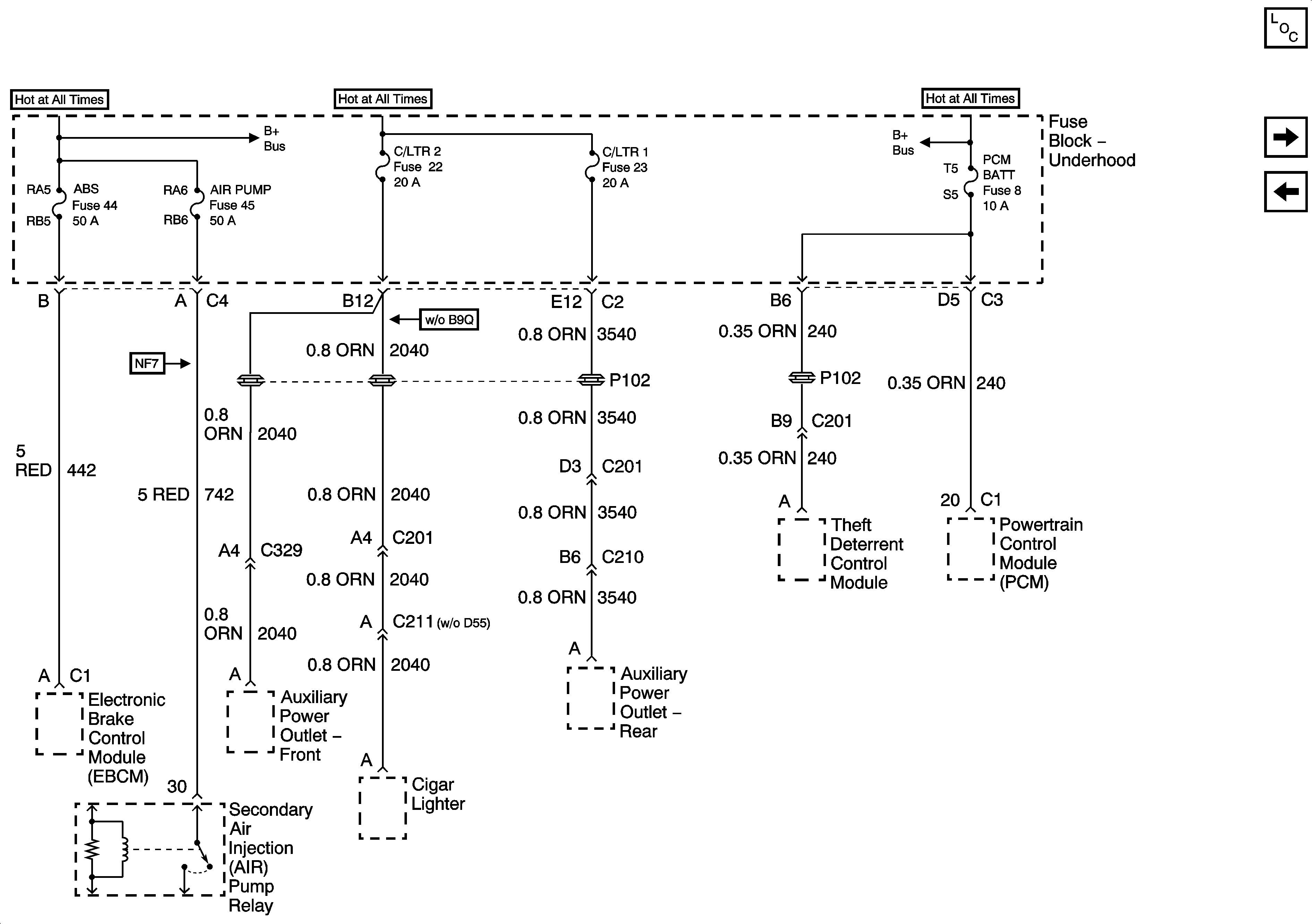

Figure 13:	PCM BATT, ABS, AIR PUMP, C/LTR1 and C/LTR2 Fuses - 4.6L Master Electrical Component List HTDST RF, HTDST LF, DIM, and MEM Fuses ACCY, WSW, HDLOBMR, HDLOBML, HDHIBML, and HDHIBMR Fuses Underhood Fuse Block B+ Bus - 3.8L Underhood Fuse Block B+ Bus - 3.8L

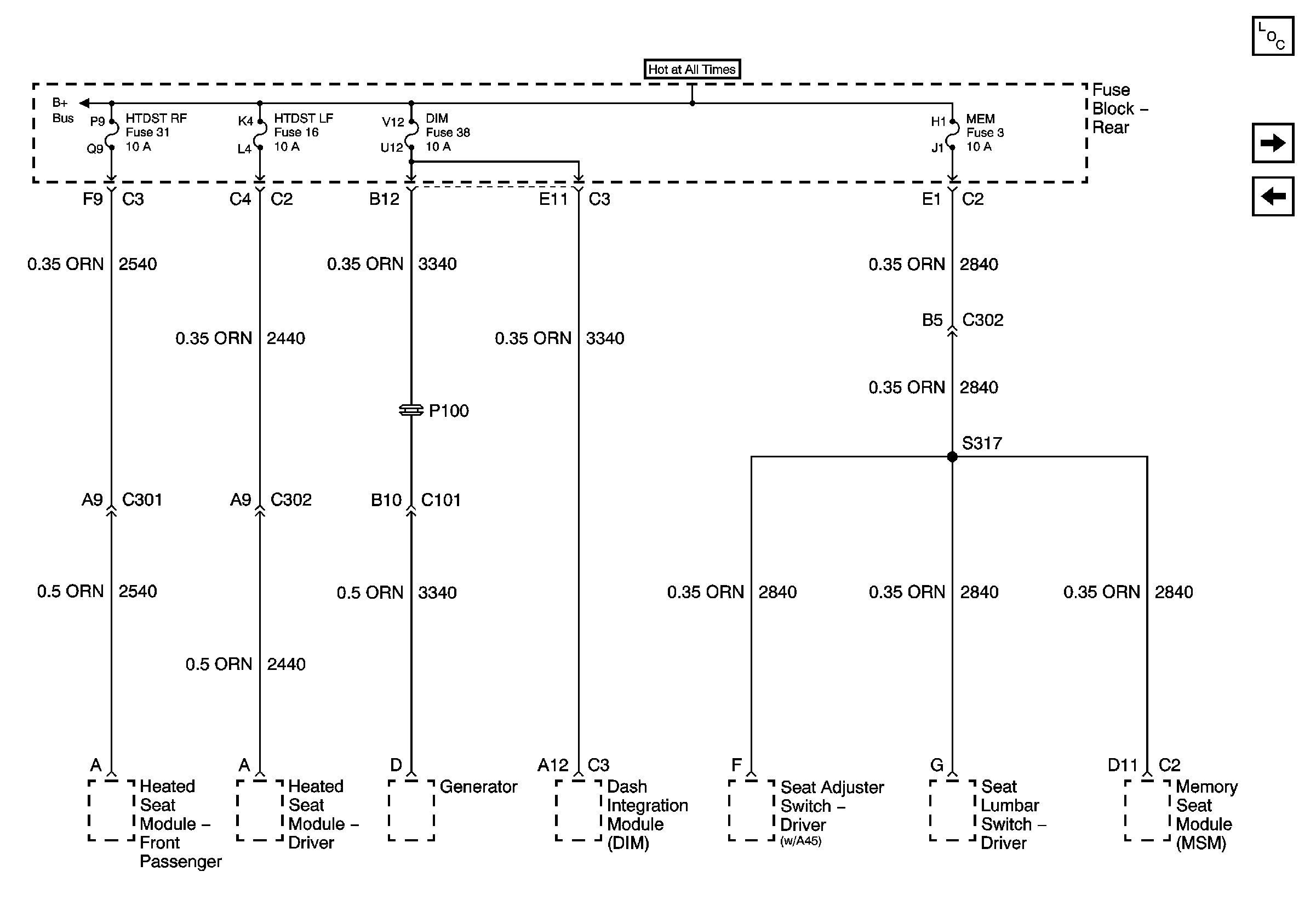

Figure 14:	HTDST RF, HTDST LF, DIM, and MEM Fuses Master Electrical Component List HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses PCM BATT, ABS, AIR PUMP, C/LTR1 and C/LTR2 Fuses - 4.6L Underhood Fuse Block B+ Bus - 3.8L

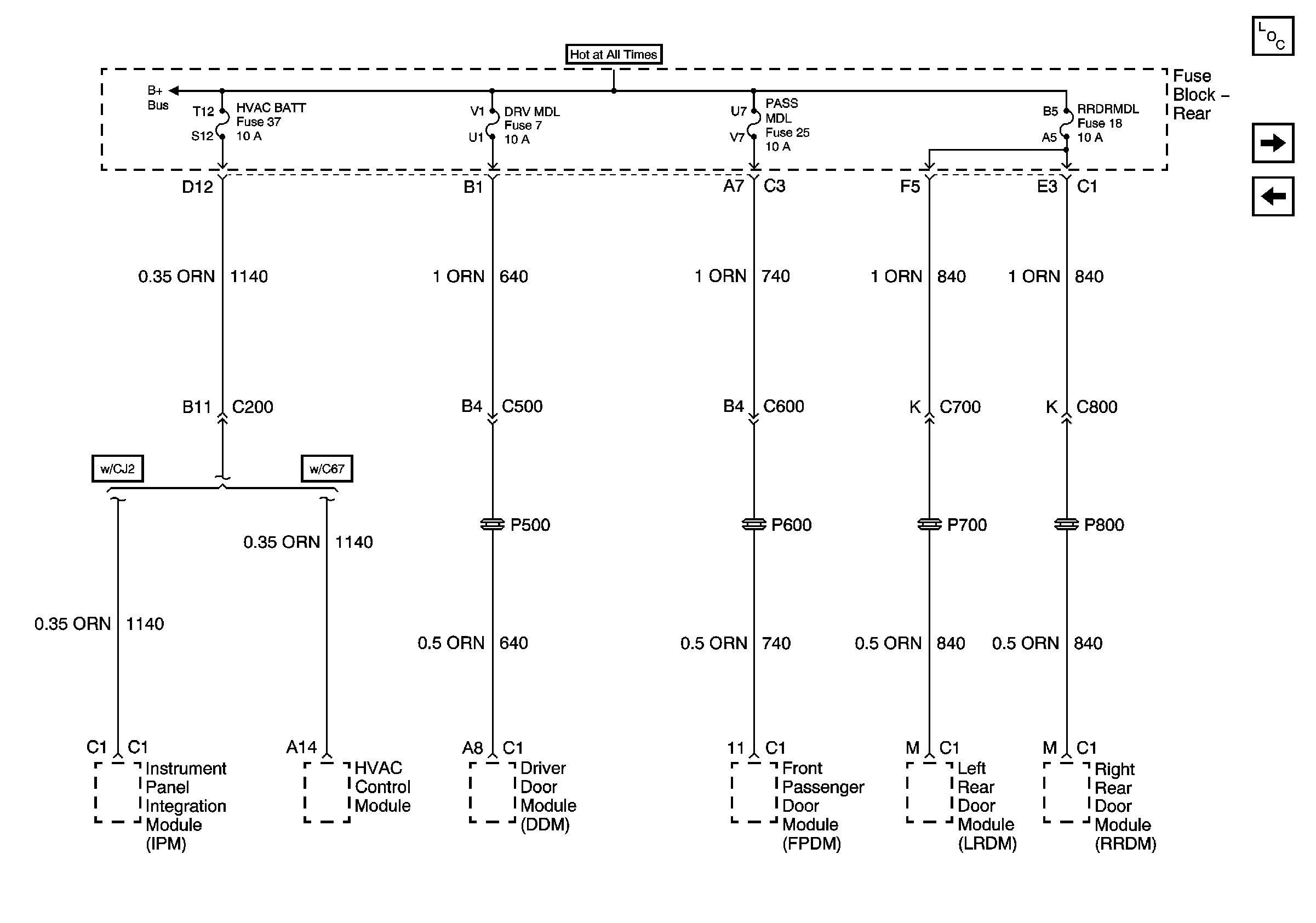

Figure 15:	HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses Master Electrical Component List ELC, RR DEFOG, and ALDL Fuses HTDST RF, HTDST LF, DIM, and MEM Fuses Underhood Fuse Block B+ Bus - 3.8L

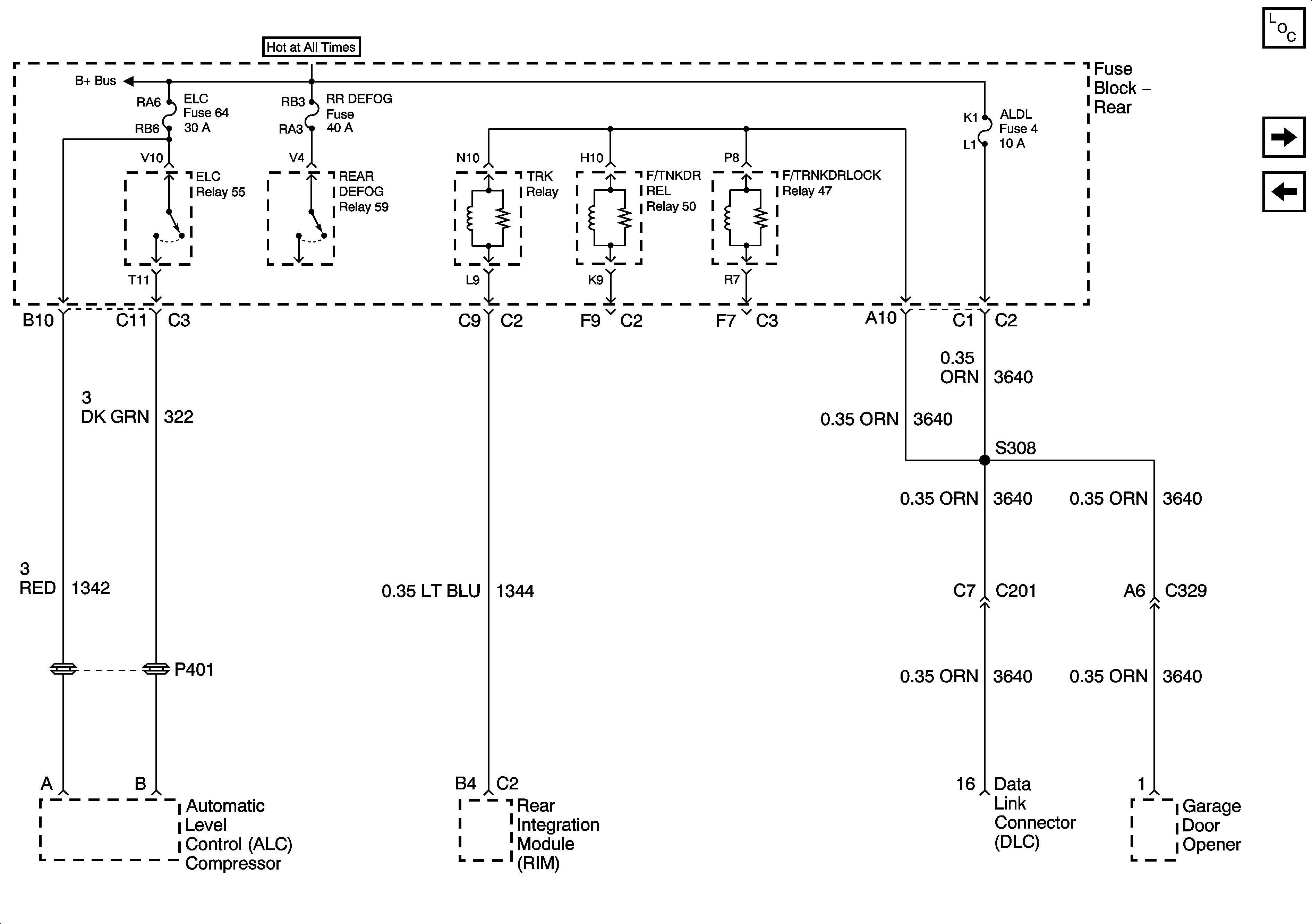

Figure 16:	ELC, RR DEFOG, and ALDL Fuses Master Electrical Component List PWR WDO and PWR SEAT Circuit Breakers HVAC BATT, DRV MDL, PASS MDL, and RRDRMDL Fuses Underhood Fuse Block B+ Bus - 3.8L

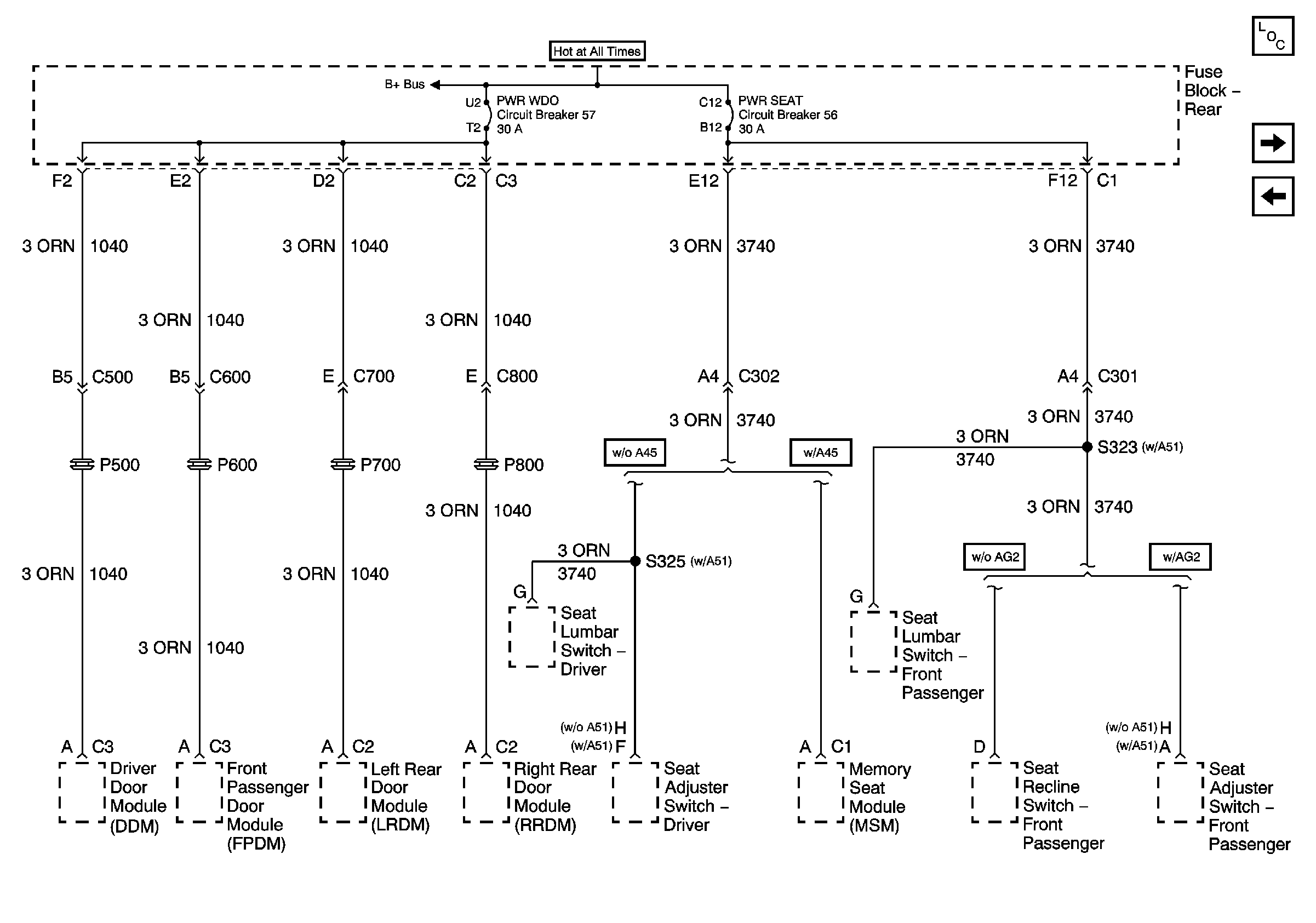

Figure 17:	PWR WDO and PWR SEAT Circuit Breakers Master Electrical Component List LP PKL, LP PKR, and DIMR Fuses ELC, RR DEFOG, and ALDL Fuses Underhood Fuse Block B+ Bus - 3.8L
Figure 18:	LP PKL, LP PKR, and DIMR Fuses Master Electrical Component List TSIG/HAZ, STOP LP, AUDIO, and CD Fuses PWR WDO and PWR SEAT Circuit Breakers

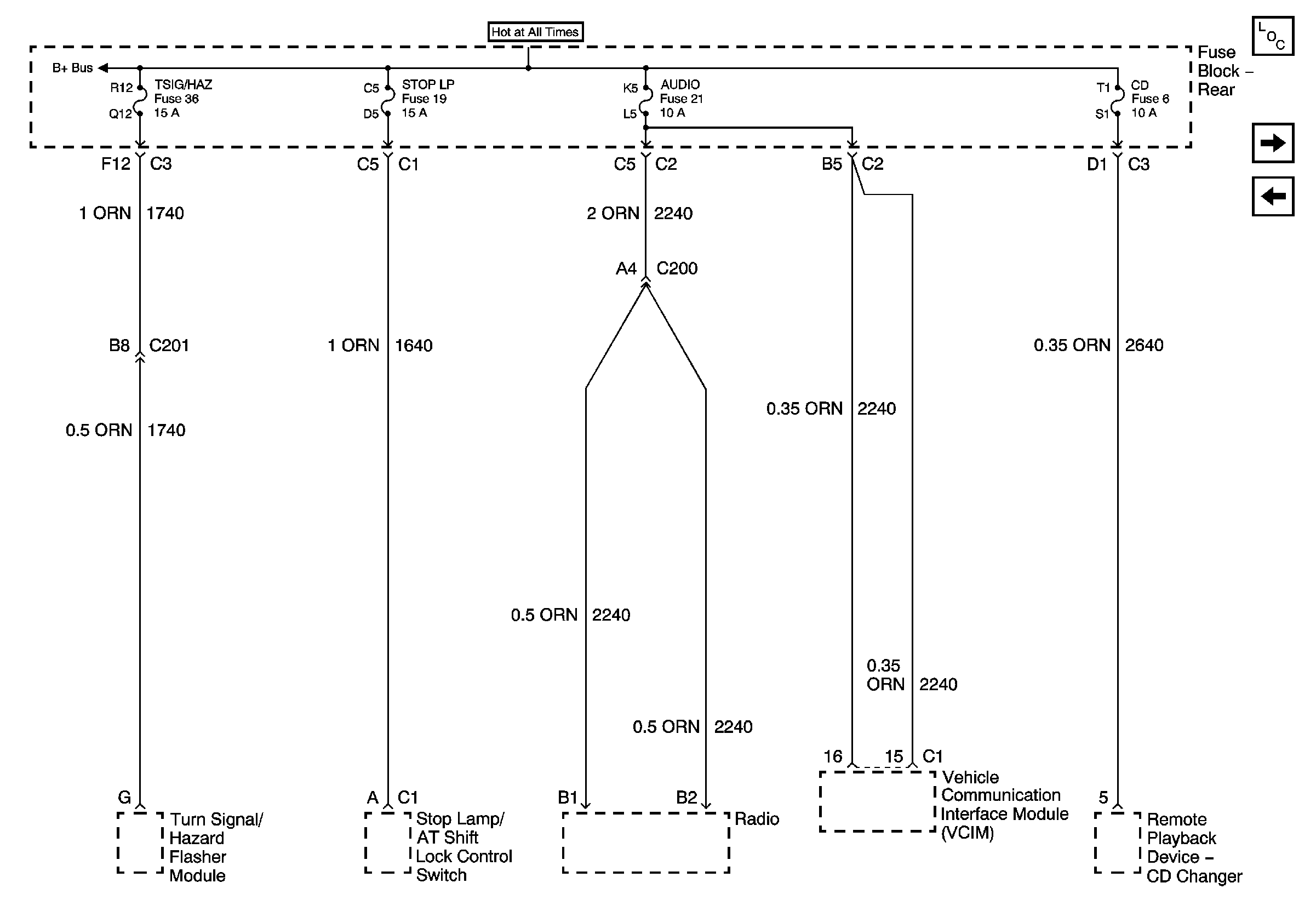

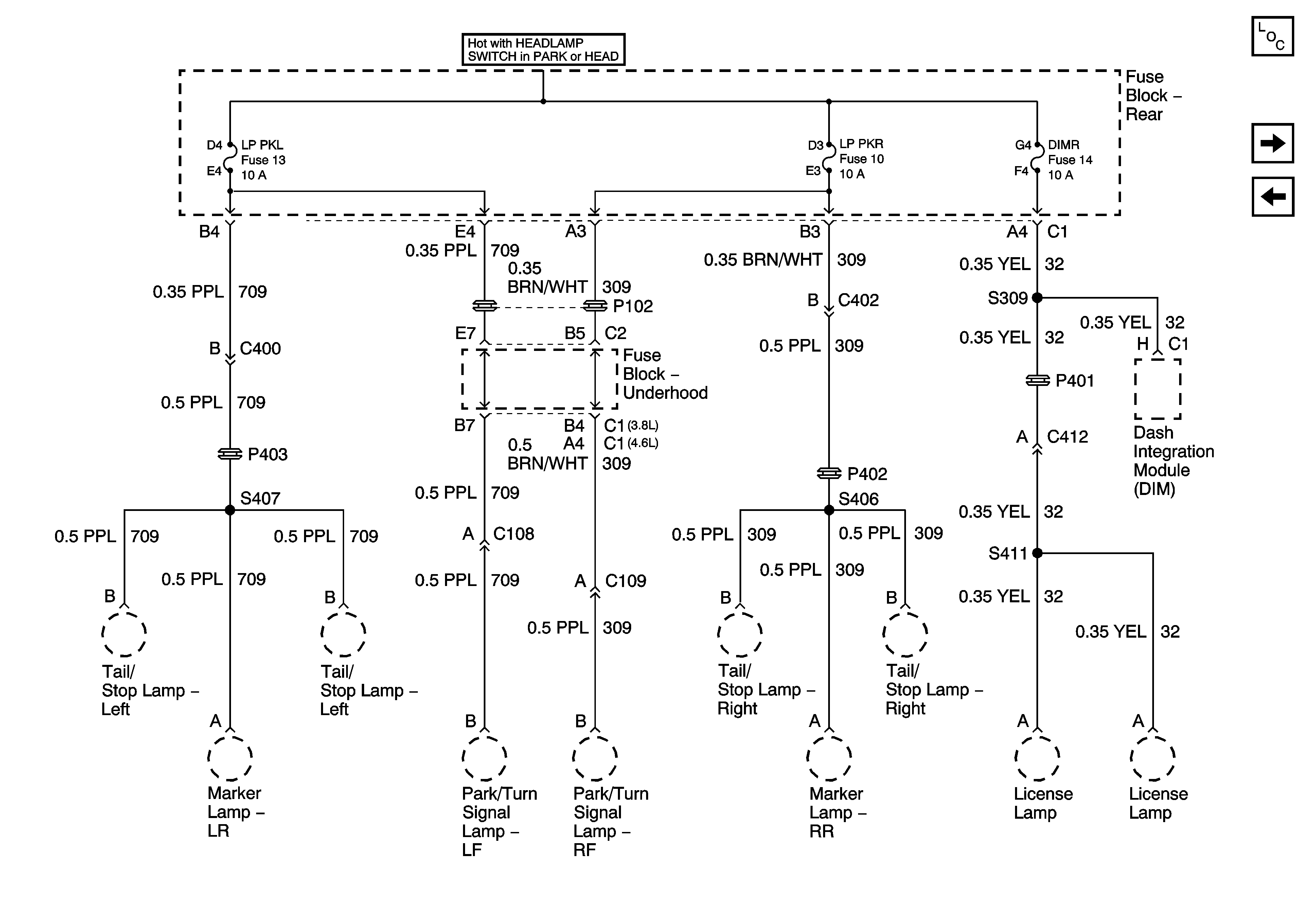

Figure 19:	TSIG/HAZ, STOP LP, AUDIO, and CD Fuses Master Electrical Component List I/P and CIGAR Fuses LP PKL, LP PKR, and DIMR Fuses Underhood Fuse Block B+ Bus - 3.8L

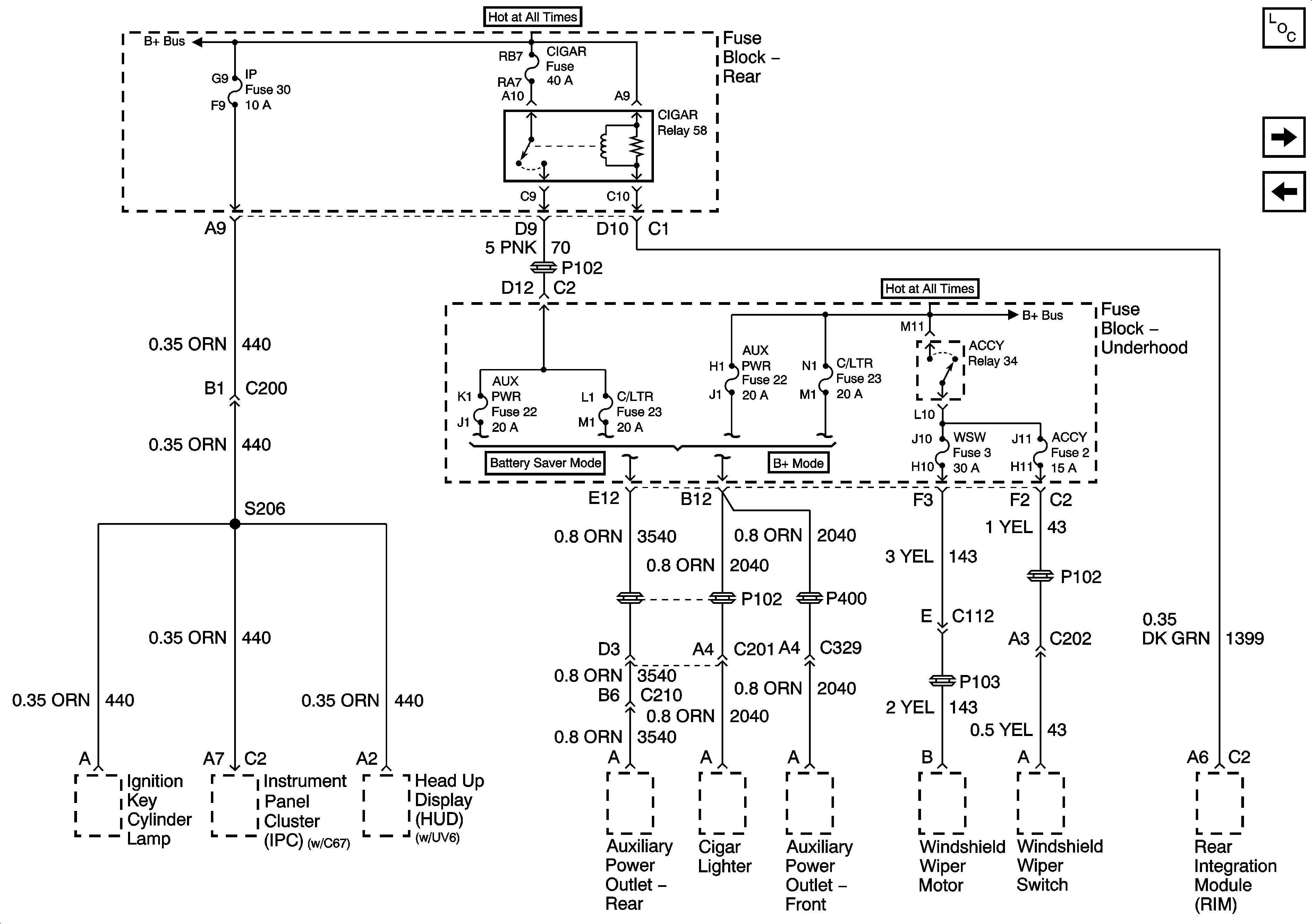

Figure 20:	I/P and CIGAR Fuses Master Electrical Component List IGN SW and PRK/REV Fuses TSIG/HAZ, STOP LP, AUDIO, and CD Fuses Underhood Fuse Block B+ Bus - 3.8L

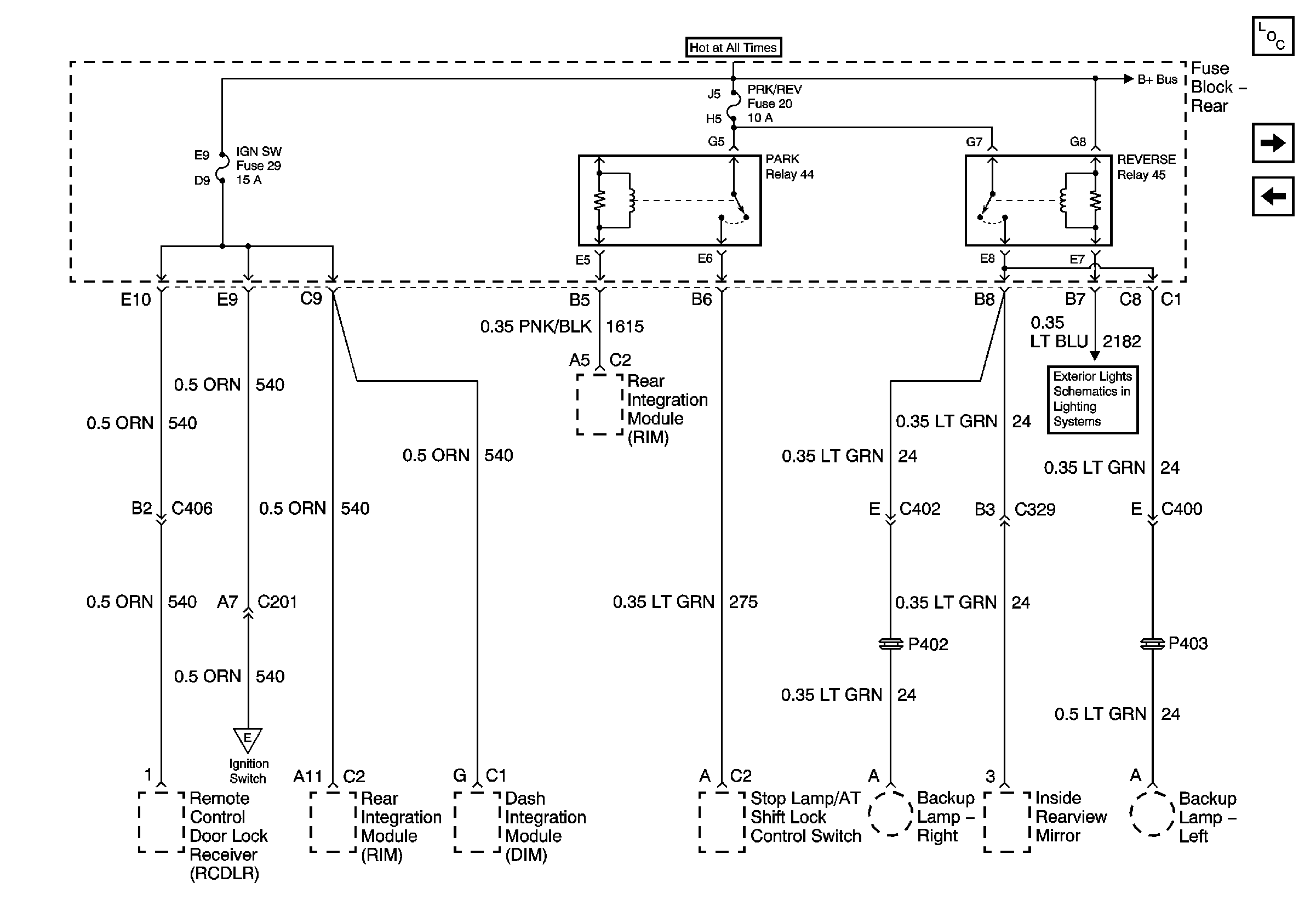

Figure 21:	IGN SW and PRK/REV Fuses Master Electrical Component List Ignition Switch Positions I/P and CIGAR Fuses Underhood Fuse Block B+ Bus - 3.8L Ignition Switch Positions Backup Lamps

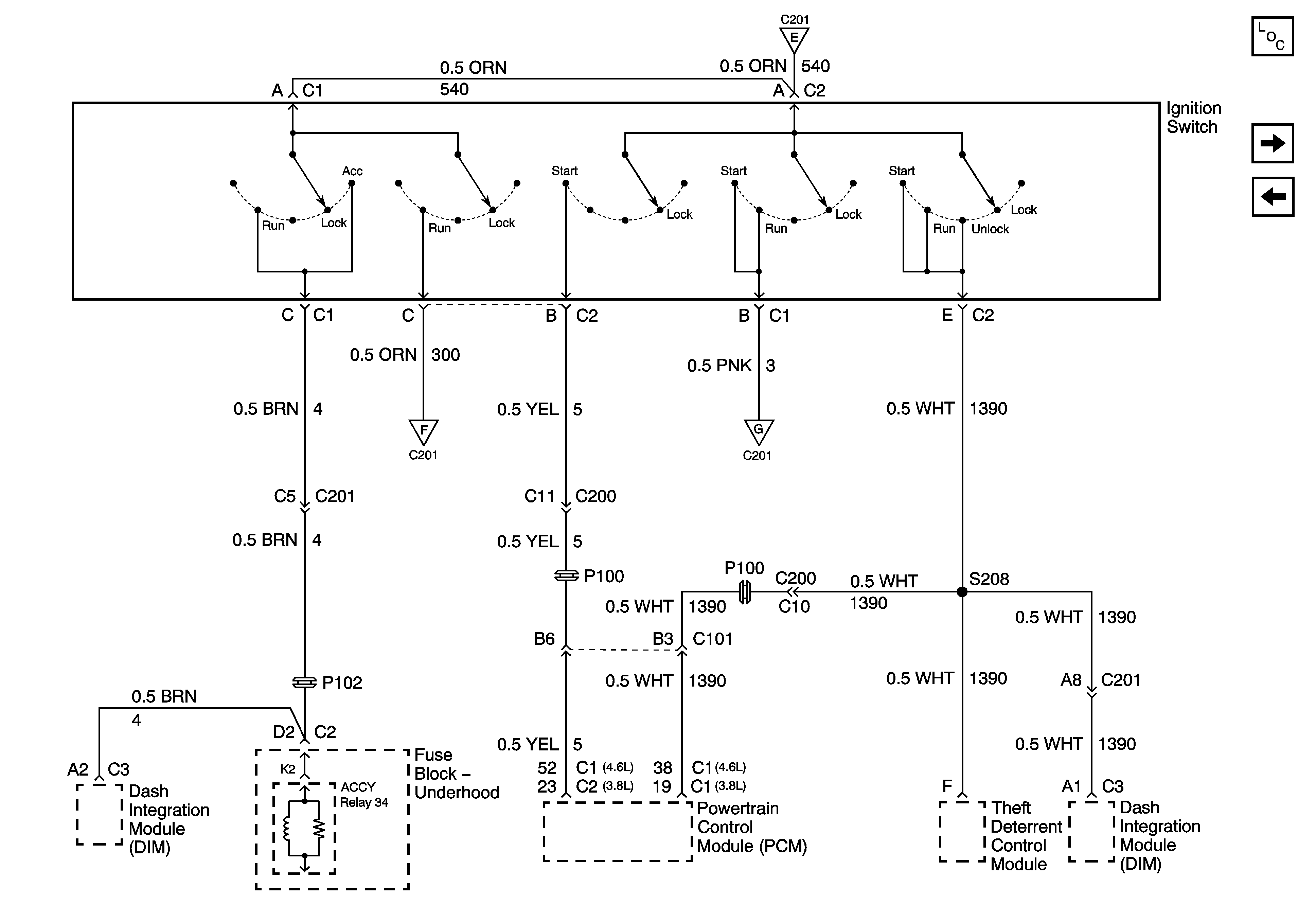

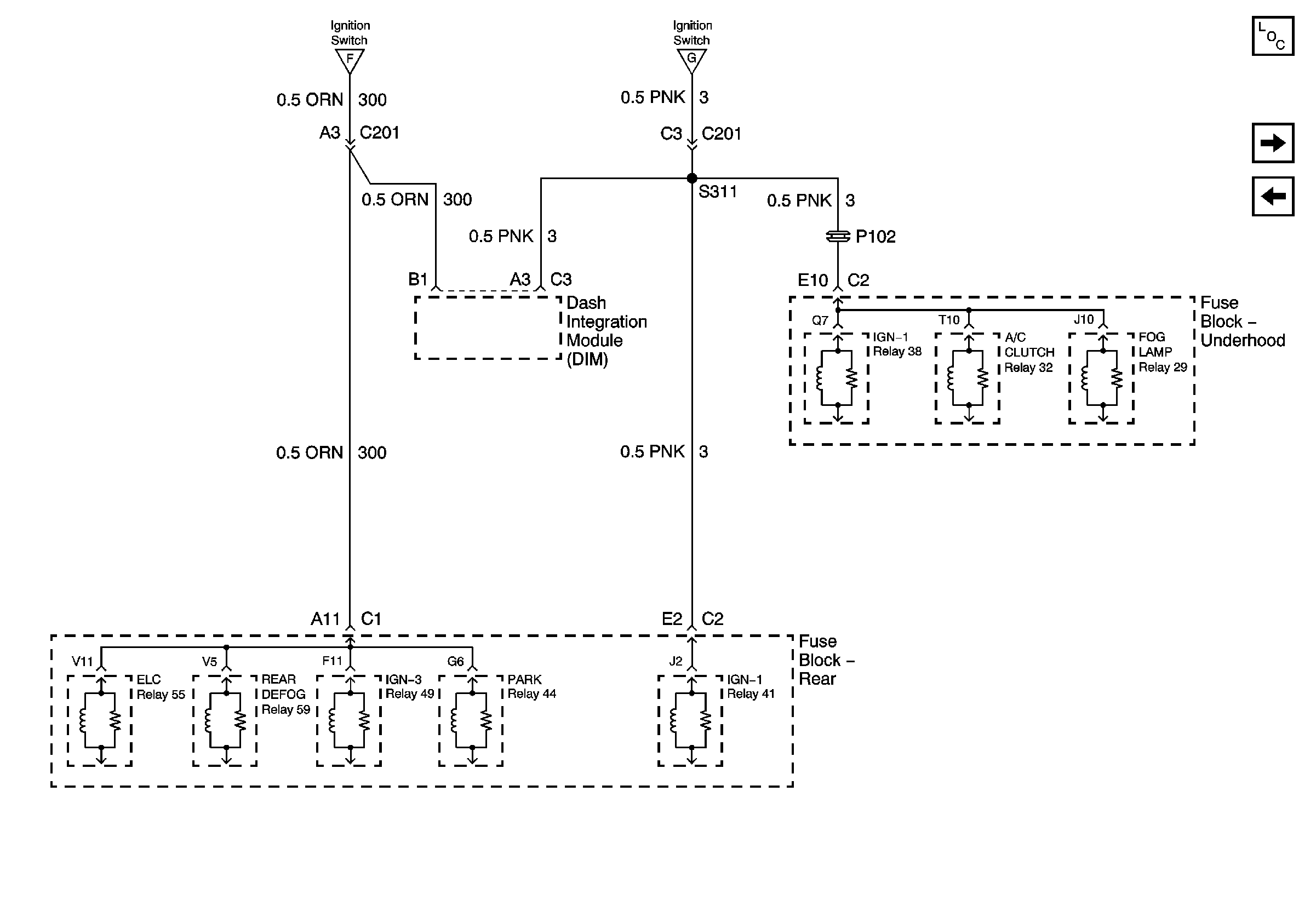

Figure 22:	Ignition Switch Positions Master Electrical Component List Ignition Switch RUN and START/RUN Positions IGN SW and PRK/REV Fuses IGN SW and PRK/REV Fuses Ignition Switch RUN and START/RUN Positions Ignition Switch RUN and START/RUN Positions
Figure 23:	Ignition Switch RUN and START/RUN Positions Master Electrical Component List IGN-1, VENT SOL, and SIR Fuses Ignition Switch Positions Ignition Switch Positions Ignition Switch Positions

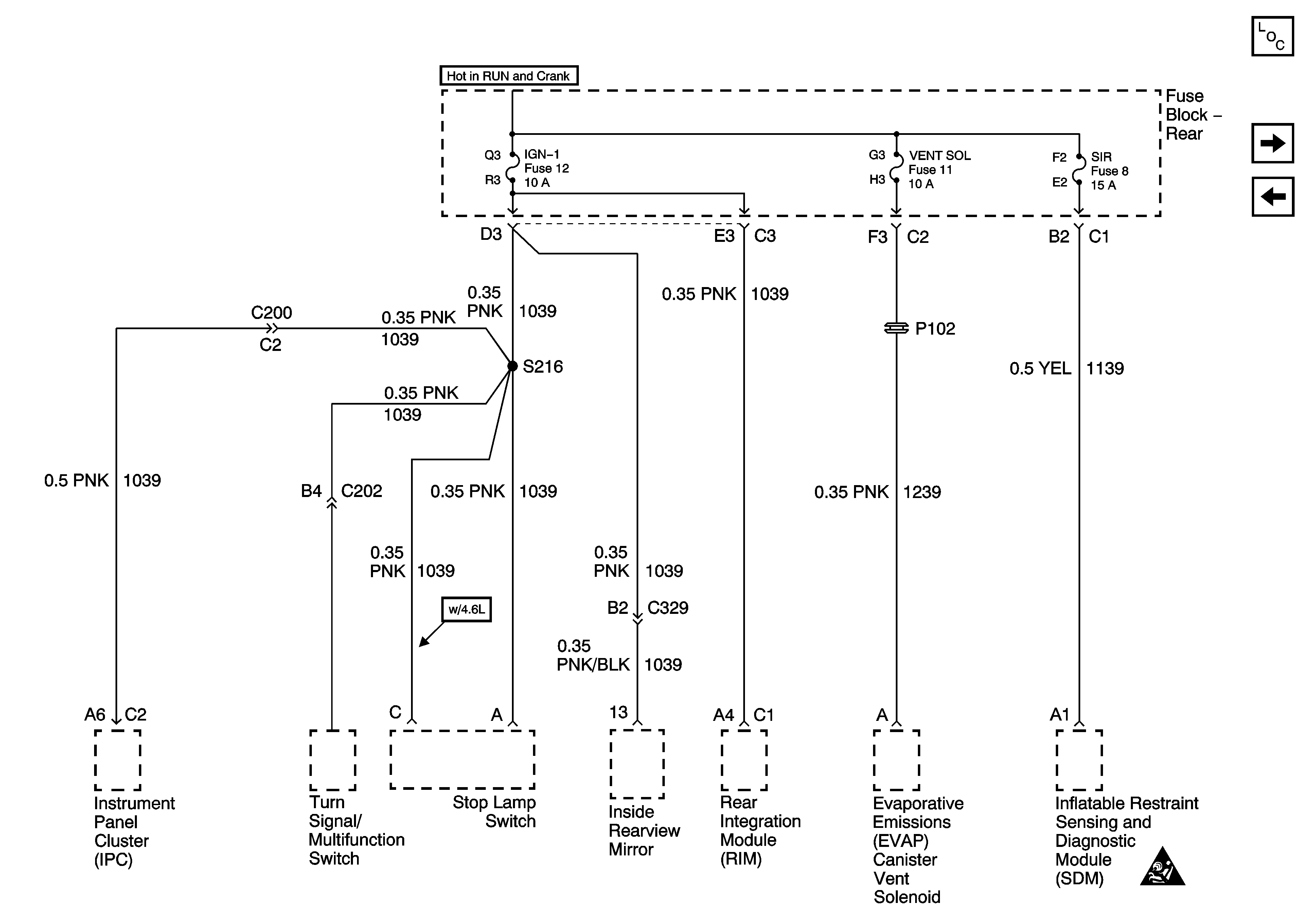

Figure 24:	IGN-1, VENT SOL, and SIR Fuses Master Electrical Component List IGN3 RR and ABS Fuses Ignition Switch RUN and START/RUN Positions SIR Caution for Zoning

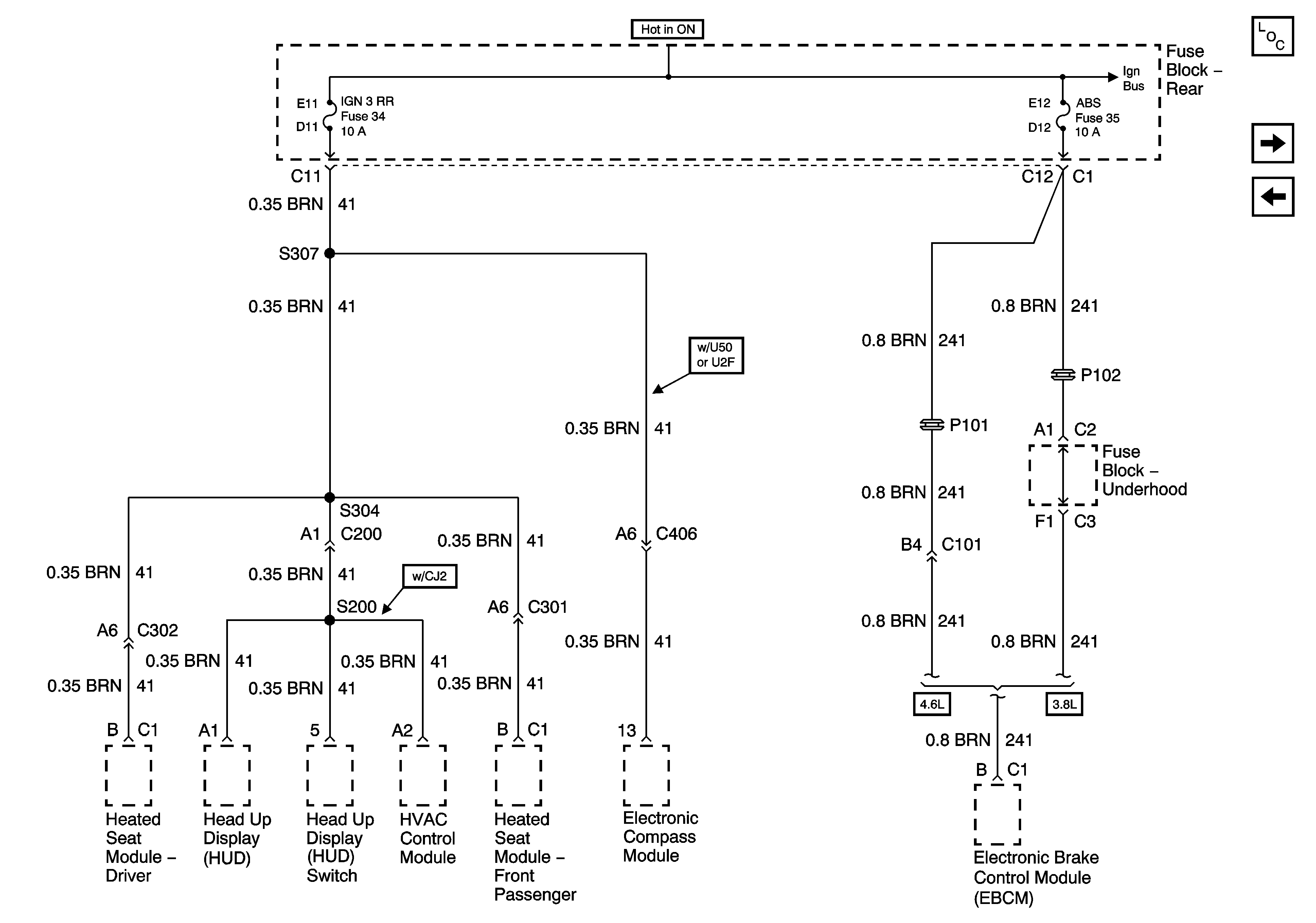

Figure 25:	IGN 3 RR and ABS Fuses Master Electrical Component List HVAC Fuse IGN-1, VENT SOL, and SIR Fuses

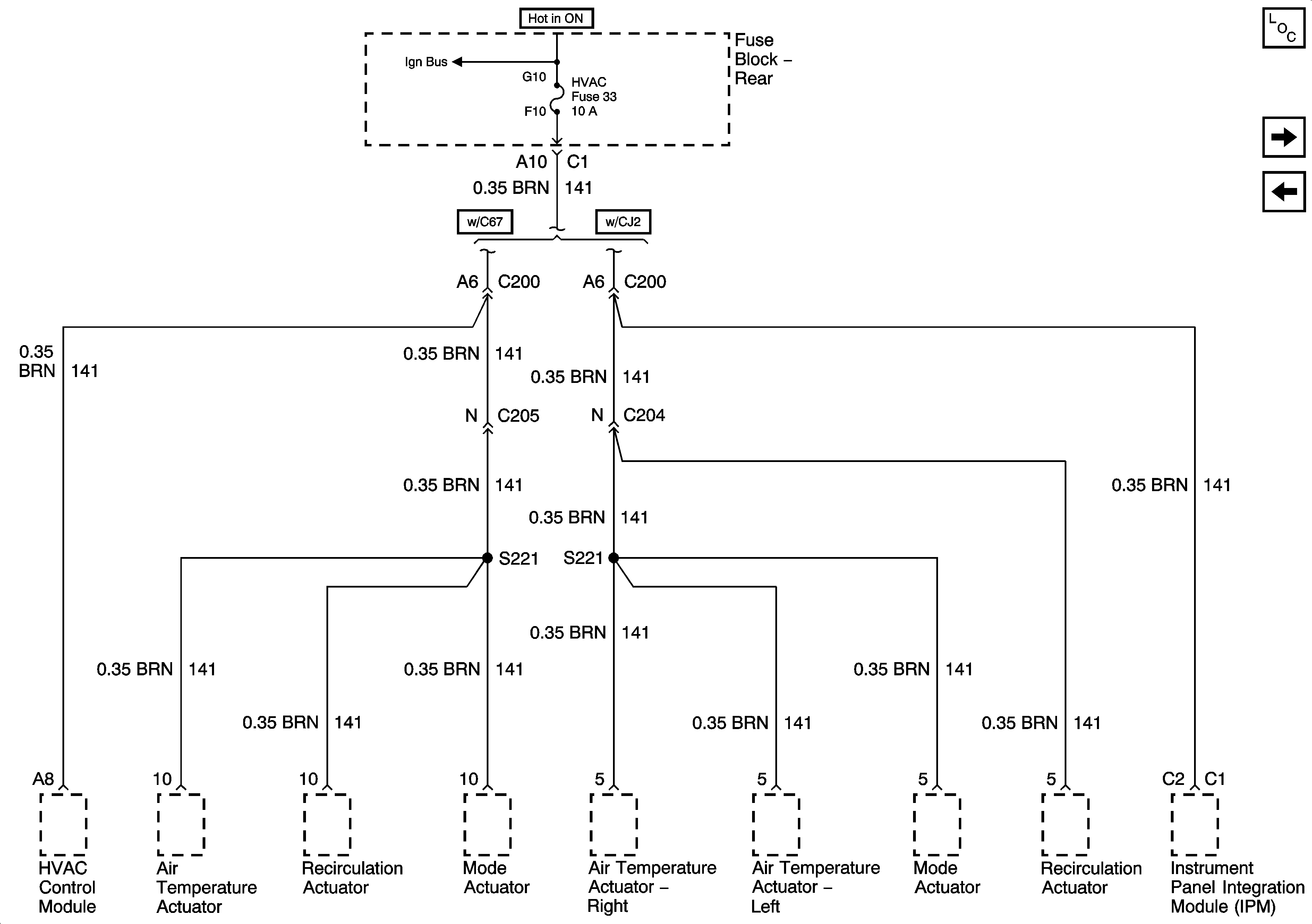

Figure 26:	HVAC Fuse Master Electrical Component List HVAC BLO, AUDIO AMP, and SDAR Fuses IGN3 RR and ABS Fuses

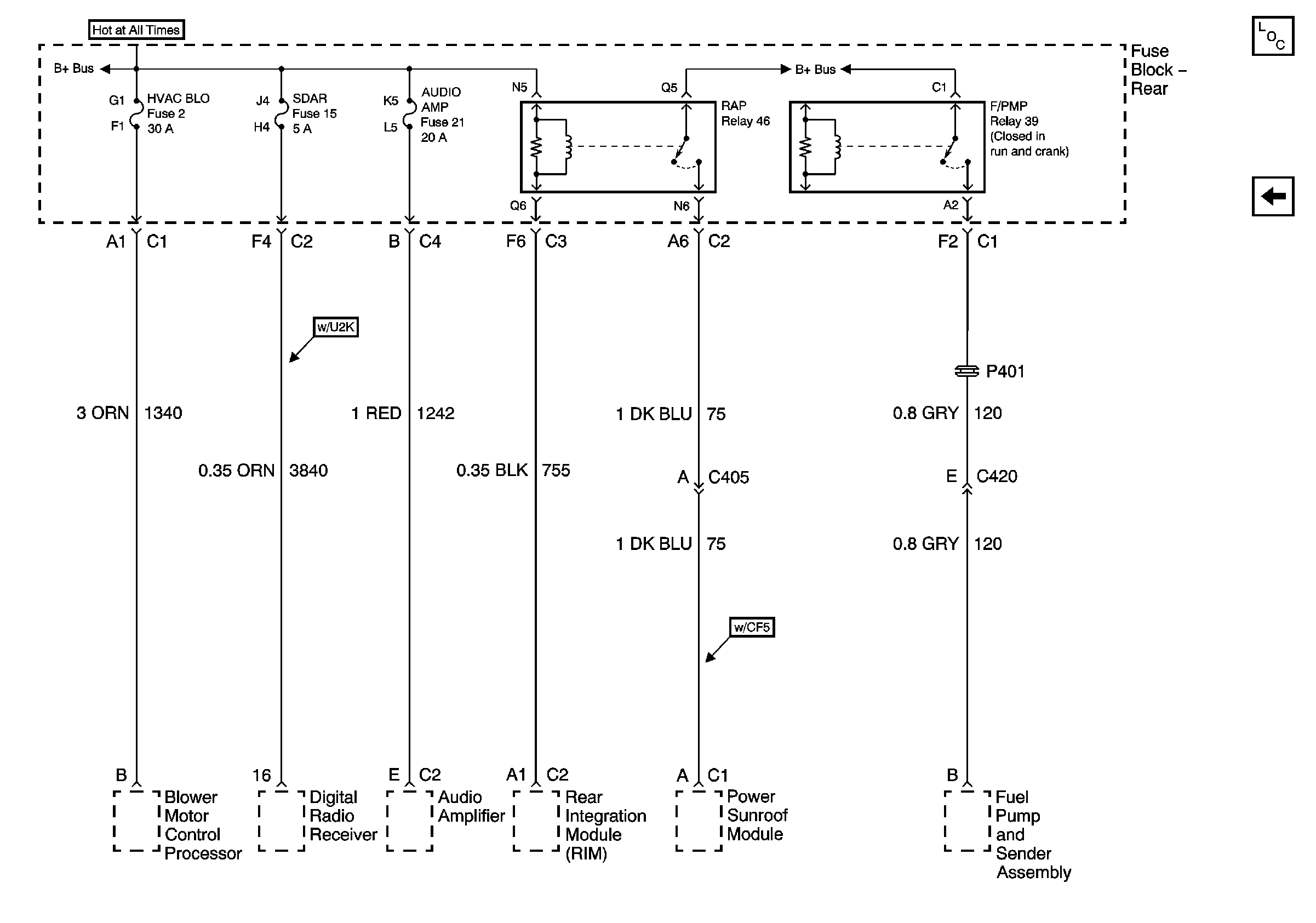

Figure 27:	HVAC BLO, AUDIO AMP, and SDAR Fuses Master Electrical Component List HVAC Fuse Underhood Fuse Block B+ Bus - 3.8L Underhood Fuse Block B+ Bus - 3.8L
