Antilock Brake System Schematics. Pontiac Bonneville 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2005 🢒 Bonneville 🢒 Brakes 🢒 Antilock Brake System 🢒 Antilock Brake System Schematics

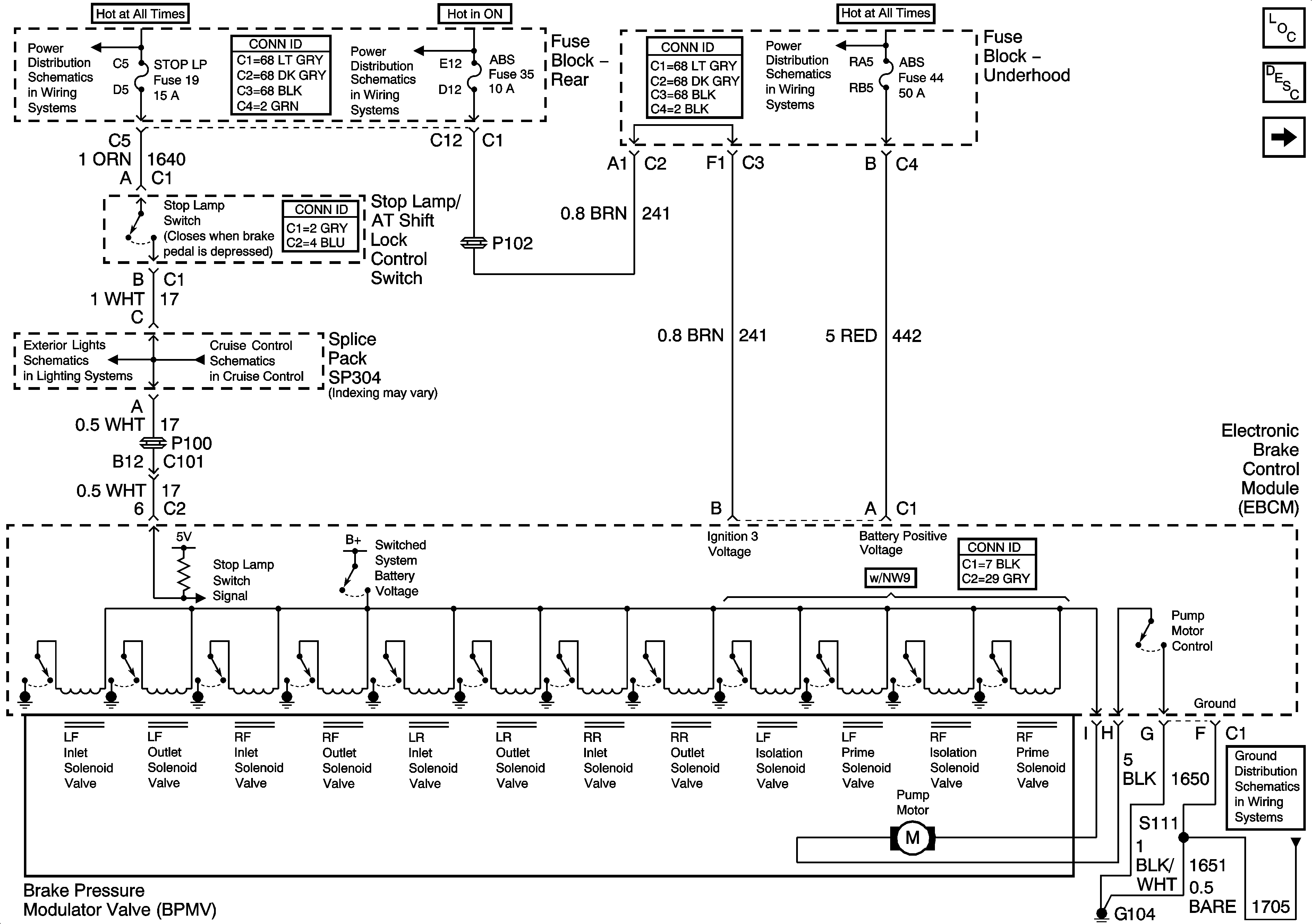

Figure 1:	Power, Ground, and BPMV Valve - 3.8L Master Electrical Component List ABS Description and Operation Power, Ground, and BPMV Valve - 4.6L TSIG/HAZ, STOP LP, AUDIO, and CD Fuses IGN3 RR and ABS Fuses PCM BATT, ABS, AIR PUMP, C/LTR1 and C/LTR2 Fuses - 4.6L Stop Lamps Cruise Control Module, and VSS G104 and G105 - 3.8L

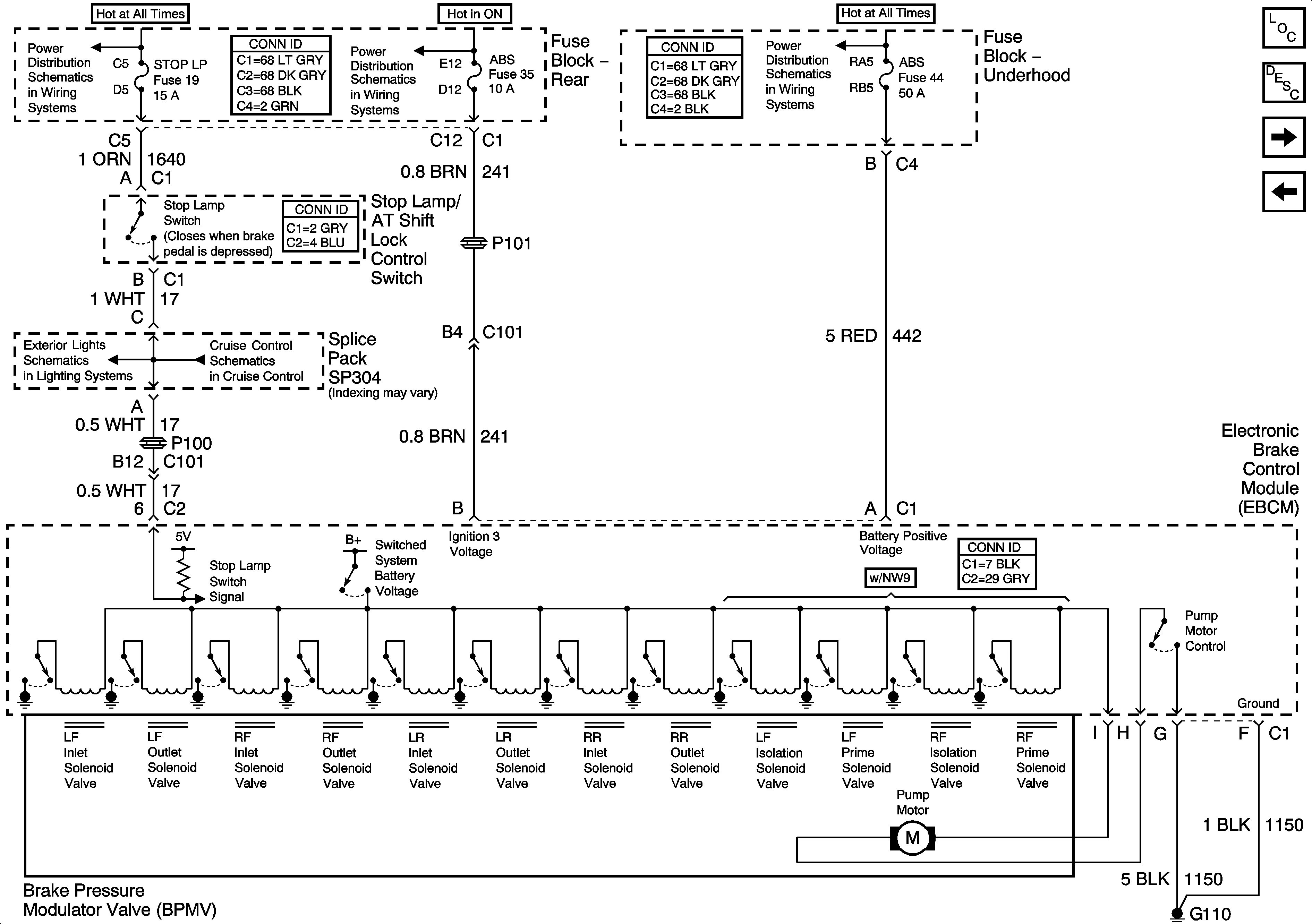

Figure 2:	Power, Ground, and BPMV Valve - 4.6L Master Electrical Component List ABS Description and Operation Wheel Speed Sensors - 3.8L Power, Ground, and BPMV Valve - 3.8L TSIG/HAZ, STOP LP, AUDIO, and CD Fuses IGN3 RR and ABS Fuses PCM BATT, ABS, AIR PUMP, C/LTR1 and C/LTR2 Fuses - 4.6L Stop Lamps Cruise Control Module, and VSS

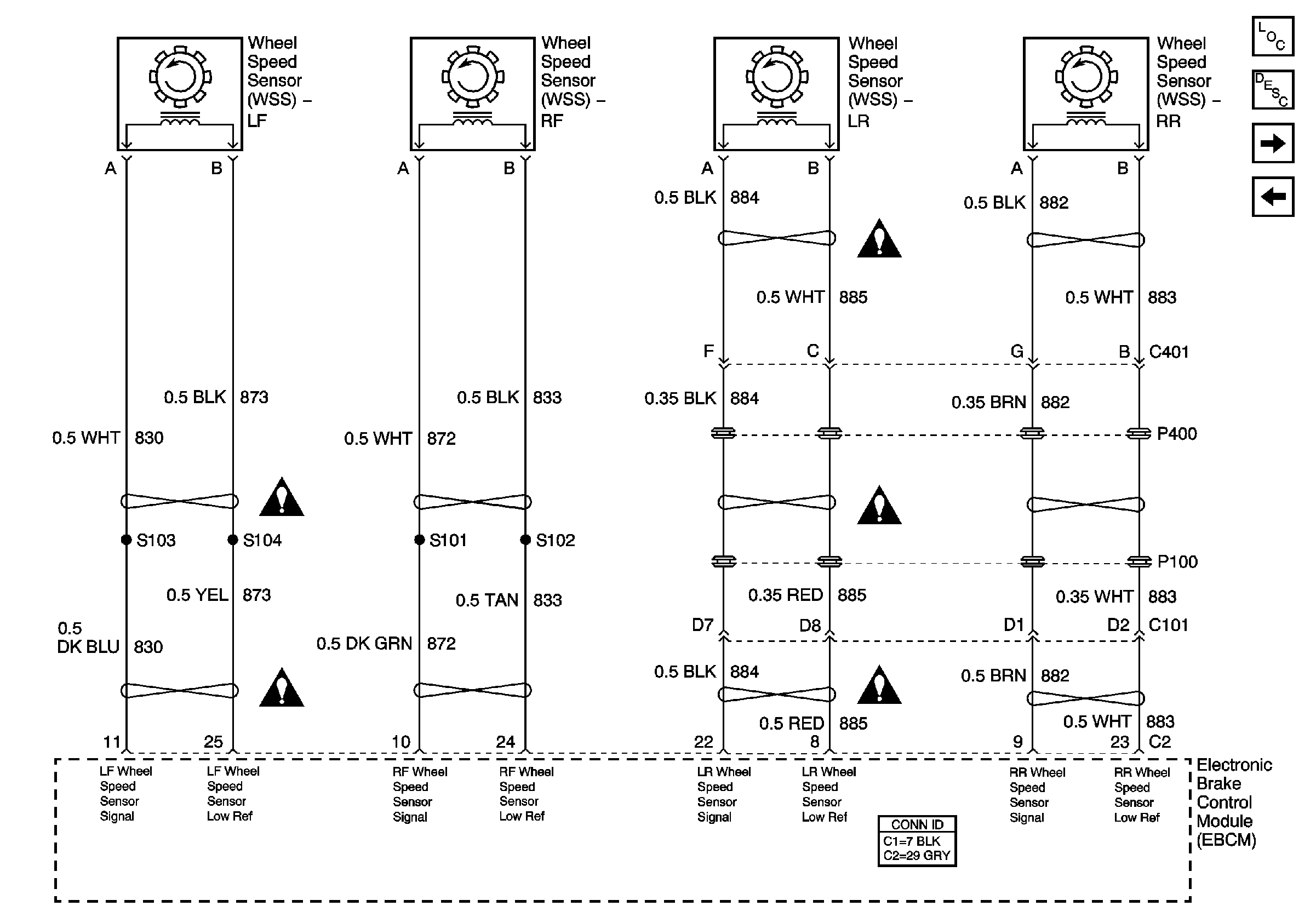

Figure 3:	Wheel Speed Sensors - 3.8L Master Electrical Component List ABS Description and Operation Wheel Speed Sensors - 4.6L Power, Ground, and BPMV Valve - 4.6L Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons

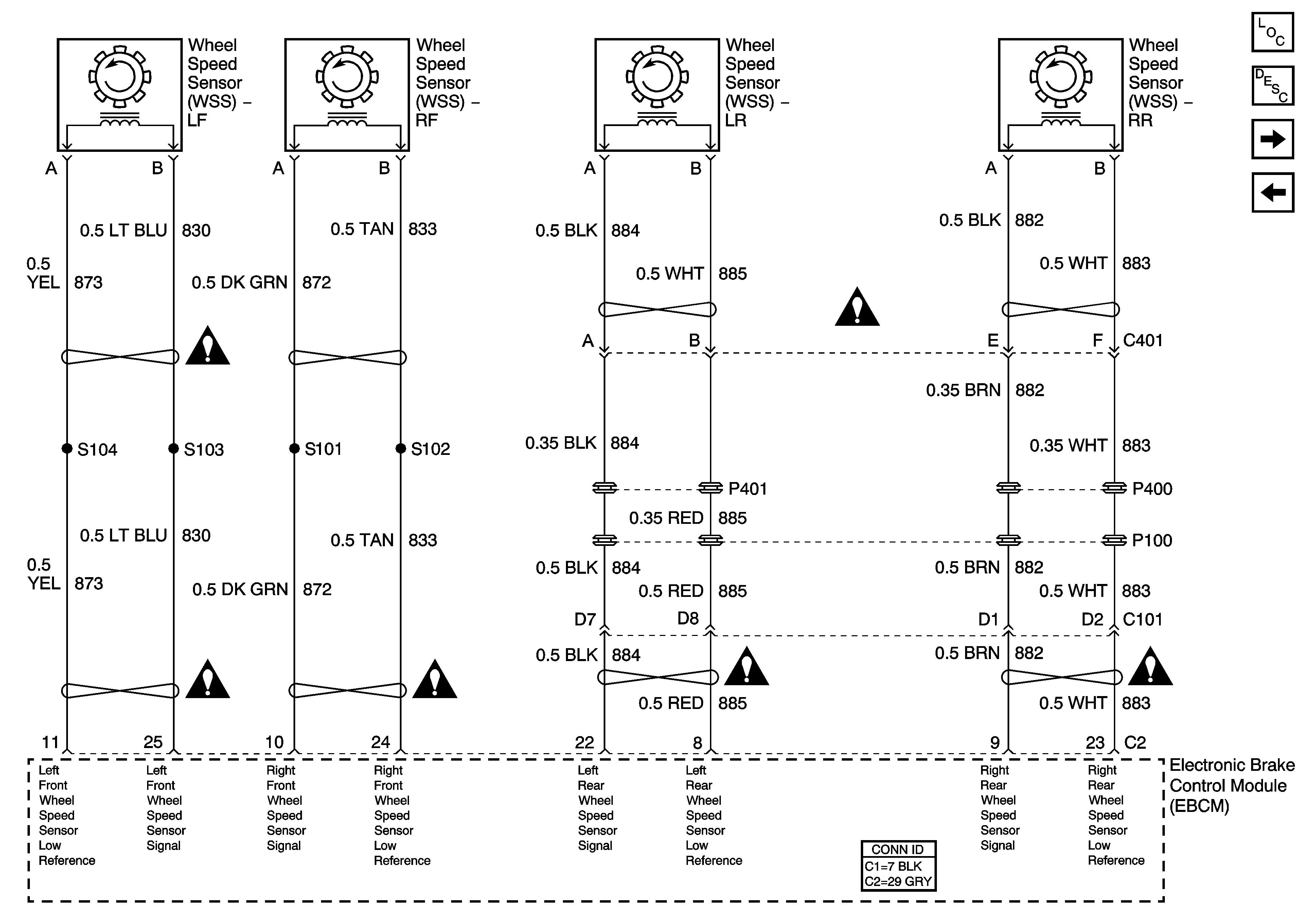

Figure 4:	Wheel Speed Sensors - 4.6L Master Electrical Component List ABS Description and Operation Vehicle Stability Enhancement System (JL4) Wheel Speed Sensors - 3.8L Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons Antilock Brake System Schematic Icons

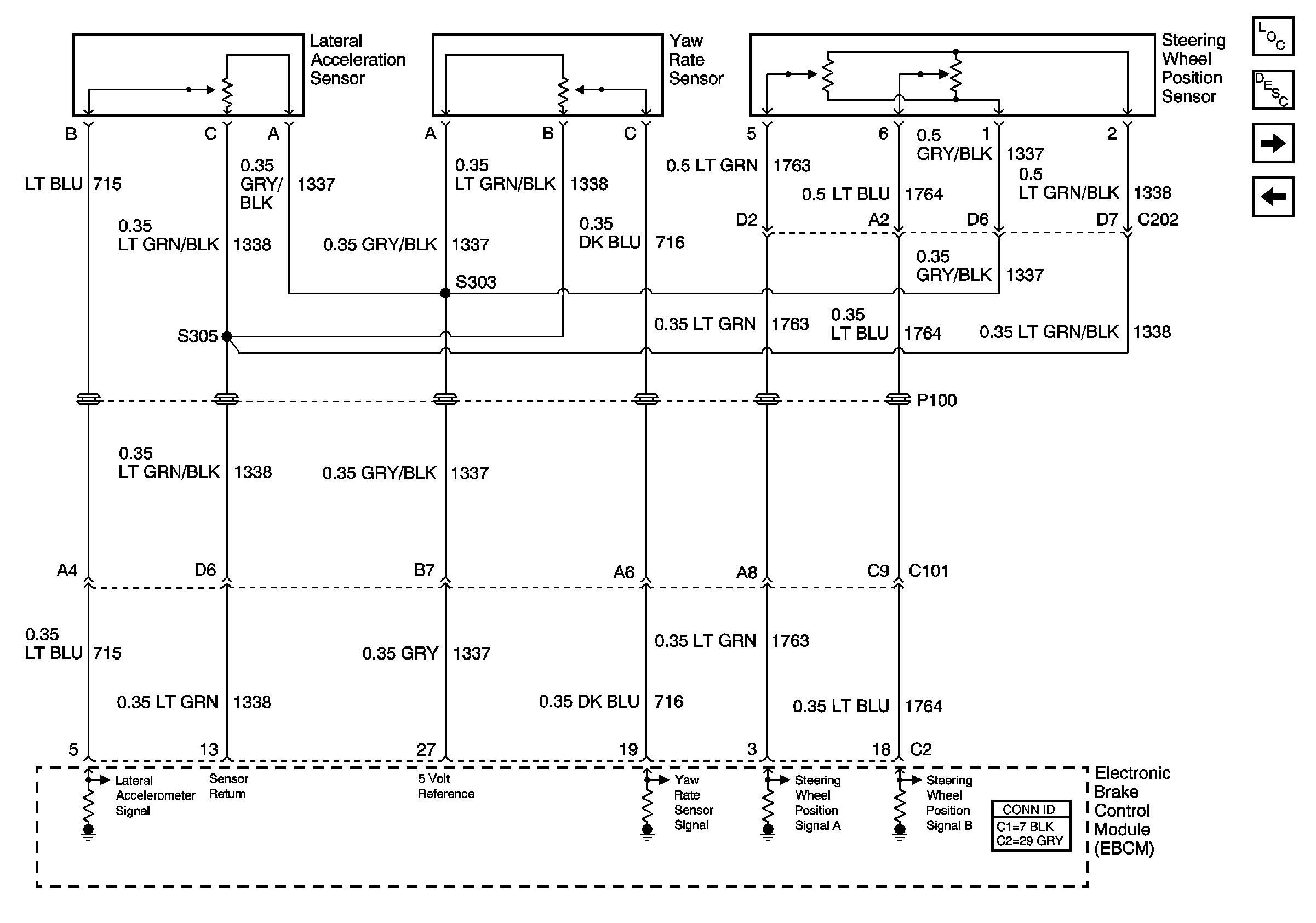

Figure 5:	Vehicle Stability Enhancement System - JL4 Master Electrical Component List ABS Description and Operation Traction Control (NW9) Wheel Speed Sensors - 4.6L

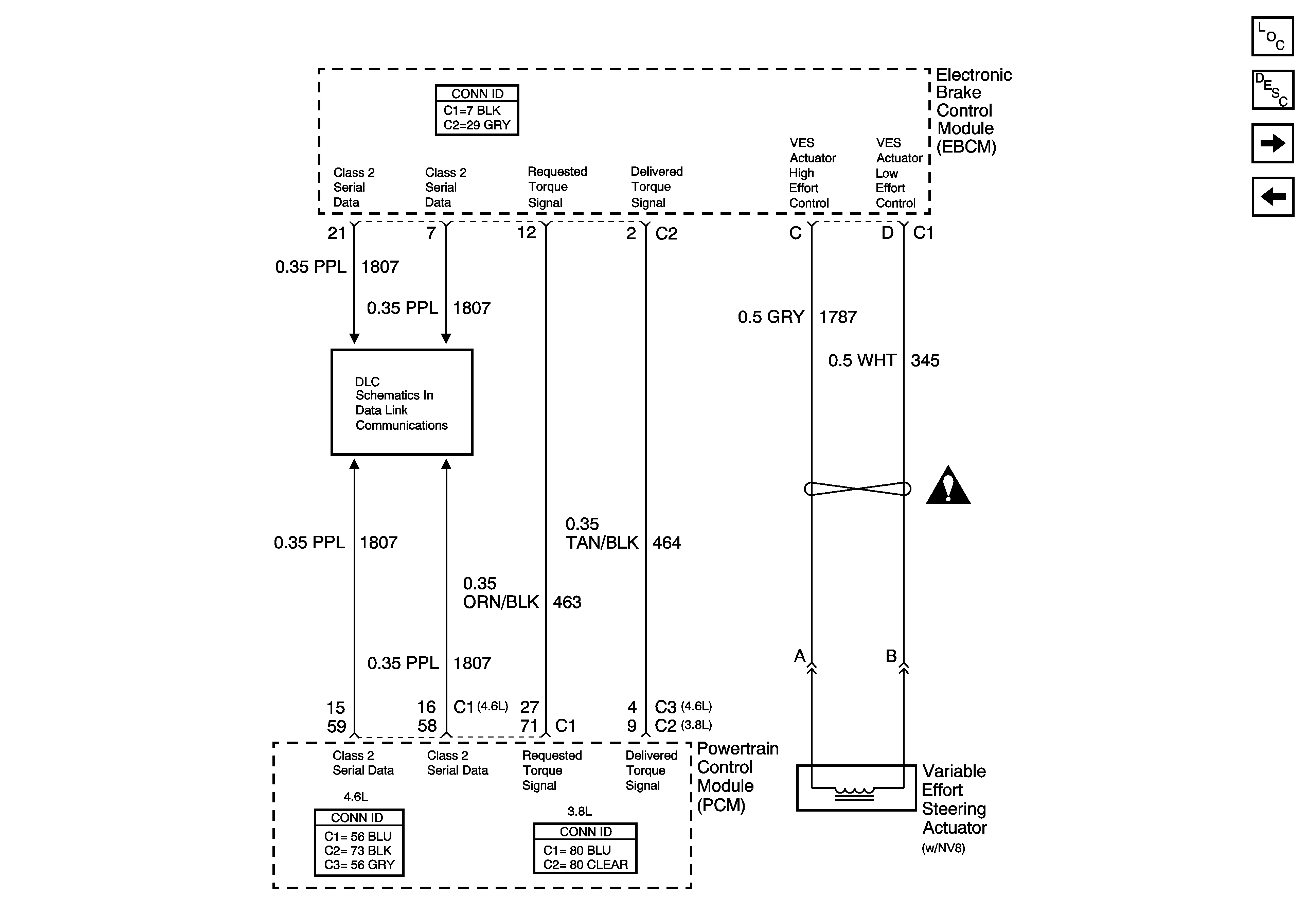

Figure 6:	Traction Control - NW9 Master Electrical Component List ABS Description and Operation Indicators and the Traction Control Switch Vehicle Stability Enhancement System (JL4) Serial Data Class 2 Antilock Brake System Schematic Icons

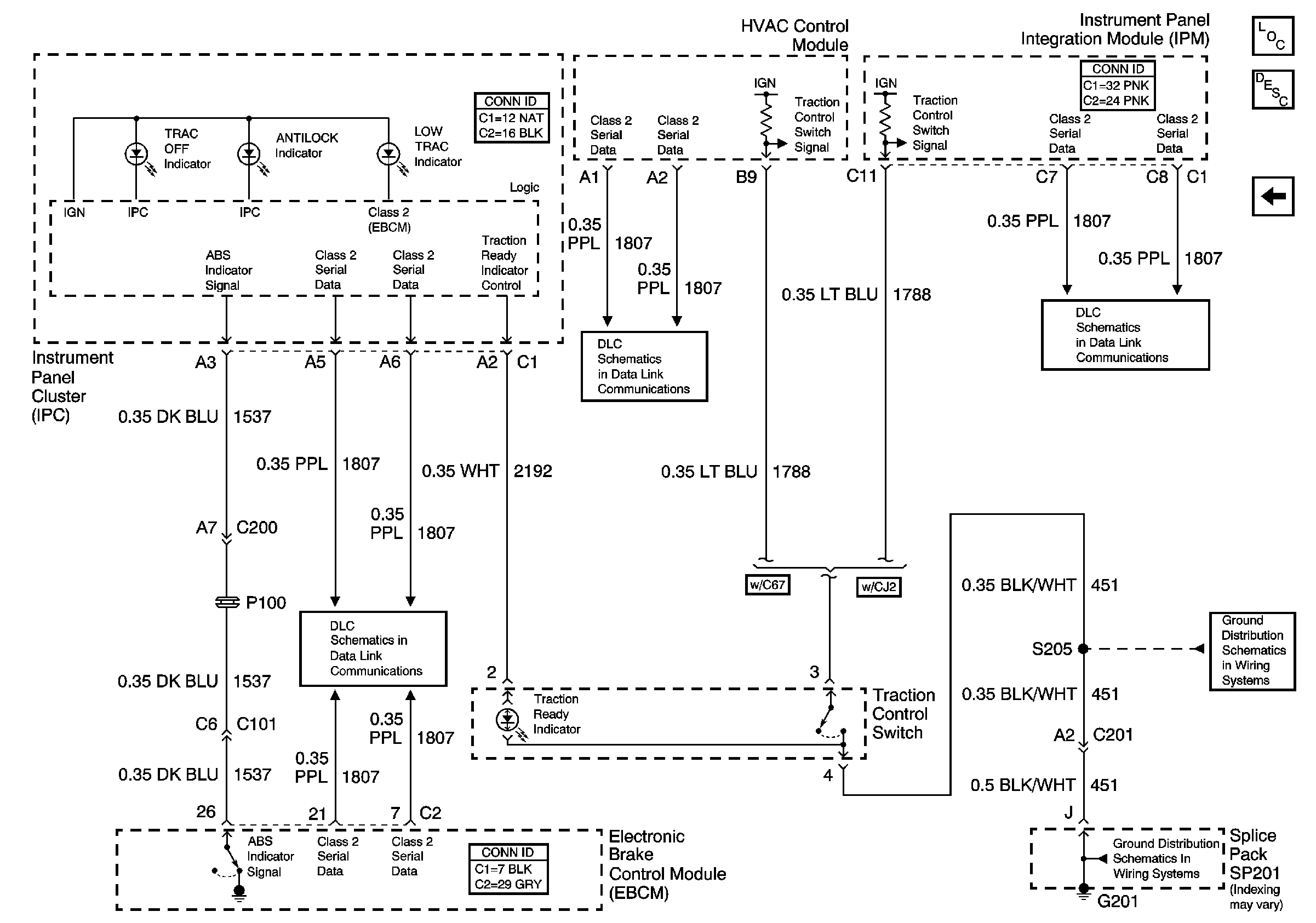

Figure 7:	Indicators and the Traction Control Switch Master Electrical Component List ABS Description and Operation Traction Control (NW9) Serial Data Class 2 Serial Data Class 2 Serial Data Class 2 G201 - 2 of 2 G201 - 2 of 2
